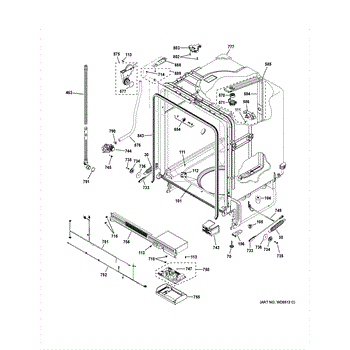

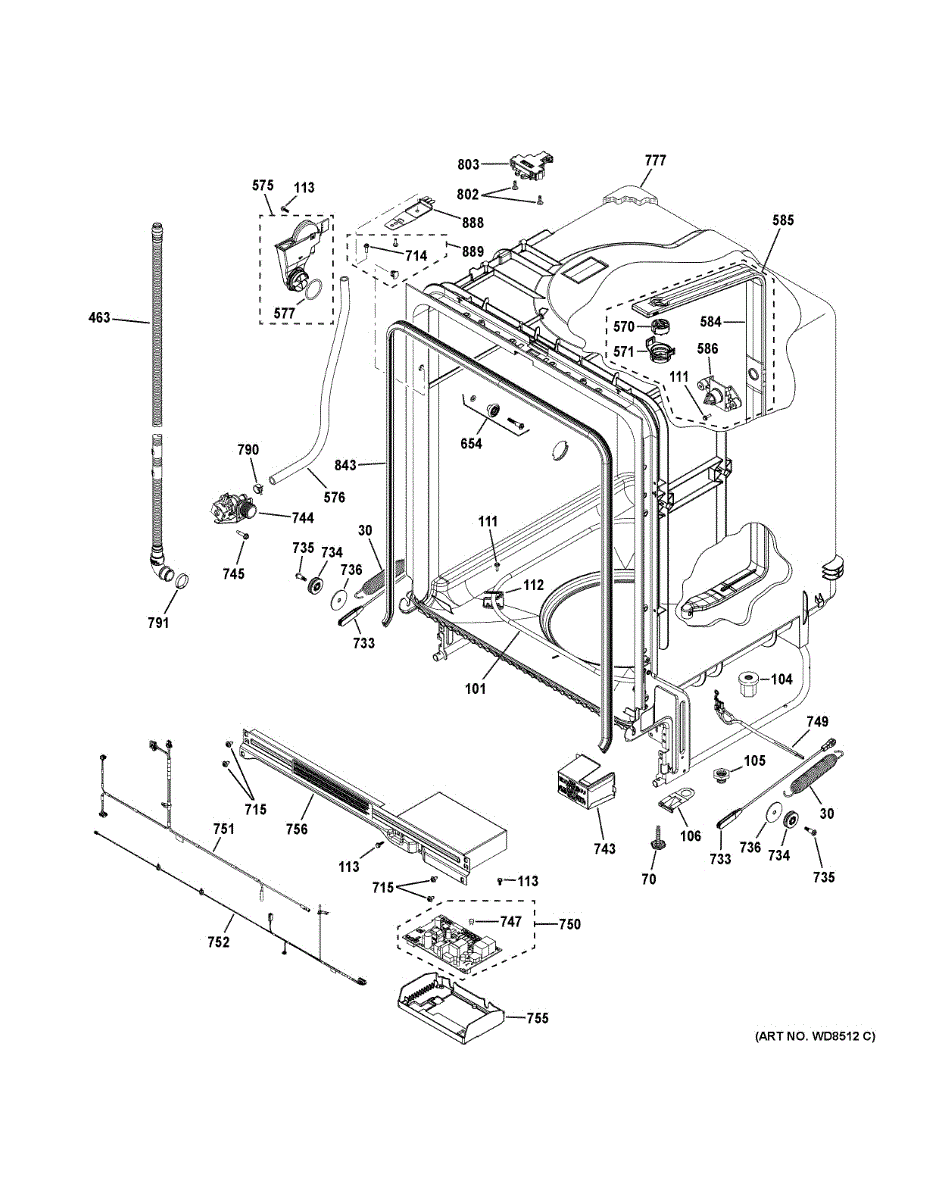

Parts for Ge GDF530PGM6BB: Body Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This dishwasher door spring counterbalances the door so it opens smoothly and doesn't drop. Replacing a fatigued or broken spring restores proper door action, prevents sudden slamming, and reduces stress on the hinges and link components.

• Provides the tension that counterbalances the door's weight during opening and closing
• Helps prevent the door from dropping quickly or feeling unusually heavy
• Supports smooth, even movement within the door hinge/counterbalance system
• Common signs of failure: door falls open, won't stay partially open, or binds/squeaks while moving

• Disconnect power and shut off water before servicing; wear gloves and eye protection
• Remove the toe-kick to access the spring and hinge area
• Support the door; carefully relieve spring tension and transfer the spring to the same anchor points as the original
• Test door balance and motion before reinstalling the toe panel

The Bearing Slide Assembly is an OEM component for GE electric clothes dryers. As an integral part of the dryer tumbler system, this assembly includes the bearing slides that allow smooth rotation of the tumbler drum during drying cycles.

Symptoms of faulty bearing slides include:

• Abnormal vibrations or shaking of the dryer cabinet
• Noisy operation that gets louder over time
• Rubbing or grinding sounds coming from inside the machine
• Reduced tumbler movement or inability to manually turn the drum

Causes involve general wear of plastic bearing surfaces from years of drum rotation as well as potential damage or misalignment from excess stress on the slides.

This GE OEM replacement helps maintain balanced tumbler movement. Compatible with Hotpoint, RCA, and some Kenmore dryers using the bearing slide assembly design.

The Heating Element is an OEM replacement part for GE dishwashers. It is responsible for heating the water during wash cycles and assisting in drying dishes at the end of the cycle. The heating element ensures optimal cleaning and drying performance by raising the water temperature and promoting evaporation.

Over time, heating elements can fail due to wear, mineral buildup, or electrical issues. A malfunctioning element may result in poor cleaning or drying performance.

Symptoms of a bad heating element include:

• Dishes remaining wet after the drying cycle
• Water not heating adequately during the wash cycle
• Error codes related to temperature or heating issues
• Visible damage, such as cracks or corrosion on the element

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This heater nut secures the dishwasher's heating element where it passes through the tub, helping maintain a tight connection and proper positioning. Replacing a damaged or missing nut can help prevent leaks and keep the element stable.

• Fastens the heating element to the tub from below to hold it firmly in place
• Helps support a watertight connection at the element pass-through when used with the proper seal
• Replace if the nut is cracked, heat-damaged, stripped, or missing
• Common symptoms include water leaking under the unit near the heater terminals and a loose or wobbly heating element

• Disconnect power at the breaker and shut off water before servicing
• Access the nut from beneath the dishwasher; remove the toe-kick and pull the unit forward if needed
• Support the element from inside the tub while tightening; snug gently and do not overtighten to avoid damage
• Restore power/water and run a short cycle to check for leaks

The screw is an OEM replacement component for GE dishwashers. It is used to securely fasten parts inside the dishwasher tub assembly.

Causes of a damaged or defective screw usually involve wear from continuous mechanical stresses and vibration during dishwasher usage. Loose parts affect machine balance and performance.

Symptoms of a compromised screw placement include:

• Noises or abnormal sounds coming from inside the tub
• Intermittent error codes related to moving components
• Detached or misaligned spray arms or filters
• Insecure tub fixtures that can be jarred with normal operation

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This twist-lock clip secures the dishwasher's heating element to the tub floor, keeping it properly positioned for effective water heating and drying. Replacing a broken or missing clip stops rattles and keeps the element stable during cycles.

• Locks the heating element to the tub/base with a twist-to-secure design
• Maintains correct element alignment and clearance
• Helps reduce rattling or scraping noises from a loose element
• Common signs: element sagging or out of place, broken/missing clip, poor drying results

• Disconnect power at the breaker and allow the heating element to cool before servicing
• Remove the lower rack to access the clip on the tub floor
• Rotate the old clip to release; position the new clip over the mounting slot and twist to lock
• Ensure the element is fully seated in the clip and not contacting the tub or spray arm

This high loop drain hose creates the required elevated drain loop to help prevent dishwasher backflow and ensure proper drainage. It replaces a worn or damaged drain loop and restores correct drain routing for reliable performance. What it does:

• Forms the high loop in the dishwasher drain line to reduce risk of sink water siphoning back into the appliance
• Directs wastewater from the dishwasher into the household drain properly
• Helps avoid intermittent draining issues caused by a collapsed or split drain loop
• Fits into existing drain connections—used where an elevated drain loop is required

• Designed for in-line replacement; route the hose to create a high loop secured under the countertop or cabinet as shown in the appliance installer instructions
• Turn off power and water supply to the appliance before performing service
• Inspect clamps and fittings and replace if corroded; ensure all connections are snug but not over-tightened

This upper wash impeller circulates water to the upper spray system during the wash cycle, helping deliver thorough cleaning across dishes on the upper rack and throughout the tub.

• Drives water flow to the upper spray arm/manifold
• Worn or damaged impeller can cause weak spray, poor cleaning, or longer cycle times
• Physical damage (warping, cracks, stripped splines) warrants replacement

• Disconnect power and water before servicing
• Access is typically through the sump/pump area; note impeller orientation during removal
• Inspect mating parts (seal, hub, shaft/splines) and replace if worn
• Hand-tighten fasteners to OEM guidance and verify free rotation before reassembly

The Hub is an OEM replacement part for GE dishwashers. It is the central mechanism which attaches to the tub and facilitates rotation of the upper spray arm above dishes.

Causes of a bad hub include wear from years of repeated rotation, accumulation of hard water scale deposits inside moving parts, or accidental impact damage. This reduces proper function over time.

Symptoms of a bad hub include:

• Loud clunking or grinding noises from the center mechanism
• Reduced cleaning performance on upper racks or portions of dishes
• Dishes showing water spots or soil in sections not adequately rinsed
• Inability to attach or move the upper spray arm assembly smoothly

This OEM GE hub replacement is also compatible with Crosley, and KitchenAid models.

This dishwasher fill funnel guides water flow into the appropriate channel, helping ensure proper distribution during wash cycles. Replacing a warped or damaged funnel can prevent leaks and restore consistent spray performance.

• Directs water into the dishwasher's internal water feed path
• Helps maintain correct water pressure for spray arms
• Common failure signs: leaking at the funnel area, poor spray performance, residue on dishes, or misalignment with the water feed tube
• Physical damage, warping, or a loose fit are typical replacement indicators

• Disconnect power and turn off water supply before servicing
• Access from inside the tub; remove any retaining screws or clips
• Inspect and reuse existing hardware/seals if still in good condition
• After installation, run a short cycle and check for leaks or misalignment

Replacement fill funnel hose that routes incoming water into the appliance's fill system. Restores proper water flow to the fill inlet and helps stop leaks at the funnel connection when the original hose is cracked or worn. What it does:

• Channels incoming water from the inlet to the appliance fill assembly.
• Replaces cracked, split, or collapsed funnel hoses that can cause leaks.
• Common symptoms it can fix: water leaking at the funnel connection, slow or incomplete fill, water pooling beneath the appliance.
• Simple direct-replacement part—matches the original funnel hose routing and connection points.

• Always disconnect power and shut off the water supply before servicing the appliance.
• Inspect mating fittings, clamps, and seals; replace clamps or seals if corroded or damaged.
• Use basic hand tools to remove and secure hose clamps; avoid twisting or kinking the hose during installation.

This replacement O-Ring restores a watertight seal at an internal dishwasher connection, helping stop leaks and protect surrounding cabinetry. Replace a hardened, cracked, or flattened seal to maintain reliable wash performance and prevent water damage.

• Creates a watertight seal between mating parts inside the dishwasher
• Helps prevent drips and leaks during fill, wash, and drain cycles
• Addresses leaks caused by a worn, flattened, or damaged seal
• Visual clues: cracks, brittleness, deformation, or mineral trails at the joint

• Disconnect power and shut off the water supply before servicing
• Access the affected connection and remove the old O-ring
• Clean the groove and mating surfaces; lightly lubricate with food-grade silicone grease; seat evenly without twisting or pinching
• Reassemble and run a brief test cycle to check for leaks

This main conduit is a molded protective channel that routes and shields the appliance's wire harness to help prevent chafing and moisture exposure. It keeps wiring organized for safer, more reliable operation. What it does:

• Protects wiring from abrasion, pinching, and contact with sharp edges
• Keeps harness routed neatly to reduce strain and prevent snagging
• Helps limit exposure to moisture and debris around electrical connections
• Can be replaced when conduit is cracked, split, or missing to restore proper protection

• Disconnect power to the appliance before beginning any work
• Remove access panels as needed to reach the existing harness conduit
• Slide or snap the conduit into place, ensuring the harness is fully seated and not pinched
• Inspect wiring for damage; repair or replace any frayed insulation before reassembly

Replace a worn or broken tub roller with this Tub Roller and Stud Assembly. It mounts to the dishwasher tub wall to guide the rack smoothly, preventing dragging, binding, or derailment when loading and unloading.

• Mounts on the tub sidewall to provide a smooth glide point for the dish rack
• Restores easy rack movement and can reduce squeaking or scraping noises
• Helps keep the rack aligned and prevents it from jumping off track
• Typical signs of failure: cracked/broken wheel, missing/bent stud, rack difficult to slide

• Disconnect power and water supply before servicing; wear cut-resistant gloves.
• Pull the rack out to access the roller location inside the tub.
• Remove the old roller and stud (retainer/tab/screw varies by model) and install the new assembly in the same orientation.
• Slide the rack in and out to confirm smooth movement before returning the appliance to service.

Size: 10-32 GXTT FLP.595 S

This is a machine screw used to secure dishwasher components. The 10-32 thread and 3/8-inch length with an integrated hex washer head provide a firm, vibration-resistant hold to keep parts properly fastened.

• Secures brackets, panels, or internal assemblies in the dishwasher
• Helps prevent looseness, rattling, or misalignment during operation
• Common symptoms of a missing/stripped screw include panel movement, vibration, or loose mounting points

• Disconnect power and shut off water before servicing
• Use the correct nut driver or socket to avoid stripping the head
• Replace any damaged or missing screws in matching locations
• Do not overtighten; snug to manufacturer's torque guidance when available

The Door Cable is an OEM part for GE dishwashers, designed to support and assist in the smooth and controlled opening and closing of the dishwasher door. This cable connects the door to the spring mechanism, providing the necessary tension to balance the door's weight during operation.

Signs that you might need to replace the Door Cable include the door suddenly dropping open or being difficult to raise, indicating a break or excessive wear.

Symptoms of a bad Door Cable include:

• The dishwasher door slamming open or requiring extra force to close.
• Unusual noises when opening or closing the door, suggesting the cable is not running smoothly.
• Difficulty in keeping the door partially open, affecting loading and unloading dishes.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Door Hinge Pulley is an OEM part for GE dishwashers. This part works with the door springs and cables to provide smooth and balanced movement. This pulley ensures that the door operates efficiently, making it easy to load and unload dishes.

Causes of a bad door hinge pulley can include wear and tear from regular use, accumulation of debris or grease, or damage from accidental impacts.

Symptoms of a bad door hinge pulley include:

• The dishwasher door not staying open or closed properly
• Difficulty in opening or closing the door
• Unusual noises during door operation, such as squeaking or grinding
• The door feeling loose or unbalanced

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This 10-32 x 1/4-inch zinc-plated screw secures internal panels and hardware in select dishwashers. Replace a missing, stripped, or corroded fastener to restore a tight fit and help prevent vibration or loosening during operation.

• Fastens brackets, panels, or components that use a 10-32 machine thread
• Replaces hardware that is missing, stripped, or rusted
• Helps reduce rattling or vibration from loose assemblies
• Supports proper component alignment for reliable operation

• Disconnect power and water supply before servicing the appliance
• Remove the old fastener and verify thread size and length match before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace damaged clips, nuts, or inserts that won't hold a 10-32 screw securely

The Friction Washer is an OEM component specifically designed for GE dishwashers. This friction washer is a thin circular part that creates resistance through surfaces rubbing together. It is often used beneath a mounting nut to prevent components from loosening during operation.

Symptoms of a bad friction washer include loose or separating connections where the washer is installed, such as:

• Drain pump mounting fittings that become detached
• Water connections that leak at the threaded joints
• Door handle mounts that allow play in the mechanism

Causes of failure can be cracks, wear or deformities in the washer that reduce its friction capabilities over time. Vibrations from use may also cause premature wear.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This dishwasher junction box cover encloses the power-connection compartment at the base of the unit. Replacing a damaged or missing cover helps protect wiring from debris and accidental contact, restoring a safe, secure connection area. What it does:

• Covers and secures the dishwasher's electrical junction box
• Helps shield wire splices from moisture, dust, and accidental contact
• Restores proper fit when the original cover is cracked, broken, or missing
• Useful if the junction box won't stay closed or the cover no longer secures properly

• Includes 1 junction box cover

• Disconnect power at the circuit breaker before servicing
• Remove the lower access/kick panel to reach the junction box
• Remove the old cover and screw, position the new cover, and secure with the existing hardware
• Ensure all wiring and the strain relief are fully inside the box before closing; restore power and test

The Water Valve Assembly is an OEM replacement part for GE dishwashers. This valve assembly controls the flow of water into the dishwasher during each cycle stage. It regulates water temperature and volume to the desired wash and rinse settings.

Causes of a bad water valve can include mineral buildup interfering with valve function, worn internal seals, or obstruction in the valve inlet or outlet ports.

Symptoms of a bad water valve include:

• Incorrect or inadequate water levels during the cycle
• Inability to reach proper wash or rinse temperatures
• Water not shutting off fully between cycles
• Leaks from the water inlet area

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models

This 10-32 x 9/16 machine screw secures dishwasher components and panels. Replacing a missing or stripped fastener restores a tight fit, reduces vibration/rattles, and keeps assemblies properly aligned for reliable operation.

• Secures panels, brackets, or internal assemblies using a 10-32 machine thread
• Replaces lost, corroded, or stripped screws
• Can help resolve looseness or rattling from a loose mounting point
• Correct 9/16-inch length helps maintain proper spacing and alignment

• Disconnect power at the breaker before servicing
• Use the appropriate driver for the screw head; start threads by hand to avoid cross-threading
• Tighten snugly but do not overtighten to prevent stripping threads or damaging mating parts
• Compare to the original fastener to matching thread and length

• Thread size: 10-32
• Length: 9/16 inch

The 4.1 Amp Control Board Fuse is an OEM replacement part for GE dishwashers. This fuse is integrated into the control board, acting as a safety device that protects the dishwasher's electronic components from potential overcurrent situations. Blowing or breaking the circuit during electrical surges prevents damage to the control board and other sensitive components.

Causes of a blown fuse include power fluctuations or component failures causing excessive current draw. Over time, fuses may degrade from continued cycling.

Symptoms of a bad fuse include:

• Lack of power to control board and components it supplies
• The inability of the dishwasher to turn on or progress through cycles
• Potential electrical issues if surge currents are not limited

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Configured Machine Control Board is an OEM part for GE dishwashers. As the central processing unit, it operates all wash cycle functions and ensures communication between electronic components.

Symptoms of a failed control board include:

• Fault codes displayed
• Non-responsive buttons and displays
• Inability to initiate or advance cycles
• Drainage, heating or motor errors

Causes can be physical damage, electrical surges compromising electronics, or simply wear over time degrading circuitry performance.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The AC Harness Assembly is an OEM part for GE dishwashers. As an integral part of the electrical system, this harness is designed to safely connect and supply power to critical components underneath the tub.

Causes of failure involve cracked insulation, damaged connectors, or grounding problems developing over extended use.

Symptoms of a faulty harness include:

• Intermittent operation of systems or cycles
• Error codes related to electrical malfunctions
• Loose, detached, or rubbed wires exposing live circuits

This OEM GE replacement is also compatible with select Hotpoint, RCA and select Kenmore models.

The DC Wire Harness Assembly is an OEM part for GE dishwashers. It provides proper electrical connections within the dishwasher, allowing parts to receive electricity to operate effectively. It connects the main control board to other important components such as the motor, pump, and sensors.

A bad DC wire harness assembly can lead to electrical malfunctions or failures within your dishwasher. Causes of a bad wire harness can include wear and tear over time, exposure to moisture or heat, or damage.

Symptoms of a bad DC wire harness assembly include:

• Intermittent or complete loss of power to the dishwasher
• Error codes or error messages displayed on the control panel
• Malfunctioning or unresponsive components such as the motor or pump
• Visible signs of wear, fraying, or damage to the wire harness

Replace your worn-out or damaged DC wire harness assembly with this genuine OEM GE part to restore your dishwasher.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


The Tub Insulation Blanket is an OEM part for GE dishwashers. This insulation blanket wraps around the dishwasher tub, helping to reduce noise during operation and improve energy efficiency by maintaining consistent temperatures inside the dishwasher.

Causes of a bad insulation blanket can include wear and tear over time, exposure to moisture, or damage from pests or improper installation.

Symptoms of a bad tub insulation blanket include:

• Increased noise levels during the dishwasher cycle
• Higher energy consumption or longer cycle times
• Visible damage or deterioration of the insulation material
• Excessive heat escaping from the dishwasher

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This dishwasher hose clamp secures internal hoses to pumps or fittings, helping prevent leaks and disconnections. Replace a weakened or damaged clamp to restore a tight, reliable seal at the connection.

• Provides clamping pressure to hold a hose on pump, sump, or drain fittings
• Helps stop water leaking at hose joints
• Resolves: loose or disconnected hoses, water under the unit/base, or poor draining from a slipped drain hose
• Replaces worn, rusted, or deformed clamps after service

• Disconnect power and turn off the water supply before servicing
• Pull the dishwasher forward as needed for access; place a towel or pan to catch residual water
• Seat the hose fully, then compress or tighten the clamp per its design; position just behind the hose barb bead
• Run a short cycle and inspect for leaks at the connection

The Clamp is an OEM replacement part for GE dishwashers. It holds and secures critical components such as tubing or hoses securely in place. Clamps play an important supporting role by fastening tubing and preventing kinking, both of which are essential for proper water flow and circulation within the dishwasher.

Causes of a bad clamp can include cracks, corrosion, or fatigue that causes the clamp to fail in its gripping function over time. Hoses or tubes may also wear down a clamp through constant vibration.

Symptoms of a bad clamp include:

• Leaks from hoses, tubes or connections
• Reduced water pressure or uneven spray patterns
• Moisture or water damage around connections
• Loose hoses that rub or chafe

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 8-18 AB TSQ 5/8 SS

The Door Latch is an OEM replacement part for GE dishwashers. It serves the critical function of securely keeping the door closed during wash cycles through its engaging bolt design.

Over extended use, aspects of the latch can degrade such as worn plastic catch areas, loosened screws, or a faulty latch hook mechanism. Causes are generally normal wear and tear.

Symptoms of a bad latch include:

• The door not closing fully or popping open accidentally
• Inability to fully lock or latch no matter how hard the door is pressed
• Damaged or stripped screws holding the mechanism

This OEM replacement part is compatible with Hotpoint, RCA and some Kenmore models as well.

The Tub Gasket is an OEM part for GE dishwashers. It is installed around the perimeter of the dishwasher door to create a water-tight seal during operation, effectively preventing water leaks. This gasket ensures that the dishwasher can maintain the necessary water level and pressure to clean dishes effectively, while also protecting your kitchen from water damage.

Causes of a bad Tub Gasket can include natural wear and tear from regular use, exposure to harsh cleaning chemicals that can degrade the rubber material, or improper installation leading to gaps or loosening.

Symptoms of a bad Tub Gasket include:

• Water leaking from around the dishwasher door
• Signs of mold or mildew on the gasket
• The gasket becoming hard or cracked
• Visible gaps between the gasket and the dishwasher door

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Countertop Mounting Bracket is an OEM part for GE dishwashers. It is used to secure the dishwasher to the underside of the countertop, ensuring stability and preventing movement during operation. This bracket is essential for maintaining the dishwasher's position and preventing it from tipping or shifting.

Over time, mounting brackets can become damaged or loose due to repeated vibrations, improper installation, or wear and tear. A compromised bracket may fail to hold the dishwasher securely, leading to potential operational issues and safety hazards.

Symptoms of a bad mounting bracket include:

• The dishwasher wobbling or moving during cycles
• Visible damage or bending of the bracket
• The dishwasher not being level or properly aligned with the countertop
• Increased noise or vibrations during use

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
