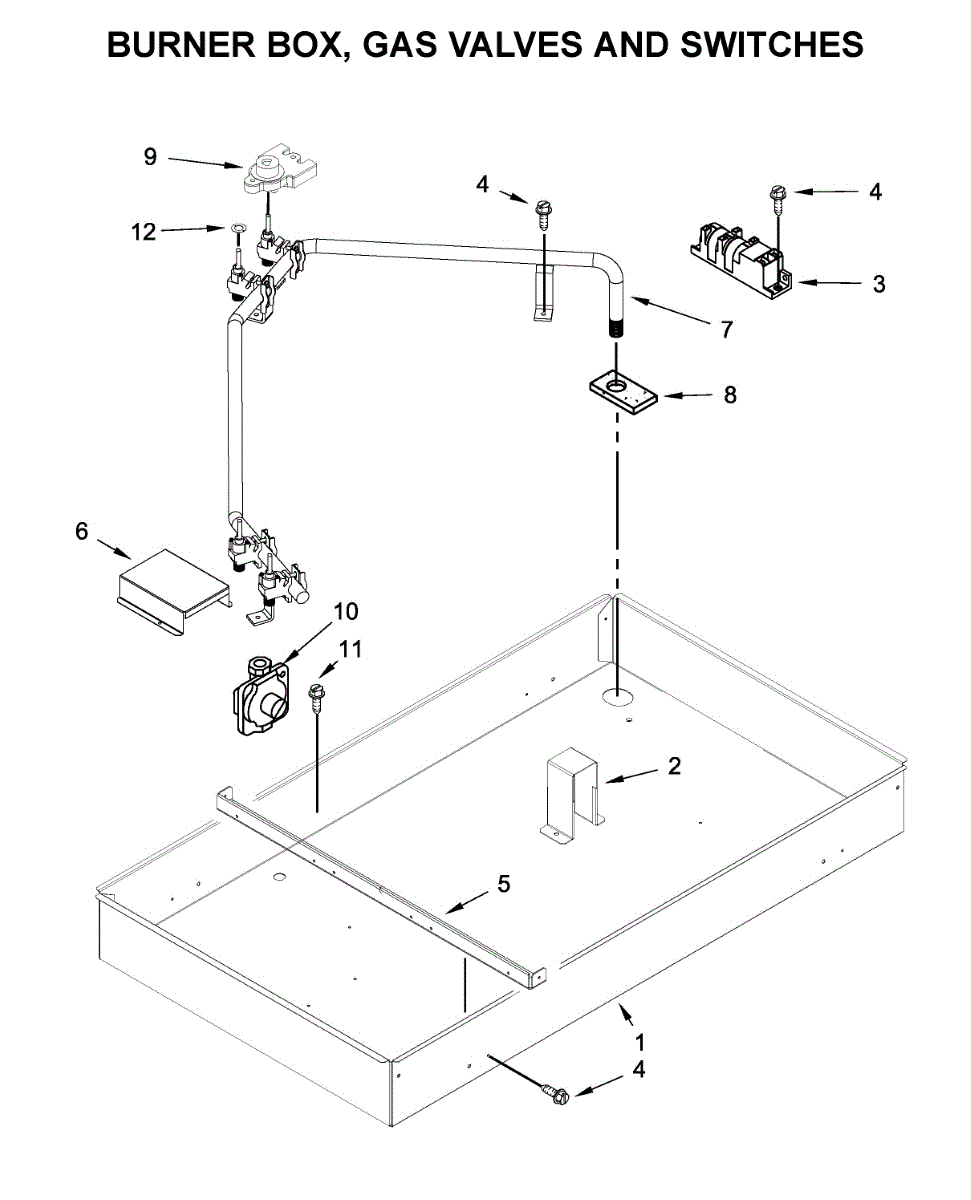

Parts for Jenn-Air JGC9430BDB16: Burner Box, Gas Valves And Switches Parts

This spark module controls ignition for four surface burners and provides automatic reignition if a flame goes out. It generates the high-voltage spark and monitors flame for dependable lighting and consistent cooktop performance.

• Generates high-voltage pulses to ignite up to four surface burners
• Senses flame presence and automatically re-sparks if a flame is lost
• Helps stop sparking once flame is detected to reduce clicking
• Symptoms this part is involved with include: no spark on any burner, intermittent or weak spark, or continuous clicking after lighting

• Disconnect power and shut off gas before servicing
• Access is typically under the cooktop or behind a panel; mount the module securely away from heat and moisture
• Transfer wires one at a time to matching terminals; ensure ground/neutral connections are secure for proper flame sensing
• After reassembly, restore power and test each burner for ignition and that clicking stops when flame is present

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This right-side burner switch controls heat output on the cooktop so burners respond correctly to your knob settings. It restores proper power and temperature control for a single right-side heating element. What it does:

• Replaces a worn or faulty right burner control to restore variable heat settings
• Enables proper on/off function and temperature regulation for the right cooktop element
• Commonly used when a burner won't heat, only works at certain settings, or cycles unexpectedly
• Works with ranges that use a separate switch for the right front/right rear heating element

• Disconnect power at the breaker before attempting any repair to avoid shock
• Handle wiring terminals carefully; verify connections match the original before reassembly
• Use proper tools and avoid overtightening mounting hardware to prevent damage

This burner switch controls the power and heat settings for a surface cooking element, restoring reliable on/off operation, accurate temperature selection, and consistent element cycling on compatible electric ranges. What it does

• Regulates electrical power to a surface burner so the element heats to selected settings and cycles to maintain temperature.
• Replaces a worn or failed switch that causes a burner to not heat, not respond to knob changes, or only work on certain settings.
• Stops intermittent operation or arcing at the switch caused by worn contacts.
• Helps resolve a burner that stays on or will not turn on when the switch is faulty.

• Always disconnect power at the breaker before starting any repair to avoid shock.
• Photograph and/or label wires before removal so you can reconnect terminals correctly.
• Handle terminals gently and ensure secure, tight connections; replace any damaged wiring or connectors.
• Test the range on all heat settings after installation; if you see arcing, burning smell, or continued malfunction, cut power.

This gas pressure regulator controls and stabilizes incoming fuel supply to the appliance's burner system, helping ensure consistent flames and reliable operation. Replace it if pressure is unstable or burners/oven won't heat or ignite correctly. What it does:

• Reduces household gas supply to the appliance-rated pressure for proper burner performance
• Maintains steady pressure as burner demand changes to prevent over/under-firing
• Helps prevent yellow, lifting, or flickering flames and sooting caused by pressure issues

• 1 gas pressure regulator

• Shut off gas supply and disconnect power before servicing
• Observe flow-direction arrow on the regulator body; install between supply and appliance manifold
• Use approved gas-rated thread sealant on threaded connections; do not overtighten
• After installation, check all joints for leaks with a non-corrosive leak-detection solution; correct any leaks before use

This large fiberglass burner gasket seals the gap between the cooktop and burner to help keep heat, spills, and debris away from internal components. Fits where a durable, heat-resistant edge seal is needed. What it does:

• Provides a heat-resistant seal around a large cooktop burner to help protect internal components.
• Helps reduce burner wobble and keeps the burner assembly properly seated.
• Limits spills and food debris from falling under the cooktop, simplifying cleanup.
• Can reduce heat and steam exposure to adjacent parts that may cause premature wear.

• Disconnect power and allow the cooktop to cool fully before attempting service.
• Remove the burner and old gasket per the range manufacturer's instructions; clean mating surfaces before installing the new gasket.
• Press the gasket into place so it sits evenly around the burner opening; avoid stretching or twisting the gasket.

This heat-resistant fiberglass gasket is used in ranges and wall ovens to seal between glass and metal panels. Replacing a worn gasket restores a tight thermal barrier to keep heat contained and support consistent cooking performance.

• Provides a high-temperature seal between mating oven components
• Helps maintain proper cavity temperature and efficient operation
• Cushions glass/metal interfaces to reduce vibration and wear
• Common symptoms: fraying, flattening, brittleness, gaps, hot air felt at seams, or discoloration near the joint

• Disconnect power and allow the appliance to cool completely before servicing
• Access the gasket path per your model; remove panels or the door if required
• Remove the old gasket and clean channels/surfaces of debris and residue
• Install the new gasket in the same orientation without stretching; seat fully in any clips/retainers as designed
