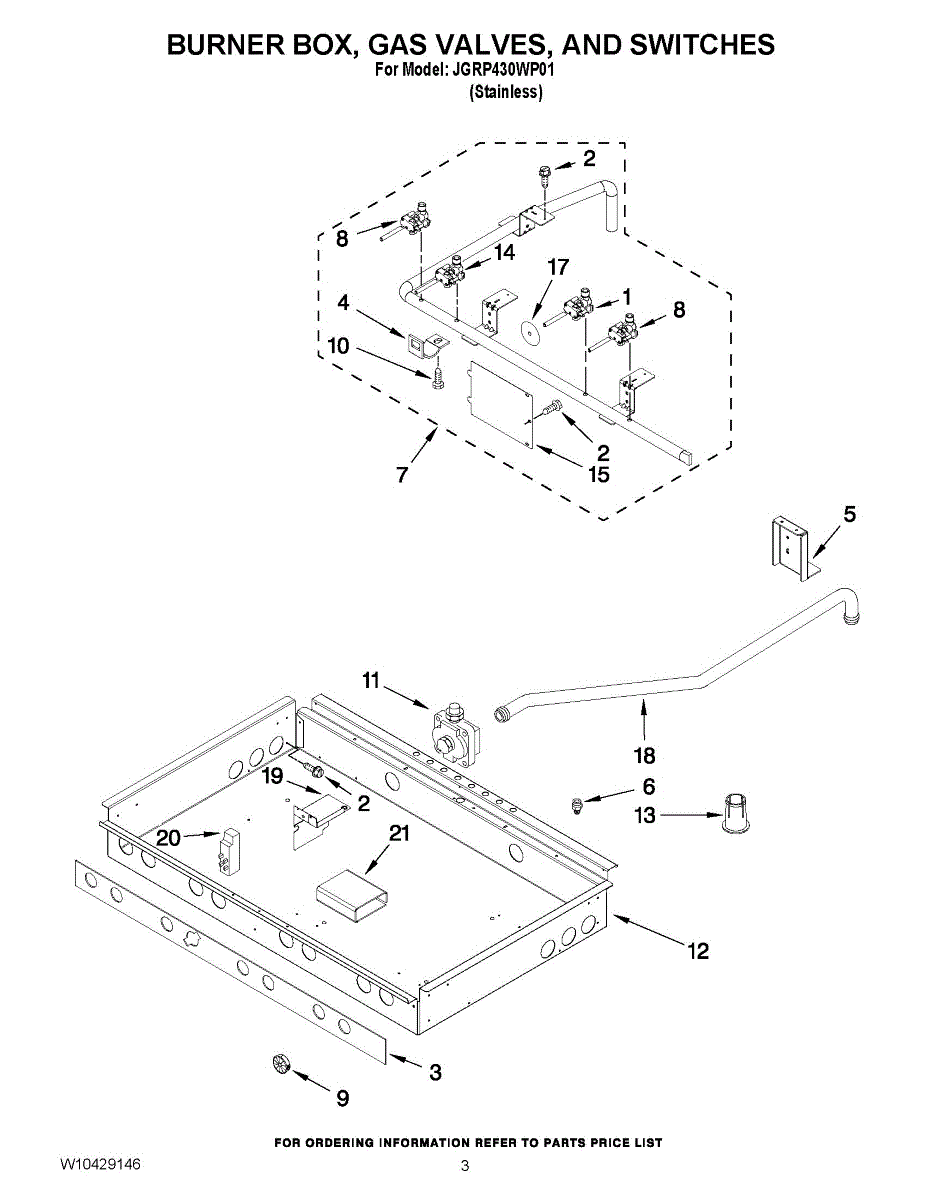

Parts for Jenn-Air JGRP430WP01: 02 - Burner Box, Gas Valves, And Switches Parts

This dual burner valve controls gas flow to two cooktop burners, restoring reliable ignition and heat control for gas ranges. It replaces a worn or leaking valve assembly to help stop burner failure and gas odors. What it does:

• Regulates gas flow to two burners so burners light and hold a steady flame
• Stops common symptoms like burners not lighting or weak/intermittent flames
• Helps prevent gas leaks when seals and valve seats are functioning correctly
• Used when clicking/ignition occurs but burners fail to sustain flame

• Shut off gas supply and power to the appliance before starting any repair.
• Inspect and replace any damaged gaskets or fittings; use proper thread sealant where required by the manufacturer.
• Tighten connections to specified torque and test all fittings for leaks with a soapy water solution or approved detector.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This burner valve controls gas flow to a single surface burner, restoring proper ignition and flame control for your cooktop. It's the OEM-style valve used where a single valve failed or leaks. What it does:

• Regulates gas flow to one surface burner so the burner lights and maintains a steady flame.
• Replaces a worn, stuck, or leaking valve that can prevent a burner from igniting or holding a flame.
• Helps correct low or inconsistent flame height caused by valve malfunction.
• Works with standard gas cooktop valve assemblies compatible with the listed part number.

• Turn off the gas supply and unplug the appliance before beginning any repair.
• Use proper fittings and thread sealant where required; check manufacturer guidance for torque.
• After installation, test for leaks with a safe leak-detection method (soapy water or a gas sniffer).

This pressure regulator controls and stabilizes the gas flow to the appliance, helping the burner maintain a steady, correct flame for reliable heating and cooking performance. What it does

• Regulates gas pressure to the appliance's burner assembly for consistent ignition and flame size
• Can correct low or uneven burner flames when the regulator is failing
• Helps prevent frequent burner shutdowns and poor temperature control linked to pressure issues
• Works as part of the appliance's fuel delivery system to ensure safe, steady operation

• One pressure regulator

• Turn off the gas supply and disconnect power before attempting service
• Use proper gas fittings and thread sealant rated for gas lines; check for leaks after installation

This single simmer burner valve controls gas flow to a single low/simmer burner, restoring consistent low-heat operation and safe flame adjustment. Direct-fit replacement when the simmer burner won't light or holds only high flame. What it does:

• Regulates gas flow to the low/simmer burner for stable, low-heat cooking
• Replaces a worn or leaking valve that can cause an uneven or nonfunctional simmer flame
• Helps stop slow gas leaks at the control port when the valve is faulty
• Works with the range/stove valve assembly to restore normal burner control

• One burner valve (single simmer)

• Turn off gas supply and unplug the appliance before servicing
• Handle gas components carefully; inspect and replace any damaged seals or gaskets
• Installation may require disassembling the cooktop and/or valve manifold

This spark module controls ignition for four surface burners and provides automatic reignition if a flame goes out. It generates the high-voltage spark and monitors flame for dependable lighting and consistent cooktop performance.

• Generates high-voltage pulses to ignite up to four surface burners
• Senses flame presence and automatically re-sparks if a flame is lost
• Helps stop sparking once flame is detected to reduce clicking
• Symptoms this part is involved with include: no spark on any burner, intermittent or weak spark, or continuous clicking after lighting

• Disconnect power and shut off gas before servicing
• Access is typically under the cooktop or behind a panel; mount the module securely away from heat and moisture
• Transfer wires one at a time to matching terminals; ensure ground/neutral connections are secure for proper flame sensing
• After reassembly, restore power and test each burner for ignition and that clicking stops when flame is present
