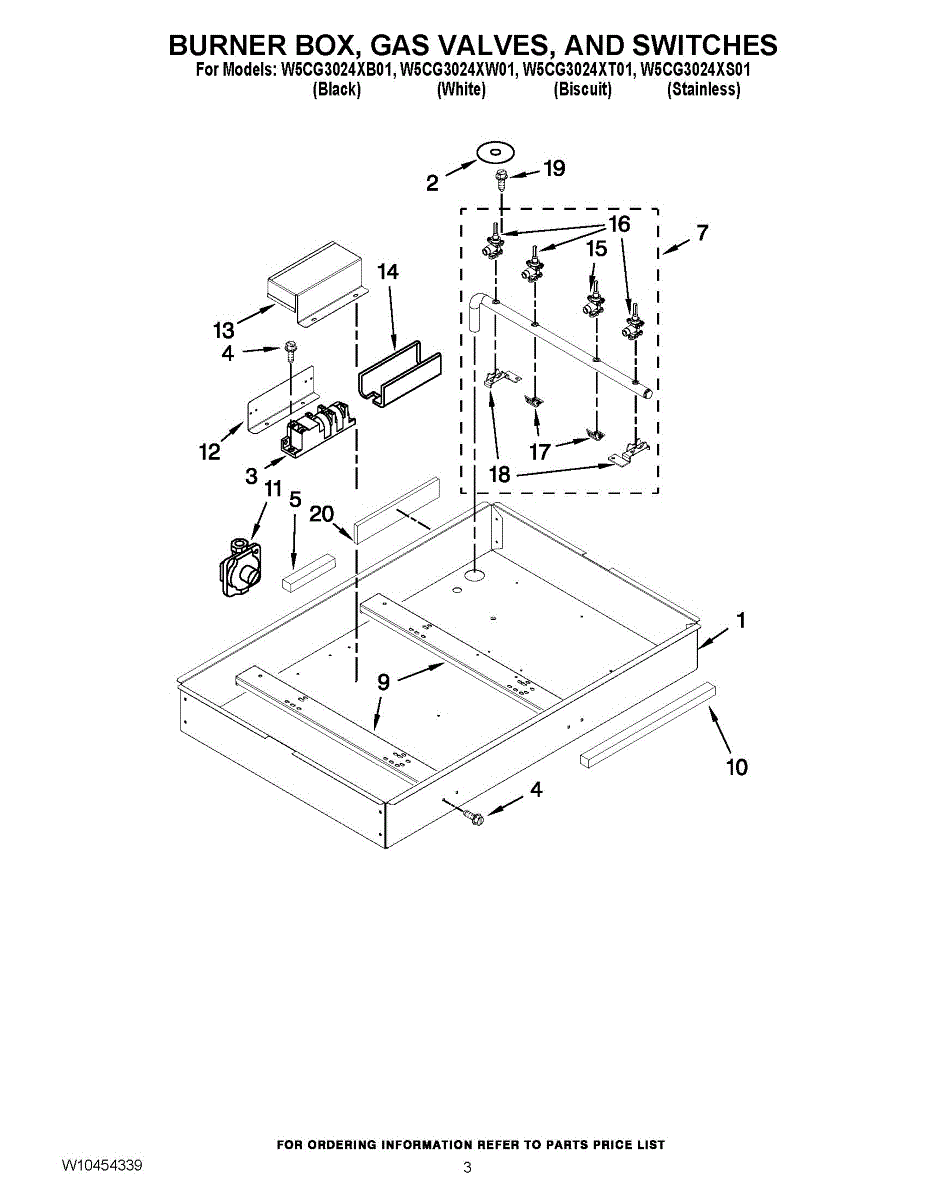

Parts for Whirlpool W5CG3024XT01: 02 - Burner Box, Gas Valves, And Switches Parts

Gas valve shaft seal.

The Whirlpool spark module is an OEM replacement part responsible for controlling the ignition and sparking of the gas burners in a Whirlpool range or cooktop. The spark module is typically located behind the control panel or near the burners, and it generates the electrical sparks needed to ignite the gas for cooking.

Causes of a bad module can include electrical surges, physical damage, or simply wear and tear over time.

This part fixes the following symptoms:

• Gas burners fail to ignite or have weak or inconsistent sparks
• Continuous sparking even after the burner is lit
• No spark at all when attempting to ignite the burners
• Unresponsive or non-functional burner control knobs
• Visible damage, such as burn marks or corrosion, on the spark module

The Whirlpool spark module can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Burner Valve is an OEM replacement part for Whirlpool gas cooktops. It is a critical component that regulates the flow of gas to individual burners on the cooktop surface. Each burner typically has its own dedicated valve, allowing for precise control and adjustment of the gas supply.

Symptoms of a bad Burner Valve include:

• Difficulty igniting or maintaining a consistent flame on the affected burner
• Uneven or irregular flame patterns
• Gas odors or leaks around the burner area
• Burner failing to light at all or extinguishing unexpectedly

Causes of a bad burner valve can range from buildup of debris or clogs obstructing proper gas flow, to mechanical issues such as worn-out valve components or failure of the valve's internal components. Over time, valves can also become damaged or corroded due to exposure to heat and moisture.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore gas cooktop models.

This burner valve controls gas flow to a single cooktop burner, restoring consistent ignition and flame control. Replacing a worn or leaking valve helps return reliable heat and proper burner performance. What it does:

• Regulates gas to one surface burner so the flame lights reliably and responds to control adjustments.
• Commonly fixes symptoms like a burner that won't light, weak or uneven flame, or erratic heat.
• A faulty valve can cause gas leaks or persistent ignition issues; replacing the valve reduces those risks.
• Works with the range/cooktop valve assembly to maintain safe, steady burner operation.

• Turn off gas supply and electrical power before attempting any service; if you smell gas, leave the area.
• Gas valve replacement is a high-risk repair.
• Inspect fittings, gaskets, and connections for damage and test for leaks after installation with an approved method.
• Do not force fittings; use correct replacement hardware and follow appliance manufacturer instructions.

The Screw is an OEM part for Whirlpool cooktop. It is a small yet vital component that joins together other parts of the range to create a cohesive appliance. The screw is responsible for tightly securing internal components like the oven cavity walls, heating elements, and outer door during operation.

Causes of a bad screw can include wear and tear over time due to repetitive heating and cooling cycles, or damage from handling that results in bending or stripping of the threads.

Symptoms of a bad screw include:

• Detached or damaged internal range components
• Issues with the door like misalignment or inability to latch securely
• Improper heat circulation and hot or cold spots in the oven
• Component malfunctions if mounting positions are compromised

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
