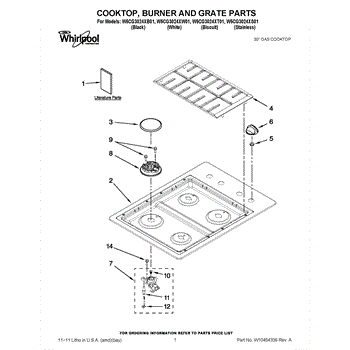

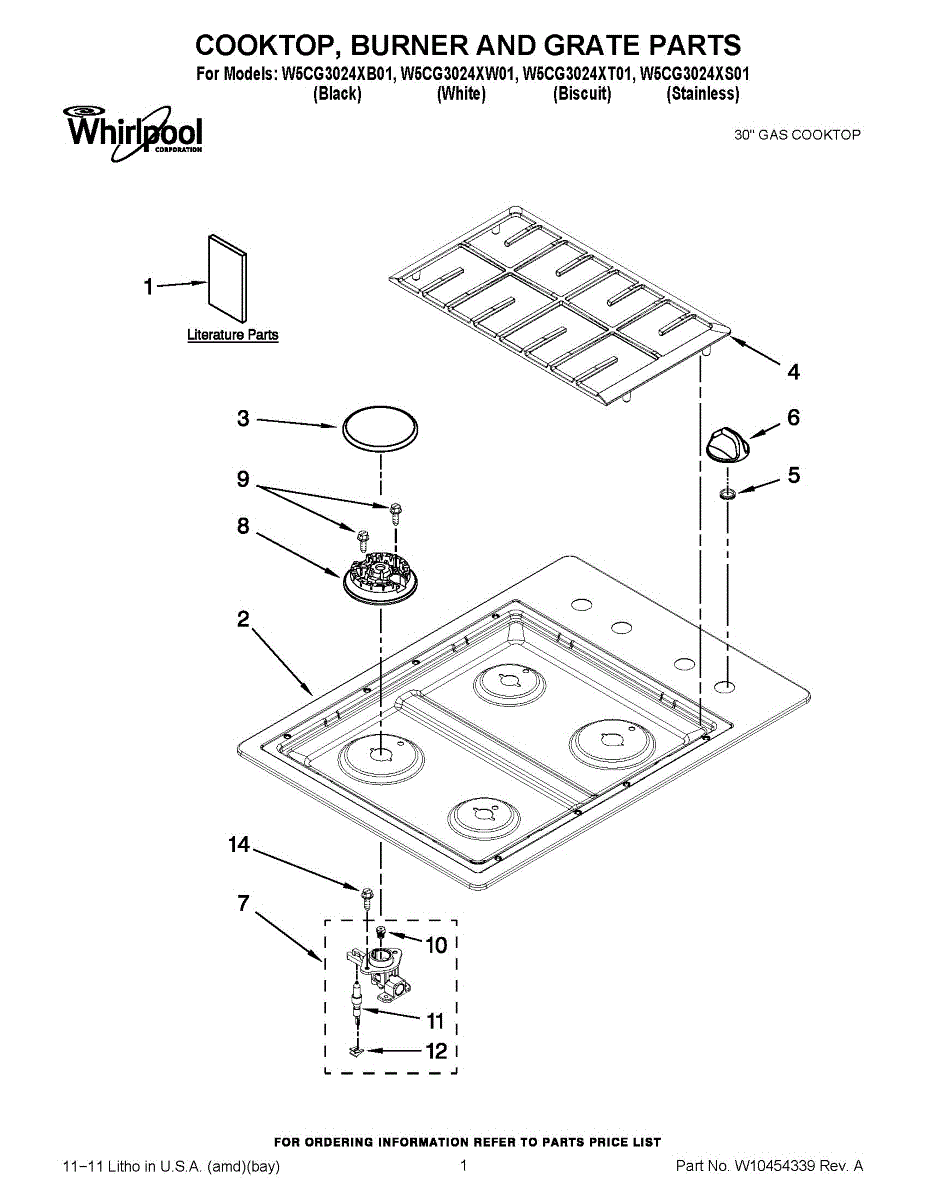

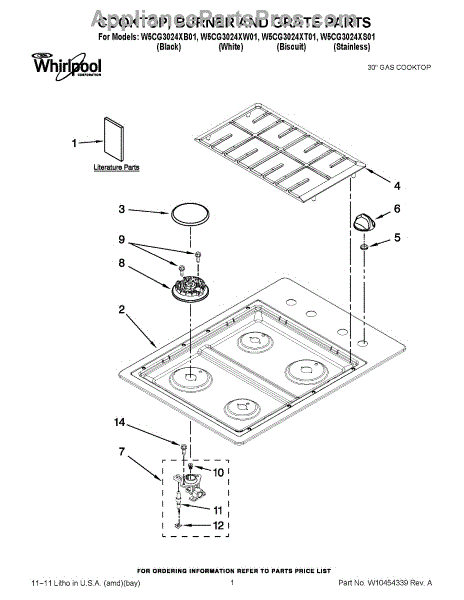

Parts for Whirlpool W5CG3024XT01: 01 - Cooktop, Burner And Grate Parts

This burner cap kit replaces the removable cap that sits over a gas range burner, restoring even flame distribution and protecting the burner head from spills and debris. It helps maintain efficient heating and a clean cooktop appearance. What it does:

• Covers and shields the burner head to prevent food and liquid from entering the burner assembly
• Promotes even flame pattern for more consistent cooking heat
• Reduces hot spots and helps prevent burner clogging from spills
• Restores the cooktop's finished appearance after a cracked or damaged cap

• Only basic hand tools are typically required; allow the range to cool completely before starting
• Remove the old cap by lifting straight up; set the new cap into place by aligning it on the burner head
• If the burner still flames unevenly after installation, check for and clean any debris from the burner head and ports
• Follow all safety precautions: disconnect power and gas supply or turn gas control to OFF before servicing

This replacement control knob provides a simple, reliable way to operate your appliance's settings. It restores a secure grip and clear pointer for accurate selection of temperature or function. What it does:

• Fits onto the control shaft to allow turning of temperature or function settings.
• Replaces cracked, stripped, loose, or missing knobs that are hard to grip or won't stay set.
• Provides a clear pointer for easier reading of dial positions.
• Restores normal manual control without needing a full console replacement.

• Disconnect power (or shut off gas) before servicing to avoid injury.
• Most knobs pull straight off the control shaft and push on the new knob until seated; align the pointer as needed.
• If the knob is tight or stuck, use steady, even force or a gentle pull tool; do not force at an angle.

This OEM Replacement Part is a Whirlpool-manufactured knob intended for ranges, stoves, and ovens. This part serves as a replacement for a lost, broken, or defective knob. The knob plays a crucial role in turning the stove on and off and adjusting the flame intensity from the burner head. It features a D-shaped shaft and requires no tools for replacement.

Causes of a bad knob can include wear and tear from frequent use, accidental damage from forceful turning or impact, or degradation of the internal mechanism that secures the knob to the control panel. A faulty knob can make it difficult to adjust settings or may prevent the appliance from operating correctly.

Symptoms of a bad Knob include:

• Knob not turning smoothly or slipping
• Difficulty in selecting or changing settings
• Knob falling off or not staying in place
• Cracks or visible damage to the knob

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Replacement burner head (flame spreader) that restores correct gas flow and flame pattern for reliable ignition and more even cooking. Use this part when a burner produces weak, yellow, or uneven flames or won't stay lit. What it does:

• Directs and evens the gas flame across the burner for consistent heating
• Helps correct poor ignition, intermittent flame, or burners that don't stay lit
• Reduces yellow or flickering flames caused by damaged or warped heads
• Works with the burner cap and orifice to restore proper combustion performance

• Turn off gas and electricity to the appliance and ensure the unit is cool before starting
• Remove burner grates and caps, then lift out the old burner head; replace with the new head and reassemble
• Hand-tighten only; avoid force that could strip fittings or damage alignment
• After installation, check ignition and inspect for leaks; if you smell gas, take appropriate action.

This burner head distributes gas evenly around the burner for a steady flame and reliable ignition. Replace a worn or clogged head to restore even heating, proper simmering, and consistent burner performance on your gas range or cooktop.

• Spreads gas from the orifice through ports to create an even, controlled flame ring
• Works with the burner cap and igniter/electrode for quick, consistent lighting
• Replace if ports are clogged, corroded, cracked, or warped causing uneven/yellow flames, delayed ignition, or popping
• Can help when the igniter sparks but the burner won't light or the flame won't spread

• Disconnect power and shut off gas; allow the surface to cool completely
• Remove the burner cap, then lift off the old head (some models use a retaining screw—reuse existing hardware)
• Align the new head with the orifice and igniter; seat fully and level
• Reassemble and test for proper ignition and flame; do not enlarge or clean ports with hard objects

This flame spreader sits between the burner base and cap to distribute gas evenly through the burner ports. Replacing a clogged or warped spreader restores reliable ignition and a steady, balanced flame for consistent cooking. What it does:

• Distributes gas to create an even, circular flame pattern
• Supports reliable ignition by positioning ports around the electrode
• Helps maintain proper heat output and flame stability
• Symptoms include uneven/weak flames, yellow flames, delayed ignition, or a burner that won't light

• One flame spreader

• Disconnect power and shut off gas; allow the cooktop to cool completely
• Remove grate and burner cap; lift off the old spreader (remove retaining screw if present)
• Align the new spreader over the orifice and igniter; seat fully and secure
• Do not clear ports with hard objects; use a soft brush and verify proper flame and ignition after reassembly

This M4 x 0.7 screw secures small appliance components like trim, panels, and brackets so parts stay aligned and stable. It's a direct-fit replacement designed to restore proper fastening where the original metric screw is missing or damaged. What it does

• Fastens panels, trim pieces, brackets, or small assemblies in place
• Replaces stripped, missing, or corroded metric M4 fasteners
• Helps stop rattling, misalignment, or loose parts caused by a worn screw
• Matches original thread pitch and head style for correct fit and engagement

• Use the correct screwdriver or bit to avoid stripping the head
• Thread gently and stop when snug; do not overtighten
• Keep small parts away from children and pets during installation

The Spark Electrode is an OEM part for Whirlpool gas ranges and cooktops. It is responsible for igniting the gas burner by generating a spark when the burner knob is turned to the ignite position, ensuring efficient and safe ignition of the gas.

Causes of a bad spark electrode can include exposure to high heat, accumulation of food debris, or wear and tear over time. These issues can prevent the electrode from producing a proper spark, leading to ignition problems.

Symptoms of a bad spark electrode include:

• Burner not igniting or taking longer to ignite
• Weak or no spark visible when igniting the burner
• Clicking sound without ignition
• Intermittent ignition problems

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This small mounting clip secures small panels and components on compatible Whirlpool appliances, restoring proper fit and preventing parts from coming loose. It's a simple replacement that helps stop rattles and misaligned panels. What it does:

• Secures trim, panels or small components to the appliance frame to maintain proper alignment
• Prevents parts from shifting or vibrating during operation, reducing rattling noises
• Restores fit where a broken or missing clip allowed gaps or loose pieces
• Designed to snap into place for a secure hold without added hardware

• One clip

• Disconnect power to the appliance before attempting any repair
• Remove any trim or panels carefully to access the clip location; note original orientation
• Press or snap the clip into the mounting slot until it seats; some locations may require a flat tool or light force
• Replace or repair the adjacent parts for a secure fit

This ground screw secures the appliance grounding conductor to the chassis for a reliable electrical ground connection, helping maintain safety and proper operation. It's a direct-fit fastener used where a dedicated ground screw is required. What it does

• Fastens the grounding conductor to the appliance frame to maintain a secure earth/ground connection.
• Helps prevent electrical shock and reduces risk of stray voltage on the chassis.
• Addresses symptoms like intermittent or absent grounding and loose or corroded ground connections.
• Used wherever the original equipment grounding screw has been lost, damaged, or corroded.

• Disconnect power at the breaker and unplug the appliance before starting any work.
• Only attach to designated grounding points on the chassis; ensure the mating surface is clean and free of paint or corrosion.
• Use the correct driver and moderate hand torque—do not overtighten to avoid stripping threads.
