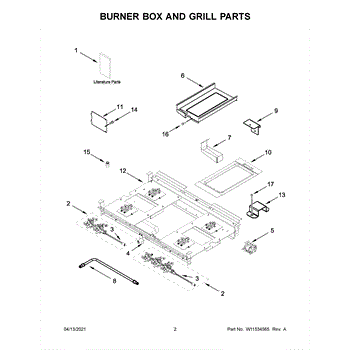

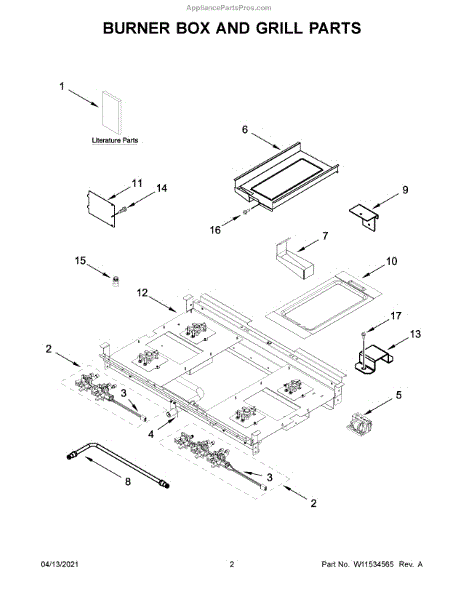

Parts for Jenn-Air JDRP636HL01: Burner Box And Grill Parts

This manifold gas valve assembly controls and distributes natural gas to the cooktop burners for safe, consistent ignition and flame control. It replaces a worn or leaking manifold to restore reliable burner operation. What it does

• Routes natural gas from the supply to individual burner valves for proper flame delivery
• Enables proper ignition and stable burner flames when valves receive spark or pilot
• Helps stop gas flow when a valve is closed or safety mechanism is triggered
• Commonly replaced when burners fail to light, have uneven flames, or you detect gas leaks

• One manifold gas valve assembly

• Turn off gas supply and electricity to the appliance before servicing
• Only install on compatible units and verify correct orientation and hose/line connections
• Check all fittings for leaks with a soap solution after installation; never use an open flame

This speaker module provides audible tones and chimes used by the appliance to signal cycle progress and user alerts. It restores clear sound feedback so you can hear cycle completion, alerts, and error tones. What it does:

• Produces the appliance's audible chimes, beeps, and alert tones
• Signals cycle completion and user prompts with clear sound
• Helps indicate error codes and status changes through audible alerts
• Interfaces with the main control to provide user feedback

• Disconnect power to the appliance before servicing to avoid electrical shock
• Handle the module and wiring harness carefully; avoid static discharge and bent pins
• Reconnect the wiring harness fully and secure the module in its mounting location
• Test the appliance after installation to ensure audible tones function correctly

This heater deflector directs heated air inside the dryer and protects nearby components from excessive heat, helping maintain proper airflow and reduce wear on internal parts. What it does:

• Shields the dryer cabinet and nearby components from direct heater/element heat
• Helps channel heated air for more even drying performance
• Can prevent heat-related damage that leads to component failure
• Common symptoms: burning or metallic smell, uneven drying, or visible heat damage near the heater area

• Disconnect power (and gas, if applicable) before beginning any repair
• Accessing this part usually requires removing the dryer cabinet or rear panel; follow your model's service instructions
• Handle carefully to avoid bending the deflector; install with original fasteners and correct orientation
• If you see damaged insulation or other heat-damaged parts, inspect and replace those items as needed

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This 1/2" female adapter is a threaded plumbing connector that lets a 1/2" male water line or fitting join the appliance inlet safely and securely. It provides a simple, durable connection to restore proper water flow. What it does:

• Adapts a 1/2" male threaded water supply to the appliance's inlet fitting
• Restores a secure, leak-free connection when the original fitting is damaged or missing
• Commonly used where a reliable, compact threaded coupling is needed
• Can help stop drips or leaks caused by worn or corroded connectors

• One 1/2" female adapter

• Turn off the water supply and unplug the appliance before installing
• Use plumber's tape on threads for a reliable seal unless the OEM instructions specify otherwise
• Hand-start threads to avoid cross-threading, then tighten with an appropriate wrench; avoid over-tightening
• Check connections for leaks after restoring water and operation

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This is a replacement 8-18 screw used to secure components in compatible Whirlpool appliances. It provides a reliable, corrosion-resistant fastener to restore proper fit and function for panels and internal parts. What it does:

• Secures panels, brackets, or small internal components where an 8-18 thread is specified
• Restores loose or missing fasteners that cause rattling, misalignment, or improper sealing
• Matches OEM thread size and head profile for a correct fit when listed for your model
• Prevents further wear or damage caused by using the wrong screw size

• One screw as shown

• Turn off and unplug the appliance before starting any repair
• Use the proper screwdriver or driver bit to avoid stripping the head
• Do not overtighten—tighten until snug and components seat without play
• Replace only where the OEM specifies an 8-18 screw to ensure proper fit

Screws for range anti tip bracket: WP3801F656-51. Includes 2 screws.
