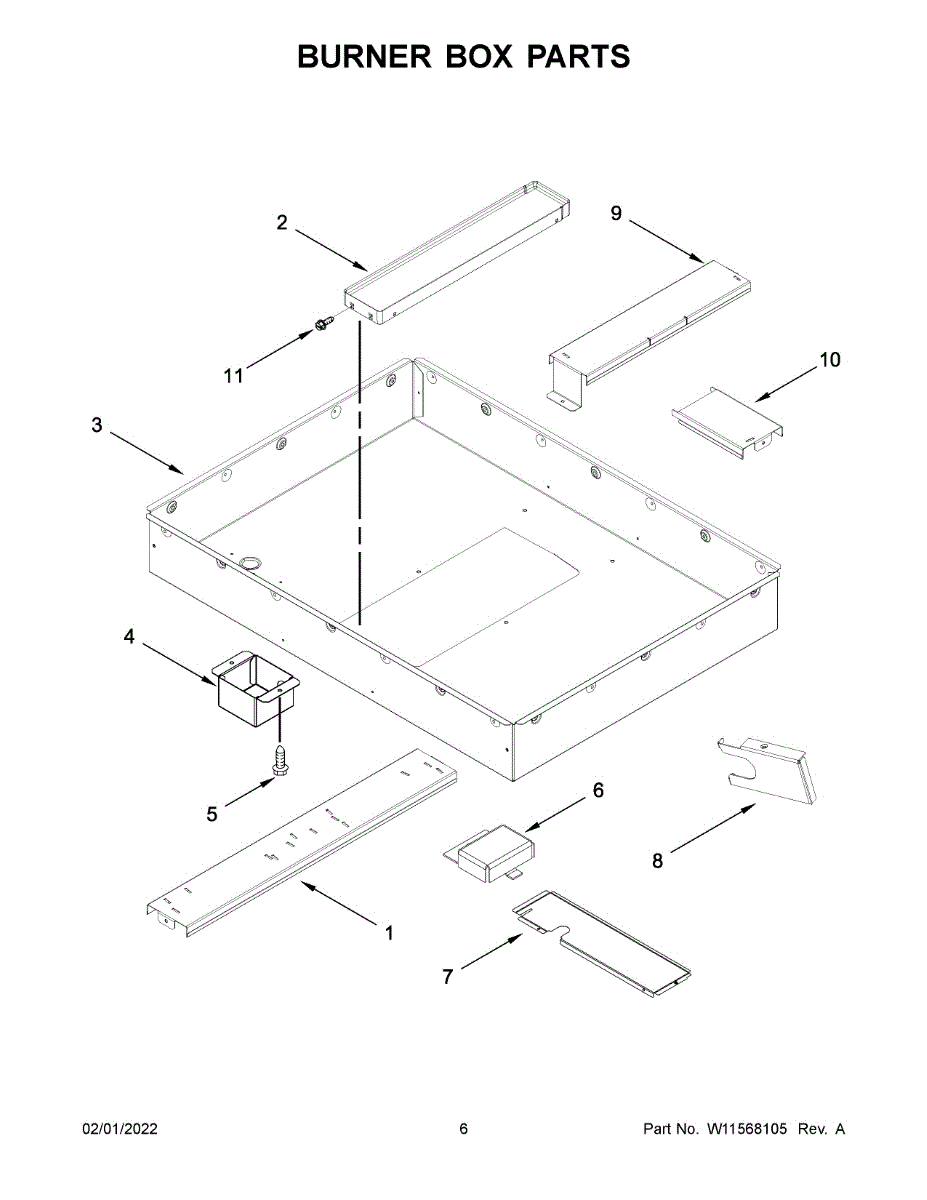

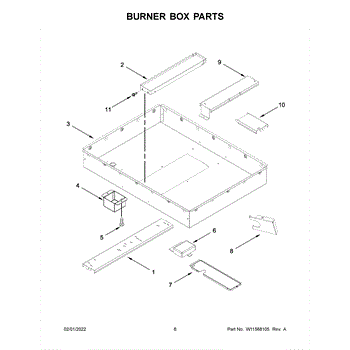

Parts for Jenn-Air JED4536KB01: Burner Box Parts

This replacement drip tray catches and channels excess water beneath the appliance to help prevent puddles and floor damage. It restores the original drain path so condensate and minor leaks drain safely away. What it does:

• Collects and directs water away from the appliance base to prevent pooling on the floor
• Helps contain leaks from defrost or drain systems to limit damage to surrounding areas
• Can reduce musty odors and water stains caused by trapped moisture
• Fits into the appliance base to restore original water collection and drainage

• One drip tray

• Disconnect power to the appliance before servicing
• Remove lower access panels or kickplate as needed to access the tray
• Align the tray with the chassis rails or mounting tabs and slide or snap into place
• Inspect surrounding seals and drain paths; if you find corrosion or other damage, replace those parts as needed.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This wire cover is a protective sleeve that helps route and shield appliance wiring to reduce wear and prevent accidental contact. It restores a neater harness run and helps maintain safe electrical routing inside the appliance. What it does:

• Protects wires from abrasion and chafing against sharp edges or moving parts
• Helps prevent exposed conductors that can cause shorts, arcing, or burning smells
• Keeps wiring bundled and routed to reduce pinching and stress on connectors
• Reduces risk of intermittent electrical issues caused by damaged insulation

• Disconnect power before beginning any service to avoid shock or injury
• Inspect surrounding wiring and connectors for damage; replace any frayed or exposed wires
• Slide cover over the wiring harness or route harness through sleeve as needed; secure with existing clips or approved fasteners

The Screw is an OEM part for Whirlpool appliances. This specific screw is used in various locations within Whirlpool appliances, securing components and ensuring the stability and proper alignment of parts. It is designed to fit precisely and maintain a firm hold, contributing to the overall functionality and safety of the appliance.

Over time, screws can become worn or stripped due to regular use, corrosion, or over-tightening.

Causes of a bad screw include wear and tear, exposure to moisture leading to rust, and over-tightening which can strip the threads.

Symptoms of a bad screw include:

• Loose or wobbly components
• Misalignment of parts
• Noise due to vibrating or loose parts
• Difficulty in securing or removing the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
