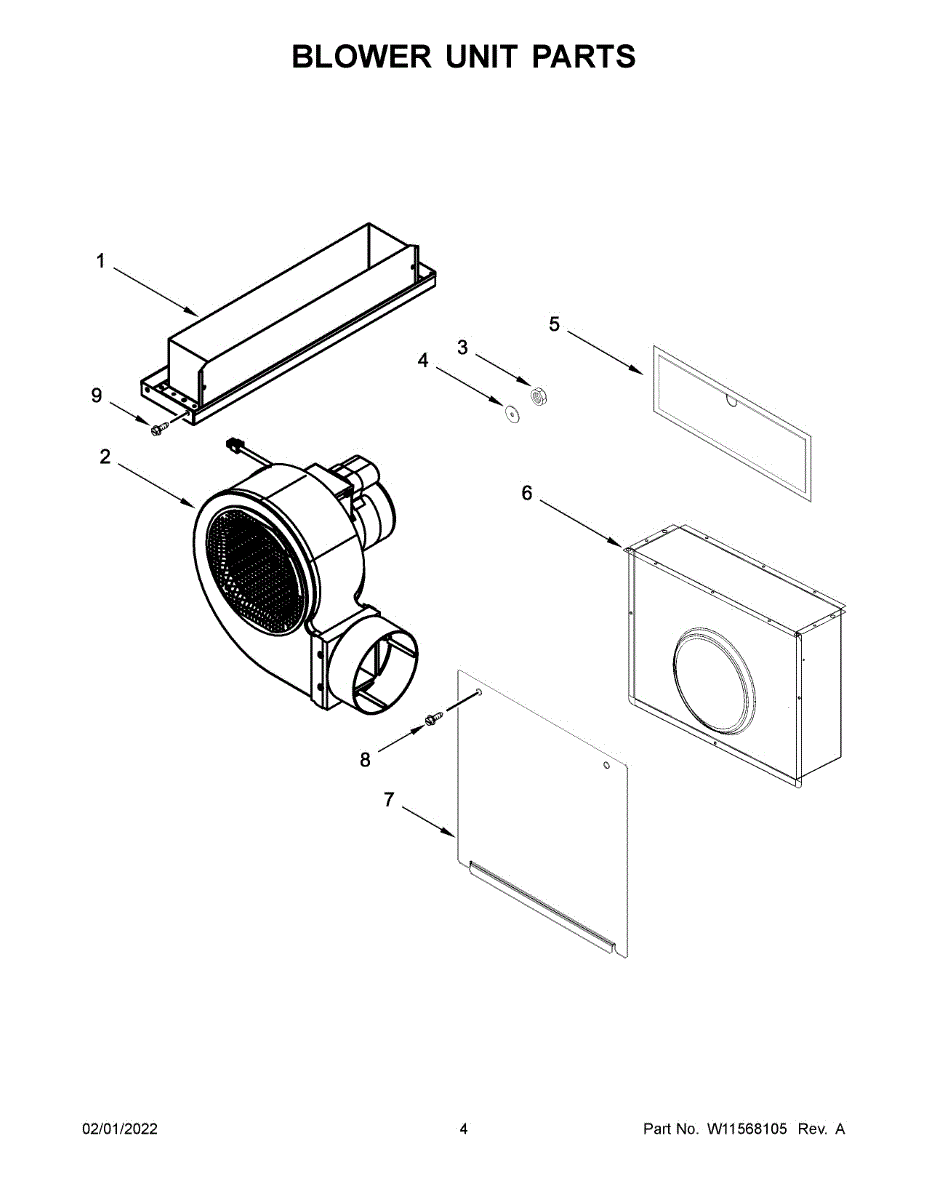

Parts for Jenn-Air JED4536KB01: Blower Unit Parts

This plenum directs and channels airflow through the appliance's ventilation pathway to help maintain proper air movement and performance. Replacing a damaged plenum restores intended airflow routing and helps prevent leaks. What it does:

• Channels air from the blower/vent to the exhaust or internal ducts
• Helps maintain consistent airflow for efficient operation
• Prevents air leaks that can reduce performance or cause unusual noises
• Supports proper venting to limit heat buildup in the appliance

• Inspect surrounding seals and duct connections; replace damaged gaskets for a proper seal
• Disconnect power before accessing internal components to avoid shock
• Handle plastic housings carefully to avoid cracking; align clips/tabs before fastening
• Tighten fasteners snugly but do not overtighten to prevent warping

The Blower Motor is an OEM replacement part for Whirlpool cooktops that feature a downdraft ventilation system. It is responsible for exhausting smoke, odors, and steam from your cooking area. It provides powerful and efficient ventilation, keeping your kitchen fresh and free from unwanted cooking odors.

A bad blower fan assembly can occur due to regular use, mechanical failures, or motor malfunctions. If you notice symptoms such as weak airflow, excessive noise, or the fan not working at all, it may be time to replace the blower fan assembly.

Symptoms of a bad blower fan assembly include:

• Weak airflow
• Excessive noise
• Fan not working at all

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This locknut is a small threaded retaining nut used to secure rotating and stationary appliance components, helping keep assemblies tight and stable during operation. It prevents parts from loosening and reduces vibration-related issues. What it does:

• Secures shafts, pulleys, or fittings to prevent axial movement
• Keeps assemblies fastened under normal vibration and load
• Helps stop wobble, grinding, or part separation caused by a loose connection
• Works with the matching threaded stud, shaft, or fitting for a proper hold

• Disconnect power and follow appliance safety procedures before servicing
• Use the matching thread size and engage threads fully; hand-start before tightening
• Tighten securely without overtightening; use the correct driver or socket for the nut
• Inspect mating threads and replace if damaged

Size: 1 inch.

The Grease Filter is an OEM part for Whirlpool downdraft cooktops. It is responsible for removing grease and other cooking residue from the air before it is circulated back into the kitchen.

Causes of a bad grease filter include excessive grease buildup that prevents proper airflow and filtration. Grease filters should be cleaned regularly according to the manufacturer's recommendations.

Symptoms of a grease filter that needs replacement include:

• Reduced or inefficient airflow while in use
• Visible grease buildup or clogging of the filter screens

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Air Duct is an OEM part for Whirlpool cooktops. It is responsible for venting heat and combustion gases out of the oven cavity during and after the cooking process. The air duct is designed to withstand high temperatures while rapidly expelling air and fumes through the outlet vent.

Symptoms of a bad air duct include:

• Smoking or burning smells from the oven
• Incomplete combustion resulting in inefficient heating
• Reduced airflow causing decreased cooking power

Over time, continued exposure to heat can cause cracks, warping, or damage to the air duct.

This replacement is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Vent Access Cover is an OEM part for Whirlpool cooktops. It is the rear ventilation cover located at the back of the oven cavity. This cover plays an important role in properly directing the exhaust of combustion gases and ventilating heated air outside of the home.

Causes of a bad vent cover can include damage from impact, warping due to overheating, or broken mounting points interfering with a tight seal.

Symptoms of a bad vent cover include:

• Incomplete combustion of fuels resulting in efficiency and safety issues
• Reduced airflow and ventilation compromising the oven function
• Gaps or openings that allow exhaust recirculation or intrusion of debris

 This OEM Whirlpool vent cover is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Screw is an OEM part for Whirlpool appliances. This specific screw is used in various locations within Whirlpool appliances, securing components and ensuring the stability and proper alignment of parts. It is designed to fit precisely and maintain a firm hold, contributing to the overall functionality and safety of the appliance.

Over time, screws can become worn or stripped due to regular use, corrosion, or over-tightening.

Causes of a bad screw include wear and tear, exposure to moisture leading to rust, and over-tightening which can strip the threads.

Symptoms of a bad screw include:

• Loose or wobbly components
• Misalignment of parts
• Noise due to vibrating or loose parts
• Difficulty in securing or removing the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
