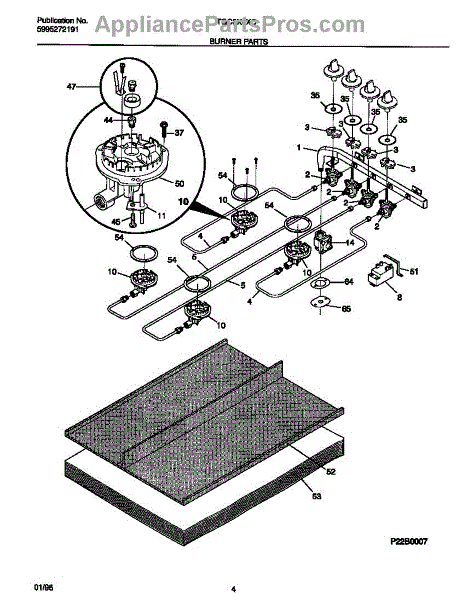

Parts for Frigidaire TGC3X4XCC1: 03 - Burner Parts

The Spark Module is an OEM part for Frigidaire gas ranges. It allows precise flame control for cooking. This module sends the necessary electrical currents to the igniters at each burner, which then spark to ignite the gas.

Causes of a bad spark module can include electrical failures, corrosion, or moisture damage, as well as wear and tear from normal use.

Symptoms of a bad Spark Module include:

• Burners failing to ignite despite being turned on
• Intermittent ignition or weak spark generation
• Continuous clicking sounds from the burner area even after ignition
• Unlit burners leading to gas smell, indicating incomplete combustion

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Top Igniter Electrode is an OEM replacement part for Frigidaire gas ranges. This part provides the spark to ignite the surface burners.

Causes involve repetitive heat stresses and deterioration of internal wiring over extended use. Corrosion from possible gas or moisture intrusion may also degrade electrode performance.

Symptoms of a faulty top igniter electrode include:

• Burners failing to light or stay lit during cooking
• Potential gas leaks or explosions from unlit burners
• Difficult relighting requiring extended holds of ignition buttons

This Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.

This pressure regulator controls gas flow to the range valve, helping maintain steady burner operation for safe, consistent flames. It replaces a worn or failed regulator to restore proper gas delivery and reliable ignition performance. What it does:

• Regulates incoming gas pressure to the range's control valve for steady burner flames
• Helps correct issues like weak or uneven flames and burners that struggle to light
• Reduces risk of high-pressure surges that can affect burner performance
• Works as a direct replacement when the existing regulator is faulty or leaking

• Turn off the gas supply and power before starting any work; always follow appliance shutoff procedures
• Inspect fittings and seals; use proper thread sealant for gas-rated connections if required by the manufacturer
• After installation, perform a gas leak check and verify correct burner operation and flame appearance

This burner mounting screw fastens the surface burner assembly to its base on the cooktop, keeping it stable and properly aligned. Replace stripped, rusted, or missing screws to eliminate wobble and maintain even flame positioning.

• Secures the surface burner to the orifice holder/cooktop assembly
• Helps keep the burner level, stable, and properly seated
• Can address a loose or wobbly burner or one that lifts when removing the grate/cap
• Restores proper seating when original hardware is lost or corroded

• Disconnect power and shut off the gas supply; allow the cooktop to cool completely
• Remove grate, cap, and burner head (as designed) to access the fastener
• Start threads by hand and use the correct driver to avoid cross-threading
• Tighten snugly without overtightening; clean or chase threads if corrosion is present

A single gas burner orifice that meters fuel flow to a range or oven burner for consistent flame sizing and reliable cooking performance. Replaces a worn or clogged orifice to help restore steady ignition and even heat. What it does:

• Controls the amount of gas delivered to a burner for proper flame height and heat output
• Helps maintain consistent cooking and baking temperatures when functioning correctly
• A clogged or damaged orifice can cause weak or uneven flames, slow ignition, or poor heating
• Works as a small, precision-fit insert that sits in the burner assembly

• Turn off the appliance and shut off the gas supply before servicing
• Use a wrench or socket sized to the orifice and avoid rounding the fitting
• Inspect burner ports and clean any debris before installing the new orifice

This replacement door gasket creates a tight seal around the refrigerator or freezer door to help maintain interior temperature and reduce energy loss. It restores proper door closure for better cooling and frost prevention. What it does:

• Seals the door perimeter to keep cold air in and warm air out
• Helps maintain consistent internal temperatures for food safety
• Reduces frost build-up and compressor runtime due to air leaks
• Restores proper door alignment and closing performance

• Remove old gasket and clean the door mating surface before installing the new gasket
• Start installation at a corner and work around the door to ensure an even fit
• Gasket may be warmed slightly (hot water or hair dryer on low, if needed) to improve flexibility for positioning
• Unplug or disconnect power to the appliance before beginning work
