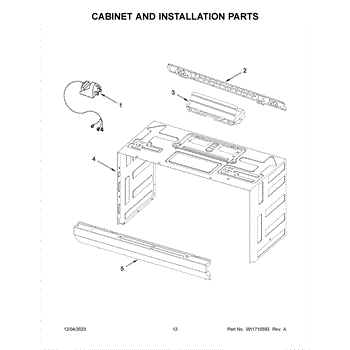

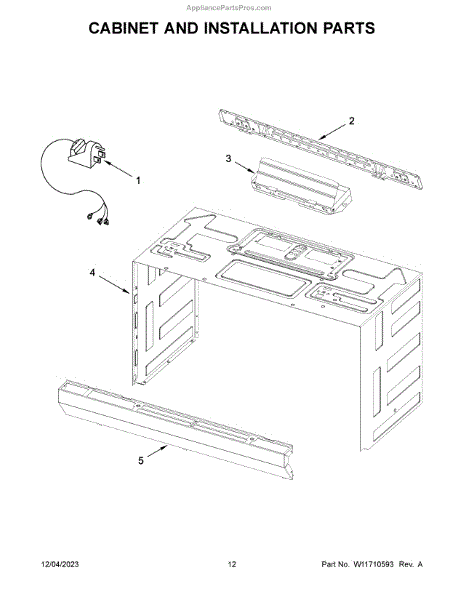

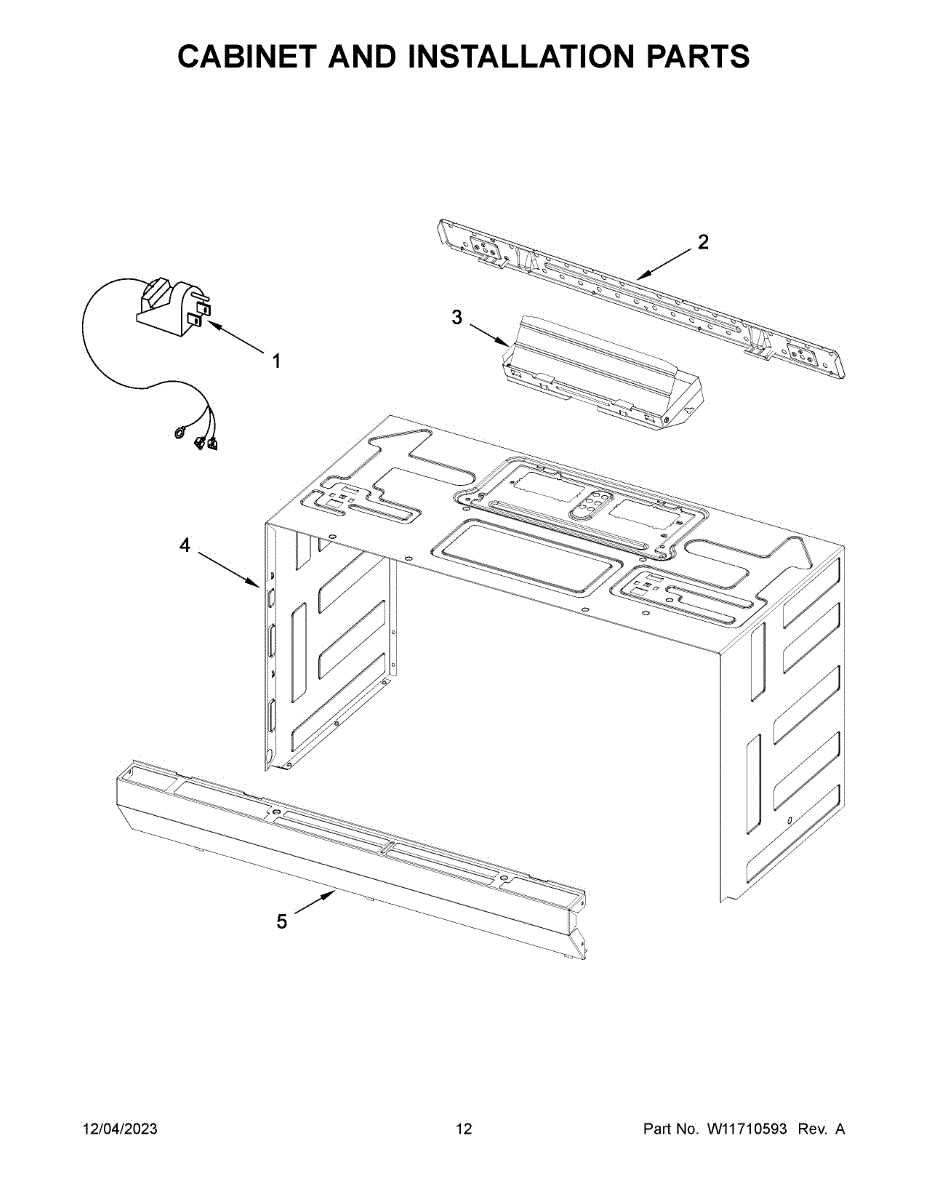

Parts for Maytag MMV1175JB01: Cabinet And Installation Parts

This is the appliance's main power cord. It delivers household electricity to the unit so it can operate safely and reliably.

• Supplies AC power from the wall outlet to the appliance's internal wiring
• A damaged or failed cord can cause no power, intermittent power, or tripped breakers
• Replacing a worn cord can restore consistent power and improve safety

• Unplug the appliance and turn off power at the breaker before service
• Route and secure the cord to prevent pinching or abrasion

The Mounting Plate is an OEM part for Whirlpool microwaves. This part is designed to mount and stabilize the microwave over the range, ensuring it is safely anchored in its designated space. The mounting plate serves as an interface between the microwave and the wall or cabinet, distributing the weight evenly and providing a firm foundation for the appliance.

Causes of a bad Mounting Plate can stem from improper installation, which may lead to undue stress and eventual warping or weakening of the material.

Symptoms of a bad Mounting Plate include:

• Loose microwave unit
• Difficulty in aligning or installing the microwave
• Visible signs of wear, rust, or damage on the plate

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Air Damper is an OEM part for Whirlpool microwave/range hood combos. It is a crucial component that regulates the flow of air into the microwave cavity, helping to maintain proper temperature and airflow during operation.

Symptoms of a faulty Air Damper include:

• Overheating or uneven heating of food items
• Excessive noise or rattling sounds during operation
• Error codes related to temperature or airflow issues

Causes of a bad Air Damper can include wear and tear over time, physical damage or obstruction, or issues with the damper's motor or control system.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore microwave models.

This outer wrapping assembly is the coated black outer layer that fits around the dryer drum to protect the drum and improve airflow. It restores proper drum coverage and helps reduce rubbing, noise, and fabric snags. What it does:

• Replaces worn or damaged drum outer wrap that can cause rubbing or scraping noises
• Provides a smooth, protective surface that helps prevent clothes from catching on rough drum edges
• Helps maintain proper drum clearance and airflow for consistent drying performance
• Restores the dryer's appearance with a black, coated finish

• Disconnect power (and gas supply if applicable) before beginning any repair
• Access the drum per the dryer's service instructions; remove the drum to replace the outer wrapping
• Handle edges carefully and use gloves to avoid cuts; align the wrap evenly before securing

This grill vent is the front vent trim that channels heat and smoke away from the cooktop and oven cavity, keeping internal components protected and helping your range vent properly during broiling and baking. What it does:

• Directs exhaust and heat away from the oven cavity to help maintain proper airflow.
• Protects underlying components and internal wiring from direct heat and food debris.
• Replacing a damaged vent can reduce smoke buildup and improve overall oven performance.

• Disconnect power to the appliance (and gas if applicable) before starting any work.
• Use care handling edges; trim pieces can be sharp.
• Removal/installation typically involves removing fasteners or clips—keep hardware handy for reassembly.

The Hardware Kit is an OEM part for Whirlpool microwaves. This kit includes essential mounting brackets, screws, and other fasteners required for the proper installation and secure mounting of the microwave, either over the range or within cabinetry.

Causes of a bad hardware kit can include wear and tear over time, exposure to moisture, or damage due to mishandling or incorrect installation.

Symptoms of a bad hardware kit include:

• Loose or unstable microwave installation
• Rattling or vibrating noises during operation
• Difficulty in mounting or securing the microwave
• Visible rust or damage to screws and brackets

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Upper Cabinet Template is an OEM part for Whirlpool microwaves. This template is used during the installation of the microwave to ensure correct placement and alignment within the upper cabinet, providing guidance for drilling holes and securing the microwave in place.

Causes of a bad or missing template can include misplacement, wear and tear from repeated use, or damage during the installation process.

Symptoms of a bad or missing upper cabinet template include:

• Difficulty aligning the microwave properly within the cabinet
• Incorrect placement of mounting holes
• The microwave not sitting securely or level
• Challenges during the installation process

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
