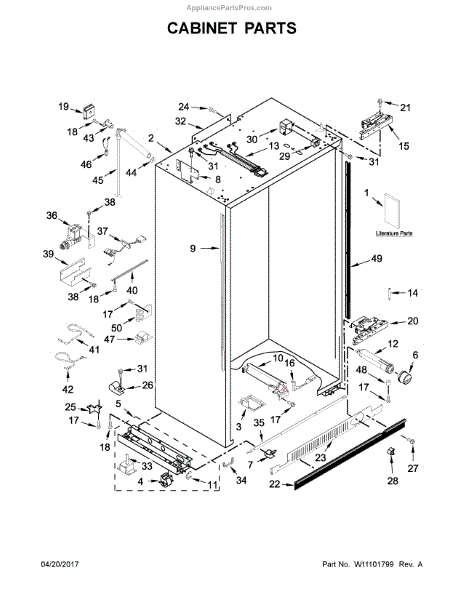

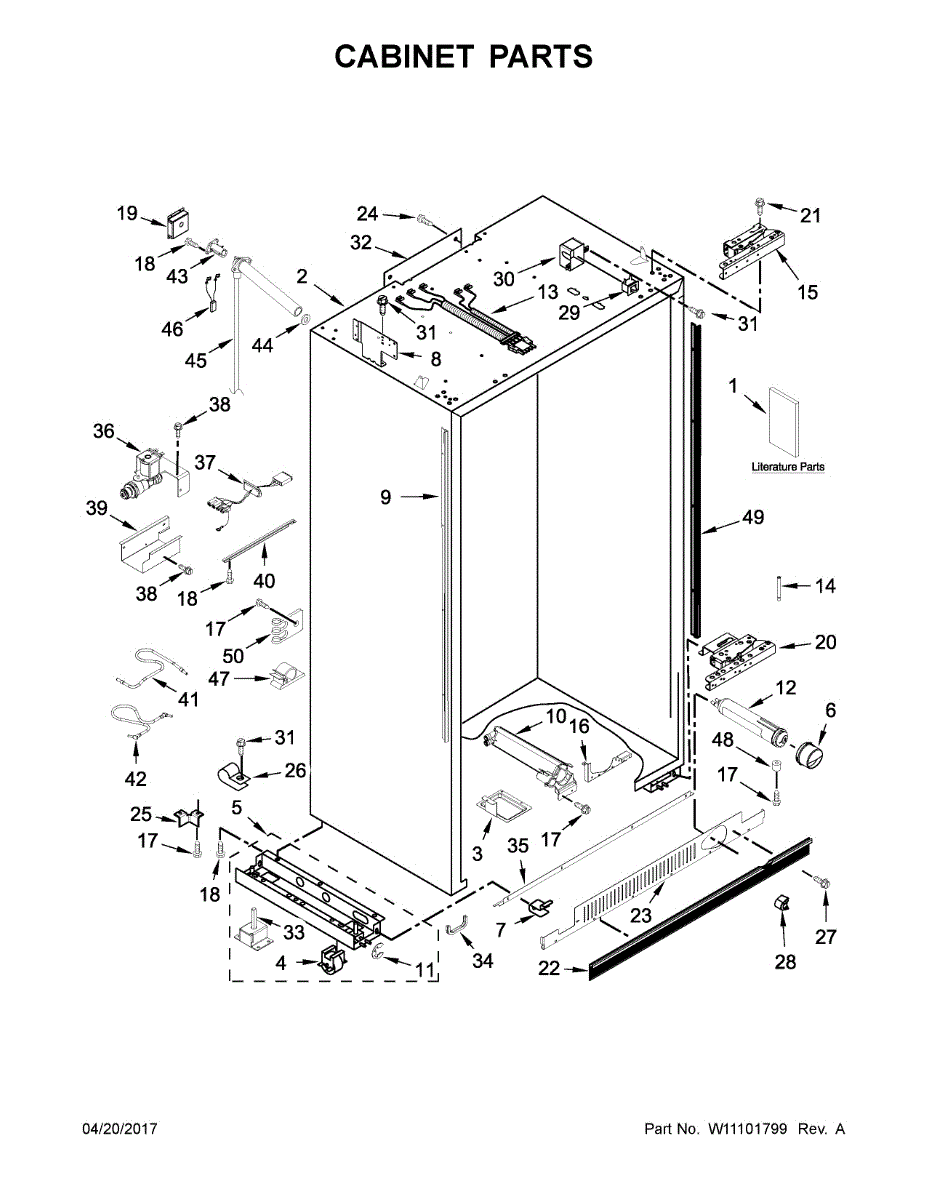

Parts for Jenn-Air JS48NXFXDE01: Cabinet Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

This replacement roller fits the front or rear position of a slide mechanism, restoring smooth, even movement and reducing noise when a wheel is worn or broken. It helps racks or drawers glide properly and stay aligned. What it does:

• Provides low-friction rolling support for the slide track
• Helps slide-out assemblies move freely without binding or scraping
• Worn or damaged rollers can cause sticking, squeaking, or uneven travel
• Restores proper alignment and smooth operation when replaced

• 1 roller assembly

• Disconnect power and allow the appliance to cool before servicing
• Remove the slide-out assembly; note roller orientation and hardware
• Transfer/reuse existing screws, clips, or retainers as required
• Do not lubricate unless the manufacturer specifies a lubricant

This Support (mounting bracket) secures internal components and stabilizes the appliance's assembly to help prevent sagging, misalignment and excess vibration. It's a small replacement that restores proper fit and reduces rattling. What it does:

• Provides a stable mounting point for panels or internal assemblies
• Keeps components aligned to prevent binding or wear
• Reduces noise caused by loose or sagging parts
• Helps stop intermittent contact or rubbing that can cause rattles

• Disconnect power (and water, if applicable) before servicing
• Access may require removing outer panels or trim; keep track of fasteners
• Support the assembly while replacing the bracket to avoid strain

This Support bracket holds internal components in place to restore proper alignment and reduce rattling or sagging. It's a simple replacement that helps stabilize the appliance's interior structure. What it does:

• Secures internal panels or assemblies to prevent movement and vibration
• Restores proper alignment when a factory support is damaged or missing
• Can reduce noise caused by loose components
• Helps maintain safe, stable operation of the affected area

• One Support bracket

• Disconnect power and unplug the appliance before beginning any repair
• Inspect surrounding fasteners and mounting points; replace any damaged hardware as needed
• Use appropriate hand tools; avoid over-tightening to prevent cracking plastic or stripping threads

This replacement filter cap secures the filter in its housing and helps maintain a proper, watertight seal. It restores a snug fit when the original cap is cracked, stripped, or missing to help prevent drips and performance issues. What it does:

• Locks the filter into place and helps provide a reliable seal
• Helps prevent water seepage at the filter housing
• Restores proper fit when the cap is worn, rounded, or broken
• Common symptoms: dripping around the filter area, filter won't stay seated, difficulty tightening or removing the cap

• 1 filter cap

• Disconnect power; shut off the water supply before servicing
• Place a towel to catch residual water and access the filter housing per your model's instructions
• Remove the old cap; align and hand-tighten the new cap until snug—do not overtighten
• Restore water and power, then test and check for leaks; ensure any separate O-ring used by your model is present and in good condition

The Water Filter Housing is an OEM part for Whirlpool refrigerators. It encases the water filter, ensuring a secure fit and proper water flow through the filtration system to provide clean, safe drinking water.

Causes of a bad water filter housing can include cracks or wear and tear over time, improper installation, or damage from replacing the water filter.

Symptoms of a bad water filter housing include:

• Water leaks around the filter area
• Reduced water flow from the dispenser
• Odd tastes or odors in the water
• The water filter not fitting securely

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

This hinge pin secures an appliance door to its hinge assembly so the door opens and closes smoothly and stays aligned. It's a direct-fit replacement that restores proper door movement and reduces sag or binding. What it does:

• Acts as the pivot pin that holds the door to the hinge assembly
• Restores correct door alignment and smooth opening/closing
• Helps stop door sag, scraping, or uneven gaps
• Replaces a bent, worn, or broken hinge pin

• Disconnect power to the appliance before starting any repair
• Support the door while removing or installing the pin to prevent dropping or damage
• Use proper tools and gloves to avoid injury from sharp edges

This genuine door hinge provides a durable pivot for your appliance door, restoring proper alignment and smooth opening/closing. It replaces worn or damaged hinges to reduce sagging, rubbing, and uneven gaps. What it does:

• Supports the door and maintains correct alignment for reliable sealing
• Restores smooth opening and closing when hinge wear causes sticking or scraping
• Helps stop door sag, misalignment, and uneven gaps that can affect performance
• Durable replacement for corroded, bent, or broken hinge hardware

• One door hinge

• Disconnect power to the appliance before starting any repair
• Remove items from the door and support the door while detaching the hinge
• Use appropriate hand tools and avoid overtightening fasteners during reassembly

This bracket is a small mounting/support part that secures and aligns appliance components to restore proper fit and reduce movement. It's a direct-fit replacement designed to return panels and assemblies to their correct position. What it does:

• Provides a stable mounting point to secure panels, trim, or internal assemblies
• Restores correct alignment to eliminate rattling, vibration, or loose fit
• Helps maintain proper clearances for smooth operation of moving parts
• Replaces worn, bent, or broken brackets that prevent components from seating correctly

• One bracket

• Disconnect power and water before starting any repair
• Use common hand tools; support panels during removal to avoid damage
• Align bracket and fasteners before tightening; do not overtighten screws

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This replacement cover protects internal components and restores the appliance's original housing appearance. It helps keep wiring and parts enclosed so the unit operates safely and cleanly. What it does:

• Shields internal components and wiring from dirt, moisture, and accidental contact
• Helps maintain proper component positioning and reduces rattle or vibration noise from loose openings
• Restores the unit's exterior appearance when the original cover is cracked, broken, or missing
• Prevents debris buildup that can lead to component wear or operational issues

• Disconnect power (unplug the appliance or shut off breaker) before beginning any work.
• Typical installation requires removing fasteners; keep track of screws and any small brackets.
• Handle edges carefully; metal or plastic edges may be sharp.

The Grille-Front is an OEM component specifically designed for Whirlpool refrigerator cabinet fronts. It allows for air circulation while protecting internal refrigeration system components. Proper grille functioning keeps components running cool and efficient.

Symptoms of a bad grille can include:

• Parts of the grille cracking, loosening, or detaching
• Reduced airflow causing elevated temperature readings inside
• Components overheating, leading to premature failures

Causes related to physical impacts, such as kids' toys or vacuum cleaners striking the grille. Direct sun exposure can also cause material degradation over time.

This OEM Whirlpool part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This front grille is the lower kick-panel trim that covers and protects the appliance's lower front area while restoring a clean, finished appearance. It replaces damaged, bent, or missing front trim. What it does:

• Covers and protects lower front components from debris and accidental contact
• Restores the appliance's finished appearance after dents, cracks, or paint loss
• Helps maintain proper airflow paths at the appliance base when fitted correctly
• Stops rattling or vibration caused by loose or broken trim

• Disconnect power (and gas, if applicable) before beginning any work
• Typical install requires basic hand tools (screwdriver, nut driver); save any original fasteners and note their locations
• Align grille tabs and secure with factory fasteners; do not force or bend mounting tabs
• Replace with OEM-specified fasteners to ensure proper fit

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

Color: Black

This is a genuine replacement screw used to secure panels, brackets, and components on compatible Whirlpool appliances. It restores proper fastening so loose parts stop rattling and panels stay aligned. What it does

• Fastens trim, panels, brackets, or mounting hardware to appliance chassis
• Helps stop vibration and rattling caused by missing or stripped fasteners
• Restores secure connections after repair or part replacement
• Matches OEM thread specification to fit intended mounting holes

• Disconnect power to the appliance before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand and tighten until snug; do not overtighten
• Inspect mating threads and replace if damaged

This leveler is the adjustable leg that helps stabilize and level your appliance, restoring balance and reducing vibration. It's a simple replacement to get a rocking or uneven washer or dryer sitting squarely again. What it does:

• Replaces a worn or damaged leveling leg to restore stable, level support under the appliance
• Allows height adjustment to compensate for uneven floors and reduce rocking or vibration
• Helps prevent door misalignment and uneven loads that can affect performance
• Commonly used when an appliance wobbles, shifts during cycles, or sits crooked

• Disconnect power to the appliance before attempting service; for washers, turn off water supply and drain hoses if needed
• Slide or tip the appliance as required to access the leveling legs; use caution and a helper for heavy units
• Adjust height by turning the leveler; verify stability with the appliance resting on all legs

This water inlet valve uses a single solenoid to control water flow into the unit. Replacing a sticking or leaking valve restores proper fill and can resolve issues like no ice production or unwanted drips.

• Opens and closes the household water supply to deliver the correct amount of water during a fill cycle
• Common fix for an icemaker that won't fill or produces no ice
• Helps stop leaks from the valve area or water seeping into the ice mold between cycles
• Can resolve a condition where the valve hums/buzzes but no water flows

• Disconnect power and shut off the water supply before servicing.
• Place a towel or pan to catch residual water and relieve line pressure.
• Move tubing and wire connectors one at a time to the new valve to match positions; secure all connections.
• Restore water and power, check carefully for leaks, and run a test fill (clear any ice from the fill tube if applicable).

This inlet fitting connects the household water supply to the appliance's waterline, providing a secure, leak-resistant connection for ice makers and water dispensers. Use it to replace damaged or leaking supply fittings and restore proper water flow. What it does:

• Provides a sealed connection between the home's water supply and the appliance waterline
• Replaces cracked, corroded, or leaking inlet fittings that cause drips or loss of water supply
• Helps restore proper water flow to ice makers and dispensers when the original connector fails
• Compatible with standard waterline tubing used on many Whirlpool refrigeration applications

• Turn off the household water supply and unplug the appliance before beginning any work
• Inspect tubing for damage and replace the waterline if brittle or kinked to ensure a reliable seal
• Use appropriate thread sealant or ferrules per the original installation type; hand-tighten then secure per manufacturer guidance

The Water Supply Tube is an OEM part for Whirlpool refrigerators. This tube transports water to supply the automatic ice maker. It ensures a consistent water flow to produce batches of ice on demand.

Causes of a bad water supply tube can include cracks or leaks from regular use and flexing over time. Mineral buildup inside the tube may also restrict water flow.

Symptoms of a bad water supply tube include:

• Ice maker not working or producing ice slowly
• Water droplets under the refrigerator
• Noticeable cracks or splits in the tube

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This heater fill tube channels water from the inlet valve to the appliance's heater/fill assembly, restoring proper fill performance and reducing the risk of leaks. Replace a damaged tube to re-establish correct water flow and operation. What it does:

• Directs water from the inlet valve into the heater/fill assembly so the unit can fill as intended.
• Commonly replaced when the tube is cracked, split, blocked, or leaking.
• Faulty tubes can cause water pooling, intermittent or no fill, or visible leaks at the connection.
• Works with existing seals and clamps to maintain a watertight connection when installed correctly.

• Disconnect power to the appliance and shut off the water supply before starting.
• Drain residual water from lines and remove necessary access panels to reach the tube.
• Inspect and replace any worn clamps or seals during installation to ensure a secure, leak-free connection.

This gasket/seal creates a tight barrier between two mating parts in your appliance to prevent leaks and performance loss. Replacing a worn gasket restores proper sealing and helps stop seepage at the joint. What it does

• Forms a reliable seal between components to prevent fluid or air leaks
• Maintains proper operation by keeping the sealed area contained
• Replaces gaskets that are brittle, cracked, flattened, or swollen
• Common signs include residue or moisture around the joint, visible wear on the old gasket, or a loose/poor seal

• 1 gasket/seal

• Disconnect power and any water or gas supply before servicing
• Note the gasket's orientation; compare old and new parts before installation
• Clean and dry mating surfaces; remove old adhesive and debris
• Seat the gasket evenly; do not overtighten fasteners; test for leaks after reassembly

This top door spacer positions and supports the upper edge of the appliance door to maintain correct clearance and alignment for smooth opening and closing. It helps keep the door trim and glass properly spaced for reliable operation. What it does:

• Keeps the top edge of the door correctly spaced from the cabinet to prevent rubbing or binding
• Helps maintain door alignment for an even seal and consistent closing
• Reduces vibration-related noise by stabilizing the door assembly
• Protects trim and glass from contact damage at the top edge
• Useful when replacing worn or missing door support components

• One top door spacer

• Disconnect power to the appliance before starting any repair
• Remove the door or door trim panels per the manufacturer's instructions to access the spacer
• Handle door glass and trim carefully; use appropriate tools and support to avoid damage

This spring-style tube clamp secures flexible tubing to fittings, helping prevent leaks and maintain proper flow. It's a simple replacement that restores a firm seal on water or drain lines. What it does:

• Keeps flexible tubing firmly clamped to barbed or nipple fittings
• Helps stop or reduce leaks from loose or corroded connections
• Prevents tubing from slipping off under pressure or vibration
• Useful where a compact, spring-action clamp is required

• Disconnect power and shut off water to the appliance before replacing parts
• Use pliers to expand the clamp, position it over the tube/fitting, then release to secure
• Inspect connected tubing and fittings for damage; replace if cracked or severely corroded
