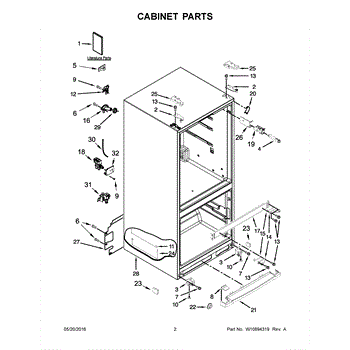

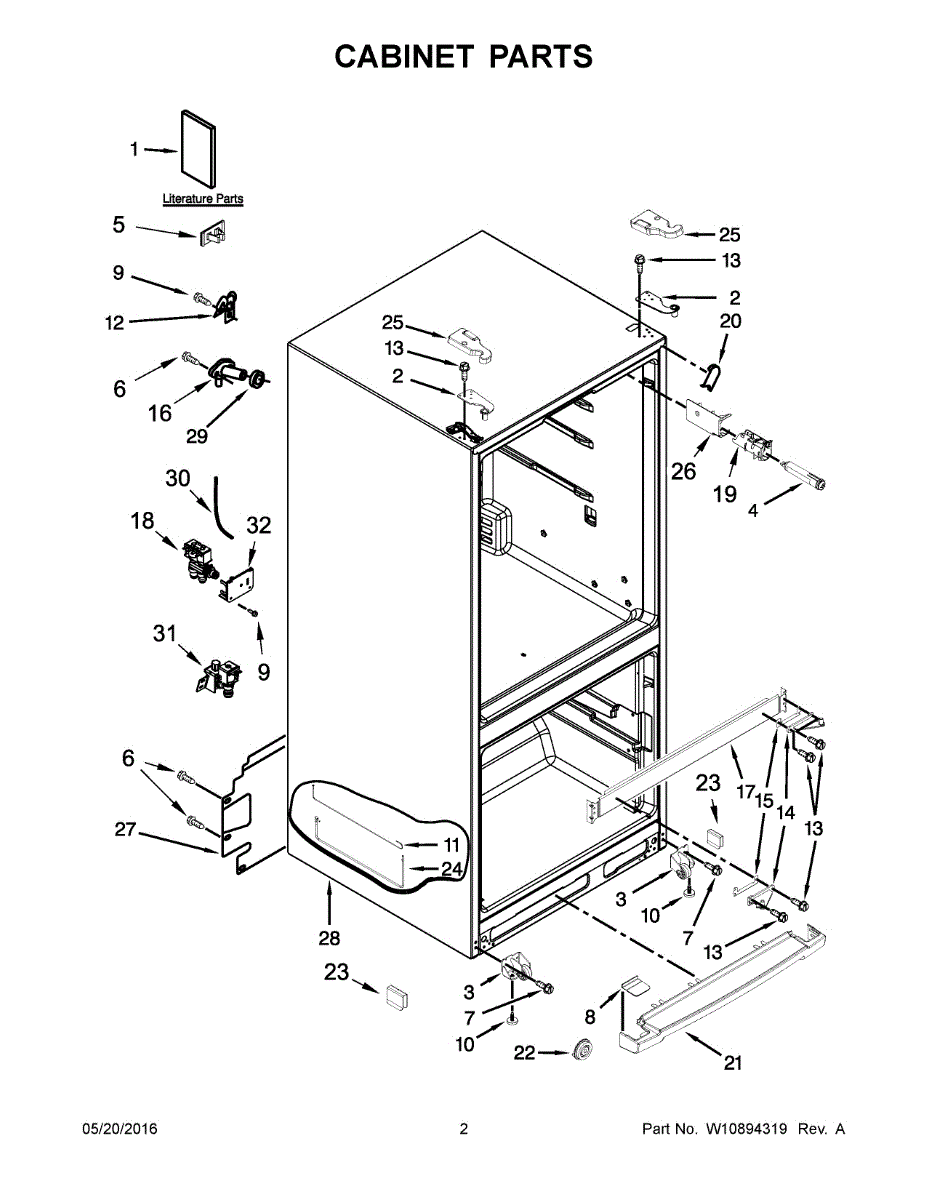

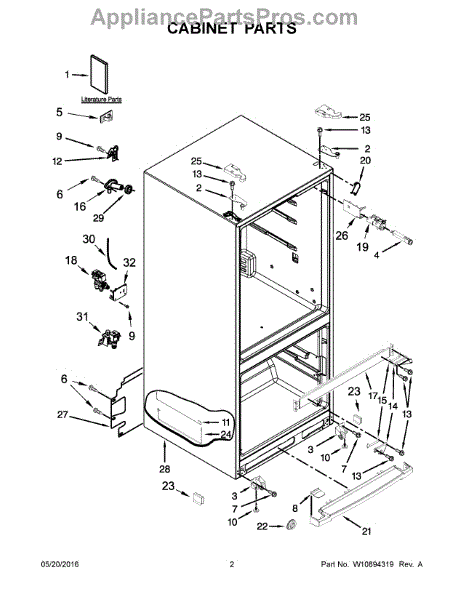

Parts for Kitchenaid KRFF300ESS01: 02 - Cabinet Parts

The Whirlpool EveryDrop Ice and Water Refrigerator Filter 2 is an OEM replacement part for Whirlpool refrigerators. This advanced water filter is designed to provide superior filtration for both the ice maker and water dispenser. This water filter effectively reduces numerous contaminants, including lead, pesticides, and pharmaceuticals, ensuring that your drinking water and ice are not only clean but also taste great.

Regular replacement of the EveryDrop Filter is recommended to maintain optimal performance and water quality. Over time, filters can become clogged with particles and contaminants, leading to reduced water flow and a decline in the effectiveness of filtration.

Symptoms of a filter that needs to be replaced include:

• Noticeable decrease in water flow rate from the dispenser
• Unpleasant taste or odor in the water and ice
• The filter indicator light on the refrigerator turns on

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Top hinge assembly restores proper support and a smooth pivot for the refrigerator door, helping maintain alignment and a tight seal. Use this exact replacement when a top hinge is bent, worn, or causing door sag. What it does:

• Provides the upper pivot point that supports the refrigerator door and enables smooth opening and closing.
• Restores proper door alignment to help eliminate sagging, uneven gaps, or rubbing at the top edge.
• Replaces worn, bent, or damaged hinge components that cause wobble or inconsistent door movement.
• Works with factory mounting locations and hardware to return the door to intended operation.

• Disconnect power to the appliance and remove items from the door before beginning work.
• Support the door (have a second person assist) when removing or installing the top hinge to prevent injury or damage.
• Use appropriate hand tools; snug mounting screws securely but avoid over-tightening.

This door hinge supports the appliance door and provides a smooth pivot point so it opens and closes correctly. A worn hinge can cause sagging, rubbing, or poor sealing that affects performance and safety. What it does:

• Supports and guides the door for smooth opening and closing
• Helps maintain correct door alignment and sealing
• Common symptoms include door sagging, rubbing/binding, squeaking, or not closing flush
• Replace if the hinge is bent, cracked, loose, or excessively worn

• One door hinge

• Disconnect power to the appliance before servicing
• Support the door during removal/installation; some hinges are spring-loaded—use caution
• Remove any panels/trim as needed and transfer spacers/bushings from the old hinge if present
• Adjust mounting points as needed per the service manual

This front roller assembly replaces a worn wheel/bracket so the appliance or drawer moves smoothly and stays properly supported. Restore easy glide and alignment to reduce drag, noise, and strain during everyday use.

• Supports the front of the cabinet or drawer and allows smooth rolling
• Helps maintain proper alignment and level during movement
• Reduces scraping, squeaking, or hard-to-move operation
• Common signs of failure: broken/missing wheel, bent bracket, uneven stance, or dragging

• Disconnect power before servicing; shut off water or gas if applicable. Use help when moving heavy appliances
• Support the drawer or appliance and access the front roller mount
• Remove retaining fasteners, noting orientation; transfer any reusable hardware
• Install and secure the new assembly, then check for smooth travel and proper alignment/level

A front roller assembly that supports the dryer's drum edge to help the drum turn smoothly and quietly. Replacing a worn roller restores proper drum alignment and helps reduce rubbing, squeaks, and uneven spinning. What it does:

• Supports the front of the dryer drum so it rotates freely and stays centered.
• Reduces noise and vibration caused by worn or rough rollers.
• Prevents drum wobble that can cause rubbing against the cabinet or seals.
• Helps the drum turn smoothly so airflow and drying performance remain consistent.

• Disconnect power before any service. For gas dryers, turn off gas supply if required by your local codes.
• Remove the dryer front panel or cabinet as required to access the drum; support the drum while removing and installing the roller.
• Inspect related parts (rear roller/glides, drum seals, belt) and replace if worn to avoid repeat failures.
• Use common hand tools; do not force parts. Follow OEM service instructions for torque/fastening details.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

A factory fastener used to secure appliance components and panels. Replacing a missing, rusted, or stripped screw restores a solid, rattle-free fit and helps keep brackets, housings, and covers properly aligned for reliable operation.

• Fastens and holds panels, brackets, or internal components in place
• Helps maintain alignment and reduce vibration or rattling noises
• Direct replacement for a lost, corroded, stripped, or damaged fastener
• Restores proper fit when a component has loosened over time

• Unplug the appliance; also shut off gas and/or water supplies before servicing
• Match to the original screw and start threading by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• If multiple screws secure a part, start all screws before fully tightening to ensure even seating

Size: 8-18 x 1/2 inch.

The Leveling Leg is an OEM replacement part for Whirlpool refrigerators. It is one of four legs situated internally at the base corners for proper tilt positioning. It raises or lowers each leg independently to stabilize units on uneven kitchen floors.

Causes of replacement consist of wear from continual torque required during positioning processes. Thread damage or corrosion buildup attributable to floor locations over extended use necessitates periodic renewal as well.

Symptoms involve:

• Doors that fail to align or seal completely during open-close cycles
• Noisy imbalances traced to feet contacting floor surfaces
• Appliance rocking is unable to be remedied through existing leg corrections

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models

This replacement water tube routes water for the refrigerator dispenser/ice system so your appliance can deliver water where it needs to go. Durable molded tubing replaces damaged or restricted lines to restore reliable water flow. What it does:

• Carries water between the supply, valve, dispenser and/or ice components
• Replaces cracked, kinked or leaking tubing that causes visible leaks
• Helps restore normal dispenser flow when the original line is blocked or pinched
• Fits where molded refrigerator water lines are specified by the manufacturer

• Turn off water supply and unplug the appliance before starting work
• Release any retaining clips or fasteners carefully to avoid damage
• Inspect connection fittings and replace worn clamps or seals as needed
• After installation, restore water and power, then check all connections for leaks

A factory fastener used to secure appliance components and panels. Replacing a missing, rusted, or stripped screw restores a solid, rattle-free fit and helps keep brackets, housings, and covers properly aligned for reliable operation.

• Fastens and holds panels, brackets, or internal components in place
• Helps maintain alignment and reduce vibration or rattling noises
• Direct replacement for a lost, corroded, stripped, or damaged fastener
• Restores proper fit when a component has loosened over time

• Unplug the appliance; also shut off gas and/or water supplies before servicing
• Match to the original screw and start threading by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• If multiple screws secure a part, start all screws before fully tightening to ensure even seating

This door hinge secures and guides a refrigerator/freezer door so it opens and closes smoothly. Replacing a worn hinge restores proper door alignment and helps prevent gaps that affect cooling performance. What it does:

• Supports the weight of the appliance door and holds it on its track
• Guides door swing so the door opens and closes evenly
• Helps maintain a tight seal to prevent air leaks and cooling loss
• Common symptoms: door sagging, uneven gap, rubbing or scraping at the door edge, or a door that won't stay closed

• Unplug the appliance or turn off power before starting work
• Support the door while removing hinge fasteners to prevent dropping or damage
• Keep all original screws; verify fit and orientation before final tightening
• Consider a second person for assistance if the door is heavy or alignment is difficult

The Door Hinge is an OEM component specifically designed for Whirlpool refrigerators. As an integral part of the refrigerator door, it provides a rotating mechanism that allows for smooth opening and closing access to the fresh food and freezer compartments.

The hinge contains precisely engineered components including springs, brass pins, and roller bearings that ensure quiet, balanced movement. It helps the door hang securely while accommodating a wide range of opening angles.

Symptoms of a bad hinge include:

• Noisy squeaking or grinding noises coming from hinges
• Difficulty in opening or closing refrigerator doors
• Doors that do not stay in desired positions
• Visual cracks, chips, or other exterior damage to hinges

This Whirlpool OEM hinge replacement will restore reliable door operation. It is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.


A center hinge spacer that positions and centers the door hinge for proper alignment and smooth operation. Replaces a worn or missing spacer to help restore correct door spacing and reduce sag or rubbing. What it does:

• Keeps the center hinge at the correct distance to maintain door alignment and even gaps.
• Helps the door open and close smoothly by preventing metal-on-metal contact.
• Reduces door sag, uneven closing, and rubbing along the cabinet.
• Protects hinge components from premature wear by maintaining correct spacing.

• Disconnect power to the appliance and remove any contents from the door before starting.
• Support the door while loosening or removing hinge fasteners to prevent injury or damage.
• Install the spacer in the same orientation as the original; replace any damaged screws or hardware.
• Tighten fasteners securely but avoid overtightening; check door alignment and operation after installation.

This water tube fitting links sections of the appliance's water line to create a secure, leak-resistant connection. Replacing a worn or cracked fitting helps maintain proper water flow and reduces the chance of leaks around the water system. What it does:

• Joins two sections of water tubing within the appliance's water circuit
• Maintains a watertight seal at the connection point
• Supports consistent flow to water-dependent features (e.g., dispenser or ice maker)
• Typical symptoms: leaks or drips at the joint, water under the unit, weak/no dispenser flow, or ice maker not filling

• 1 water tube fitting (approximately 128 mm length)

• Disconnect power and shut off the water supply before servicing
• Relieve line pressure by dispensing water; place a towel to catch residual water
• Remove the old fitting and fully seat tubing into the new fitting; restore water, check all connections for leaks, then reconnect power

This water inlet valve assembly controls the flow of water from the home supply into the refrigerator. Replacing a faulty valve restores proper water delivery to the ice maker and/or dispenser for consistent ice production and dispensing.

• Opens and closes to send water to the ice maker and/or dispenser as commanded by the refrigerator
• Common symptoms: no water from dispenser, no ice production, slow/weak dispenser flow
• May also present as continuous dripping into the ice maker/dispenser or leaks around the valve body
• If water lines and filter are clear but filling is inconsistent or absent, the valve may be at fault

• Disconnect power and shut off the water supply before servicing
• Place a towel or shallow pan to catch residual water; note line and wire locations for reassembly
• Ensure tubing is fully seated in fittings; avoid overtightening plastic connections
• Restore water and power, then check all joints for leaks and run the dispenser to purge air/debris

This replacement housing serves as the structural cover/mount for a specific appliance assembly. Replacing a cracked or damaged housing restores secure mounting and protection so components stay aligned and operate as intended. What it does:

• Holds and positions the related components for correct operation
• Shields internal parts and wiring from impact and vibration
• Restores proper fit when the original housing is cracked, warped, or broken
• Common symptoms include loose/misaligned parts, rattling noises, broken tabs, or visible damage in the affected area

• 1 housing

• Disconnect power; if the serviced area ties into water, shut off the water supply
• Wear cut-resistant gloves; edges and surrounding sheet metal can be sharp
• Transfer any sensors, seals, or hardware from the old housing to the new one
• Reuse existing screws/clips; align carefully and do not overtighten, then test operation

This filler wrapper corner is a small trim piece that restores the finished edge and alignment where two panels meet, helping keep the appliance looking finished and reducing gaps or rubbing between surfaces. What it does

• Covers and finishes the outer corner where filler/trim panels meet for a clean appearance
• Helps maintain panel alignment and keeps adjacent parts from rubbing or catching
• Reduces visible gaps that can collect dirt or moisture
• Commonly replaced when corner trim is cracked, broken, or missing

• One filler wrapper corner

• Disconnect power to the appliance before beginning any repair
• Handle trim pieces gently to avoid cracking; pry or loosen adjacent trim panels as needed
• May require removing outer panels or adjacent trim fasteners for access
• Work slowly and use non-marring tools to avoid damaging surrounding finishes

This toe grille covers the lower front of your refrigerator and allows proper ventilation to the condenser compartment. Replacing a cracked or missing grille restores a clean, finished look while helping maintain clear airflow at the base.

• Covers and finishes the lower front opening of the cabinet
• Directs intake air to the condenser area for correct ventilation
• Helps keep debris from entering the compartment under the unit
• Common symptoms: visible cracks or broken tabs, grille won't stay attached, missing piece, rattling at the base

• Disconnect power and wear work gloves for safety
• Remove the old grille by releasing side clips or removing the mounting screws (varies by model)
• Align the new grille and press to engage clips or reinstall screws; ensure it's secure and unobstructed
• Keep the front vent area clear after installation to maintain airflow

This toe grille is the lower front kick panel that covers the refrigerator's base and leveling feet. It restores a clean, finished look and helps direct airflow to the condenser area for proper cooling performance.

• Covers the bottom front opening and protects components from bumps and debris
• Helps channel air across the condenser area
• Common signs it's needed: cracked or broken panel, missing grille, difficulty keeping grille attached
• Cosmetic damage or loose fit at the base of the refrigerator

• Unplug the appliance before servicing
• Open the doors to relieve pressure on the grille, then release retaining tabs or screws
• Align tabs and snap or screw the new grille into place
• Verify doors open/close freely and grille is secure

This small pin clip secures the roller pin in a refrigerator drawer/track assembly, keeping the roller and pin from sliding apart. Replacing a missing or bent clip restores smooth drawer movement and helps prevent bins from tilting, binding, or dropping.

• Retains the roller on its pin to keep the drawer track assembly together
• Helps resolve drawers that tilt, bind, or fall when a clip is missing or damaged
• Prevents the pin from backing out, reducing scraping or popping noises
• Replaces clips that are missing, bent, or no longer hold securely

• Disconnect power and remove the drawer/bin to access the track and roller
• Support the roller; remove the old clip with small pliers while securing the pin
• Align roller and pin; press the new clip fully into the groove until seated
• Reassemble and verify the drawer glides smoothly without binding

Color: White / Left Hand

Color: White / Right Hand

Color: Grey / Left Hand

Color: Grey / Right Hand

This filter cover secures the appliance's filter element, keeping debris out of the sump and maintaining proper water flow for efficient cleaning. Replaces a worn or cracked cover to help restore normal filter function and reduce recurring clogs. What it does:

• Secures and protects the filter assembly from food particles and large debris
• Helps maintain correct water circulation through the filter area
• Prevents loose debris from entering the pump or spray system
• Can resolve symptoms like visible cover damage, persistent clogs, or debris in the sump

• One filter cover

• Turn off power to the appliance before accessing internal components
• Remove the old cover, clean the filter area, and snap or fasten the new cover into place per manufacturer guidance
• Do not force the cover; verify proper seating to avoid leaks or damage

This cover-unit is the outer housing cover that protects internal components and provides a finished appearance. It keeps wiring and mechanisms enclosed and helps maintain safe, reliable operation. What it does:

• Shields internal parts from dust, debris and accidental contact
• Helps maintain proper airflow and component spacing
• Restores the appliance's exterior appearance after panel damage or disassembly
• Reduces the risk of snagging or exposed wiring near service areas

• Disconnect power before servicing to avoid electrical shock
• Use basic hand tools; follow for correct removal and reinstallation sequence
• Inspect mounting clips and fasteners; replace any broken hardware for a secure fit
• Handle carefully to avoid scratching the finish or bending mounting tabs

This gasket/seal creates a tight barrier between two mating parts in your appliance to prevent leaks and performance loss. Replacing a worn gasket restores proper sealing and helps stop seepage at the joint. What it does

• Forms a reliable seal between components to prevent fluid or air leaks
• Maintains proper operation by keeping the sealed area contained
• Replaces gaskets that are brittle, cracked, flattened, or swollen
• Common signs include residue or moisture around the joint, visible wear on the old gasket, or a loose/poor seal

• 1 gasket/seal

• Disconnect power and any water or gas supply before servicing
• Note the gasket's orientation; compare old and new parts before installation
• Clean and dry mating surfaces; remove old adhesive and debris
• Seat the gasket evenly; do not overtighten fasteners; test for leaks after reassembly

The Water Tube is an OEM part for Whirlpool side-by-side refrigerators. This water tube is responsible for transporting water from the refrigerator's water source to the internal water dispenser and ice maker.

Causes of a bad water tube can include cracks, kinks, or punctures to the tubing material over repeated use and exposure. Mineral buildup inside the tube may also lead to clogs or blockages that restrict proper water flow.

Symptoms of a bad water tube include:

• Slow or weak water flow from the dispenser
• Ice maker not functioning or producing undersized cubes
• Water leaks inside the refrigerator
• Dispenser or ice maker not working at all

This OEM Whirlpool replacement part is also compatible with Maytag, Jenn-Air, Amana, and some Kenmore models.
