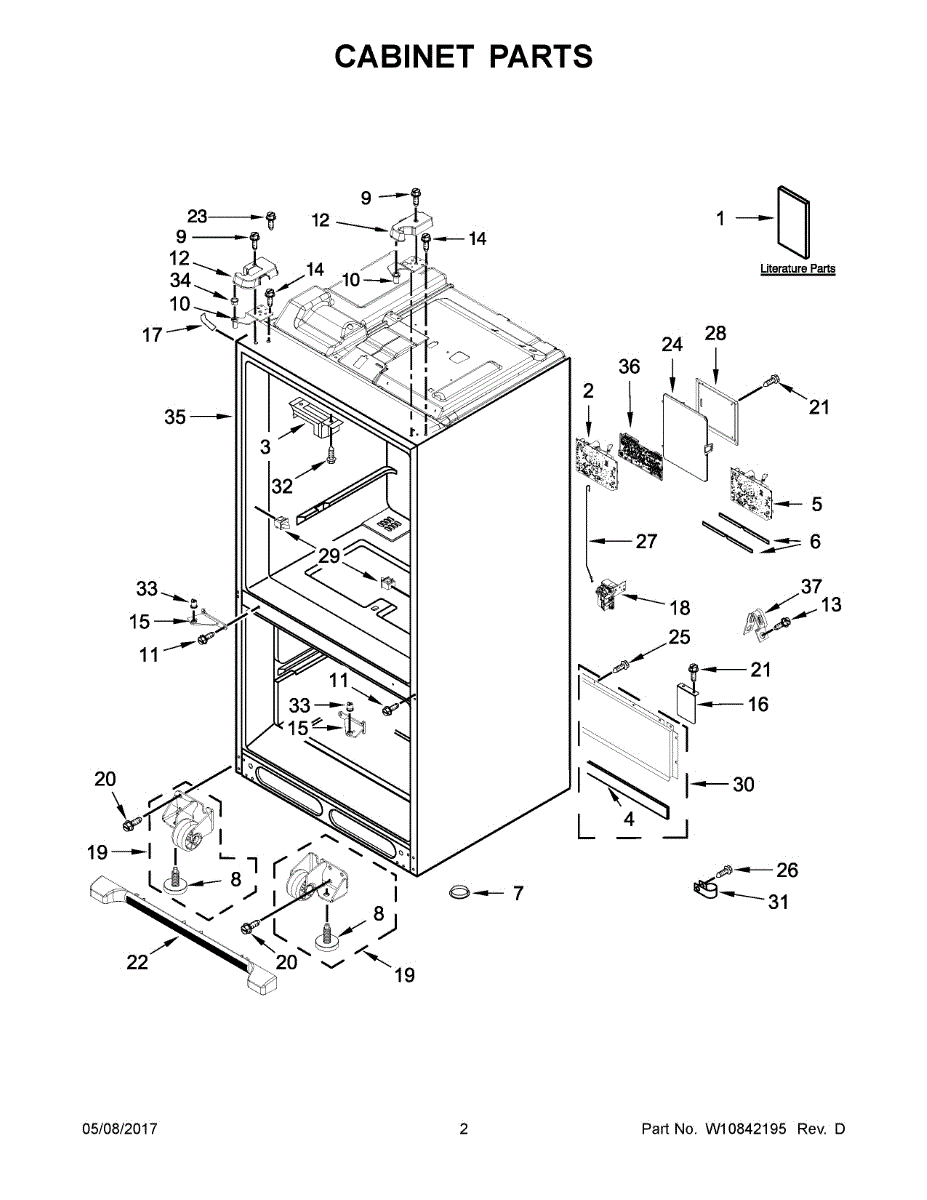

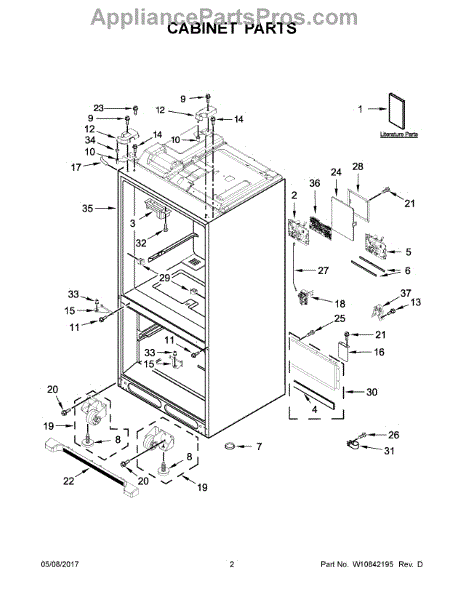

Parts for Kitchenaid KRFF507ESS01: 02 - Cabinet Parts

The Refrigerator Water Filter is an OEM part for Whirlpool refrigerators. It delivers clean, filtered drinking water and ice by effectively reducing contaminants, including chlorine taste and odor, particulates, and various other harmful substances that may be present in the water supply.

Causes of a bad Refrigerator Water Filter can include regular wear and tear over time leading to reduced efficacy in filtering out contaminants, as well as accumulation of contaminants and sediment.

Symptoms of a bad Refrigerator Water Filter include:

• Noticeable decrease in water flow rate.
• Unpleasant taste or odor in the water or ice.
• Discoloration of water or ice.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Cntrl-Elec is an OEM part for Whirlpool refrigerators. It is the electronic control board that coordinates functions of the refrigerator like temperature regulation, defrost cycles, lights, dispensers and more. The board communicates signals between components and the digital interface.

Causes of a bad control board can include moisture damage, electrical surges, or component failures over time. As the main "brain" of the unit, issues here will affect overall operation.

Symptoms of a bad control board include:

• Appliance not cooling or freezing properly
• Inability to adjust temperature settings
• Lights or other features not working
• Error codes displayed

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Mullion Pivot Block secures the refrigerator door mullion pivot, helping doors stay aligned and operate smoothly. Replacing a worn or broken pivot block restores proper pivot support and reduces door binding or uneven gaps. What it does:

• Supports the door mullion pivot to keep doors properly aligned and stable.
• Provides a wear surface for the pivot point to prevent metal-on-metal contact.
• Helps reduce door sagging, uneven gaps, binding, or rough door movement.
• Mounted at the mullion/pivot point to maintain correct door swing and closure.

• Disconnect power to the appliance before starting any repair to avoid electrical hazard.
• Support the door while removing or installing the pivot block to prevent the door from dropping or causing injury.
• Use the original fasteners or manufacturer-recommended replacements; ensure the pivot is seated and door alignment is checked after installation.

This control board is responsible for controlling the main electronic functions of the refrigerator. It monitors and manages the temperature and cooling settings of the appliance. Models that are compatible with this part can have the temperature adjusted digitally. If a control board is damaged or faulty, the set temperature of the appliance will not match the actual temperature reading the machine is putting out.To install this control board, open the refrigerator door, and make a note of the small white box on the ceiling area of the refrigerator. Remove the four screws holding this box in place. The control board is contained in the box and can be removed by popping the clip. Unplug the old board from the wiring harness and install the new one.This Whirlpool refrigerator control board is a genuine OEM part and is sourced directly from the manufacturer. It is compatible with Whirlpool, Maytag, Kenmore, and Magic Chef appliances.

The Leveling Leg is an OEM replacement part for Whirlpool refrigerators. It is one of four legs situated internally at the base corners for proper tilt positioning. It raises or lowers each leg independently to stabilize units on uneven kitchen floors.

Causes of replacement consist of wear from continual torque required during positioning processes. Thread damage or corrosion buildup attributable to floor locations over extended use necessitates periodic renewal as well.

Symptoms involve:

• Doors that fail to align or seal completely during open-close cycles
• Noisy imbalances traced to feet contacting floor surfaces
• Appliance rocking is unable to be remedied through existing leg corrections

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models

The Screw is an OEM part for Whirlpool refrigerators. This screw secures the refrigerator door hinge in place, allowing the door operates smoothly and seals properly.

Over time, screws can become loose or go missing during repairs or adjustments, which can lead to a misaligned door, compromised sealing, and increased energy consumption.

Symptoms of a bad screw include:

• The refrigerator door seems misaligned or does not close properly.
• Increased effort needed to open or close the door.
• Unusual gaps around the door seal when closed.
• The door might squeak or make other noises during operation.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Top-left refrigerator door hinge assembly that restores the cabinet pivot and keeps the door aligned for a proper seal. Replaces a worn or damaged top hinge to reduce door sag and improve opening/closing action. What it does:

• Provides the top pivot and mounting point for the refrigerator door; a failed hinge can cause door sag or uneven gaps.
• Secures the door to the cabinet so the gasket can seal properly; symptoms include cold loss or visible top gap.
• Restores smooth opening and closing when binding, scraping, or wobbling occurs at the top of the door.
• Replaces corroded, bent, or broken hinge parts that prevent proper door alignment.

• Disconnect power to the appliance before starting and remove food/items from the door.
• Support the door while removing/installing the hinge—use a second person or prop to prevent the door from falling.
• Keep original mounting hardware; replace any damaged fasteners and tighten securely without over-torquing.
• After installation, check door alignment and gasket contact; adjust hinge or strike as needed for a consistent seal.

This top hinge assembly fits the right-hand refrigerator door. Replacing a worn or damaged hinge restores smooth door movement and correct alignment so the door closes securely and the gasket seals to maintain proper temperature. What it does:

• Supports and pivots the door at the top
• Keeps the door aligned for even gaps and reliable gasket contact
• Replaces a bent, loose, or broken hinge to stop door sagging or rubbing
• Common symptoms include popping/clicking at the top, poor closing, or uneven spacing

• One right-hand top hinge assembly

• Disconnect power before servicing
• Have a second person support the door while removing the hinge
• Remove the top hinge cover and screws, lift the door off, install the new hinge, and reinstall screws
• Rehang and align the door; confirm the gasket seals evenly before restoring power

This cover is a replacement housing panel that restores the appliance's exterior appearance and protects internal components from dust and debris. It fits where the original cover was mounted and helps keep controls and wiring enclosed. What it does:

• Replaces a damaged, cracked, or missing housing cover to restore appearance and protection
• Shields internal components and wiring from dust, lint, and accidental contact
• Helps maintain proper airflow pathways by covering openings intended by the original design
• Can reduce noise and prevent snagging on exposed edges

• One replacement cover

• Disconnect power (unplug appliance or switch off breaker) before beginning any work
• Removal/installation typically requires basic hand tools; retain fasteners for reinstallation
• Handle with care to avoid scratching the finish; align mounting tabs before fastening

Color: Black

A replacement housing cover that protects internal components and restores the appliance's finished appearance. Keeps wiring and moving parts shielded while helping prevent dirt buildup and accidental contact. What it does

• Shields internal components and wiring from dust, spills, and incidental contact
• Restores the appliance's finished look where a damaged or missing cover leaves an opening
• Helps reduce noise from loose parts by securing the covered area
• Useful when a cracked, warped, or missing cover exposes internal hardware

• One replacement cover

• Disconnect power (unplug or turn off circuit breaker) before servicing
• Remove fasteners or clips holding the old cover; retain hardware if reusing
• Align the new cover carefully and secure with the original screws or clips

Color: Grey

This hinge cover assembly replaces a damaged or missing refrigerator hinge trim to protect the hinge, hide mounting hardware, and restore a finished appearance. It's a direct-fit exterior trim piece that improves safety and looks. What it does:

• Covers and protects the door hinge and mounting hardware from dust and damage
• Hides exposed screws and metal for a clean, finished appearance
• Prevents debris buildup around the hinge area that can interfere with movement
• Commonly replaced when cracked, broken, or missing, or when the hinge area looks worn

• Disconnect power to the appliance before beginning any service
• Use basic hand tools; retain associated screws and brackets during removal
• Align cover over the hinge and secure without over-tightening to avoid cracking
• If hinge hardware is bent or damaged, replace hardware before installing the cover

Replacement screw that secures panels, brackets, and other components inside your appliance, keeping assemblies tight and aligned. Replace missing or stripped hardware to eliminate looseness, reduce vibration, and restore a solid, factory-fit hold.

• Fastens panels, brackets, trim, or internal components
• Helps maintain alignment and reduce rattling/vibration
• Replaces missing, loose, rusted, or stripped hardware
• Common signs: stripped head/threads, loose panel, buzzing/rattling noises

• Disconnect power before service; shut off gas/water if applicable
• Match to the original screw; start threading by hand to avoid cross-threading
• Use the correct driver size to prevent stripping
• Tighten snugly; do not overtighten. If it won't hold, inspect the receiving hole/clip

This replacement screw fastens appliance components to restore secure connections and reduce vibration or rattling. Use it when panels, brackets, or assemblies are loose or moving. What it does:

• Secures panels, brackets, and small appliance parts to prevent movement
• Restores proper alignment for doors and trim that shift from loose hardware
• Helps eliminate vibration noise caused by loose fasteners
• Works with assemblies that use standard machine/sheet-metal screws

• Disconnect power or gas supply before servicing the appliance
• Use the correct driver bit to avoid stripping the head
• Tighten until snug; avoid overtightening which can strip threads or damage parts
• Inspect surrounding components and replace any damaged clips or hardware as needed

Color: Black

Color: Black

The Door Hinge is an OEM part for Whirlpool refrigerators. It is responsible for allowing for smooth opening and closing of the door. It also maintains the alignment of the door and prevents any sagging or misalignment issues.

A bad door hinge can occur due to wear and tear, excessive weight on the door, or accidental damage. If you notice symptoms such as difficulty in opening or closing the refrigerator door, a loose or sagging door, or an improper seal, it may be time to replace the center door hinge.

Symptoms of a bad door hinge include:

• Difficulty in opening or closing the refrigerator door
• Loose or sagging door
• Improper seal leading to temperature fluctuations

Repair your refrigerator by replacing the faulty or worn-out center door hinge with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Grey

Color: Grey

This black plastic corner cover replaces a damaged or missing exterior trim piece to restore the appliance's finished appearance and protect internal edges from dirt and wear. Fits the factory location and matches original styling. What it does:

• Covers and protects the appliance corner or trim area from chips, scuffs, and debris.
• Restores a clean, finished look where the original corner piece is cracked, broken, or missing.
• Helps keep moisture and grime from reaching internal seams at the corner.
• Matches the original color and shape to maintain the appliance's aesthetic.

• Install with the appliance powered off and unplugged for safety if cover removal exposes wiring.
• Remove any broken fragments and clean the mounting area before installing the new cover.
• May snap or screw into place depending on model; keep fasteners from the original cover for re-use.

This cover corner replaces a missing or damaged corner trim piece to restore the refrigerator's interior/exterior finish and help keep shelves and bins seated properly. It provides a clean, finished look and protects edges from wear. What it does:

• Replaces the corner trim/filler that covers panel edges or joins interior liners
• Helps keep adjoining panels, shelves or bins aligned and reduces gaps
• Restores appearance after chipping, cracks or impact damage

• Designed for drop-in or snap-on installation; verify fit against the appliance before final assembly
• Use basic hand tools; avoid excessive force which can crack plastic parts
• Disconnect power if removing interior panels or working near electrical components

The Water Inlet Valve is an OEM part for Whirlpool refrigerators. It plays a crucial role in supplying water to the refrigerator's ice maker and water dispenser. This valve opens and closes to allow water to flow into the appliance as needed, ensuring that you have access to fresh ice and cold water whenever you need it.

Symptoms of a bad Water Inlet Valve include:

• The refrigerator’s ice maker not producing ice or producing very small or malformed ice cubes.
• No water being dispensed, or the water dispenser running slowly.
• Leaking water from the valve area, which may indicate a crack or failure in the valve itself.

Causes of a bad water inlet valve can include mineral build-up from hard water, which can block the flow or cause the valve to stick open or closed; wear and tear over time that affects the valve’s ability to function properly; or electrical failures that prevent the valve from receiving the signal to open or close.

This OEM part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Front Left Roller Assembly is an OEM part for Whirlpool refrigerators. This roller assembly supports the refrigerator, allowing it to be easily moved for cleaning or maintenance.

Causes of a bad roller assembly can include wear and tear over time, damage from moving the refrigerator frequently, or exposure to heavy loads that can cause the roller to crack or break.

Symptoms of a bad front left roller assembly include:

• Difficulty moving the refrigerator
• The refrigerator not staying level
•  Unusual noises when attempting to move the appliance
• Visible damage or wear on the roller

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Roller Assembly is an OEM part for Whirlpool refrigerators. It contains heavy-duty ball bearing rollers located along the bottom front-right cabinet. Repeatedly maneuvering fully-loaded refrigerators can cause cabinet rollers to crack or bearing races to deteriorate over extended use.

Potential failure causes include structural cracks from strong impacts or bearing lubrication washing away from repeated wet cleaning.

Symptoms of faulty cabinet rollers include:

• Resistance or grinding noises when tilting the refrigerator
• Visible bearing marks wearing into roller housing
• Potential for cabinet walls or flooring damage without smooth motion

This is a genuine Whirlpool OEM replacement, this part is also compatible with Maytag, Jenn-Air and some KitchenAid models.

This front grille replaces the lower decorative and airflow cover on compatible refrigerators. It restores the appliance's finished look and helps direct airflow while protecting internal components at the base. What it does:

• Covers and protects the refrigerator's lower front area from dust, debris and accidental contact
• Directs airflow to ventilation openings along the base for proper condenser airflow
• Replaces cracked, broken or faded toe-kick pieces that affect appearance
• Helps maintain a finished, flush look at the appliance front

• Turn off power to the appliance before starting any repair to reduce risk of shock
• Typically snaps or screws into place behind the toe-kick; remove lower trim or fasteners to access
• Use common hand tools; avoid forcing clips to prevent breakage

This front grille replaces the toe-kick panel at the base of the appliance. It helps protect the condenser area from debris and provides a finished look across the bottom front of the unit.

• Covers and protects the lower front opening and condenser area
• Helps direct airflow to the condenser for proper cooling performance
• Restores a clean, finished appearance when the original grille is damaged or missing
• Common signs: cracked or broken grille, missing panel, or difficulty keeping the lower area clear of debris

• Unplug the appliance and turn off water supply before starting
• Open doors and remove any screws or clips securing the grille; pull to release
• Align new grille with mounting points; snap or screw into place
• Check for secure fit and proper airflow clearance

This front toe-kick grille mounts across the bottom of the refrigerator. It restores a clean, finished look while helping direct airflow through the condenser area and shielding components from bumps, dust, and debris.

• Provides the finished kickplate across the lower front of the cabinet
• Helps direct ventilation airflow through the condenser compartment
• Replace if cracked, warped, missing, or if it won't stay attached
• Can eliminate rattling from a loose or damaged kickplate

• Disconnect power before servicing
• Remove the old grille by releasing snap tabs or removing screws (varies by model)
• Align the new grille with the mounting slots and press firmly until it seats, or reinstall screws
• Ensure vent openings are clear and that doors open/close without interference

This is a genuine mounting screw used to secure appliance panels and components. It provides reliable fastening to keep parts aligned and reduce vibration-related noise for safer, quieter operation. What it does:

• Secures panels, brackets, or small components to the appliance frame
• Prevents parts from loosening and causing rattling or misalignment
• Maintains proper part positioning for reliable operation
• Helps reduce vibration and noise when panels are fastened correctly

• Use the correct driver and size to avoid stripping the head
• Tighten until snug; do not overtighten which can strip threads or crack plastic
• Disconnect power before servicing electrical appliances to avoid shock
• If a screw is corroded or damaged, replace all similar fasteners in that area for best results

Replacement screw that secures panels, brackets, and other components inside your appliance, keeping assemblies tight and aligned. Replace missing or stripped hardware to eliminate looseness, reduce vibration, and restore a solid, factory-fit hold.

• Fastens panels, brackets, trim, or internal components
• Helps maintain alignment and reduce rattling/vibration
• Replaces missing, loose, rusted, or stripped hardware
• Common signs: stripped head/threads, loose panel, buzzing/rattling noises

• Disconnect power before service; shut off gas/water if applicable
• Match to the original screw; start threading by hand to avoid cross-threading
• Use the correct driver size to prevent stripping
• Tighten snugly; do not overtighten. If it won't hold, inspect the receiving hole/clip

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

This water tube guides the refrigerator's water from the inlet to the dispenser and ice maker, ensuring a steady flow where needed. Replaces a damaged or clogged tube to restore proper water delivery and help prevent leaks. What it does

• Channels incoming water to the dispenser and ice maker assemblies.
• Restores normal dispenser flow when the original tube is cracked, pinched, or blocked.
• Helps stop leaks that occur from split or deteriorated tubing.
• Supports proper ice maker fill cycles by maintaining an unobstructed water path.

• One replacement water tube.

• Turn off the refrigerator and shut off the water supply before starting work.
• Inspect and replace any worn clamps, seals, or grommets encountered during installation.
• Use appropriate hand tools; avoid overtightening fittings to prevent damage.

The Door Switch is an OEM part for Whirlpool refrigerators. This switch is crucial for controlling the interior lights and the activation of certain refrigerator functions when the door is opened or closed.

Symptoms of a failing Door Switch include:

• Interior lights staying on when the refrigerator door is closed
• Interior lights not turning on when the door is opened
• The refrigerator unexpectedly starting or stopping
• Alarms or indicators malfunctioning, signaling an open door when it is closed

Causes of a bad door switch can involve mechanical failure due to wear and tear from frequent use, damage from impacts (such as slamming the door), or electrical issues like a short circuit or faulty wiring.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This unit compartment cover is the rear access panel for the refrigerator's machine area. It protects internal components and helps channel condenser airflow to support proper cooling performance while keeping dust and debris out of the compartment.

• Encloses and protects the compressor, condenser, and wiring in the rear machine compartment
• Directs condenser fan air through the coil to aid heat removal and stable temperatures
• Helps reduce noise and block debris entry; restores a clean, finished back panel
• Use when the original cover is bent, cracked, missing, or warped
• Helps if you notice rattling from the back, exposed components, or irregular cooling due to disrupted airflow

• Disconnect power and pull the refrigerator away from the wall for access
• Remove screws securing the old panel; note vent orientation and any tabs
• Position the new cover and fasten with the original hardware; do not overtighten
• Restore power and ensure the ventilation openings remain clear for proper airflow

This factory screw secures appliance components so they stay aligned and firmly attached during everyday use. Replacing a missing or damaged screw helps stop rattles, looseness, and poor fit that can affect performance over time.

• Fastens panels, brackets, or hardware to keep assemblies tight
• Helps correct issues like loose handles, vibrating panels, or misaligned parts
• Restores proper fit after a screw is stripped, corroded, or lost
• Built to match the original thread and length for reliable engagement

• Disconnect power and, if applicable, shut off water before servicing
• Use the correct driver to avoid stripping the head or threads
• Start threads by hand to prevent cross-threading; tighten snugly without over-torquing
• Replace any companion fasteners that are worn or missing for even clamping

This door cam coupler links the hinge cam components that control your refrigerator door's movement. Replacing a worn coupler restores smooth opening/closing and proper alignment so the gasket seals correctly and the door stays shut.

• Couples the hinge cam surfaces to guide door travel and detent action
• Helps the door close smoothly and stay open at designed stop points
• Maintains door alignment for even gasket contact and sealing
• Common symptoms of failure: clicking/grinding at the hinge, door sagging or misalignment, door not closing fully or popping back open

• Disconnect power and remove items from the door to reduce weight
• Support the door while removing hinge fasteners; lift door straight off the hinge pin
• Note the original coupler's orientation and install the new part the same way
• Reassemble, then check door alignment and verify a full perimeter gasket seal

A replacement rubber grommet that cushions and protects openings where wiring or components pass through metal panels. Restores proper fit and helps prevent rubbing, chafing, and vibration-related noise. What it does:

• Cushions and isolates wiring, harnesses or shafts from metal edges
• Prevents abrasion and chafing that can cause wire damage or shorts
• Reduces vibration and squeaks where parts pass through panels
• Recommended when grommet is cracked, torn, flattened, or missing

• Disconnect power before inspecting or replacing the grommet
• Remove surrounding panels as needed to access the damaged grommet
• Press-fit into the panel opening; ensure the grommet seats fully and the wire/harness sits in the groove
• Replace any damaged wiring or clips discovered during installation; avoid sharp tools that can nick the rubber

The LED Control Board is an OEM replacement part for Whirlpool refrigerators. This board houses the electronic components that power and operate the LED lighting inside the refrigerator and freezer.

Symptoms of a bad control board include:

• Lights flickering, flickering, or failing to illuminate fully
• Inconsistent or unresponsive lighting that does not turn on as needed
• Excessive power usage or overheating of the lights

Causes can be a result of damage from moisture exposure, power surges, or faulty electronic components over an extended period of use. This OEM board directly replaces the original for dependable lighting performance.

This Whirlpool part is also compatible with KitchenAid, Jenn-Air, Crosley, Amana, and some Kenmore refrigerator models as well.
