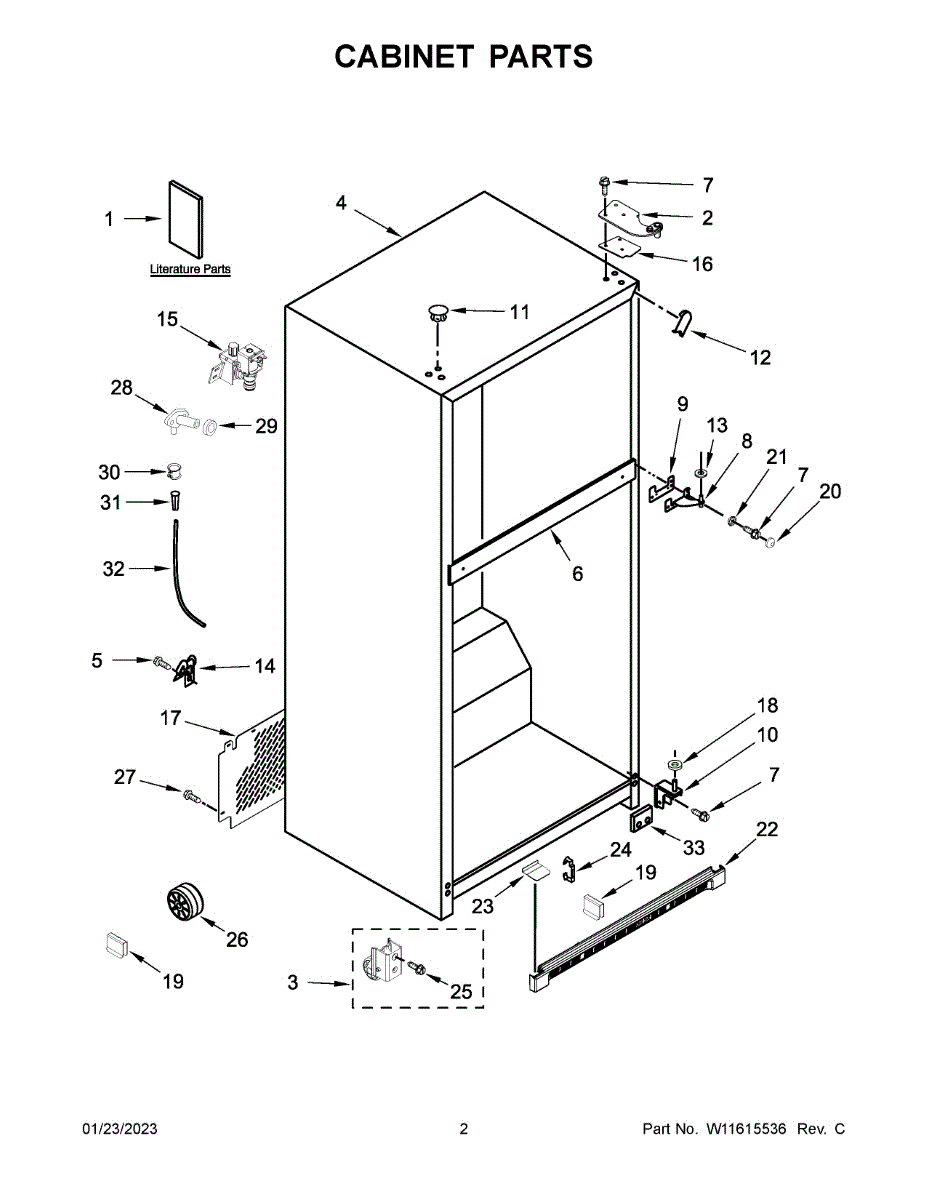

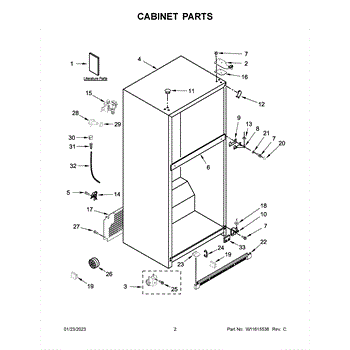

Parts for Maytag MRT711SMFZ02: Cabinet Parts

This top door hinge assembly mounts at the upper corner of a refrigerator or freezer door to support the door and provide a smooth pivot. Replacing a worn hinge restores proper alignment, smooth closing, and an effective gasket seal.

• Supports the door at the upper pivot point and carries its weight
• Keeps the door square with the cabinet for proper sealing
• Enables smooth opening and closing without binding
• Common symptoms of a failing hinge include door sagging, rubbing, popping/creaking sounds, and poor sealing or condensation around the door

• Disconnect power; remove door contents for easier handling
• Support the door before removing the upper hinge screws and hinge
• Note hinge orientation and transfer any shims/spacers during reassembly
• Tighten screws securely, then verify door alignment and gasket seal

This cabinet roller helps a door or pull-out drawer roll smoothly along its track for consistent, quieter operation. It replaces a worn or damaged roller to restore even movement and reduce scraping or sticking. What it does:

• Supports and guides a door or drawer along its track for proper alignment and motion
• Reduces noise and friction from worn or damaged rollers
• Helps eliminate sticking, scraping, or uneven travel during opening/closing
• Restores consistent operation when the original roller is cracked, broken, or missing

• One cabinet roller

• Disconnect power to the appliance before beginning any repair
• Inspect the track and surrounding components for wear or debris; clean as needed
• Many rollers snap or screw into place; use appropriate tools and avoid forcing parts

Size: 8-18 x 1/2 inch.

The Center Door Hinge is an OEM replacement part for Whirlpool refrigerators. As one of several hinges supporting each refrigerator door panel, it works to guide opening and closing movements.

Causes of a faulty center hinge tend to be wear from years of continuous operation with near-daily door cycles. Complete failure could also occur in the event of physical damage sustained during a repair or installation issue.

Symptoms include:

• Looseness, wobbling, or misalignment of the associated door
• Increased effort required to open or close doors
• Potential for doors to fall off alignment, cease opening fully
• Risk of door detachment altogether without hinge support

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This small shim installs on the refrigerator's center hinge pin to set door height and reduce excess play. Replacing a worn spacer can help restore smooth door movement and a reliable gasket seal. What it does:

• Maintains proper spacing at the center hinge to support door alignment
• Reduces door wobble, sagging, or rubbing against the cabinet
• Helps doors open and close smoothly with consistent gasket contact
• Can lessen clicking or squeaking from a worn hinge interface

• Includes the center hinge spacer only

• Unplug the refrigerator or switch off power at the breaker
• Remove items from the door; support the door before loosening center hinge screws
• Lift the door off; place the new spacer on the center hinge pin in the same orientation as the original
• Reinstall the hinge and door; tighten fasteners and verify door alignment and gasket seal

This lower door hinge supports the refrigerator door at the bottom pivot so it opens smoothly and stays properly aligned. Replacing a worn hinge can restore reliable door closure and help maintain an effective gasket seal.

• Provides the bottom pivot point and supports the door's weight
• Helps keep the door aligned for proper gasket contact
• Allows smooth opening and closing without binding
• Common symptoms of a failing hinge: door sagging, rubbing/scraping, squeaking, or not closing fully

• Disconnect power and, if applicable, shut off the water supply; remove items from the door.
• Support the door, remove the top hinge hardware, and lift the door off the bottom hinge.
• Remove the old bottom hinge from the cabinet/frame and install the new hinge in the same orientation, reusing original screws/shims.
• Reinstall the door and top hinge, then check alignment and gasket seal before restoring power.

Color: Grey

The Hinge Washer is an OEM replacement part for Whirlpool refrigerators. This small washer plays a supports the refrigerator door hinge assembly. Center hinge plastic washer.

Causes of a bad hinge washer are generally normal wear and tear from extensive use. As the washer absorbs pressure each time the door is opened or closed, it can gradually deteriorate or crack. Physical damage is also possible if the door is accidentally struck or slammed.

Symptoms of a worn or damaged hinge washer include:

• sagging doors
• uneven gaps around the door seal
• doors that do not stay securely closed on their own
• Over time and repeated opening/closing stress, the hinge washer compresss which affects door alignment.

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The inlet valve is an OEM replacement part for Whirlpool refrigerators. Located where the water line attaches inside the fridge, it controls input flow into the ice maker and water dispenser components. A reliable inlet is necessary for these features.

Causes of a faulty inlet valve can range from water conditions like excess minerals collecting inside to wear from repeated valve openings.

Symptoms include:

• Ice maker or water dispenser not working properly
• Water leaks inside the fridge compartment
• Restricted flow not allowing full ice baskets or glass fills

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This hinge shim corrects hinge spacing to help doors sit square and reduce rubbing or uneven gaps. It's a simple replacement used to restore proper door alignment so the door closes and seals more reliably. What it does:

• Adjusts hinge spacing to realign doors; use when a door leans or shows uneven gaps.
• Helps the door close and seal better by restoring correct hinge clearance.
• Prevents binding or rubbing that can occur when a hinge or door is slightly out of position.
• Small, low-profile shim used as a targeted fix without replacing the entire hinge assembly.

• Disconnect power to the appliance before starting; if applicable, shut off the water supply.
• Support the door while loosening hinge fasteners to avoid sudden movement or injury.
• Install the shim between hinge components as shown in the service diagram; retighten fasteners evenly.

This small pin clip secures the roller pin in a refrigerator drawer/track assembly, keeping the roller and pin from sliding apart. Replacing a missing or bent clip restores smooth drawer movement and helps prevent bins from tilting, binding, or dropping.

• Retains the roller on its pin to keep the drawer track assembly together
• Helps resolve drawers that tilt, bind, or fall when a clip is missing or damaged
• Prevents the pin from backing out, reducing scraping or popping noises
• Replaces clips that are missing, bent, or no longer hold securely

• Disconnect power and remove the drawer/bin to access the track and roller
• Support the roller; remove the old clip with small pliers while securing the pin
• Align roller and pin; press the new clip fully into the groove until seated
• Reassemble and verify the drawer glides smoothly without binding

Color: Grey

This small fastener washer fits under a bolt or nut inside your washing machine, distributing clamping force and protecting surfaces. Replacing a worn or missing washer restores a secure fit and helps reduce vibration, rattling, and premature wear.

• Distributes load evenly under a bolt or nut to prevent damage and loosening
• Helps maintain correct spacing and alignment within the assembly
• Reduces metal-on-metal wear at the mounting point
• Can help address looseness, rattling/metallic noises, and excessive vibration

• Disconnect power and shut off water before servicing
• Note the original washer's position and orientation before removal
• Inspect the bolt/nut and mating surfaces; replace any damaged hardware
• Tighten to manufacturer guidance; avoid overtightening

A replacement grille that restores the appliance's exterior venting trim and finished appearance. Designed to fit the factory opening and help direct air flow while covering internal components for a clean look. What it does:

• Covers and protects the appliance vent opening while maintaining the original appearance
• Directs airflow from the appliance to help proper ventilation
• Replaces cracked, broken, warped, or discolored trim that affects fit and finish
• Helps prevent debris from entering internal components behind the vent

• Verify fit by comparing part number and shape before installation
• Remove power to the appliance before removing access panels or fasteners
• Use basic hand tools; retain all fasteners for reassembly
• If clips or mounting hardware are damaged, replace them to ensure a secure fit

This end cap is a small replacement trim piece that restores the finished appearance and protects the exposed edge of the appliance component. It helps keep edges covered and prevents dirt buildup where panels meet. What it does:

• Covers and protects the exposed end of a panel or housing to prevent wear and dirt accumulation
• Restores a finished, uniform appearance after damage or loss
• Helps maintain proper alignment of adjacent trim or components
• Commonly replaced when cracked, broken, missing, or cosmetically damaged

• One end cap trim piece

• Disconnect power or unplug the appliance before beginning any repair
• Installation is typically simple: align the cap and snap or secure it into place with existing retainers or fasteners
• Keep track of any small clips or screws removed during replacement
• If the cap does not seat easily, double-check alignment to avoid damaging surrounding trim

This small retainer clip secures a component or wiring harness to the appliance so parts stay aligned and rattle-free. It replaces a worn or broken fastener to restore proper fit and reduce noise or intermittent connections. What it does:

• Holds a panel, bracket, or wiring harness in place to prevent movement
• Keeps components aligned to ensure smooth operation and reduce vibration noise
• Helps maintain electrical connections by stabilizing wiring runs
• Common symptom: loose trim, rattling or vibrating parts, or intermittent wiring contact

• Disconnect power to the appliance before starting any work
• Remove the appropriate access panel or trim to reach the damaged clip
• Use pliers or a flat screwdriver to remove the old clip and snap the new clip into place
• Verify the secured part is seated correctly and test the appliance after reassembly

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The Fill Tube is an OEM part for Whirlpool-brand refrigerator ice makers and water dispensers. It facilitates filling of the ice mold tray with water during the freezing process.

Symptoms of a bad fill tube include:

• Ice maker not filling molds properly or producing ice inconsistently
• Water dispenser failing to function or dispensing slowly
• Leaks noticed around the fill tube area
• Buildup of mineral deposits blocking water flow

Over many years of repeated use, mineral deposits inside can clog the tiny fill tube openings. Bends or cracks may also form from the continuous impact of ice during the ejection cycle.

Causes of a bad fill tube are usually just standard wear issues like mineral buildup reducing water flow or plastic material fatigue rendering it brittle.

Compatible also with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerators.

This gasket/seal creates a tight barrier between two mating parts in your appliance to prevent leaks and performance loss. Replacing a worn gasket restores proper sealing and helps stop seepage at the joint. What it does

• Forms a reliable seal between components to prevent fluid or air leaks
• Maintains proper operation by keeping the sealed area contained
• Replaces gaskets that are brittle, cracked, flattened, or swollen
• Common signs include residue or moisture around the joint, visible wear on the old gasket, or a loose/poor seal

• 1 gasket/seal

• Disconnect power and any water or gas supply before servicing
• Note the gasket's orientation; compare old and new parts before installation
• Clean and dry mating surfaces; remove old adhesive and debris
• Seat the gasket evenly; do not overtighten fasteners; test for leaks after reassembly

A small metal clamp that secures flexible hoses or tubing in laundry and kitchen appliances to prevent leaks and keep connections tight. Simple, durable replacement for a worn or loose hose fastening point. What it does

• Holds a hose or tube firmly to a barb, fitting or nipple to stop leaks and movement
• Restores a secure connection where a cracked or corroded clamp allows fluid or air escape
• Common service item for loose drain, fill, or vent hoses showing seepage or slipping
• Helps maintain proper appliance function by ensuring sealed hose connections

• One clamp

• Disconnect power and water before servicing; follow your appliance safety procedures
• Inspect mating hose and fitting for damage; replace hose if cut or brittle
• Use the correct pliers or clamp tool for safe installation and to avoid over-tightening

These inserts are for 1/4 inch plastic tubing. Package of 4.

The Ice Maker Water Line is an OEM part for Whirlpool refrigerators. It supplies water from the household plumbing to the ice maker, ensuring a consistent and reliable production of ice cubes. This kit includes a 1/4-inch plastic water line that is approximately 72 inches long. The tubing will need to be cut to match the desired length.

Causes of a bad water line can include wear and tear from prolonged use, kinks or bends restricting water flow, or leaks due to punctures or cracks. A compromised water line can result in inadequate ice production or water leaks.

Symptoms of a bad ice maker water line include:

• Reduced or no ice production
• Leaking water from the refrigerator
• Visible cracks or damage to the water line
• Ice cubes that are smaller than usual

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This bottom hinge shim installs at the refrigerator's lower door hinge to fine-tune door height and alignment. Replacing a worn or missing shim can help restore smooth closing and an even, reliable gasket seal.

• Spaces the door at the lower hinge to set proper height and alignment
• Helps reduce door sagging or rubbing against the cabinet or other door
• Can help the door gasket seal evenly to minimize warm-air leaks

• Disconnect power and, if applicable, shut off the water supply
• Remove items from the door and support the door to prevent strain
• Loosen/remove lower hinge hardware and place the shim in the original location/orientation
• Reassemble, check alignment, and verify even gasket contact around the door
