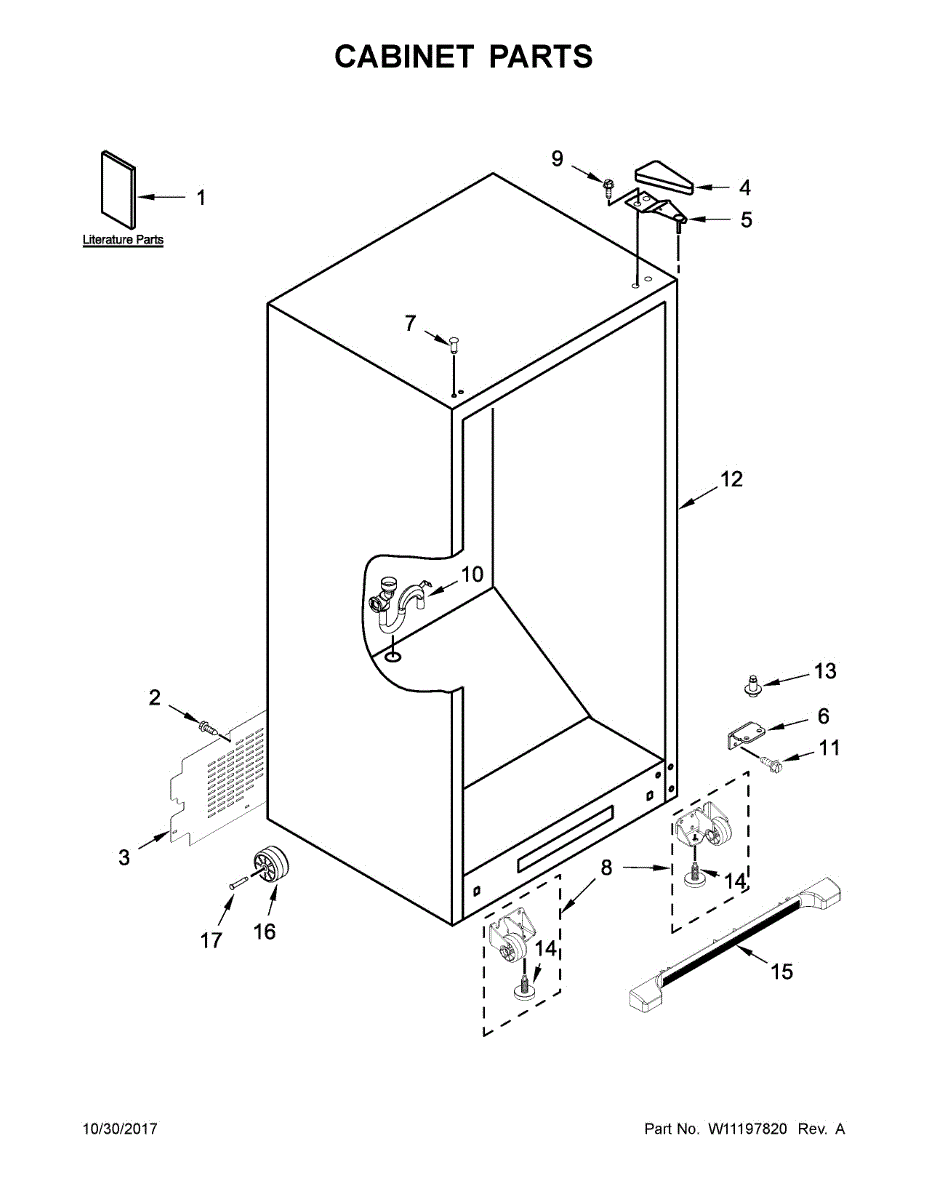

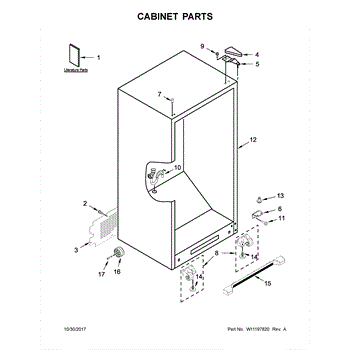

Parts for Maytag MZF34X20DW01: Cabinet Parts

Size: 8 x 1/2 ab.

This hinge cover replaces a damaged or missing hinge trim to protect and conceal the hinge assembly and restore the appliance's finished appearance. It fits over the hinge area and helps reduce dirt buildup and exposed hardware. What it does:

• Covers and protects hinge hardware, hiding screws and sharp edges
• Helps keep dirt, lint, and moisture out of the hinge area
• Restores the appliance's original, finished look
• Common symptoms: cracked, broken, or missing cover; exposed hinge hardware; cosmetic damage or debris buildup

• Refer to your model diagram for correct orientation and fastener locations
• Basic hand tools may be required; some models need the hinge loosened or partially removed
• Disconnect power and/or unplug the appliance before starting work when applicable
• Handle edges carefully to avoid cuts; follow OEM instructions for reassembly

This top door hinge is the butt hinge assembly that mounts to the cabinet at the top of the refrigerator door, supporting the door and allowing smooth swing. Replacing a worn hinge restores alignment and a reliable seal.

• Provides the upper pivot point for the door
• Keeps the door aligned so the gasket seals correctly
• Wear or damage can cause sagging, rubbing, squeaks, or a door that won't close fully
• Helps reduce air leaks and temperature swings near the door

• Disconnect power and remove items from the door to reduce weight
• Support the door from below; remove the hinge cover and mounting screws
• Note the position of any shims/spacers and transfer them to the new hinge
• Reinstall, align the door, tighten screws, and ensure proper gasket contact

This genuine replacement door hinge restores proper door alignment and smooth pivoting on compatible refrigerators, helping doors close fully and maintain an even seal for optimal cooling. What it does:

• Supports and pivots the refrigerator door so it opens and closes smoothly
• Keeps door aligned to prevent sagging, rubbing, or uneven gaps
• Helps maintain a tight seal to reduce cold air loss and improve efficiency
• Stops door from binding or catching when opening

• Disconnect power to the appliance and empty or support the door before beginning.
• Use proper tools and support the door while removing/installing the hinge to avoid injury or damage.
• Tighten mounting hardware securely but do not overtighten; follow OEM torque guidance if available.

Color: White

The Front Left Roller Assembly is an OEM part for Whirlpool refrigerators. This roller assembly supports the refrigerator, allowing it to be easily moved for cleaning or maintenance.

Causes of a bad roller assembly can include wear and tear over time, damage from moving the refrigerator frequently, or exposure to heavy loads that can cause the roller to crack or break.

Symptoms of a bad front left roller assembly include:

• Difficulty moving the refrigerator
• The refrigerator not staying level
•  Unusual noises when attempting to move the appliance
• Visible damage or wear on the roller

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Roller Assembly is an OEM part for Whirlpool refrigerators. It contains heavy-duty ball bearing rollers located along the bottom front-right cabinet. Repeatedly maneuvering fully-loaded refrigerators can cause cabinet rollers to crack or bearing races to deteriorate over extended use.

Potential failure causes include structural cracks from strong impacts or bearing lubrication washing away from repeated wet cleaning.

Symptoms of faulty cabinet rollers include:

• Resistance or grinding noises when tilting the refrigerator
• Visible bearing marks wearing into roller housing
• Potential for cabinet walls or flooring damage without smooth motion

This is a genuine Whirlpool OEM replacement, this part is also compatible with Maytag, Jenn-Air and some KitchenAid models.

A factory fastener used to secure appliance components and panels. Replacing a missing, rusted, or stripped screw restores a solid, rattle-free fit and helps keep brackets, housings, and covers properly aligned for reliable operation.

• Fastens and holds panels, brackets, or internal components in place
• Helps maintain alignment and reduce vibration or rattling noises
• Direct replacement for a lost, corroded, stripped, or damaged fastener
• Restores proper fit when a component has loosened over time

• Unplug the appliance; also shut off gas and/or water supplies before servicing
• Match to the original screw and start threading by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• If multiple screws secure a part, start all screws before fully tightening to ensure even seating

The Drain Tube is an OEM part for Whirlpool-brand French door refrigerator water dispensers and ice makers. It channels excess water away during the icemaking process.

Causes of a bad drain tube can include mineral buildup clogging the narrow opening over time or cracks developing from rigid ice contact every cycle.

Symptoms of a bad drain tube include:

• Water failing to properly drain away from the ice maker
• Puddles or leaks appearing near the freezer floor
• Ice production deteriorating due to water backup
• Mineral scale deposits accumulating around connections

Replacing it with this OEM tube restores full water ejection to produce clean ice. Also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerators.

This hex-head sheet metal screw secures refrigerator panels, brackets, and other internal components. Replacing a missing, corroded, or stripped screw helps keep parts tight, reduces vibration noise, and maintains proper alignment of covers and assemblies.

• Fastens sheet-metal panels, ducts, brackets, and trim inside the cabinet
• Helps maintain a secure fit and reduce rattles or buzzing
• Restores alignment when an original fastener is missing or damaged
• Common signs include loose or vibrating panels, a stripped screw head, or a screw that won't tighten

• Unplug the refrigerator and shut off water supply if working near ice/water components
• Use the correct nut driver or socket for the hex head
• Start threads by hand to avoid cross-threading; tighten until snug—do not overtighten
• Replace screws one at a time to help keep parts aligned

The Leveling Leg is an OEM replacement part for Whirlpool refrigerators. It is one of four legs situated internally at the base corners for proper tilt positioning. It raises or lowers each leg independently to stabilize units on uneven kitchen floors.

Causes of replacement consist of wear from continual torque required during positioning processes. Thread damage or corrosion buildup attributable to floor locations over extended use necessitates periodic renewal as well.

Symptoms involve:

• Doors that fail to align or seal completely during open-close cycles
• Noisy imbalances traced to feet contacting floor surfaces
• Appliance rocking is unable to be remedied through existing leg corrections

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models

This front grille covers the lower front of the refrigerator and helps guide airflow through the condenser area. Replace a cracked, loose, or missing grille to restore appearance and proper ventilation. What it does:

• Covers and protects the base area, giving the unit a finished look
• Helps channel air to the condenser for consistent ventilation
• Helps keep dust and debris from collecting under the appliance
• Common symptoms: cracked/broken grille, broken tabs, won't stay attached, missing piece

• 1 front grille

• Disconnect power before servicing
• Release retaining clips or remove any mounting screws per your model
• Align tabs and snap or fasten the new grille into place
• Reuse original screws/clips if applicable; secure attachment and clear airflow

The Roller is an OEM part for Whirlpool refrigerators. It is designed to facilitate the smooth movement of your refrigerator, making it easier to position and clean underneath the appliance. The roller supports the weight of the refrigerator and allows for easy adjustments in placement.

Causes of a bad fridge roller can include wear and tear from frequent movement, exposure to heavy loads that can damage the roller, or accumulation of dirt and debris that can impede its function. When a roller is damaged, it can affect the stability and mobility of the refrigerator.

Symptoms of a bad Roller include:

• Difficulty moving the refrigerator
• Unusual noises when the refrigerator is moved
• Uneven leveling of the refrigerator
• The refrigerator not staying in place

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Axle is an OEM part for Whirlpool refrigerators. This axle allows it to be easily repositioned or moved for cleaning and maintenance. It supports the rollers that enable the refrigerator to glide across the floor.

Common causes of a bad axle include prolonged use, excessive weight, or impact damage, which can lead to the axle bending or breaking.

Symptoms of a bad refrigerator roller axle include:

• Difficulty moving the refrigerator
• Uneven or wobbling movement
• Scratches or damage to the floor
• The refrigerator not staying level

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
