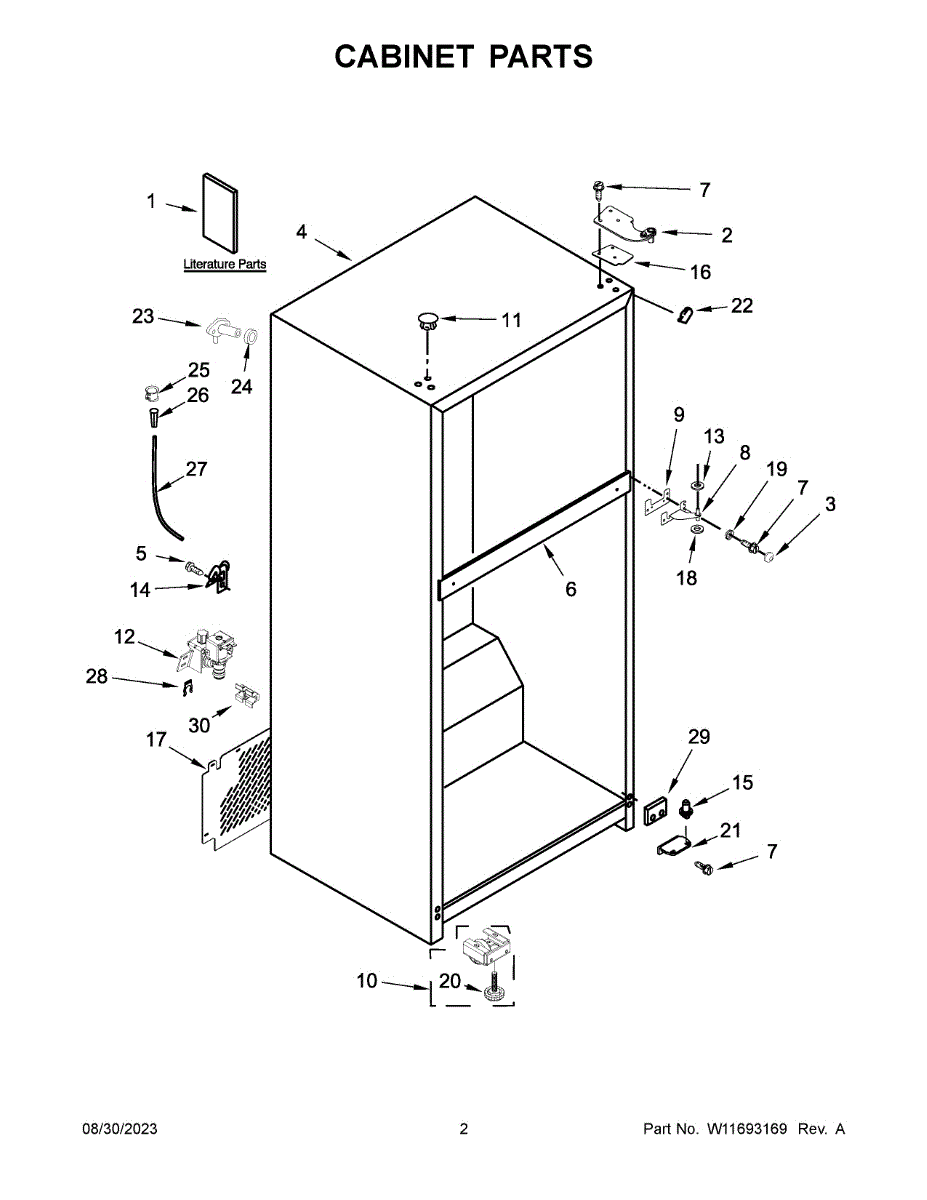

Parts for Whirlpool WRTX5028PM01: Cabinet Parts

This top door hinge assembly mounts at the upper corner of a refrigerator or freezer door to support the door and provide a smooth pivot. Replacing a worn hinge restores proper alignment, smooth closing, and an effective gasket seal.

• Supports the door at the upper pivot point and carries its weight
• Keeps the door square with the cabinet for proper sealing
• Enables smooth opening and closing without binding
• Common symptoms of a failing hinge include door sagging, rubbing, popping/creaking sounds, and poor sealing or condensation around the door

• Disconnect power; remove door contents for easier handling
• Support the door before removing the upper hinge screws and hinge
• Note hinge orientation and transfer any shims/spacers during reassembly
• Tighten screws securely, then verify door alignment and gasket seal

Color: Black

Color: White

Color: Grey

Size: 8-18 x 1/2 inch.

This is the center hinge for the refrigerator doors. It supports and aligns the doors at the midpoint so they open smoothly and seal properly, helping maintain temperatures and reliable day-to-day operation.

• Provides the middle pivot point between the upper and lower doors
• Keeps door alignment and spacing correct for a tight gasket seal
• Common symptoms: door sagging or rubbing, squeaking/grinding, door not closing or popping open, uneven gaps
• Replace if the hinge bracket or pin is bent, worn, or corroded

• Disconnect power and clear items from the doors before starting
• Support the doors; a second person is recommended when removing hinge screws
• Note the order of any shims/spacers or washers and transfer them to the new hinge
• After installation, align doors and verify full gasket contact all around

The Leveling Leg is an OEM part for Whirlpool refrigerators. This adjustable leg ensures your refrigerator is level. A level refrigerator ensures that doors seal properly, minimizing energy consumption and preventing uneven cooling or frost buildup.

Causes of damage to the leveling leg can range from normal wear and tear, corrosion from moisture exposure, or physical damage during moving or cleaning processes. It's also possible for the leg to become stiff or seized, making adjustment difficult.

Symptoms of a bad Leveling Leg include:

• The refrigerator wobbles or is unstable when doors are opened or closed.
• Difficulty in aligning the refrigerator doors due to the appliance not being level.
• Increased operational noise or vibrations, especially when the compressor turns on, indicating the refrigerator is not sitting evenly.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: Black

Color: Grey

The inlet valve is an OEM replacement part for Whirlpool refrigerators. Located where the water line attaches inside the fridge, it controls input flow into the ice maker and water dispenser components. A reliable inlet is necessary for these features.

Causes of a faulty inlet valve can range from water conditions like excess minerals collecting inside to wear from repeated valve openings.

Symptoms include:

• Ice maker or water dispenser not working properly
• Water leaks inside the fridge compartment
• Restricted flow not allowing full ice baskets or glass fills

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Hinge Washer is an OEM replacement part for Whirlpool refrigerators. This small washer plays a supports the refrigerator door hinge assembly. Center hinge plastic washer.

Causes of a bad hinge washer are generally normal wear and tear from extensive use. As the washer absorbs pressure each time the door is opened or closed, it can gradually deteriorate or crack. Physical damage is also possible if the door is accidentally struck or slammed.

Symptoms of a worn or damaged hinge washer include:

• sagging doors
• uneven gaps around the door seal
• doors that do not stay securely closed on their own
• Over time and repeated opening/closing stress, the hinge washer compresss which affects door alignment.

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

A replacement hinge pin that secures and guides the appliance door hinge so the door opens, closes and stays aligned. Installs quickly to restore correct door pivot and reduce sag or binding. What it does

• Acts as the pivot point for the door hinge so the door swings smoothly.
• Restores proper door alignment to prevent gaps or doors that won't latch fully.
• Stops noisy or rough door movement caused by a worn or bent pin.
• Helps maintain seal performance by keeping the door flush with the cabinet.

• Disconnect power to the appliance and remove any items from the door area before starting.
• Support the door while removing/installing the pin to avoid damage or injury.
• Use appropriate hand tools and keep track of any retainers or fasteners removed.

This hinge shim corrects hinge spacing to help doors sit square and reduce rubbing or uneven gaps. It's a simple replacement used to restore proper door alignment so the door closes and seals more reliably. What it does:

• Adjusts hinge spacing to realign doors; use when a door leans or shows uneven gaps.
• Helps the door close and seal better by restoring correct hinge clearance.
• Prevents binding or rubbing that can occur when a hinge or door is slightly out of position.
• Small, low-profile shim used as a targeted fix without replacing the entire hinge assembly.

• Disconnect power to the appliance before starting; if applicable, shut off the water supply.
• Support the door while loosening hinge fasteners to avoid sudden movement or injury.
• Install the shim between hinge components as shown in the service diagram; retighten fasteners evenly.

This steel rear unit compartment cover replaces a damaged or corroded rear panel to protect internal components and maintain cabinet integrity. Designed for a direct, OEM-fit replacement to restore enclosure protection. What it does:

• Shields motors, wiring and controls from debris, moisture and physical contact
• Helps maintain proper airflow routing around rear-mounted components
• Prevents vibration-related wear by securing the unit compartment
• Visible rust, dents or a missing panel are common signs this cover needs replacement

• Disconnect power before access and wear gloves; edges may be sharp
• Remove service access panels to reach and unbolt the old cover; retain fasteners if reusable
• Align cover and fasten securely; verify clearance to wiring and moving parts before restoring power

This small fastener washer fits under a bolt or nut inside your washing machine, distributing clamping force and protecting surfaces. Replacing a worn or missing washer restores a secure fit and helps reduce vibration, rattling, and premature wear.

• Distributes load evenly under a bolt or nut to prevent damage and loosening
• Helps maintain correct spacing and alignment within the assembly
• Reduces metal-on-metal wear at the mounting point
• Can help address looseness, rattling/metallic noises, and excessive vibration

• Disconnect power and shut off water before servicing
• Note the original washer's position and orientation before removal
• Inspect the bolt/nut and mating surfaces; replace any damaged hardware
• Tighten to manufacturer guidance; avoid overtightening

This factory screw secures panels, brackets, and internal components in your appliance. Replacing a missing, stripped, or corroded fastener restores a snug fit, reduces vibration and noise, and helps keep assemblies aligned for reliable operation.

• Fastens components to maintain proper alignment and structural support
• Replaces a missing, damaged, or stripped screw
• Helps reduce rattling, vibration, or looseness
• Restores secure mounting of covers, trim, and assemblies

• Disconnect power; turn off gas or water supplies as applicable before servicing.
• Compare to the original to match length and thread.
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing.
• Reinstall any brackets or trim in the original order and orientation.

Due to manufacturer changes, if D shaft hinge pin is needed use part number WP2325483.

Color: Black

Color: Grey

Color: White

The Fill Tube is an OEM part for Whirlpool-brand refrigerator ice makers and water dispensers. It facilitates filling of the ice mold tray with water during the freezing process.

Symptoms of a bad fill tube include:

• Ice maker not filling molds properly or producing ice inconsistently
• Water dispenser failing to function or dispensing slowly
• Leaks noticed around the fill tube area
• Buildup of mineral deposits blocking water flow

Over many years of repeated use, mineral deposits inside can clog the tiny fill tube openings. Bends or cracks may also form from the continuous impact of ice during the ejection cycle.

Causes of a bad fill tube are usually just standard wear issues like mineral buildup reducing water flow or plastic material fatigue rendering it brittle.

Compatible also with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerators.

This gasket/seal creates a tight barrier between two mating parts in your appliance to prevent leaks and performance loss. Replacing a worn gasket restores proper sealing and helps stop seepage at the joint. What it does

• Forms a reliable seal between components to prevent fluid or air leaks
• Maintains proper operation by keeping the sealed area contained
• Replaces gaskets that are brittle, cracked, flattened, or swollen
• Common signs include residue or moisture around the joint, visible wear on the old gasket, or a loose/poor seal

• 1 gasket/seal

• Disconnect power and any water or gas supply before servicing
• Note the gasket's orientation; compare old and new parts before installation
• Clean and dry mating surfaces; remove old adhesive and debris
• Seat the gasket evenly; do not overtighten fasteners; test for leaks after reassembly

A small metal clamp that secures flexible hoses or tubing in laundry and kitchen appliances to prevent leaks and keep connections tight. Simple, durable replacement for a worn or loose hose fastening point. What it does

• Holds a hose or tube firmly to a barb, fitting or nipple to stop leaks and movement
• Restores a secure connection where a cracked or corroded clamp allows fluid or air escape
• Common service item for loose drain, fill, or vent hoses showing seepage or slipping
• Helps maintain proper appliance function by ensuring sealed hose connections

• One clamp

• Disconnect power and water before servicing; follow your appliance safety procedures
• Inspect mating hose and fitting for damage; replace hose if cut or brittle
• Use the correct pliers or clamp tool for safe installation and to avoid over-tightening

These inserts are for 1/4 inch plastic tubing. Package of 4.

The Ice Maker Water Line is an OEM part for Whirlpool refrigerators. It supplies water from the household plumbing to the ice maker, ensuring a consistent and reliable production of ice cubes. This kit includes a 1/4-inch plastic water line that is approximately 72 inches long. The tubing will need to be cut to match the desired length.

Causes of a bad water line can include wear and tear from prolonged use, kinks or bends restricting water flow, or leaks due to punctures or cracks. A compromised water line can result in inadequate ice production or water leaks.

Symptoms of a bad ice maker water line include:

• Reduced or no ice production
• Leaking water from the refrigerator
• Visible cracks or damage to the water line
• Ice cubes that are smaller than usual

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This bottom hinge shim installs at the refrigerator's lower door hinge to fine-tune door height and alignment. Replacing a worn or missing shim can help restore smooth closing and an even, reliable gasket seal.

• Spaces the door at the lower hinge to set proper height and alignment
• Helps reduce door sagging or rubbing against the cabinet or other door
• Can help the door gasket seal evenly to minimize warm-air leaks

• Disconnect power and, if applicable, shut off the water supply
• Remove items from the door and support the door to prevent strain
• Loosen/remove lower hinge hardware and place the shim in the original location/orientation
• Reassemble, check alignment, and verify even gasket contact around the door
