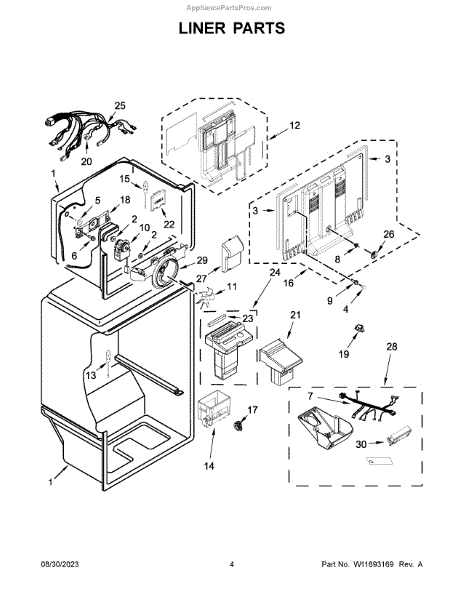

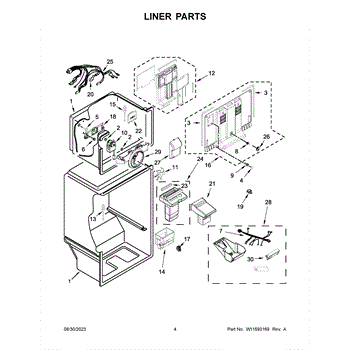

Parts for Whirlpool WRTX5028PM01: Liner Parts

This rubber grommet cushions and secures a refrigerator fan motor, isolating vibration to help reduce noise and keep the fan properly aligned in its mount.

• Provides a snug, vibration-dampening seat for the fan motor shaft or mounting stud
• Helps prevent rattling, buzzing, or humming sounds from a loose fan mount
• Maintains proper fan alignment to avoid blade contact with shrouds or brackets
• Replaces aged, cracked, or compressed rubber that can lead to increased vibration

• Disconnect power before service; wear cut-resistant gloves
• Access the fan assembly (rear or evaporator section), support the motor, and remove the old grommet
• Press the new grommet fully into the bracket or housing; transfer any spacers as originally configured
• Reinstall the motor and verify the fan blade spins freely with no contact before restoring power

This refrigerator door gasket creates an airtight seal around the door to help keep cold in and moisture out, preserving food freshness and improving cooling efficiency. What it does:

• Seals the refrigerator door to prevent warm air entry and cold air loss
• Helps reduce frost buildup and condensation inside the refrigerator
• Can improve temperature stability and reduce run time when the seal is compromised
• Addresses symptoms such as visible gaps around the door, warm spots, or excess frost

• One refrigerator door gasket

• Inspect door frame for damage or debris and clean sealing surface before installing
• Warm the gasket slightly to make positioning easier; avoid open flames or excessive heat
• Work around the door edges to seat the gasket evenly; some fasteners or retainer channels may need to be adjusted

This hole plug covers an unused opening in the appliance cabinet. It restores a clean, finished look and helps keep spills, dust, and moisture out of internal components.

• Seals an unused hole in the cabinet for a tidy, finished appearance
• Helps protect internal parts from liquids, dust, and humidity
• Covers sharp or unfinished edges around open holes
• Common signs it's needed: missing/broken cap, exposed hole, or a plug that won't stay seated

• Disconnect power and, if applicable, shut off gas/water before starting.
• Remove the old plug; access from the front or from behind the panel as needed.
• Align and press the new plug firmly into the opening until fully seated and flush.
• If panel removal is required for access, handle sheet metal carefully and reinstall all fasteners.

This electronic control board manages the appliance's user interface and cycle controls, restoring responsive buttons, accurate cycle selection, and timed operation. Replacing a faulty board fixes control and timing issues without replacing the entire console. What it does:

• Controls the front-panel buttons, touchpad signals, and cycle selection logic
• Sends start/stop and timing commands to motors, valves, and heaters
• Resolves intermittent operation or incorrect cycle behavior when board failure is confirmed

• One electronic control board

• Disconnect power at the source before inspecting or replacing the control to avoid shock
• Handle the board by the edges and avoid contact with components to prevent electrostatic damage
• Reassemble the console panels in the original order

The Evaporator Motor is an OEM part for Whirlpool refrigerators. It plays a critical role in circulating air over the refrigerator's evaporator coils to cool the air inside the fridge and freezer compartments. This circulation helps maintain the desired temperature settings, ensuring that food is kept at optimal freshness.

Includes wire harness. If your fan motor does not have an incorporated wire harness, you will need part number- WPW10188389

Causes of a bad Evaporator Motor can include motor burnout due to continuous operation, electrical failures, or mechanical wear from prolonged use.

Symptoms of a bad Evaporator Motor include:

• The refrigerator or freezer not cooling adequately
• Unusual noises coming from the refrigerator indicating motor distress
• The motor running hot or not running at all

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Evaporator Fan Blade is an OEM part for Whirlpool refrigerators. It is designed to circulate air over the evaporator coils, ensuring efficient cooling throughout the refrigerator and freezer compartments. The fan blade helps maintain an even temperature, contributing to the appliance's overall performance.

Causes of a bad fan blade can include wear and tear over time, ice buildup interfering with the blade, or physical damage from accidental impact or obstruction by debris.

Symptoms of a bad evaporator fan blade include:

• Unusual noises such as rattling or scraping
• Inconsistent or insufficient cooling in the refrigerator or freezer
• The refrigerator running longer than usual
• Visible damage or warping of the fan blade

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This Air Duct directs airflow inside the appliance to maintain proper ventilation and efficient operation. It replaces a damaged or cracked duct to help restore normal airflow and reduce exhaust leaks. What it does

• Channels internal airflow between the blower and the venting path to help the appliance move air properly.
• Helps reduce exhaust leakage that can cause longer cycles or decreased performance.
• Addresses symptoms such as reduced drying/heating performance, unusual airflow noise, or visible cracks in the duct.
• Works with the existing blower and vent components to maintain designed airflow routing.

• Disconnect power (and gas, if applicable) before servicing to avoid shock or injury.
• Basic hand tools are typically required; follow the appliance service manual for access and removal steps.
• Inspect surrounding seals and fasteners; replace any damaged clips or gaskets for a proper fit.

The Refrigerator Temperature Sensor is an OEM replacement part for Whirlpool refrigerators. It is a crucial component responsible for accurately monitoring and regulating the temperature inside the refrigerator and freezer compartments.

Symptoms of a faulty temperature sensor include:

• Inconsistent or fluctuating temperatures in the refrigerator or freezer
• The refrigerator running continuously or not cooling properly
• Error codes or indicators related to temperature control issues

Causes of a bad temperature sensor can include normal wear and tear over time, electrical malfunctions, sensor failure, or damage from moisture or condensation.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

This mounting bracket secures internal components in place to keep your appliance stable and operating quietly. It replaces a worn, bent, or broken bracket to restore proper alignment and prevent loose or rattling parts. What it does:

• Provides a stable mounting point for panels, assemblies, or hardware
• Keeps connected components aligned to prevent rubbing or vibration
• Stops noises caused by loose or shifting internal parts
• Restores proper fit when an old bracket is bent, cracked, or missing

• Install with appliance unplugged or power disconnected to avoid shock
• Verify bracket orientation using the appliance's service diagram before fastening
• Use appropriate screws/fasteners and torque to avoid stripping or distortion

This replacement control switch completes the appliance's electrical circuit so controls and functions respond correctly. It restores user input and on/off signaling for reliable operation of the affected control or latch assembly. What it does:

• Acts as the electrical contact that opens or closes a control circuit when pressed or actuated
• Restores control-panel or door/lid signaling so cycles can start and stop as intended
• Common symptom fixes: appliance won't start, intermittent or no response from a button or control, or a stuck/non-responsive switch
• Fits into the original switch housing and mates with factory wiring harnesses when the correct part is used

• One replacement control switch

• Disconnect power (unplug or switch off breaker) before attempting replacement
• Handle electrical connectors gently and avoid forcing terminals; replace any damaged wiring or connectors

This air duct is the molded channel that directs airflow within the appliance cabinet. Replacing a cracked or warped duct restores proper circulation so the system can maintain designed temperatures and performance across compartments.

• Routes air between sections to support consistent temperature control
• Helps prevent air leaks and bypass that reduce airflow
• Common signs of failure: broken tabs, cracks, warped plastic, or a loose fit
• Symptoms can include weak airflow at vents, temperature fluctuations, or moisture/frost near openings

• Disconnect power and, if applicable, shut off water before servicing
• Remove any panels/shelves to access the duct; retain fasteners and note seal orientation
• Transfer any reusable foam seals or clips from the original part, seat the duct fully, and secure without overtightening

This housing is the replacement cabinet section that supports and protects internal appliance components, restoring proper fit and alignment. It helps prevent rattles and keeps parts securely positioned for reliable operation. What it does:

• Replaces a damaged or cracked cabinet housing that can cause vibration or misalignment
• Supports internal assemblies and helps maintain correct spacing for moving parts
• Prevents debris from reaching internal components and reduces noise from loose panels
• Can stop air or water leaks when the original housing is warped or broken

• One housing cabinet

• Designed to install with factory fasteners; follow your model's service manual for panel removal
• Disconnect power (and water for washers) before beginning any repair
• Handle carefully to avoid scratching painted surfaces and to align mounting tabs before tightening
• If clips or screws are missing or damaged, replace them separately — this listing includes only the housing

This oven door gasket creates a tight seal around the oven door to help keep heat, smoke and cooking odors inside the oven for more even baking and efficient operation. Replaces a worn, torn or flattened seal. What it does:

• Seals the gap between the oven door and frame to reduce heat loss and improve temperature consistency
• Helps prevent spills and food debris from entering the oven cavity and insulation
• Reduces oven cycling and energy waste caused by a damaged or compressed seal
• Common symptom: oven takes longer to reach or maintain temperature, or heat felt around the door

• Allow oven to fully cool and disconnect power before replacing the gasket
• Remove the old gasket carefully and press the new gasket into the door channel evenly around the perimeter
• Check that the gasket lies flat with no twists or gaps; do not over-stretch during installation

This replacement air damper regulates and directs airflow inside the appliance or through its vent path. Replacing a broken or stuck damper helps restore proper air movement and reduces performance issues caused by a jammed or missing flap. What it does:

• Opens and closes to control airflow in the duct or air channel
• Helps maintain proper ventilation or temperature, depending on the appliance design
• Reduces backflow/drafts or uneven airflow
• Common symptoms: poor air movement, rattling/whistling near the vent, drafts, or performance imbalance due to a stuck or broken flap

• 1 air damper

• Disconnect power before servicing; isolate ducting if applicable
• Access the damper location; note orientation of the flap and any seals/gaskets
• Remove the old damper; install the new one with the flap moving freely in the correct direction
• Reassemble and test airflow; seal any duct joints per manufacturer guidance

This burner orifice meters the gas delivered to a burner so you get a stable, properly sized flame. Replacing a clogged or damaged orifice helps restore quick ignition, consistent flame quality, and even heating on gas appliances.

• Meters gas flow from the valve to the burner for correct flame size and shape
• Helps maintain efficient, even heating and clean combustion
• Wear or blockage may show as delayed or no ignition, weak/uneven flame, or yellow tipping
• Can reduce popping or flare-ups caused by improper gas metering

• Shut off gas supply and disconnect power before servicing
• Remove the old orifice with the proper wrench/nut driver; install the new one snugly—do not overtighten
• After reassembly, leak-check connections and verify flame; adjust air shutter only if specified by the service manual
