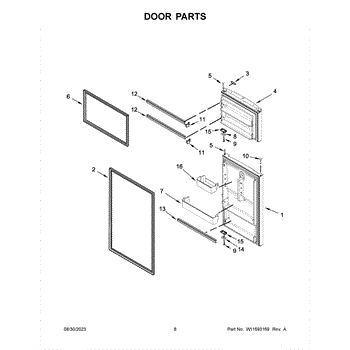

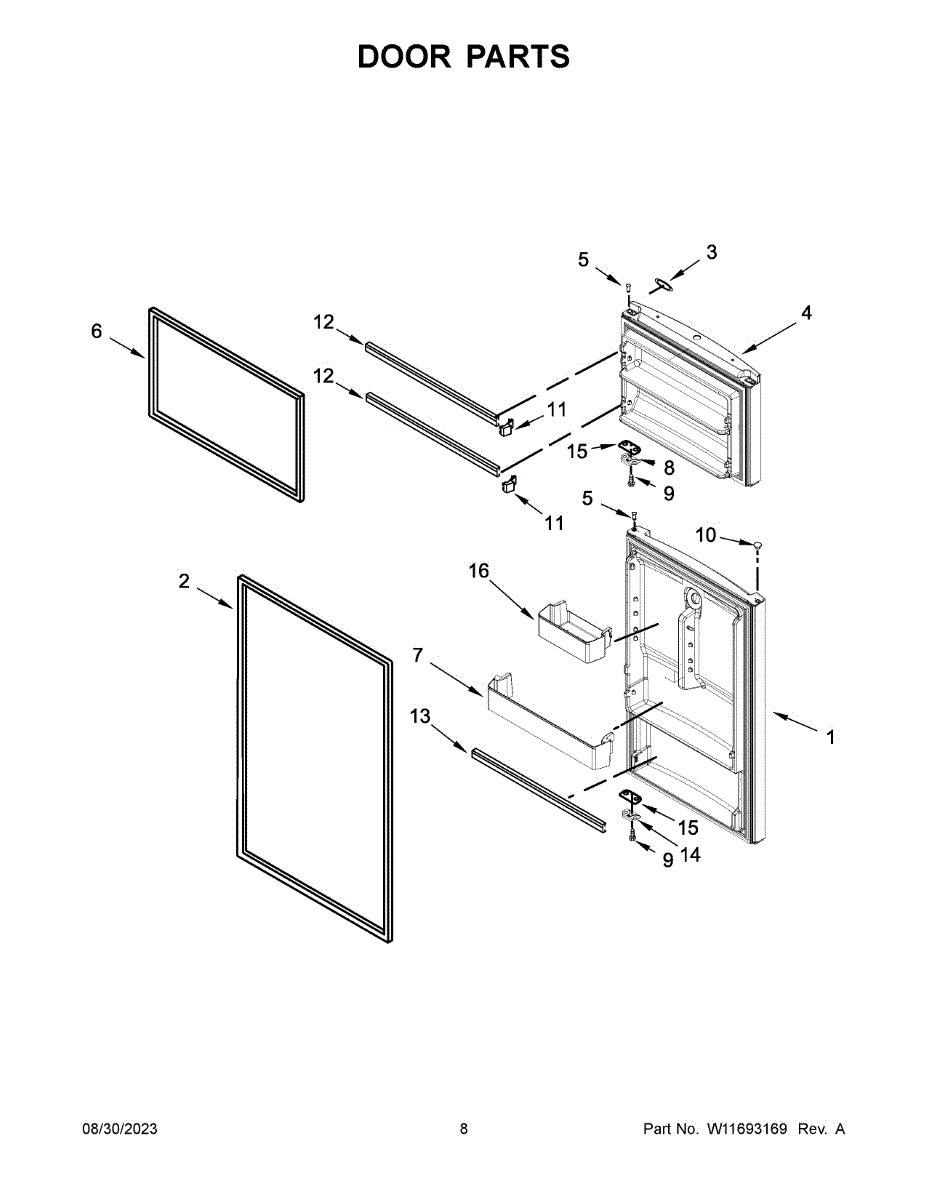

Parts for Whirlpool WRTX5028PM01: Door Parts

This replacement FIP gasket seals the appliance door to maintain proper internal temperature and help prevent air leaks that cause frost buildup or poor cooling. It restores the door seal for better efficiency and performance. What it does:

• Creates an airtight seal between the door and cabinet to reduce air exchange
• Helps prevent frost buildup, condensation, and warm spots inside the compartment
• Supports efficient cooling and reduces unnecessary energy use when working correctly
• Fits in the FIP position as specified by the manufacturer

• One replacement FIP gasket

• Disconnect power before starting work and handle the gasket carefully to avoid damage
• Clean the sealing surface and remove old gasket adhesive or debris before installing the new gasket
• Start installation at a corner, press the gasket into the channel, and work around the perimeter for an even fit

This replacement door gasket creates a tight seal around the appliance door to help maintain temperature control and reduce moisture or frost buildup. It restores proper door sealing for more consistent performance and energy efficiency. What it does:

• Seals the door opening to keep conditioned air inside and outside air out
• Helps prevent frost, ice buildup, and moisture damage in the cabinet area
• Reduces temperature fluctuations that can cause food spoilage or inefficient operation
• Common symptom: visible gaps at the door edge, warm spots, or excess condensation

• Remove the old gasket and clean the sealing surface before installing the new gasket
• Soften or warm the gasket if needed for easier fitting
• Press the gasket into the channel evenly; ensure corners and edges are fully seated

Color: Grey

Color: White

Color: Black

This dryer vent thimble provides a secure, finished opening for the dryer exhaust where the duct passes through a wall. It helps direct airflow and protects the wall opening for safer, more efficient venting. What it does:

• Creates a smooth, supported path for the dryer exhaust duct through a wall or chase
• Helps reduce air leaks and lint buildup at the wall penetration
• Restores proper vent alignment so the dryer can expel air efficiently
• Can reduce unusual airflow noise caused by a loose or damaged wall opening

• One dryer vent thimble

• Disconnect power to the dryer and move the appliance away from the wall before installation
• Measure the wall opening and duct size before securing the thimble
• Fasten the thimble to the wall framing or surrounding material per local codes; use appropriate screws or fasteners
• After installation, reconnect the duct and check for a secure, airtight fit; clean any lint from the area

This thimble provides a finished, secure collar for the dryer's exhaust opening, creating a proper connection point for the vent duct and helping reduce air leaks and lint escape at the wall or cabinet passthrough. What it does:

• Forms the transition between the dryer exhaust outlet and the wall or cabinet duct opening.
• Helps center and support the vent hose or duct so it seals more reliably.
• Reduces gaps that can cause lint accumulation or drafting around the vent opening.
• Common symptoms it can address: visible gap or torn duct at the wall, excessive lint around the vent opening, or poor airflow from a loose connection.

• Disconnect power to the dryer before servicing; for gas dryers, turn off gas supply and follow OEM safety steps.
• Pull the dryer away or remove the cabinet access as needed to reach the vent opening; handle lint carefully and clean the area before installing.
• Slide the thimble into the wall/cabinet opening and align the duct to seat against it; secure per OEM instructions and check for a snug fit and unobstructed airflow.
• Inspect and replace damaged ducting and fasteners; ensure proper clearance and re-check connections after a short test run.

Color: Black

Color: Grey

Color: White

Color: Black

The Refrigerator Door Shelf is an OEM replacement part for Whirlpool side-by-side refrigerator doors. It provides an accessible storage surface organized into separate temperature zones.

The shelf is optimized for multi-functional use inside the refrigerator or freezer door. Its durable steel construction supports a variety of food items.

Causes of a faulty door shelf can include dents or warping from repeated impact of bottles/containers over years of use. Regular cleaning with abrasive chemicals may also deteriorate the shelf surface.

Symptoms of a shelf in need of replacement include:

• Significant dents or damage compromising its structural integrity
• Assorted foods no longer fitting or staying properly on warped areas
• Broken mounting pins or clips inhibiting secure attachment in the door

Compatible models also include those by KitchenAid, Jenn-Air, and some Kenmore.

The Bracket-Door Stop is an OEM replacement part for Whirlpool appliances. This zinc-finished bracket is designed to prevent the appliance door from opening beyond its intended range, protecting both the door and surrounding components from potential damage. It ensures the door stays secure and functions smoothly during regular use.

Symptoms of a bad Bracket-Door Stop include:

• The door overextending when opened
• Difficulty in maintaining the door's position
• Visible bending, cracking, or damage to the bracket

Causes of a failing Bracket-Door Stop can include repeated stress from excessive force when opening the door, normal wear over time, or accidental impacts. A damaged bracket can compromise the door's alignment and overall functionality.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw secures panels, brackets, and other components in your appliance so they stay tight and properly aligned. Use it to replace missing, stripped, or rusted hardware and eliminate looseness, rattles, or gaps.

• Fastens parts to the cabinet/frame to maintain structural integrity
• Helps keep panels and assemblies aligned to reduce vibration and noise
• Replaces missing, damaged, or corroded screws during service
• Common fix for loose panels or components that no longer hold securely

• Disconnect power and shut off water or gas before servicing
• Match length and thread to the original screw for proper fit
• Hand-start threads to avoid cross-threading; tighten only until snug—do not overtighten
• Tighten them evenly to ensure proper alignment

Color: Grey

Color: Black

The Door Shelf Retainer End Cap is an OEM replacement part for Whirlpool refrigerators. This component is designed to secure and support the end of the door shelves, providing a clean and finished look while preventing items from falling off the edges.

Symptoms of needing to replace the door shelf retainer end cap include:

• Visible cracks, damage, or missing pieces
• Loose or wobbly door shelves
• Items falling off the ends of the door shelves

Causes of a faulty door shelf retainer end cap can include normal wear and tear over time, accidental impact or mishandling, or exposure to excessive moisture or temperature fluctuations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

This is a replacement mounting bracket that secures internal components and assemblies in place to restore proper alignment and reduce vibration. It's a direct-fit part used on compatible Whirlpool refrigerators and freezers. What it does:

• Supports and secures panels, shelves or internal assemblies to prevent shifting or rattling
• Restores correct alignment when original bracket is broken, bent, or missing
• Helps eliminate noise caused by loose components
• Maintains proper spacing for associated parts to operate correctly

• Install with the factory fasteners; use matching screw size and type
• Disconnect power and empty affected area before beginning service
• Handle edges carefully and wear gloves to avoid cuts
• Replace damaged mounting hardware to ensure a secure fit

The door stop shim positions the stop flush and fine-tunes the door's opening limit. Replacing a worn or missing shim helps restore smooth door operation and protects nearby surfaces from over-travel or rubbing.

• Provides correct spacing behind the door stop for proper alignment
• Helps limit the door swing to the intended stop position
• Can reduce wobble, play, or clicking at the stop point
• Replaces cracked, deformed, or missing shim components

• Disconnect power and support the door as needed to prevent strain
• Remove the door stop fastener(s) and note the original shim orientation
• Place the new shim behind the stop; reinstall hardware and tighten without overtightening
• Open and close the door to confirm stop angle and clearances

The Door Bin is an OEM part for Whirlpool refrigerators. Installed on the refrigerator doors, these bins provide convenient organizational space for food items that require quick accessibility like condiments, snacks, and beverages.

Causes of a bad door bin can include cracks or breaks developing in the plastic over time. Improper cleaning leading to scratched or cloudy surfaces is another cause.

Symptoms of a bad door bin include:

• foods spilling out due to damaged or loosened bins
• bins that won't stay attached or secured within the refrigerator door
• bins with dented or cracked surfaces affecting functionality
• stained or faded bins diminishing the fridge interior appearance

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
