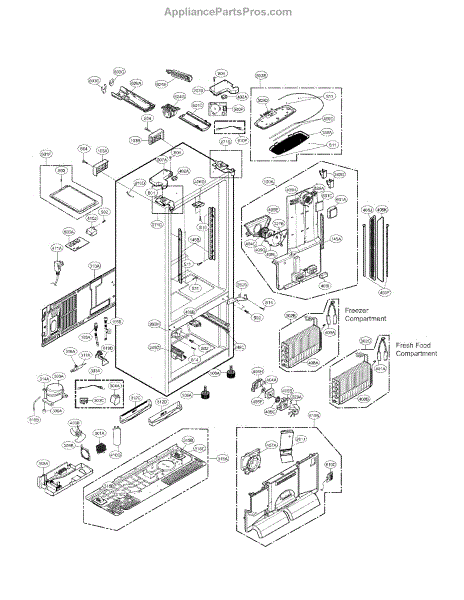

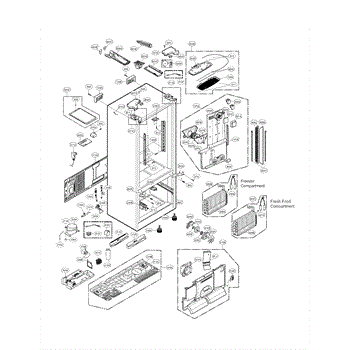

Parts for Kenmore 795.72049313 (79572049313, 795 72049313): Case Parts

The Water Filter is an OEM replacement part for LG refrigerators. It is designed to remove impurities, contaminants, and unwanted particles from the water supply, ensuring that the water dispensed and used for ice making is clean and fresh.

Symptoms of a need to replace the water filter:

• Unpleasant taste or odor in the water or ice
• Decreased water flow from the dispenser
• Discoloration or sediment visible in the dispensed water

Causes of a faulty water filter can include general usage over time, exposure to high levels of contaminants in the water supply, or physical damage or clogging of the filter media.

This OEM LG part is also compatible with some Kenmore refrigerator models.

A single mounting screw used to secure panels, brackets, or components in place so assemblies stay stable during normal appliance use. Simple replacement for stripped or missing fasteners. What it does:

• Secures panels, trim, brackets or interior components to prevent rattling or movement
• Restores proper fit and alignment after service or accidental damage
• Helps reattach parts removed during maintenance or part replacement
• Small, durable fastener designed for appliance interior mounting applications

• Use the correct screw driver or bit to avoid stripping the head
• Match screw length and thread engagement to the original location before tightening
• Tighten until snug—do not overtighten to avoid cracking plastic or damaging threads
• Disconnect power and follow appliance safety procedures before performing repairs

This is a genuine replacement screw used to secure appliance panels and components. It restores proper fastening so panels and assemblies stay aligned and operate safely. What it does:

• Fastens panels, brackets, and small assemblies to maintain structural integrity
• Replaces missing or stripped screws that cause rattling or loose parts
• Helps stop vibration-related noise when used in its original mounting locations
• Matches the OEM fit to ensure proper alignment and clearance

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or component damage
• Disconnect power to the appliance before working on electrical components
• Replace all matching fasteners for even fit

This replacement door handle restores a secure grip and proper door operation on compatible refrigerators. Durable and contoured to match factory styling, it replaces cracked, loose, or broken handles for a safer, finished look. What it does:

• Provides a firm, ergonomic grip to open and close the refrigerator door
• Replaces cracked, damaged, or loose handles that affect door usability
• Restores the appliance's factory appearance and user comfort
• Helps prevent further damage from using a compromised handle

• Power off and unplug the appliance or disconnect power at the breaker before installation to avoid electrical risk
• Use appropriate hand tools; support the door during removal/installation to prevent injury or damage
• Follow the manufacturer service manual or on-page model fitment for proper screw locations and torque

This drain tube assembly channels defrost water from the evaporator to the drain pan, preventing leaks and water buildup. Replace a cracked or clogged tube to restore proper drainage and reduce puddles or ice inside your refrigerator.

• Directs defrost water from the drain outlet to the drain pan
• Helps prevent water leaks inside the fresh food or freezer compartment
• Addresses issues from a tube that is cracked, kinked, or obstructed by debris/ice
• Common symptoms: water under crisper drawers, puddles beneath the unit, or ice forming at the freezer bottom

• Unplug the refrigerator before servicing
• Access the drain outlet and remove any ice or debris from the drain path
• Fully seat the tube at both ends to ensure a secure, leak-free fit
• Test by pouring a small amount of warm water into the drain to confirm proper flow to the pan

This adjustable leveling leg assembly supports and stabilizes your appliance by threading into the base frame. Replacing a worn or missing leg helps you level the unit for smoother, quieter operation on uneven floors.

• Provides height adjustment to level the appliance and distribute weight evenly
• Helps prevent rocking, wobbling, and excess vibration or rattling
• Can improve door alignment and smooth opening/closing when the cabinet is properly leveled
• Useful when a leg is missing, damaged, or threads are stripped

• Disconnect power; if applicable, shut off the water supply
• Use a helper to safely brace or tip the unit; protect flooring when accessing the leg
• Unthread the old leg and hand-thread the new one; tighten as needed
• Adjust front-to-back and side-to-side until stable; all legs bear weight evenly

This duct assembly channels and seals airflow inside the refrigerator, helping deliver cold air to the right places for steady, even temperatures. Replace a cracked or warped duct to restore proper air circulation and cooling performance.

• Directs cooled air from the evaporator through the cabinet to maintain set temperatures
• Helps seal and separate airflow paths to prevent temperature swings and condensation
• Provides a mounting path and pass-throughs for related components, depending on model design
• Helps with symptoms like uneven cooling, weak airflow from vents, frost/ice near vents, or a loose/rattling rear panel

• Disconnect power before servicing; remove food from the affected compartment
• Take out shelves/drawers and inner paneling as needed to access the duct
• Transfer any reusable parts (e.g., seals, sensors, clips) from the old duct
• Ensure foam seals sit flat and vents are unobstructed before reassembly and restoring power

This evaporator assembly is the internal cooling coil and housing that removes heat from the refrigerator compartment, supporting proper cold temperatures and controlled defrosting. It restores normal cooling performance when the evaporator fails. What it does

• Circulates refrigerant through the evaporator coil to absorb heat from the fresh-food/freezer compartment
• Works with the defrost system to prevent excessive frost buildup on the coil
• Helps maintain consistent compartment temperatures and reduces compressor runtime when functioning correctly
• Common signs it may need replacement: poor cooling, excessive frost or ice on the evaporator, frequent or long compressor cycles

• One evaporator assembly

• Disconnect power to the appliance before starting any repair
• Replacement may require handling sealed refrigerant lines or refrigerant-system work; if refrigerant access or brazing is needed
• Inspect and replace any damaged gaskets or insulation during reassembly to ensure proper airflow and sealing
• Follow manufacturer service instructions and safety guidelines for defrost system and sensor connections

The Thermistor Assembly is an OEM part for LG refrigerators. It serves a crucial function in monitoring and regulating the temperature within the appliance. By sensing temperature changes, the thermistor sends information to the refrigerator’s control board, ensuring the system adjusts cooling to maintain the desired temperature settings.

Symptoms of a failing thermistor assembly include:

• Inconsistent temperatures in the refrigerator or freezer
• Refrigerator running longer than usual or not cooling efficiently
• Frequent fluctuations in temperature readings

Causes of thermistor assembly failure typically involve electrical faults, damage from moisture or frost, or simple wear over time, which can impact its ability to accurately measure and report temperatures.

This OEM LG part is also compatible with Sears/Kenmore.

The Overload Compressor is an OEM part for LG refrigerators. This part protects the refrigerator's compressor from overheating and potential damage by acting as a safety device. It works by monitoring the compressor's electrical current and temperature. If the compressor operates under conditions that could lead to overheating or overcurrent, the overload protector will cut off the power to the compressor, allowing it to cool down before potentially restarting.

Causes of damage to the Overload Compressor can include power surges, electrical faults within the refrigerator, or a malfunctioning compressor that requires more current than usual to operate.

Symptoms of a bad Overload Compressor include:

• The refrigerator not cooling properly or not cooling at all
• The compressor failing to start, indicated by a clicking sound coming from the back of the refrigerator where the compressor is located.
• The refrigerator or freezer section warming up

This OEM LG part is also compatible with some Kenmore models.

This PTC cover is the protective housing that shields a PTC sensor/assembly from debris and physical damage, helping maintain reliable sensor performance and prolong component life in the appliance. What it does:

• Protects the PTC sensor or PTC assembly from dust, impact, and accidental contact
• Helps prevent shorting or intermittent sensor signals caused by contaminants
• Supports proper positioning and mounting of the PTC component
• Can help address symptoms such as visible sensor damage, exposed wiring, or intermittent operation related to a compromised sensor housing

• Disconnect power to the appliance before starting any repair
• Remove the outer panel(s) as needed to access the PTC location; handle surrounding wiring and components carefully
• Replace only with the correct OEM cover to ensure proper fit and protection

This compressor damper is a vibration-isolating mount that sits between the sealed-system compressor and the chassis. It cushions the compressor to reduce noise, limit vibration transfer, and help keep refrigerant lines from being stressed.

• Isolates the compressor from the frame to absorb start/stop shock and vibration
• Helps reduce humming, rattling, or buzzing from the back/bottom of the appliance
• Replaces a damper that's cracked, flattened, hardened, or missing
• Can help if the compressor rocks or the unit vibrates excessively

• Disconnect power and pull the unit forward for access; remove rear/service panel if present
• Support the compressor to relieve load on the mounts before removing fasteners
• Match orientation; transfer any sleeves/spacers from the old damper to the new one
• Ensure the compressor sits level and that tubing is not strained before restoring power

This drip tray catches and channels water runoff inside the appliance to help prevent pooling and minor leaks. It's a direct-fit replacement listed by the manufacturer and sold as the single tray used in the unit. What it does

• Collects condensate or defrost water and directs it to the drain area to prevent pooling.
• Helps stop water from dripping onto lower drawers, shelves or the floor.
• Commonly replaces a cracked, warped or missing tray that causes visible leaks or water buildup.
• Fits into the appliance's lower compartment where the original tray sat.

• Unplug the appliance or disconnect power before servicing.
• Remove any obstructing drawers or shelves to access the tray location; handle glass shelves carefully.
• Lift out the old tray and set the new tray into the same position; no special tools typically required.

Replacement fan guide that directs airflow from the refrigerator fan to improve cooling distribution and help keep the fan blade clear of nearby components. Restores proper airflow and can reduce rubbing or scraping noises. What it does:

• Channels airflow from the fan to promote even temperatures throughout the compartment.
• Keeps the fan blade aligned and away from cabinet walls and other components.
• Commonly replaced when cracked, warped, or broken parts cause rubbing or unusual fan noise.
• Helps maintain efficient cooling by restoring the intended airflow path.

• Disconnect power (unplug or shut off breaker) before servicing the appliance.
• Access typically requires removing the interior cover or rear evaporator cover.
• Handle the plastic guide carefully to avoid cracking; align mounting tabs and secure using the original fasteners.
• Inspect the fan blade and motor for damage while replacing the guide; replace any damaged components to avoid repeat issues.

This drain tray assembly collects and directs moisture and condensate to the drain system, helping prevent leaks and pooling under the appliance. Designed to fit the appliance's drain path and restore proper drainage. What it does:

• Captures condensate and channel water toward the drain to reduce standing moisture.
• Helps prevent water from pooling under components that could cause corrosion or odors.
• Restores proper drain routing after a damaged or cracked tray is removed.
• Works with existing hoses and clips to maintain normal drainage performance.

• Disconnect power and water before beginning repair.
• Remove access panels or components as needed to reach the drain tray; keep fasteners organized.
• Inspect surrounding seals, hoses, and clips and replace any worn parts to ensure a watertight fit.
• Reassemble panels and test the appliance for proper drainage and leaks before returning to service.

This cover assembly protects the machine components and helps keep internal machinery free of debris and accessible for repair. It provides a durable barrier that helps extend component life and maintains safe operation. What it does:

• Shields motors, belts and internal linkages from dust and lint that can cause wear
• Helps contain moving parts to reduce pinch or contact hazards during normal use
• Maintains proper component alignment by providing a stable mounting surface
• Commonly replaced when cracked, warped, missing fasteners, or damaged from impact

• One cover assembly as shown

• Disconnect power before attempting service
• Handle gently to avoid cracking plastic tabs; inspect mounting clips and screws for damage
• Reuse original fasteners only if undamaged; replace any stripped screws or broken clips

This small stopper installs in the refrigerator to limit the travel of a moving component and keep it securely in place. Replacing a broken or missing stopper prevents over-extension and helps maintain smooth, aligned operation.

• Limits the range of motion for a door, bin, or drawer to prevent over-opening or accidental removal
• Helps keep interior components aligned and operating smoothly
• Replace if cracked, missing, or deformed
• Common symptoms: drawer or bin slides out too far, door swings past normal range, or a broken plastic stop is found

• Disconnect power before servicing; remove or support the affected bin/drawer/door
• Note the old stopper's orientation and location before removal
• Transfer and reuse any original screws or clips if applicable
• Snap or fasten the new stopper in place and test for smooth movement

A small retaining pin used to secure moving parts and keep components aligned for smooth operation. Replacing a worn or broken common pin can stop rattling and restore proper fit between linked parts. What it does:

• Holds or aligns two parts together so they move correctly and stay in position
• Helps prevent rattling, looseness, or parts slipping out of place
• Works as a simple mechanical fastener—no electronics involved

• One common pin

• Disconnect power to the appliance before beginning any service
• Keep track of small parts; lay out components in order to aid reassembly
• May require removal of trim or a hinge/retainer to access the pin—use basic hand tools
• If the pin is difficult to seat, do not force; inspect mating parts for damage

This cabinet roller supports the refrigerator and lets the unit roll in and out of place for cleaning or service. Replace a worn or broken roller to restore smooth movement and help keep the appliance properly positioned.

• Supports the base of the refrigerator and enables rolling movement
• Helps with safe positioning and service access without dragging
• Common failure signs: appliance is hard to move, scraping or rolling noises, a flat-spotted/cracked wheel, or a wheel that won't turn
• Replace when the roller is damaged, seized, or missing

• Disconnect power and shut off water supply; protect flooring before moving the appliance
• With help, pull the refrigerator forward and safely support it to access the roller
• Remove mounting fasteners, install the new roller, and reuse original hardware
• Confirm level and smooth movement before returning the unit to its location

The Drier Assembly is an OEM part for LG refrigerators. This part removes moisture and contaminants from the refrigerant, ensuring the system operates efficiently and effectively. The drier assembly helps maintain the proper function of the compressor and other cooling components, contributing to the longevity and performance of the refrigerator.

Causes of a bad drier assembly can include clogs from debris, wear and tear over time, or contamination from moisture or refrigerant leaks.

Symptoms of a bad drier assembly include:

• The refrigerator not cooling properly
• Frost or ice buildup on the evaporator coils
• Increased noise from the compressor
• Reduced efficiency and higher energy consumption
• You should replace the drier assembly if it becomes faulty or damaged.

This OEM LG part is also compatible with select Sears/Kenmore models.

This holder is a small mounting bracket used to secure internal components in place, helping keep parts aligned and stable for reliable operation. It provides a direct, OEM-compatible replacement to restore proper fit and function. What it does

• Secures and supports nearby components to prevent shifting or vibration.
• Restores proper alignment where a worn or broken holder causes rattling or loose parts.
• Helps maintain normal operation by keeping assemblies seated correctly.
• Works behind panels or inside assemblies where a dedicated bracket is required.

• One holder/mounting bracket as shown.

• Installation generally requires removing the panel or access cover where the holder is located.
• Use proper fasteners shown in your appliance; replace any damaged screws or clips as needed.
• Disconnect power before servicing electrical appliances to reduce shock risk.

This damper controls airflow between compartments to help maintain proper temperatures and consistent cooling. It replaces a worn or broken damper to restore normal airflow and temperature balance inside the appliance. What it does:

• Regulates air flow between compartments so the refrigerator can maintain set temperatures
• Helps reduce uneven cooling and temperature swings caused by a stuck or broken damper
• Works as part of the appliance's air distribution system to route cooled air where needed
• Common symptom: compartment temperature too warm or inconsistent airflow noise from the damper area

• One damper assembly

• High-level replacement; access usually requires removing interior panels or duct covers
• Disconnect power before any repair to avoid shock or injury
• Handle with care to avoid bending or damaging mounting tabs and linkage

The Defrost Control Assembly is an OEM part for LG refrigerators. It is designed to regulate the defrost cycle, ensuring that frost buildup on the evaporator coils is periodically melted away. This helps maintain efficient cooling performance and prevents excessive ice accumulation, which can hinder the refrigerator's functionality.

You should replace the defrost control assembly if it becomes faulty. Causes of a bad defrost control assembly can include electrical failures, regular wear and tear, or damage from power surges. A malfunctioning defrost control can lead to issues such as inadequate defrosting, which results in excessive frost buildup and affects the cooling efficiency of the refrigerator.

Symptoms of a bad defrost control assembly include:

• Frost buildup on the evaporator coils
• The refrigerator not cooling properly
• The defrost cycle not initiating or running too frequently
• Increased energy consumption due to the refrigerator working harder to maintain temperature

This OEM LG part is also compatible with Sears/Kenmore models.

The Refrigerator Control Assembly is an OEM part for LG refrigerators. This component is crucial for managing and regulating the refrigerator's cooling and defrosting cycles. It ensures the proper operation of the refrigerator by controlling the temperature and defrost settings.

Causes of a bad control assembly can include electrical surges, wear and tear over time, or moisture damage. These factors can lead to malfunctioning controls or inconsistent temperature regulation within the refrigerator.

Symptoms of a bad control assembly include:

• Refrigerator not cooling properly
• Unusual noises from the control panel
• Inconsistent temperature readings
• Refrigerator not defrosting automatically

This OEM LG part is also compatible with Sears/Kenmore.

The Door Switch is an OEM part for LG refrigerators. It is responsible for detecting whether the refrigerator door is open or closed, allowing the appliance to control the interior light and, in some models, the cooling functions accordingly.

Causes of a bad door switch can include wear and tear from frequent use, electrical issues, or physical damage to the switch mechanism. A faulty door switch can lead to improper operation of the refrigerator's light or cooling system, affecting overall performance.

Symptoms of a bad door switch include:

• Interior light not turning on or off properly
• Refrigerator not cooling properly or running continuously
• Door alarm not functioning correctly
• Intermittent or unresponsive switch operation

This OEM LG part is also compatible with Sears/Kenmore.

This DC motor assembly drives the refrigerator's fan to move air across the coils and through the cabinet, helping maintain stable temperatures. Replacing a worn, noisy, or non-running motor restores proper airflow for reliable cooling.

• Powers the fan that circulates air across the coils and throughout the compartment
• Supports even temperatures and consistent cooling performance
• Common symptoms: fan won't run, intermittent or loud fan noise, weak/no airflow, warmer than normal temperatures
• Longer run times when failing due to reduced airflow

• Disconnect power to the appliance before servicing; use cut-resistant gloves
• Access location varies by model; remove the rear cover or interior panel to reach the fan motor
• Note connector orientation before unplugging; secure wiring fully on reassembly
• Ensure the fan spins freely after installation before restoring power

The Fan Motor is an OEM part for LG refrigerators. It is essential for circulating air throughout the refrigerator and freezer compartments to ensure a consistent and even temperature. This air circulation is crucial for proper food preservation and to prevent warm spots or frost buildup, which can occur when air does not circulate properly.

Symptoms of a bad Fan Motor include:

• The refrigerator making unusual noises such as humming or buzzing, which may indicate the motor is struggling.
• Poor cooling performance, with parts of the refrigerator warmer than usual.
• The refrigerator cycling on and off more frequently, which can be a sign of the motor overheating.

Causes of a bad fan motor can include wear and tear from continuous use, accumulation of dust or debris in the fan, or electrical issues such as faulty wiring or a burned-out motor.

This OEM LG part is also compatible with Sears/Kenmore models.

The Rear Evaporator Motor Grommet is an OEM part for LG refrigerators. It's designed to secure and cushion the evaporator motor, ensuring it remains in place and operates quietly. This grommet plays a crucial role in minimizing vibrations and noise from the motor, which can otherwise lead to a disruptive refrigerator operation.

Causes of a bad Rear Evaporator Motor Grommet can result from deterioration due to cooling and thawing cycles in the refrigerator. Physical damage during cleaning or servicing may cause a loose motor fit.

Symptoms of a malfunctioning Rear Evaporator Motor Grommet include:

• Unusual noises or vibrations from the back of the refrigerator.
• The evaporator motor shifting out of place, which can affect cooling efficiency.
• Increased wear on the evaporator motor due to lack of proper cushioning and support.

This OEM LG part is also compatible with some Kenmore models.

The Front Evaporator Motor Grommet is an OEM part for LG refrigerators. This grommet cushions and secures the evaporator motor, reducing vibrations and noise during operation to ensure efficient cooling.

Causes of a bad grommet can include prolonged use leading to material fatigue, exposure to extreme temperatures, or physical damage from accidental impacts. A damaged grommet can result in increased noise and potential misalignment of the evaporator motor.

Symptoms of a bad evaporator motor grommet include:

• Increased noise from the refrigerator
• Vibrations or rattling sounds
• Poor cooling performance
• The evaporator motor becoming loose

This OEM LG part is also compatible with Sears/Kenmore.

The Door Bracket is an OEM part for LG refrigerators. This bracket supports the refrigerator door by providing stability and ensuring proper alignment during opening and closing. It plays a crucial role in maintaining the door’s secure fit, which is essential for maintaining the internal temperature and efficiency of the appliance.

Common causes of a bad door bracket include wear and tear from frequent use, impact damage, or corrosion due to moisture.

Symptoms of a bad door bracket include:

• The refrigerator door not closing properly
• The door sagging or being misaligned
• Unusual noises when opening or closing the door
• Gaps in the door seal leading to temperature inconsistencies

This OEM LG part is also compatible with Sears/Kenmore.

The Refrigerator Door Switch is an OEM part for LG refrigerators, designed to signal the control system when the door is open or closed. This small but essential component plays a critical role in the overall operation of your refrigerator, including the activation of interior lights and the control of cooling functions.

Over time, the door switch can fail due to mechanical wear, accidental damage, or a buildup of debris that may prevent it from functioning correctly.

Symptoms of a bad Refrigerator Door Switch include:

• Interior lights not turning on or off appropriately with the door's position
• The refrigerator running longer than necessary, potentially leading to increased energy bills
• Unusual fluctuations in temperature inside the fridge, affecting food preservation

This OEM LG part can also be used on Kenmore/Sears appliances.

Restore proper defrost performance with this sheath heater. It warms the evaporator during the automatic defrost cycle to melt accumulated frost, keeping air passages clear so your refrigerator and freezer maintain stable, efficient temperatures.

• Heats the evaporator coil during defrost to melt frost and ice
• Helps maintain airflow and consistent compartment temperatures
• Supports efficient cooling and proper defrost drainage
• Typical failure signs: heavy frost on the evaporator cover, warm fridge/freezer, or fan noise from ice contact

• Disconnect power to the appliance before servicing
• Remove shelves/drawers and the evaporator cover to access the heater; defrost any ice buildup first
• Handle the element carefully to avoid damaging evaporator fins; transfer any reusable clips/shields from the original
• Ensure all connectors are fully seated before reassembly, then restore power and verify defrost operation

The Defrost Heater is an OEM part for LG refrigerators. This part is responsible for melting away frost and ice that accumulates on the evaporator coils during the cooling cycle, ensuring the refrigerator operates efficiently and maintains the proper temperature.

Common causes for defrost heater failure include electrical failures such as blown fuses or faulty wiring, wear and tear from normal use, and damage from moisture or corrosion.

Symptoms of a failing Defrost Heater include:

• Buildup of frost in the freezer compartment
• The refrigerator struggling to maintain the set temperature
• Leaks inside the refrigerator due to ice melting inconsistently
• Increased energy usage as the fridge works harder to cool

This OEM LG part is also compatible with some Kenmore models.

The Run Capacitor is an OEM part for LG refrigerators. It is located near the compressor in the appliance's cooling system. It stores electrical energy and provides a boost to the motor during startup, ensuring smooth and efficient operation. The capacitor helps maintain the required power levels, stabilizes voltage, and supports the proper functioning of the compressor.

Causes of a faulty run capacitor can include electrical issues, capacitor aging or degradation, or damage due to power surges. These factors can result in issues such as the compressor not starting, the appliance not cooling properly, or unusual noises coming from the appliance.

Symptoms of a bad run capacitor may include:

• Compressor failing to start or delayed startup
• Inadequate cooling or no cooling at all
• Unusual noises, such as buzzing or clicking sounds

This OEM LG part can also be used on Kenmore/Sears appliances.

The Compressor Run Capacitor is an OEM part for LG refrigerators. It plays a critical role in the operation of the refrigerator's compressor by providing the necessary electrical boost to start and maintain the compressor's operation.

Causes of a bad compressor run capacitor can include electrical surges, overheating, or simply wear and tear over time. When the capacitor fails, it can no longer deliver the required electrical charge, which impacts the compressor's ability to start and run efficiently.

Symptoms of a bad compressor run capacitor include:

• The refrigerator not cooling properly
• The compressor not starting or running intermittently
• Unusual humming or clicking noises from the compressor area
• The refrigerator cycling on and off frequently

This OEM LG part is also compatible with Sears/Kenmore models.

This power cord assembly supplies AC power from the wall outlet to your appliance. Replacing a frayed, heat-damaged, or loose cord restores safe, reliable operation and can eliminate intermittent power loss.

• Carries line voltage and ground into the unit to power controls and components
• Routes electricity safely into the cabinet to protect internal wiring
• Replace at the first sign of damage to reduce shock or fire risk

• Disconnect power at the outlet/breaker before servicing
• Compare the new cord to the original; transfer any clips or grommets from the old cord if needed
• Route and secure the cord exactly as original; keep clear of sharp edges and moving parts
• Ensure all connections are fully seated and the ground is properly secured before restoring power

This SVC PCB power control board assembly handles onboarding and power-control functions for the appliance's service module, restoring proper startup and communication during initial setup or service. Use to replace a failed service/control board. What it does:

• Manages power and service-level control signals used during onboarding and initial setup
• Enables the appliance to complete service/connection routines and communicate with control systems
• Commonly replaced when the unit won't complete onboarding, shows service/setup errors, or won't respond to service commands
• Matches OEM fit and connector layout for direct replacement

• One SVC PCB power control board assembly

• Disconnect power before starting; high-voltage components may still hold charge
• Handle the board by edges and avoid static discharge — use an ESD strap if available
• Reconnect all harnesses in the same positions and secure mounting hardware to OEM torque points

This small retaining clip secures its mating component within the refrigerator assembly, keeping parts properly seated and reducing vibration. Replacing a damaged or missing clip helps restore a snug fit and reliable operation of the attached piece.

• Holds the designated part firmly in place within the assembly
• Maintains proper alignment to prevent movement or rattling
• Helps ensure panels, ducts, or lines stay secured during use
• Symptoms can include loose or sagging parts, vibration noises, or components that won't stay attached

• Disconnect power; if working near the water system, also shut off the water supply
• Note the original orientation and placement before removal
• Fully seat the mating component, then press the new clip into place without forcing
• Check operation before reassembly

This sensor PCB assembly detects and relays sensor signals to the appliance control system, restoring accurate sensor feedback and communication when the original sensor board fails or malfunctions. Designed as a direct replacement board. What it does:

• Reads sensor inputs and converts them to signals the main control board can interpret.
• Replaces a failed or intermittent sensor board that causes incorrect readings or sensor-related error codes.
• Can resolve symptoms such as unexpected sensor faults, control errors, or appliances not responding to sensor changes.
• Matches the OEM board function; verify model compatibility before ordering.

• Always disconnect power before servicing to avoid shock or shorting the board.
• Use ESD precautions and handle the PCB by its edges to prevent static damage.
• Ensure all connectors are fully seated and the board is mounted in the original orientation.

This fan grille assembly covers and protects the refrigerator's fan while channeling airflow through the vents. Replacing a cracked or missing grille helps restore proper air circulation and can reduce noise and temperature fluctuations.

• Shields the fan blades and prevents items from contacting the intake
• Directs airflow to support even cooling throughout the compartment
• Typical symptoms: broken louvers or tabs, rattling/vibration noises, obstructed airflow, frost or warm spots near the fan area
• Restores the original airflow path and appearance after damage

• Disconnect power and clear shelves/drawers to access the panel
• Remove the screws/clips securing the old grille and retain any reusable hardware
• Position the new grille and fasten securely; ensure the fan spins freely and vents are unobstructed
• Restore power and allow temperatures to stabilize

The Refrigerator Temperature Sensor is an OEM part for LG refrigerators. This sensor monitors the temperature inside the refrigerator and communicates with the control board to maintain the optimal cooling environment.

Common causes of failure include wear and tear over time, electrical issues, or exposure to moisture. A malfunctioning sensor can lead to inaccurate temperature readings, resulting in improper cooling or freezing.

Symptoms of a bad refrigerator temperature sensor include:

• Inconsistent refrigerator or freezer temperatures
• Food spoiling faster than usual
• Refrigerator running continuously or not running at all
• Error codes displayed on the control panel

This OEM LG part is also compatible with Sears/Kenmore models.

The Temperature Sensor is an OEM part for LG refrigerators, designed to monitor and relay the temperature inside the refrigerator to the control board. This component ensures that your refrigerator maintains the correct temperature to keep your food fresh and safe to eat.

Over time, temperature sensors can fail or become less accurate due to wear and tear, environmental factors, or electrical issues. This can lead to problems such as the refrigerator cooling too much or not enough, resulting in food spoilage or excessive energy consumption.

Symptoms of a bad Temperature Sensor include:

• The refrigerator or freezer is too warm or too cold, despite setting adjustments
• Unusual fluctuations in temperature, indicating the sensor is not accurately detecting or communicating the internal temperature
• The refrigerator runs constantly or more frequently than normal, attempting to reach the desired temperature

This OEM LG part is also compatible with some Kenmore models.

This valve assembly pipe routes water between the refrigerator's valve components to enable controlled water flow to dispensers and ice systems. It replaces a damaged or leaking piping assembly to restore proper water delivery and prevent leaks. What it does:

• Channels water between the appliance valve and downstream components for dispenser or ice functions
• Replaces cracked, kinked, or corroded tubing that can cause leaks or reduced flow
• Helps stop visible leaks and intermittent water delivery issues when tubing is the failure point
• Works as the factory replacement pipe assembly designed to match original fit and routing

• One valve assembly pipe

• Turn off power and water supply before starting work; relieve any line pressure and drain remaining water
• Inspect adjoining fittings and clamps; replace any damaged fasteners to ensure a leak-free connection
• Tighten fittings to OEM torque recommendations where specified; avoid overtightening plastic fittings

This water filter head assembly holds the water filter and connects the water lines to the filter.

The Water Filter Bypass is an OEM part for LG refrigerators. It is used when you choose not to use a water filter in your refrigerator. This bypass plug allows water to flow directly to the dispenser and ice maker without being filtered, ensuring continuous operation even when a filter is not installed.

Causes of a bad water filter bypass can include damage to the bypass plug, clogging from debris, or wear and tear over time. If the bypass plug is not functioning properly, it can disrupt the water flow and lead to issues with the ice maker and water dispenser.

Symptoms of a bad water filter bypass include:

• Reduced water flow or no water flow to the dispenser
• Ice maker not producing ice
• Water leaks around the bypass plug area

This OEM LG part is also compatible with Sears/Kenmore.

This is a replacement filter cover that secures and protects the air filter on compatible LG air-care units. It restores proper filter fit and helps maintain airflow and filtration performance for safer, cleaner operation. What it does:

• Holds the air filter in place and protects it from damage and debris
• Helps maintain correct airflow through the filter assembly
• Prevents gaps that can allow unfiltered air to bypass the filter
• Addresses symptoms such as a cracked, loose, warped, or missing filter cover

• One filter cover (housing) as shown

• Disconnect and unplug the appliance before servicing
• Remove the filter and detach the old cover (typically snaps or screws) before installing the replacement
• Align tabs and secure the cover until it seats firmly; do not force or bend mounting tabs
• If screws are used, tighten evenly to avoid distorting the cover; test fitment before powering on

This LED light cover protects and diffuses the appliance's interior LED, restoring even lighting and a finished appearance. It is a direct-fit replacement designed to match the original factory lens. What it does:

• Protects the LED assembly from debris and impacts
• Diffuses and softens LED output for even interior illumination
• Restores a cracked, yellowed, or missing lens that affects light distribution
• Helps prevent direct contact with the LED board

• One LED light cover

• Disconnect power or unplug the appliance before starting
• Handle the lens carefully to avoid scratches; it typically snaps into place or is retained by a few clips
• Use a small screwdriver only if necessary to release retaining clips; avoid forcing parts

The Air Cleaner Filter Assembly is an OEM part for LG refrigerators. This part ensures the air within the appliance remains fresh and free of contaminants. This part minimizes odors and filtering out particulates, thereby maintaining the quality of the air circulating through the refrigerator and its contents.

Over time, the effectiveness of the air cleaner filter can diminish due to the accumulation of particles and odors it has trapped. A decrease in air quality within the refrigerator, persistent odors despite cleaning, and an increase in the spoilage rate of food items can all be signs that the filter assembly may need replacement.

Symptoms of a bad Air Cleaner Filter Assembly include:

• Persistent unpleasant odors inside the refrigerator
• Increased spoilage of food items
• Noticeable reduction in air freshness or quality

This OEM LG part is also compatible with some Kenmore models.
