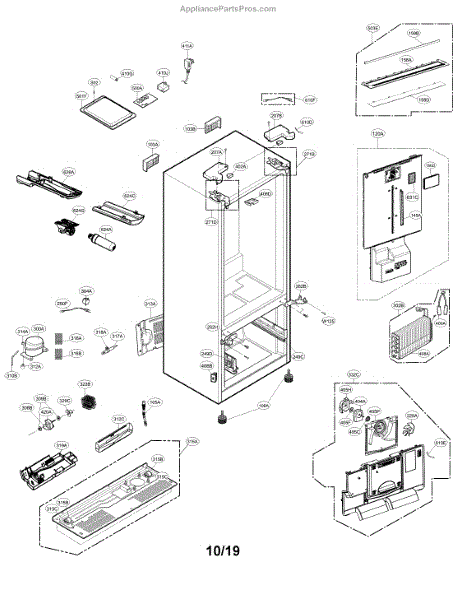

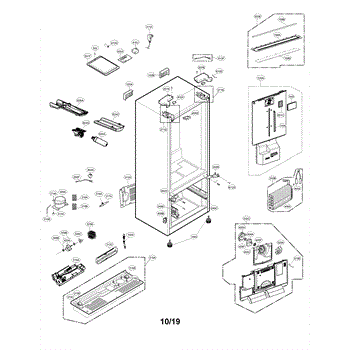

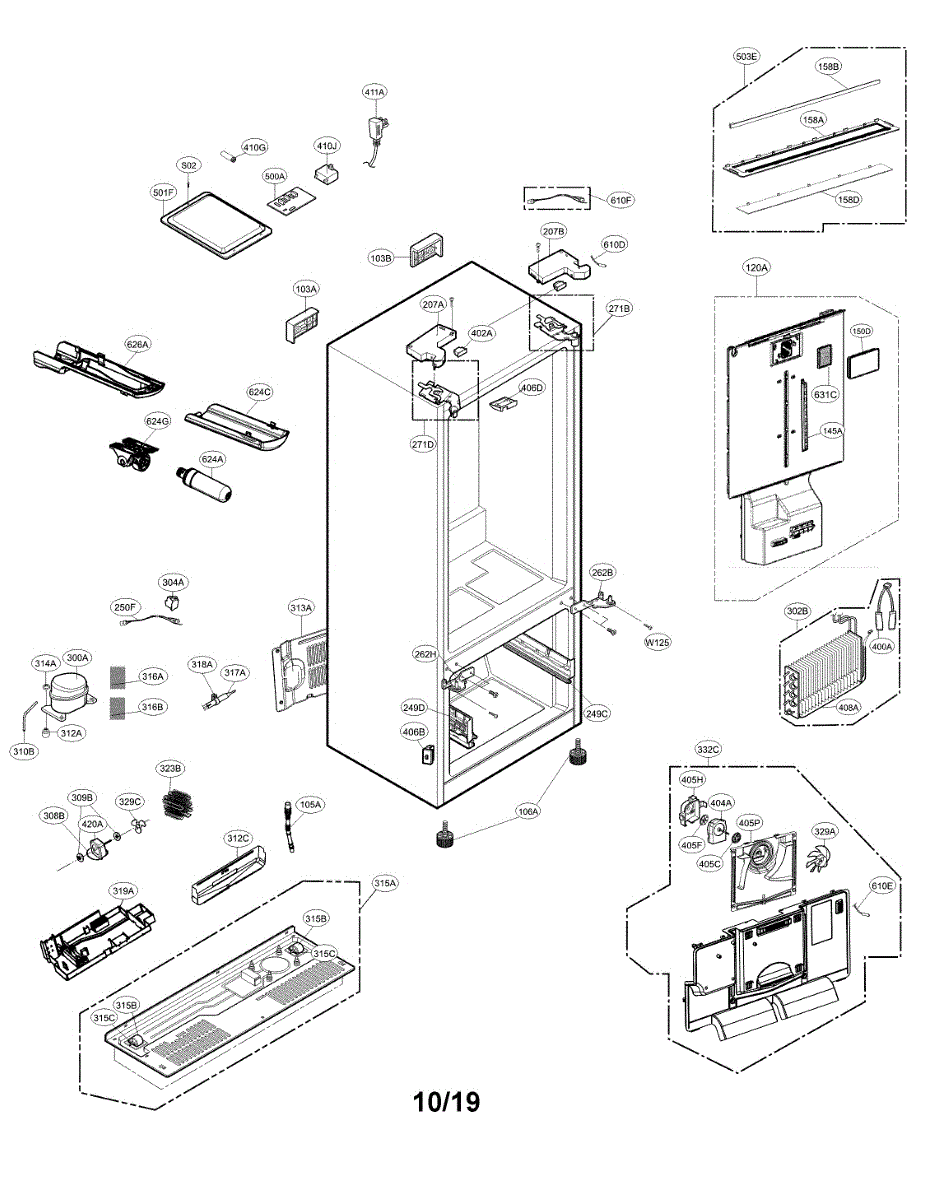

Parts for Kenmore Elite 79574102811: Case Parts

The Handle Mounting Stud is an OEM replacement part for LG refrigerator doors. It provides a sturdy mounting point for the door handle assembly. Reliable handle connection and support is crucial for dependable door function and access.

Causes of a faulty stud can include damage from excess weight or impact over time rendering the stud loose or unstable.

Symptoms of a bad stud include:

• Loose or sagging door handle
• Difficulty opening and closing the refrigerator door
• Potential for the handle to detach completely
• Safety concerns if the handle connection fails

This OEM LG replacement stud is also compatible with Sears/Kenmore models.

The Drain Pipe Assembly is an OEM replacement part for LG refrigerators. It is a plastic tubing system that collects and removes liquid condensation from evaporator coils. Proper drainage is crucial to minimizing frost buildup and ensuring optimal cooling of food storage areas.

Symptoms of a bad drain pipe assembly include:

• Excessive frost or ice accumulation inside the refrigerator
• Puddling or leaks detected near evaporator housing
• Slow draining allowing water to pool versus emptying fully
• Cracks or breaks in the tubing prevent complete fluid removal

Causes are typically mineral sediment clogging drainage paths or deteriorating plastic from constant use. This OEM LG replacement pipe restores reliable condensate removal to maintain peak efficiency.

This OEM LG part is also compatible with Sears/Kenmore.

The Freezer Tray is an OEM part for LG refrigerators. It provides an open, flexible surface area within the freezer compartment for storing and organizing frozen foods. The freezer tray's material and rail design also efficiently facilitate airflow to maintain sub-freezing temperatures throughout.

Symptoms of a faulty freezer tray include:

• Cracks or breaks that compromise structural integrity
• warping or pitting which prevents proper sealing
• uneven temperatures due to airflow disruption

Causes of a bad freezer tray can include impact damage over time, continuous door openings and closings leading to fatigue, and temperature fluctuations compromising the material.

This OEM LG part is also compatible with Sears/Kenmore refrigerator models.

A small protective cap that covers and protects a component connection or opening from dirt and moisture, helping maintain proper function and prolong component life. Simple replacement when the original cap is cracked, missing, or worn. What it does:

• Covers exposed fittings, terminals, or openings to keep out debris and moisture
• Helps prevent leaks or contamination at the sealed connection
• Restores a secure fit when the original cap is cracked, split, or degraded
• Commonly used where a small, removable protective seal is required

• Inspect mating surface and surrounding gasket/seal before installing; replace other damaged parts as needed
• Press the cap firmly into place until fully seated; no special tools usually required
• Wear gloves and disconnect power or water supply if working near energized or pressurized components

This roller assembly supports and guides a sliding rack, shelf, or drawer so it rolls smoothly along its track. Replacing a worn roller restores easy, even movement and helps prevent sticking, wobbling, noise, or the rack/drawer jumping off the rail.

• Provides rolling support for a sliding component on its rail
• Maintains alignment to reduce binding and off-track jams
• Helps the rack/drawer glide quietly and evenly
• Common signs to replace: hard-to-slide movement, squeaking/grinding, wobble or tilt, or a cracked/missing wheel

• Disconnect power before servicing; shut off water supply if applicable to your appliance
• Remove the rack/drawer to access the roller; support moving parts while working
• Note roller orientation and re-use existing fasteners/clips as designed
• Replace both sides for even operation

The Freezer Tray Roller is an OEM part for LG refrigerators. It is a dual roller wheel assembly located at the rear wall of the freezer compartment. The roller aids sliding shelf movement by reducing friction between trays and the liner wall.

Causes of a bad freezer tray roller include cracks, flat spots, or separated roller pieces from wear over years of use.

Symptoms of a bad tray roller are:

• Difficulty sliding shelves smoothly in and out of position
• Excessive force required to access stored items
• Noisy operation or rattling noises within the freezer

This genuine LG OEM replacement part is also compatible with some Kenmore models.

The Drawer Tray Assembly is an OEM replacement part for LG refrigerators. This is a lower freezer drawer.

Causes of a bad tray assembly can include wear and tear over time, damage from overloading or improper use of the drawer, or issues with its sliding operation mechanism.

Symptoms of a bad tray assembly include:

• The drawer not sliding smoothly or getting stuck
• Difficulty opening or closing the drawer fully
• Noisy operation
• Leaks or ice buildup from a damaged seal

This OEM LG part is also compatible with some Sears/Kenmore model refrigerators.

This is a refrigerator shelf assembly that provides a stable, easy-to-clean surface for storing food and organizing items inside the fresh food compartment. Replacing a damaged or missing shelf restores usable space and proper support.

• Supports food items and containers on a rigid, flat surface
• Helps maintain organized storage and visibility in the compartment
• Replace if the glass is cracked, frame is broken, or shelf sags/doesn't seat properly
• Can also address rattling or instability from a warped or damaged shelf

• Unplug the appliance or disconnect power before servicing
• Remove contents and carefully lift out the old shelf
• Align the new shelf with the side rails and fully seat it in the supports
• Handle glass with care; avoid impact and uneven pressure during installation

This shelf net is a replacement refrigerator shelf organizer that helps keep items secure and prevents small or loose items from shifting during door opening. It restores the original containment function of the shelf area. What it does:

• Provides a flexible barrier to hold bottles, jars and small containers in place on a shelf or door bin
• Replaces torn, stretched or missing shelf netting that allows items to fall or move
• Restores the designed containment and improves everyday access to frequently used items
• Fits in the shelf frame to provide lightweight, visible storage without blocking airflow

• One shelf net

• Remove the existing damaged net and clean the shelf frame area before installing
• Snap or clip the net into the shelf/frame slots; no special tools typically required
• Handle carefully to avoid overstretching; ensure clips or tabs fully engage for secure fit
• Disconnect power only if removing shelves near electrical components or light assemblies

This is a refrigerator shelf assembly that provides a stable, easy-to-clean surface for storing food and organizing items inside the fresh food compartment. Replacing a damaged or missing shelf restores usable space and proper support.

• Supports food items and containers on a rigid, flat surface
• Helps maintain organized storage and visibility in the compartment
• Replace if the glass is cracked, frame is broken, or shelf sags/doesn't seat properly
• Can also address rattling or instability from a warped or damaged shelf

• Unplug the appliance or disconnect power before servicing
• Remove contents and carefully lift out the old shelf
• Align the new shelf with the side rails and fully seat it in the supports
• Handle glass with care; avoid impact and uneven pressure during installation

This rail guide assembly restores smooth, stable sliding for a refrigerator/freezer drawer or shelf drawer, helping the drawer track properly and reducing rubbing or sticking during use. What it does:

• Replaces a worn or damaged drawer slide rail to restore proper alignment and smooth movement
• Helps stop drawers from sticking, binding, scraping, or falling out of track
• Supports the drawer weight and guides it in and out evenly
• Reduces noise caused by misaligned or worn rails

• Disconnect power (and water, if applicable) before servicing the appliance
• Remove the drawer or shelving to access the rail; retain fasteners for reuse unless new ones are provided
• Inspect matching rail on the opposite side; replace both sides if both show wear for best performance

This tray cover replaces a damaged or missing appliance tray cover to restore a clean appearance and proper containment of spills. It fits into the existing tray location and helps keep interior surfaces protected during normal use. What it does:

• Covers the appliance tray to help contain spills, crumbs, and minor debris
• Maintains a finished look and helps prevent direct contact with the underlying tray
• Supports proper placement of removable trays or components that sit above it
• Useful when the original cover is cracked, warped, or otherwise compromised

• One replacement tray cover

• Basic snap-in or screw-in installation; confirm orientation before fastening
• Power off and unplug the appliance before attempting any service
• Use gentle pressure to avoid cracking the new cover; do not force damaged fasteners
• Replace missing or damaged screws or clips with OEM-specified hardware

The Deli Drawer Front Cover is an OEM part for LG refrigerators. It provides an attractive facia that protects the internal components of the deli drawer. This cover is designed to integrate with the style and finish of the refrigerator interior.

Symptoms of a bad Deli Drawer Front Cover include:

• Cracks, chips, or other visible cosmetic damage
• Discoloration that detracts from the aesthetics
• The cover is loose, misaligned, or missing
• Difficulty opening or closing the deli drawer

Causes of a bad cover can be normal wear and tear over time from repeated use, as well as accidental drops or impacts that cause cracks or breaks.

This OEM replacement part is also compatible with select LG models.

This LED assembly replaces a TV backlight module to restore even screen illumination and image brightness. It mounts behind the LCD panel and provides the LED sources that light the display. What it does:

• Replaces a damaged or failed TV backlight module
• Restores even screen brightness and reduces dark spots
• Helps resolve flickering, dim display, or no-picture issues related to the backlight
• Works as a direct-fit LED module for compatible LG LCD TVs

• One LED assembly

• Disconnect power and remove the TV from power source before beginning service
• Requires partial disassembly of the TV (front bezel and LCD panel removal); handle the panel and LEDs carefully
• Avoid touching LED surfaces and circuit traces; use ESD precautions and appropriate tools

This Tray Cover Assembly replaces a damaged or missing cover on the appliance tray to help contain contents and keep the tray functioning correctly. It restores the tray's protective surface and helps prevent spills or contamination. What it does:

• Covers and protects the tray surface to keep contents contained
• Helps direct contents into the tray area to reduce spills
• Replaces cracked, warped or broken covers that no longer seat properly
• Restores a flush fit and appearance for the tray area

• One tray cover assembly

• Disconnect power to the appliance before beginning any service
• Remove the tray or access panel per your model's service instructions to access mounting points
• This part typically snaps or slides into place; light tools (screwdriver) may be needed to remove retaining clips

This rail guide assembly keeps a refrigerator drawer aligned and sliding smoothly so you can open and close it without sticking or sagging. It restores proper drawer support and alignment for reliable everyday use. What it does:

• Supports the drawer on its track so the drawer slides in and out evenly
• Guides movement to prevent binding, sticking, or uneven operation
• Helps reduce noise from rubbing or misaligned drawer slides
• Restores proper drawer height and prevents sagging or catching

• Remove all contents from the drawer before beginning work
• Use basic hand tools; handle plastic parts gently to avoid cracking
• Reassemble drawer and test smooth operation before returning items to the drawer
• If the drawer is heavy or awkward, get help to avoid dropping the drawer or injuring yourself

The Refrigerator Flipper Assembly is an OEM part for LG refrigerators. This assists in the smooth opening and closing of the refrigerator door. It ensures an airtight seal when the door is closed, preventing cool air from escaping and maintaining the refrigerator's internal temperature.

Causes of a malfunctioning Refrigerator Flipper Assembly can range from physical damage, such as cracks or breakage, to wear and tear from regular use.

Symptoms of a bad Refrigerator Flipper Assembly include:

• Difficulty in opening or closing the refrigerator door
• A noticeable gap when the door is supposed to be sealed shut
• Increased energy consumption as the refrigerator works harder to maintain its temperature
• Spoilage of food items quicker than expected due to poor temperature regulation

This OEM LG part is also compatible with some Kenmore models.

This drawer guide is a replacement rail that supports and guides a refrigerator/freezer drawer for smooth opening and closing. It restores proper drawer alignment and helps prevent sticking or uneven movement. What it does:

• Replaces a worn, bent, or broken drawer guide to re-align the drawer track and improve sliding action
• Helps eliminate drawer sticking, catching, or uneven travel caused by damaged rails or mounting points
• Restores smooth, stable drawer operation under normal load conditions
• Works as part of the drawer slide assembly to keep the drawer seated and centered

• One drawer guide (rail)

• Remove all food and shelves from the drawer before servicing; support the drawer while removing guides
• Use basic hand tools; keep fasteners and mounting clips for reinstallation if present
• Inspect mating tracks, clips and mounting points; replace damaged hardware as needed

The Door Bin is an OEM part for LG refrigerators. It provides convenient storage for items accessed regularly, from condiments to snacks.

Causes of a faulty door bin can include plastic cracking from extended usage, broken slide pegs, or a loose assembly. Regular temperature changes may compromise durability over time.

Symptoms of a problematic door bin include:

• Difficulty fully extending or retracting on glide tracks
• Contents are at risk of falling during opening/closing
• Rattling or vibrations while retrieving items

This LG part is also compatible with some Kenmore models.


STOPPER ASSEMBLY,DOOR

STOPPER ASSEMBLY,DOOR

This hinge cam fits the door hinge and provides the lift/settle action that helps the door open and close smoothly. Replacing a worn cam can reduce clicking and restore consistent door movement and alignment.

• Provides cam action at the hinge for smooth door travel
• Helps the door seat closed and maintain alignment
• Common symptoms include clicking/knocking at the hinge, rough or uneven door movement, or slight door sag
• Visual wear such as flat spots or grooves on the cam is a typical failure sign

• Disconnect power to the appliance before servicing
• Support the door to prevent injury; remove hinge cover and hardware as needed
• Note the cam's orientation and any washers/spacers and transfer them to the new part
• After installation, verify door operation and gasket alignment; adjust hinge if needed

The Lower Refrigerator Door Hinge is an OEM part for LG refrigerators. This hinge supports the refrigerator door, allowing it to open and close smoothly while maintaining proper alignment. It is designed to handle the weight of the door and ensure a secure and stable operation over time.

Causes of a bad lower refrigerator door hinge can include regular wear and tear, physical damage from overloading or impacts, and gradual loosening over time. A faulty hinge can lead to misalignment, difficulty in opening or closing the door, and potential damage to the door seal.

Symptoms of a bad lower refrigerator door hinge include:

• The door not closing properly or staying open
• Sagging or misaligned door
• Unusual noises when opening or closing the door
• Gaps in the door seal, causing cooling inefficiency

This OEM LG part is also compatible with Sears/Kenmore models.

The Door closer is an OEM part for LG refrigerators, this part prevents the refrigerator door from swinging open too widely. By limiting the door's range of motion, the Door Stop ensures that the door opens smoothly and safely, contributing to the longevity of the appliance and maintaining the aesthetic integrity of your kitchen space.

Causes of a bad Door closer can stem from physical damage, wear and tear over time, or loosening of the component due to repeated use.

Symptoms of a bad Door closer include:

• The refrigerator door swinging open too far
• Damage or marks on adjacent walls or furniture from the door hitting them
• Increased wear on the refrigerator's hinges due to uncontrolled door movement

This OEM LG part is also compatible with some Kenmore models.

This slide rail is a replacement drawer guide that restores smooth, stable drawer movement and helps prevent binding or sagging. Designed to match the OEM fit so drawers open and close reliably. What it does:

• Guides and supports the appliance drawer for smooth sliding motion
• Replaces worn or damaged rails that cause sticking, sticking intermittently, or uneven travel
• Helps prevent drawer tilt or sag when loaded
• Restores proper alignment for secure closing

• Disconnect power to the appliance before beginning any work
• Remove the drawer per your model's service instructions to access the rail
• Use basic hand tools (screwdriver/driver) to remove and replace the rail; keep fasteners for reuse
• Align the rail carefully, slide the drawer to test operation, and verify smooth movement before returning the appliance to service

This slide rail supports and guides a drawer, bin, or rack so it can glide smoothly in and out of the appliance. Replacing a worn or broken rail restores alignment and easy operation while preventing binding or derailment. What it does:

• Provides the track surface for a drawer, bin, or rack to slide on
• Keeps the sliding assembly aligned and level during travel
• Worn rails can crack, warp, or lose mounting tabs over time
• Symptoms include sticking, rough travel, derailment, uneven drawer/rack, or difficulty fully opening/closing

• 1 slide rail

• Disconnect power before servicing; shut off the water supply
• Remove the drawer/rack and any end caps or stops per your model's instructions
• Position and secure the new rail using the original fasteners; transfer any reusable stops
• Reinstall and test for smooth, even travel; inspect the companion rail and rollers/wheels for wear

This connector assembly secures and drives the freezer drawer bar so the drawer opens and closes smoothly. Replaces a worn or broken bar/gear assembly to restore proper drawer movement and alignment. What it does:

• Transfers drawer motion to the slide mechanism so the freezer drawer glides correctly
• Replaces worn or stripped gears that cause slipping, grinding, or uneven movement
• Secures the drawer bar to the internal slide/track to prevent misalignment or sagging
• Useful when a drawer won't open/close smoothly, catches, or rattles during operation

• Disconnect power before servicing and remove stored items from the drawer
• Generally replaces with basic hand tools; support the drawer while detaching and installing the assembly
• Inspect surrounding slide components for wear and replace if needed for reliable operation

This center hinge assembly secures and allows smooth pivoting of the refrigerator's center door, restoring proper door alignment and closing. It replaces a worn or damaged hinge to reduce sagging and improve sealing. What it does:

• Provides the pivot point for the refrigerator's center door, maintaining correct door movement and alignment
• Helps the door close evenly to preserve the gasket seal and internal temperature
• Replaces broken, bent, or worn hinge hardware that can cause door sag or rubbing
• Works with existing hinge pins and mounting points to restore original function

• One center hinge assembly

• Requires basic hand tools; follow manufacturer instructions for removal and installation
• Support the door while removing or installing the hinge to prevent injury or damage
• Ensure all fasteners are tightened securely and door alignment is checked after installation
• Disconnect power if required by the appliance manufacturer before servicing

This center hinge assembly secures and pivots the upper/center refrigerator door, restoring proper door alignment and smooth opening. Designed to replace a worn, bent or broken center hinge to improve sealing and operation. What it does:

• Provides a mounting pivot for the upper/center refrigerator door to ensure correct swing and alignment
• Helps maintain an even door gap for a proper seal and consistent cooling
• Replaces damaged, bent or worn hinge components that cause rubbing, sagging, or noisy door movement
• Works with factory hinge pins and covers to restore original door function

• One center hinge assembly

• Installation requires removing the door and supporting it; have a helper to prevent damage or injury
• Use appropriate hand tools; avoid overtightening fasteners which can bind the hinge
• Inspect adjoining hinge pins and mounting screws; replace if worn for best results
• Disconnect power or follow manufacturer safety steps if working near electrical components

The Spanner Wrench is an OEM replacement part for LG refrigerators. This tool allows you to adjust the door hinges to ensure the doors are level and aligned properly. A well-aligned door is crucial for maintaining the internal temperature and efficiency of the refrigerator, preventing energy loss and ensuring food is stored under optimal conditions.

Symptoms that you might need to adjust the door hinges and potentially need this wrench include:

• Doors not closing properly or sealing tightly
• Visible gaps between the door and the main body of the refrigerator
• The refrigerator tilting or not sitting level

This spanner wrench is also compatible with some Sears/Kenmore refrigerators.

This upper hinge assembly secures and guides the refrigerator door at the top, restoring proper alignment and smooth opening. Replace a worn hinge to stop sagging doors and improve sealing and operation. What it does:

• Provides the top pivot point for the refrigerator door, keeping it aligned during opening and closing
• Restores proper door clearance and prevents rubbing or misalignment
• Helps maintain a tight door seal to reduce cold air loss
• Addresses symptoms like a sagging or uneven door, noisy movement, or difficulty closing

• Disconnect power to the appliance before beginning repairs to prevent injury.
• Support the door while removing and installing the hinge to avoid dropping or damage.
• Use appropriate hand tools; do not overtighten fasteners to prevent stripping.

Replacement refrigerator door hinge that restores smooth pivoting and proper door alignment, helping the door open and close reliably and maintain an airtight seal to preserve cooling performance. What it does:

• Supports the refrigerator door and allows it to pivot smoothly.
• Replaces worn, bent, or damaged hinges that cause door sag or misalignment.
• Helps reduce noisy or grinding door operation when the hinge is failing.
• Promotes an even door seal to help maintain internal temperature consistency.

• Unplug the appliance and remove food from nearby shelves before starting work.
• Support the door while removing hinge fasteners to prevent dropping or damage.
• Reinstall using the original hardware; align the door and tighten fasteners securely but avoid overtightening.

NOTE: This part also requires software update kit CJT30000002. DO NOT INSTALL WITHOUT UPDATING SOFTWARE. Call for more information.

The Compressor is an OEM part for LG refrigerators. As the primary component that circulates refrigerant to chill the refrigerator and freezer compartments, it is crucial for proper cooling operation. The compressor works with the condenser fan and evaporator coil to regulate temperatures inside the refrigerator.

Causes of a faulty compressor can include gradual breakdown of motor windings, loss of refrigerant pressure over time, or failure of electrical components vital to operation.

Symptoms of a bad compressor are:

• Elevated fridge/freezer temperatures unable to be maintained
• Frost patterns indicating poor or insufficient cooling
• Abnormal vibrations or sounds upon compressor cycling
• Error codes displayed regarding cooling performance

It is also compatible with Sears/Kenmore refrigerator models.


This motor support damper sits between the refrigerator's compressor and base to absorb vibration and movement. Replacing a worn damper helps quiet rattles and humming from the back of the cabinet and keeps the compressor properly supported.

• Cushions the compressor to reduce transmitted vibration and noise
• Helps quiet humming, buzzing, or rattling from the lower rear of the refrigerator
• Maintains proper compressor alignment and support on the base pan
• Common signs of wear: increased vibration/noise, a cracked or flattened damper, or noticeable compressor movement when running

• Unplug the refrigerator and pull it forward to access the rear; allow the compressor to cool before working
• Support the compressor to remove load from the mount before loosening hardware
• Replace the damper and tighten mounting hardware evenly without over-compressing the rubber
• Avoid bending or stressing refrigerant tubing; wear gloves and eye protection

This compressor damper is a vibration-isolating mount that sits between the sealed-system compressor and the chassis. It cushions the compressor to reduce noise, limit vibration transfer, and help keep refrigerant lines from being stressed.

• Isolates the compressor from the frame to absorb start/stop shock and vibration
• Helps reduce humming, rattling, or buzzing from the back/bottom of the appliance
• Replaces a damper that's cracked, flattened, hardened, or missing
• Can help if the compressor rocks or the unit vibrates excessively

• Disconnect power and pull the unit forward for access; remove rear/service panel if present
• Support the compressor to relieve load on the mounts before removing fasteners
• Match orientation; transfer any sleeves/spacers from the old damper to the new one
• Ensure the compressor sits level and that tubing is not strained before restoring power

This small stopper installs in the refrigerator to limit the travel of a moving component and keep it securely in place. Replacing a broken or missing stopper prevents over-extension and helps maintain smooth, aligned operation.

• Limits the range of motion for a door, bin, or drawer to prevent over-opening or accidental removal
• Helps keep interior components aligned and operating smoothly
• Replace if cracked, missing, or deformed
• Common symptoms: drawer or bin slides out too far, door swings past normal range, or a broken plastic stop is found

• Disconnect power before servicing; remove or support the affected bin/drawer/door
• Note the old stopper's orientation and location before removal
• Transfer and reuse any original screws or clips if applicable
• Snap or fasten the new stopper in place and test for smooth movement

A small retaining pin used to secure moving parts and keep components aligned for smooth operation. Replacing a worn or broken common pin can stop rattling and restore proper fit between linked parts. What it does:

• Holds or aligns two parts together so they move correctly and stay in position
• Helps prevent rattling, looseness, or parts slipping out of place
• Works as a simple mechanical fastener—no electronics involved

• One common pin

• Disconnect power to the appliance before beginning any service
• Keep track of small parts; lay out components in order to aid reassembly
• May require removal of trim or a hinge/retainer to access the pin—use basic hand tools
• If the pin is difficult to seat, do not force; inspect mating parts for damage

This cabinet roller supports the refrigerator and lets the unit roll in and out of place for cleaning or service. Replace a worn or broken roller to restore smooth movement and help keep the appliance properly positioned.

• Supports the base of the refrigerator and enables rolling movement
• Helps with safe positioning and service access without dragging
• Common failure signs: appliance is hard to move, scraping or rolling noises, a flat-spotted/cracked wheel, or a wheel that won't turn
• Replace when the roller is damaged, seized, or missing

• Disconnect power and shut off water supply; protect flooring before moving the appliance
• With help, pull the refrigerator forward and safely support it to access the roller
• Remove mounting fasteners, install the new roller, and reuse original hardware
• Confirm level and smooth movement before returning the unit to its location

This restrainer is a small retaining clip that helps secure moving or removable components in place, reducing rattles and keeping parts aligned for reliable operation. It's a simple replacement for worn or broken clips. What it does:

• Holds a cover, panel, or door-related component in proper position to prevent shifting
• Reduces noise caused by loose or vibrating parts
• Restores original fit where a broken or missing clip allows movement
• Simple mechanical function — no electrical connections or calibration

• One restrainer

• Disconnect power (and water if applicable) before beginning repairs
• Inspect surrounding mounting points for damage; replace any broken tabs or fasteners
• Typically installs with basic hand tools; align clip and press or snap into place until secure

The Drier Assembly is an OEM part for LG refrigerators. This part removes moisture and contaminants from the refrigerant, ensuring the system operates efficiently and effectively. The drier assembly helps maintain the proper function of the compressor and other cooling components, contributing to the longevity and performance of the refrigerator.

Causes of a bad drier assembly can include clogs from debris, wear and tear over time, or contamination from moisture or refrigerant leaks.

Symptoms of a bad drier assembly include:

• The refrigerator not cooling properly
• Frost or ice buildup on the evaporator coils
• Increased noise from the compressor
• Reduced efficiency and higher energy consumption
• You should replace the drier assembly if it becomes faulty or damaged.

This OEM LG part is also compatible with select Sears/Kenmore models.

This holder is a small mounting bracket used to secure internal components in place, helping keep parts aligned and stable for reliable operation. It provides a direct, OEM-compatible replacement to restore proper fit and function. What it does

• Secures and supports nearby components to prevent shifting or vibration.
• Restores proper alignment where a worn or broken holder causes rattling or loose parts.
• Helps maintain normal operation by keeping assemblies seated correctly.
• Works behind panels or inside assemblies where a dedicated bracket is required.

• One holder/mounting bracket as shown.

• Installation generally requires removing the panel or access cover where the holder is located.
• Use proper fasteners shown in your appliance; replace any damaged screws or clips as needed.
• Disconnect power before servicing electrical appliances to reduce shock risk.

This condenser assembly connects and secures the refrigerator condenser components, helping the cooling system run reliably. It replaces damaged or corroded condenser wiring to restore proper condenser function and airflow. What it does:

• Provides the OEM-configured wiring and mounting for the condenser to ensure consistent electrical connection.
• Restores proper condenser operation when original wires are cut, burnt, corroded, or loose.
• Helps prevent intermittent cooling or compressor issues caused by faulty condenser connections.
• Maintains correct routing and strain relief for condenser lines to reduce wear and chafing.

• One condenser assembly with attached wiring and mounting hardware as shown.

• Recommended for technicians or confident DIYers; disconnect power before starting and unplug the appliance.
• Inspect surrounding components for damage; replace any compromised parts.
• Use proper tools and tighten mounting hardware to OEM torque where specified; avoid pinching wires.

The Evaporator Fan Blade is an OEM replacement part for LG refrigerators. It is a key component located inside the refrigerator that works to circulate cold air evenly throughout. The fan blade spins rapidly to distribute chilled air from the evaporator coil and refrigeration system, ensuring proper airflow and consistent temperatures across all shelves and compartments.

Symptoms of a bad evaporator fan blade include:

• Inconsistent or improper interior cooling temperatures
• Hot or warm spots developing inside the refrigerator
• Strange noises such as clicking or grinding emanating from the rear wall

Causes of a bad evaporator fan blade can be wear and tear over time, an accumulation of dust or debris on the blades restricting airflow, or accidental damage like dents or cracks to the blades affecting their ability to spin smoothly.

This OEM LG part is also compatible with select Sears/Kenmore brand models.

The Condenser Fan Blade is an OEM replacement part for LG refrigerators. The condenser fan motor blade is located on the condenser fan motor which is usually located on or near the compressor at the back of the refrigerator. This part is responsible for circulating air over the condenser coils. This helps to remove heat from the condenser and evaporate water in the defrost drain pan.

Causes of blade failure can include normal wear over extended runtime, accumulated dirt and dust impeding airflow, or physical impact damage.

Symptoms of a faulty condenser fan blade include:

• Refrigerator fails to properly cool and maintain temperatures
• Condenser unit runs excessively as heat fails to dispel
• Abnormal noises such as grinding or squealing emanate from the condenser area

This OEM LG part is also compatible with some Sears/Kenmore model refrigerators.

The Evaporator Fan Motor Assembly is an OEM replacement part for LG refrigerators. This assembly is responsible for circulating cold air from the evaporator coils throughout the refrigerator and freezer compartments. By doing so, it ensures that both compartments maintain the desired temperatures and that the cooling process is efficient.

Causes for a malfunctioning Evaporator Fan Motor Assembly can include motor wear from continuous operation, electrical issues like faulty wiring, obstructions preventing the fan blades from turning, or damage to the fan blades themselves.

Symptoms of a bad Evaporator Fan Motor Assembly include:

• Inconsistent temperatures in the refrigerator or freezer compartments
• Unusual noises, such as humming or buzzing, coming from the back of the refrigerator
• Reduced cooling efficiency, leading to food spoiling faster
• Frost buildup in the freezer due to poor air circulation

This OEM LG part is also compatible with Sears/Kenmore model refrigerators.

A replacement cover motor that powers the refrigerator's dispenser cover, allowing the door to open and close so you can access ice and water. Replaces a worn or failed motor to restore normal dispenser cover operation. What it does:

• Drives the dispenser cover mechanism so the cover opens when dispensing and closes when idle
• Helps keep the dispenser sealed to reduce drafts and prevent pests or debris from entering
• Stops or fails to move when worn, causing a stuck, slow, or noisy dispenser cover
• Works with the dispenser linkage and gears to coordinate cover motion with user controls

• One cover motor

• Disconnect power to the appliance before beginning any repair
• Remove dispenser trim and access panel per your model's service instructions to reach the motor
• Handle gears and linkage carefully; ensure proper alignment during reassembly and test cover operation before finishing

Damper motor support secures the damper motor assembly inside the refrigerator, keeping the air-control damper aligned so it opens and closes correctly. Replacing a damaged support restores proper airflow control and reduces noise. What it does:

• Secures and positions the damper motor assembly so the air-control damper moves smoothly.
• Keeps the motor and damper aligned to help prevent rattling, grinding, or loose motor noise.
• Supports consistent airflow between compartments to assist with even cooling.
• Resolve damper movement problems like the damper not opening or closing fully.

• Disconnect power to the appliance before starting work; remove food and shelves as needed for access.
• Remove the interior access panel to reach the damper assembly; handle plastic tabs and clips gently to avoid breakage.
• Align the motor and damper during reassembly and secure all fasteners; test damper operation before replacing panels and shelving.

This damper motor support replaces a broken or warped mount for the refrigerator's air damper assembly. It holds the damper motor and door securely so the system can meter freezer air into the fresh food compartment.

• Secures and aligns the air damper motor/door within the duct
• Helps ensure proper opening/closing of the damper to regulate airflow and temperature
• Damage can contribute to a warm or too-cold refrigerator and inconsistent temperatures
• May cause clicking or buzzing from the damper area or a visibly loose assembly

• Disconnect power to the refrigerator before servicing
• Access the damper behind the fresh food compartment duct/cover; remove shelves as needed
• Note wiring and orientation; transfer the existing damper motor and door to the new support and reuse fasteners
• Ensure the door moves freely and seals before reassembly; restore power and verify airflow

This sheathed heating element powers the automatic defrost system. It melts frost from the evaporator so air can circulate and temperatures stay consistent, helping restore cooling performance while preventing ice buildup.

• Provides controlled heat during the defrost cycle to clear ice from the evaporator coils
• Maintains airflow and stable temperatures for proper cooling
• Common failure symptoms: heavy frost on the back panel, warm or inconsistent temps, long run times
• Also presents as fan noise from ice contact or reduced cooling/ice production

• Disconnect power before service; allow any built-up ice to thaw
• Access the evaporator by removing interior panels; steps vary by model
• Handle the element carefully—do not kink, sharply bend, or stress the lead wires; transfer any clips/insulators from the original
• Check heater continuity and inspect the defrost thermostat/sensor while the area is open

This LED assembly restores screen illumination by replacing a failed backlight strip. It helps return even, bright lighting to the LCD panel so pictures and menus are visible again without the dim or dark display caused by burned-out LEDs. What it does:

• Replaces the display backlight to restore screen brightness and uniform lighting
• Can resolve symptoms like dim display, dark bands, flickering backlight, or no visible picture with audio
• Works as the LED lighting component mounted behind the LCD panel to illuminate the image
• Designed to match the original LED layout and connector for a direct replacement

• One LED assembly (backlight strip) as shown

• Disconnect power and remove the display panel and bezel before replacing the assembly
• Handle the LCD and LEDs carefully to avoid damage; avoid touching LED surfaces and circuit traces
• Observe ESD precautions and use appropriate tools;

The Capacitor is an OEM replacement part for  LG refrigerators. It is an electronic component located next to the refrigerator compressor that stores electric charge between cycles of the power supply circuit. The capacitor plays an important role in providing stable starting power to the compressor motor.

Causes of a bad capacitor next to the compressor can include heat distress over thousands of start/stop cycles of the refrigerator.

Symptoms of a bad capacitor include:

• The compressor makes loud buzzing or grinding noises during the operation
• The compressor fails to start or cycles on and off frequently
• Temperature fluctuations inside the refrigerator
• Error codes related to compressor issues

This genuine LG replacement is compatible also with Kenmore Elite model refrigerators

The Capacitor is an OEM part for LG refrigerators. It plays a vital role in the electrical system, providing the necessary power boost to start the compressor and maintain its operation. This component ensures that the refrigerator runs efficiently by stabilizing voltage and improving overall performance.

Common causes of a bad capacitor include electrical surges, wear and tear over time, or exposure to excessive heat.

Symptoms of a bad capacitor include:

• The refrigerator not cooling properly
• The compressor not starting or running intermittently
• Unusual noises coming from the refrigerator
• The refrigerator cycling on and off frequently

This OEM LG part is also compatible with Sears/Kenmore models.

Power cord assembly that restores the appliance's connection to household mains. Replaces a damaged or worn cord to help stop power loss, sparking, or intermittent operation and restore a safe power feed. What it does:

• Provides the main electrical connection from the wall outlet to the appliance so internal components receive line voltage.
• Replaces cords with visible damage, frayed insulation, exposed wires, or broken plug prongs.
• Can resolve symptoms such as no power, intermittent power, sparks at the plug, or breaker trips caused by a faulty cord.
• Restores the original style of power connection and strain-relief routing for a secure fit.

• Always disconnect power at the wall before attempting service.
• Basic hand tools may be required; secure the cord firmly with the appliance's strain relief and tighten screws.

This DC motor assembly powers a fan inside your appliance to move air where it's needed. Replacing a weak or failed motor restores proper airflow for stable temperatures and reliable performance. What it does:

• Drives a fan blade to circulate air within the appliance
• Supports consistent temperatures and efficient airflow
• Common failure signs: fan not running, intermittent operation, or grinding/squealing noises
• Contribute to poor cooling/heating and fan/motor-related error codes

• Includes: 1 DC motor assembly

• Disconnect power to the appliance before servicing
• Access the fan area, note wire routing/orientation, and remove mounting fasteners
• Transfer the fan blade and any mounting hardware from the original motor if needed
• Ensure the blade spins freely and connectors are fully seated before reassembly and power-up

This ice maker lever is the mechanical arm that controls ice production by interacting with the ice maker's on/off and level-sensing mechanism. Replacing a broken or missing lever restores proper operation and helps prevent overfilling or no-ice conditions.

• Acts as the ice maker's shut-off arm to regulate ice production
• Lowers to allow ice making; raises to stop when the bin is full
• Common symptoms: ice maker won't stop making ice, no ice when arm is stuck up, broken/missing lever, lever won't stay in position
• Helps ensure consistent, reliable ice production control

• Disconnect power and shut off water before service
• Remove the ice bin to access the ice maker; gently release the lever from its pivots/linkage
• Note lever orientation; transfer and reuse any original springs, clips, or fasteners
• Reinstall components, restore power, and verify free up/down movement of the arm

This refrigerator ice maker assembly automatically fills, freezes, and harvests ice cubes into the bin. Replacing a failed ice maker restores steady ice production and proper shutoff when the bin is full.

• Automates the ice-making cycle: fills the mold, freezes water, and ejects cubes into the bin
• Monitors bin level and stops production when full
• Helps address symptoms such as no ice production, not cycling/harvesting, or cubes not ejecting
• Can also help with intermittent or inconsistent ice output

• Unplug the refrigerator and shut off the water supply before servicing
• Remove the ice bin, unfasten mounting screws, and disconnect the wire harness
• Transfer existing brackets or covers if required; reconnect harness and secure the assembly
• Align the fill tube with the icemaker inlet; restore power/water and allow up to 24 hours for normal ice production

The Temperature Sensor is an OEM part for LG refrigerators. Also known as a thermistor, is responsible for sensing the temperature changes and providing the necessary feedback to the refrigerator's control board. It helps maintain accurate and consistent temperature levels, ensuring optimal food preservation and efficient cooling.

Causes of a faulty temperature sensor can include wear and tear over time, damage due to electrical issues or exposure to extreme temperatures, or sensor calibration issues. These factors can result in temperature inconsistencies, inaccurate readings, or improper cooling performance of the refrigerator.

Symptoms of a bad temperature sensor may include:

• Incorrect temperature readings on the control panel
• Temperature fluctuations inside the refrigerator
• Overcooling or inadequate cooling of food items

This OEM LG part can also be used on Kenmore/Sears appliances.

This water line holder secures and routes the refrigerator's plastic water tube so it stays protected and out of the way. Replacing a damaged holder helps prevent kinks and leaks and keeps water flowing to the dispenser and icemaker.

• Anchors and guides the water tube along the cabinet/door to prevent rubbing and kinking
• Helps maintain proper water flow to the dispenser and ice maker
• Replace if the holder is cracked, missing, or the tube won't stay seated
• Symptoms can include leaks or drips near the hinge/backs, slow or no dispensing, or visibly loose tubing

• Disconnect power and turn off the household water supply before servicing
• Access the holder (often behind a hinge cover, kick plate, or rear panel)
• Note tube routing, then release/remove the old holder and seat the tube in the new holder; reuse existing hardware if present
• Restore water and power; check for leaks and normal dispenser/ice operation

This water inlet valve assembly controls water flow into the washer, restoring proper fill and temperature selection so cycles start and run correctly. Use it to replace a failed or leaking inlet control on compatible machines. What it does:

• Opens and closes water flow to the washer during fill cycles
• Helps select hot, cold, or mixed fill when the washer requests a temperature
• Commonly replaces valves that cause no fill, slow fill, or only one temperature to fill
• Stops or reduces water flow when the valve is clogged, faulty, or leaking

• Disconnect power and shut off water supply before starting work
• Handle electrical connectors and water lines carefully to avoid damage
• Verify hose connections and test for leaks after installation

This mechanical mounting band secures a bracket assembly inside the appliance to keep components aligned and reduce vibration. It restores proper bracket positioning so moving parts run quietly and reliably. What it does:

• Holds a bracket or component assembly in place to maintain proper alignment
• Dampens movement and reduces vibration-related noise or rattling
• Prevents excess wear by keeping parts from shifting during operation
• Helps maintain correct clearances to avoid interference or rubbing

• Disconnect power before inspecting or replacing internal parts
• Remove only the fasteners necessary to access the bracket; keep track of hardware
• Secure all fasteners to the manufacturer's torque or snug specification
• Replace the band if bent, cracked, or missing to restore proper fit and function

This head assembly connects and secures the refrigerator's water filter cartridge, directing water through the filter for dispense and ice systems. It restores proper flow and helps stop leaks when the filter head is faulty. What it does:

• Holds and seals the water filter cartridge in the filter housing
• Directs filtered water to the dispenser and ice maker lines
• Replaces a cracked, leaking, or non-sealing filter head that can cause drips or reduced flow
• Ensures the filter cartridge locks in place for consistent operation

• Turn off the water supply and dispense any remaining water before removing the old head
• Disconnect power to the appliance if needed and follow manufacturer safety instructions
• Inspect and replace any worn O-rings or seals; lubricate O-rings with food-grade silicone if recommended
• Hand-tighten connections, then check for leaks after restoring water and power

The Water Filter is an OEM part for LG refrigerators. This filter is designed to remove impurities and contaminants from the water, providing clean and fresh-tasting water and ice. It fits into the water filtration system of the refrigerator, ensuring that the water supplied to the dispenser and ice maker is of high quality.

Common causes of a bad water filter include regular wear and tear, accumulation of sediment and impurities, or damage to the filter housing. Over time, the filter's effectiveness diminishes, requiring replacement to maintain optimal performance.

Symptoms of a bad water filter include:

• Decreased water flow from the dispenser
• Unpleasant taste or odor in the water or ice
• The refrigerator indicating a need for filter replacement
• Visible sediment or discoloration in the water

This OEM LG part is also compatible with Sears/Kenmore.

The Air Cleaner Filter Assembly is an OEM part for LG refrigerators. This part ensures the air within the appliance remains fresh and free of contaminants. This part minimizes odors and filtering out particulates, thereby maintaining the quality of the air circulating through the refrigerator and its contents.

Over time, the effectiveness of the air cleaner filter can diminish due to the accumulation of particles and odors it has trapped. A decrease in air quality within the refrigerator, persistent odors despite cleaning, and an increase in the spoilage rate of food items can all be signs that the filter assembly may need replacement.

Symptoms of a bad Air Cleaner Filter Assembly include:

• Persistent unpleasant odors inside the refrigerator
• Increased spoilage of food items
• Noticeable reduction in air freshness or quality

This OEM LG part is also compatible with some Kenmore models.
