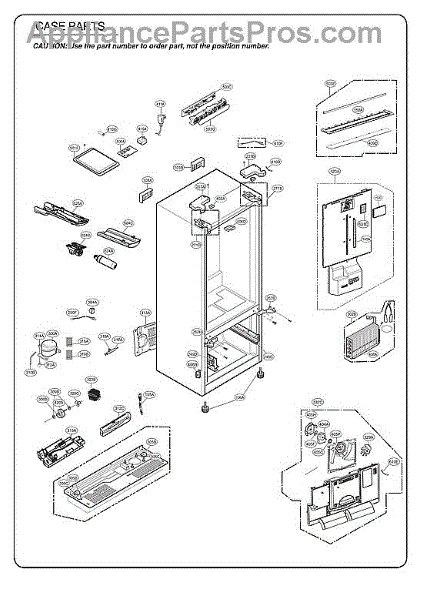

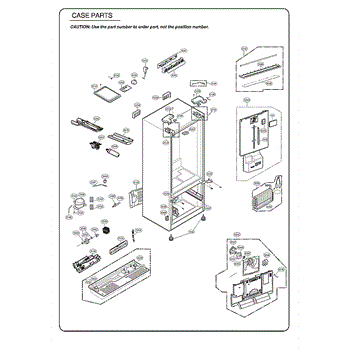

Parts for Kenmore Elite 79574109812: Case Parts

This is a replacement screw designed to secure appliance components where the original customized fastener is required. It restores proper fit and stability for panels, brackets, or assemblies that use this specific fastener. What it does:

• Replaces a missing, stripped, or damaged customized screw to restore secure attachment of parts.
• Helps eliminate rattling, loose panels, or misaligned assemblies caused by a faulty fastener.
• Matches the OEM mounting point to maintain correct part alignment and function.
• Suitable where the appliance design calls for this specific customized screw type.

• Turn off and unplug the appliance before servicing to avoid shock or injury.
• Use the correct screwdriver or bit to avoid stripping the screw head; do not force.
• Keep track of small parts during disassembly and reassembly; work on a stable surface.
• If threads are damaged or the mounting hole is stripped, inspect the mating component for repair before installing the new screw.

The Handle Mounting Stud is an OEM replacement part for LG refrigerator doors. It provides a sturdy mounting point for the door handle assembly. Reliable handle connection and support is crucial for dependable door function and access.

Causes of a faulty stud can include damage from excess weight or impact over time rendering the stud loose or unstable.

Symptoms of a bad stud include:

• Loose or sagging door handle
• Difficulty opening and closing the refrigerator door
• Potential for the handle to detach completely
• Safety concerns if the handle connection fails

This OEM LG replacement stud is also compatible with Sears/Kenmore models.

This customized replacement screw secures appliance components and restores proper fit and function. It's a direct-fit fastener designed for use where the OEM specifies a tailored screw to replace a worn, stripped, or missing fastener. What it does

• Fastens panels, brackets, or assemblies that use a manufacturer-specified customized screw
• Stops rattling or loose parts caused by worn or missing hardware
• Restores secure mounting for affected components
• Matches the OEM shape and thread pattern to prevent damage when used as directed

• Disconnect power and water before starting any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Install by hand initially, then tighten snugly—do not overtighten to avoid thread damage
• Keep removed hardware organized so you replace parts in their original locations

This rear door handle replaces a worn or damaged handle on compatible LG appliances, restoring a secure grip and smooth opening. It's a direct-fit exterior handle that keeps the appliance door operating and looking right. What it does

• Provides a secure gripping point to open and close the appliance door
• Replaces cracked, loose, or broken rear handle hardware
• Restores correct alignment and feel when the door is operated
• Helps prevent further damage to the door edge from makeshift handles

• Power off and unplug the appliance before starting work; remove food or shelves as needed for access
• Keep fasteners and mounting clips; transfer original hardware unless new hardware is explicitly included
• Test door operation and alignment after installation; tighten fasteners evenly to avoid stress

The Drain Pipe Assembly is an OEM replacement part for LG refrigerators. It is a plastic tubing system that collects and removes liquid condensation from evaporator coils. Proper drainage is crucial to minimizing frost buildup and ensuring optimal cooling of food storage areas.

Symptoms of a bad drain pipe assembly include:

• Excessive frost or ice accumulation inside the refrigerator
• Puddling or leaks detected near evaporator housing
• Slow draining allowing water to pool versus emptying fully
• Cracks or breaks in the tubing prevent complete fluid removal

Causes are typically mineral sediment clogging drainage paths or deteriorating plastic from constant use. This OEM LG replacement pipe restores reliable condensate removal to maintain peak efficiency.

This OEM LG part is also compatible with Sears/Kenmore.

This adjustable leveling leg assembly supports and stabilizes your appliance by threading into the base frame. Replacing a worn or missing leg helps you level the unit for smoother, quieter operation on uneven floors.

• Provides height adjustment to level the appliance and distribute weight evenly
• Helps prevent rocking, wobbling, and excess vibration or rattling
• Can improve door alignment and smooth opening/closing when the cabinet is properly leveled
• Useful when a leg is missing, damaged, or threads are stripped

• Disconnect power; if applicable, shut off the water supply
• Use a helper to safely brace or tip the unit; protect flooring when accessing the leg
• Unthread the old leg and hand-thread the new one; tighten as needed
• Adjust front-to-back and side-to-side until stable; all legs bear weight evenly

The Roller Assembly is an OEM part for LG refrigerators. It comprises the set of rollers that suspends and aids the smooth gliding of refrigerator shelves. The rollers are designed with precision bearings to withstand the weight of shelf loads and years of use while providing quiet and frictionless movement.

Causes of a bad roller assembly include worn-out or damaged rollers due to heavy usage over time, or shelf loads that are too excessive.

Symptoms of a bad roller assembly are:

• Shelves that do not easily slide in and out
• Grinding or squeaking noises emanating from the shelf tracks
• Shelves that get stuck or do not smoothly glide

This OEM LG part is also compatible with Sears/Kenmore. Replace yours today and restore like-new shelf functionality to your refrigerator.


The Freezer Tray Roller is an OEM part for LG refrigerators. It is a dual roller wheel assembly located at the rear wall of the freezer compartment. The roller aids sliding shelf movement by reducing friction between trays and the liner wall.

Causes of a bad freezer tray roller include cracks, flat spots, or separated roller pieces from wear over years of use.

Symptoms of a bad tray roller are:

• Difficulty sliding shelves smoothly in and out of position
• Excessive force required to access stored items
• Noisy operation or rattling noises within the freezer

This genuine LG OEM replacement part is also compatible with some Kenmore models.

This Drawer Tray Assembly replaces a damaged or worn refrigerator drawer tray to restore stable storage and proper drawer operation. It helps keep food contained and prevents items from shifting or falling when opening and closing the drawer. What it does:

• Provides a stable surface for produce or stored items inside the refrigerator drawer.
• Replaces cracked, warped, or broken trays that can catch, bind, or allow items to fall.
• Restores smooth sliding and proper fit of the drawer to reduce jams and spills.

• Disconnect power to the appliance and remove food before servicing.
• Remove the drawer per your manual to access and swap the tray; handle edges carefully to avoid damage.
• Use only manufacturer-recommended parts; inspect mounting tabs and tracks for wear before reassembly.

This is a refrigerator shelf assembly that provides a stable, easy-to-clean surface for storing food and organizing items inside the fresh food compartment. Replacing a damaged or missing shelf restores usable space and proper support.

• Supports food items and containers on a rigid, flat surface
• Helps maintain organized storage and visibility in the compartment
• Replace if the glass is cracked, frame is broken, or shelf sags/doesn't seat properly
• Can also address rattling or instability from a warped or damaged shelf

• Unplug the appliance or disconnect power before servicing
• Remove contents and carefully lift out the old shelf
• Align the new shelf with the side rails and fully seat it in the supports
• Handle glass with care; avoid impact and uneven pressure during installation

This TV cover assembly replaces the rear cabinet panel to restore the set's enclosure and protect internal components from dust and damage. Helps maintain proper airflow and keeps internal boards and wiring secure. What it does:

• Replaces a cracked, warped, or missing rear cabinet panel to protect internal electronics
• Restores the TV's enclosure for safer handling and normal airflow
• Helps prevent dust accumulation on boards, connectors, and power components
• Returns the TV to a finished appearance and supports mounting points for internal parts

• One TV rear cover assembly as shown

• Remove power and disconnect all cables before starting repair
• Handle the replacement part carefully to avoid cracking plastic tabs or scratching the finish
• Keep track of removed screws and grounding hardware; reuse original fasteners unless replacements are provided
• Follow ESD-safe practices and avoid touching circuit boards

This replacement shelf assembly restores usable storage space and provides a stable surface for food and containers in the refrigerator. It's a direct-fit shelf designed to match the original form and function for easy restoration. What it does:

• Provides a flat, stable shelf surface so food and containers sit level and secure
• Replaces cracked, chipped, or missing shelves that cause items to slide or break
• Restores proper shelving layout to help organize interior storage
• Helps maintain even airflow and access to stored items when positioned correctly

• One shelf assembly

• Remove food and unplug the appliance before beginning any service
• Handle glass or trim sections carefully to avoid chipping or injury
• Slide into the existing shelf supports; no special tools typically required
• Replace shelf clips or supports if damaged before installing the new shelf

This rail guide assembly restores smooth, stable sliding for a refrigerator/freezer drawer or shelf drawer, helping the drawer track properly and reducing rubbing or sticking during use. What it does:

• Replaces a worn or damaged drawer slide rail to restore proper alignment and smooth movement
• Helps stop drawers from sticking, binding, scraping, or falling out of track
• Supports the drawer weight and guides it in and out evenly
• Reduces noise caused by misaligned or worn rails

• Disconnect power (and water, if applicable) before servicing the appliance
• Remove the drawer or shelving to access the rail; retain fasteners for reuse unless new ones are provided
• Inspect matching rail on the opposite side; replace both sides if both show wear for best performance

This tray cover protects the appliance tray from spills, debris and everyday wear while restoring a finished appearance. Replacing a damaged or missing cover helps contain messes and keeps internal tray areas accessible for service. What it does:

• Covers and protects the tray area from food, water and debris
• Restores a clean appearance and helps prevent buildup on underlying components
• Stops small spills from spreading into the tray cavity
• Commonly replaced when cracked, warped, broken or missing

• Disconnect power to the appliance before beginning any service
• Remove nearby parts or trays as needed to access the cover
• Do not force the cover; align tabs and fasteners to avoid damage

The Deli Drawer Front Cover is an OEM part for LG refrigerators. It provides an attractive facia that protects the internal components of the deli drawer. This cover is designed to integrate with the style and finish of the refrigerator interior.

Symptoms of a bad Deli Drawer Front Cover include:

• Cracks, chips, or other visible cosmetic damage
• Discoloration that detracts from the aesthetics
• The cover is loose, misaligned, or missing
• Difficulty opening or closing the deli drawer

Causes of a bad cover can be normal wear and tear over time from repeated use, as well as accidental drops or impacts that cause cracks or breaks.

This OEM replacement part is also compatible with select LG models.

This LED assembly replaces a TV backlight module to restore even screen illumination and image brightness. It mounts behind the LCD panel and provides the LED sources that light the display. What it does:

• Replaces a damaged or failed TV backlight module
• Restores even screen brightness and reduces dark spots
• Helps resolve flickering, dim display, or no-picture issues related to the backlight
• Works as a direct-fit LED module for compatible LG LCD TVs

• One LED assembly

• Disconnect power and remove the TV from power source before beginning service
• Requires partial disassembly of the TV (front bezel and LCD panel removal); handle the panel and LEDs carefully
• Avoid touching LED surfaces and circuit traces; use ESD precautions and appropriate tools

This tray cover assembly replaces a damaged or missing lid that protects and contains the appliance tray, restoring proper coverage and helping keep contents secure. It's a direct-fit replacement designed for straightforward swap-out. What it does:

• Covers and protects the tray to help prevent spills and contamination.
• Restores proper alignment and fit for trays that won't seat fully without the cover.
• Reduces stray debris from entering the tray area.
• Commonly replaces cracked, warped, or broken covers that impair function.

• Power off and unplug the appliance before starting any repair.
• Remove any items from the tray area and work on a clean, flat surface.
• Gently unclip or lift the old cover (retain any small clips or fasteners) and snap the new cover into place until fully seated.
• If any clips or adjacent parts are damaged, replace them before use; do not force the part into position.

This rail guide assembly supports smooth in-and-out movement of a dishwasher rack, keeping the rack aligned and preventing binding for reliable loading and unloading. Fits where the rack slides on the lower/upper rail system. What it does:

• Replaces worn or broken rack rail guides that cause rough or uneven sliding
• Keeps the rack track aligned to prevent tipping or jamming during use
• Restores smooth rack travel and reduces noise from metal-on-metal contact
• Common symptom: rack falls out of track, binds, or slides unevenly

• One rail guide assembly as shown

• Disconnect power and water supply before starting repairs
• Remove the affected rack and slide to access the guide; reinstall hardware in reverse order
• Use basic hand tools; avoid forcing parts to prevent breakage
• If clips or rollers are damaged, inspect and replace them as needed

The Freezer Door Gasket is an OEM part for LG side-by-side and bottom-freezer refrigerators. This gasket forms an important insulating seal around the freezer door compartment, preventing warm air from entering the sealed interior. Maintaining proper freezing temperatures depends on an intact door gasket.

Causes of a bad freezer door gasket can include cracks, deterioration, or compression from repeated opening and closing of the freezer door over time. Food debris trapped against the gasket rim can also damage sealing integrity.

Symptoms of a bad freezer gasket include:

• Difficulty closing or sealing the freezer door properly
• Warm air leaking into the freezer sections
• Frost and ice buildup occurring faster than usual
• Higher energy bills from the freezer running excessively

This replacement freezer door gasket from LG is also compatible with some Kenmore-brand refrigerators.

The Hinge Cover Assembly conceals and protects the door hinge area on your refrigerator. It safeguards wiring harnesses while restoring a clean, finished appearance, helping keep the hinge area secure and free of dust and damage.

• Protects the hinge mechanism and wiring for a clean, finished look
• Helps keep harnesses routed correctly and prevents snagging/abrasion near the hinge
• Replaces cracked, broken, loose, or missing hinge covers
• Helps reduce rattling or vibration noise from a loose/damaged cover

• Disconnect power before servicing.
• Support the door as needed; remove any screws or clips securing the old cover.
• Transfer and reuse existing hardware or clips if required; align the new cover and secure in place.
• Ensure wiring is not pinched; ensure smooth door movement before restoring power.

This freezer handle assembly replaces a damaged or worn door handle to restore a secure grip and normal door operation. Durable molded construction matches the OEM fit and lets the door open and close without wobble or sharp edges. What it does:

• Provides a secure grip for opening and closing the freezer door
• Replaces cracked, broken, loose, or missing handles that cause poor control or safety hazards
• Restores proper alignment of the handle to prevent rubbing or catching on adjacent surfaces
• Matches OEM form and mounting points for a direct replacement

• High-level: remove interior door trim or access panel to reach mounting screws; lift handle off the door after fasteners are removed
• Use basic hand tools (screwdriver or Torx) as required by your model's fasteners
• Keep original screws and hardware unless new hardware is explicitly listed as included
• Unplug the refrigerator or switch it off at the breaker before starting work

The Refrigerator Door Gasket is an OEM part for LG refrigerators. It's designed to create an airtight seal around the refrigerator door, preventing warm air from entering and cold air from escaping. The gasket is made from a flexible material that conforms to the door's edges, ensuring a snug fit against the refrigerator frame.

Causes of a bad door gasket include frequent opening and closing of the refrigerator door, exposure to harsh cleaning chemicals that can degrade the material, and natural wear and tear.

Symptoms of a bad Refrigerator Door Gasket include:

• Condensation or frost buildup near the door edges.
• The refrigerator runs more frequently or for longer periods.
• A noticeable increase in your electricity bill.
• The gasket feels brittle or has visible cracks, tears, or gaps.

This OEM LG part can also be used on Kenmore/Sears appliances.

The Refrigerator Door Gasket is an OEM replacement part for LG refrigerators. It is a crucial component that seals the gap between the refrigerator door and the main body, creating an airtight seal to maintain the desired temperature and humidity levels inside the appliance. It has approximate dimensions of 2" x 41" x 20".

Symptoms of a bad refrigerator door gasket include:

• Warm air leaking into the refrigerator compartment
• Excessive frost or ice buildup in the freezer
• Condensation forming on the interior walls or shelves
• Higher energy consumption due to the refrigerator working harder to maintain the set temperature

Causes of a bad door gasket can include physical damage, such as tears or cracks, due to impact or wear and tear over time. It can also become stiff or lose its pliability, preventing a proper seal.

This OEM LG part is also compatible with Sears/Kenmore models.

The Refrigerator Flipper Assembly is an OEM part for LG refrigerators. This assists in the smooth opening and closing of the refrigerator door. It ensures an airtight seal when the door is closed, preventing cool air from escaping and maintaining the refrigerator's internal temperature.

Causes of a malfunctioning Refrigerator Flipper Assembly can range from physical damage, such as cracks or breakage, to wear and tear from regular use.

Symptoms of a bad Refrigerator Flipper Assembly include:

• Difficulty in opening or closing the refrigerator door
• A noticeable gap when the door is supposed to be sealed shut
• Increased energy consumption as the refrigerator works harder to maintain its temperature
• Spoilage of food items quicker than expected due to poor temperature regulation

This OEM LG part is also compatible with some Kenmore models.

The Door Basket is an OEM part for LG refrigerators. It is used to organize small items and provide additional storage directly on the refrigerator door.

Symptoms of a bad door basket include:

• Items no longer stay securely in place during opening and closing
• Sagging or misshapen basket that no longer organizes properly
• Detached basket that no longer mounts firmly on the door

Causes of a bad door basket can include warped or broken plastic, cracks or fractures in the plastic construction, or failure of the mounting brackets over time.

This OEM LG replacement is also compatible with select Sears/Kenmore models.

STOPPER ASSEMBLY,DOOR

STOPPER ASSEMBLY,DOOR

This hinge cam fits the door hinge and provides the lift/settle action that helps the door open and close smoothly. Replacing a worn cam can reduce clicking and restore consistent door movement and alignment.

• Provides cam action at the hinge for smooth door travel
• Helps the door seat closed and maintain alignment
• Common symptoms include clicking/knocking at the hinge, rough or uneven door movement, or slight door sag
• Visual wear such as flat spots or grooves on the cam is a typical failure sign

• Disconnect power to the appliance before servicing
• Support the door to prevent injury; remove hinge cover and hardware as needed
• Note the cam's orientation and any washers/spacers and transfer them to the new part
• After installation, verify door operation and gasket alignment; adjust hinge if needed

The Lower Refrigerator Door Hinge is an OEM part for LG refrigerators. This hinge supports the refrigerator door, allowing it to open and close smoothly while maintaining proper alignment. It is designed to handle the weight of the door and ensure a secure and stable operation over time.

Causes of a bad lower refrigerator door hinge can include regular wear and tear, physical damage from overloading or impacts, and gradual loosening over time. A faulty hinge can lead to misalignment, difficulty in opening or closing the door, and potential damage to the door seal.

Symptoms of a bad lower refrigerator door hinge include:

• The door not closing properly or staying open
• Sagging or misaligned door
• Unusual noises when opening or closing the door
• Gaps in the door seal, causing cooling inefficiency

This OEM LG part is also compatible with Sears/Kenmore models.

The Door closer is an OEM part for LG refrigerators, this part prevents the refrigerator door from swinging open too widely. By limiting the door's range of motion, the Door Stop ensures that the door opens smoothly and safely, contributing to the longevity of the appliance and maintaining the aesthetic integrity of your kitchen space.

Causes of a bad Door closer can stem from physical damage, wear and tear over time, or loosening of the component due to repeated use.

Symptoms of a bad Door closer include:

• The refrigerator door swinging open too far
• Damage or marks on adjacent walls or furniture from the door hitting them
• Increased wear on the refrigerator's hinges due to uncontrolled door movement

This OEM LG part is also compatible with some Kenmore models.

This slide rail is a replacement drawer guide that restores smooth, stable drawer movement and helps prevent binding or sagging. Designed to match the OEM fit so drawers open and close reliably. What it does:

• Guides and supports the appliance drawer for smooth sliding motion
• Replaces worn or damaged rails that cause sticking, sticking intermittently, or uneven travel
• Helps prevent drawer tilt or sag when loaded
• Restores proper alignment for secure closing

• Disconnect power to the appliance before beginning any work
• Remove the drawer per your model's service instructions to access the rail
• Use basic hand tools (screwdriver/driver) to remove and replace the rail; keep fasteners for reuse
• Align the rail carefully, slide the drawer to test operation, and verify smooth movement before returning the appliance to service

This slide rail supports and guides a drawer, bin, or rack so it can glide smoothly in and out of the appliance. Replacing a worn or broken rail restores alignment and easy operation while preventing binding or derailment. What it does:

• Provides the track surface for a drawer, bin, or rack to slide on
• Keeps the sliding assembly aligned and level during travel
• Worn rails can crack, warp, or lose mounting tabs over time
• Symptoms include sticking, rough travel, derailment, uneven drawer/rack, or difficulty fully opening/closing

• 1 slide rail

• Disconnect power before servicing; shut off the water supply
• Remove the drawer/rack and any end caps or stops per your model's instructions
• Position and secure the new rail using the original fasteners; transfer any reusable stops
• Reinstall and test for smooth, even travel; inspect the companion rail and rollers/wheels for wear

This harness assembly is a factory-style wiring harness that routes power and control signals between the dispenser, ice maker and main control—restoring electrical connections for reliable dispenser and ice-maker operation. What it does

• Carries power and signal lines between the refrigerator control board, dispenser and ice maker
• Restores lost or intermittent dispenser power and control communication
• Helps stop intermittent ice-maker cycling or dispenser failures caused by damaged wiring
• Eliminates loose, corroded or broken connector problems on the original harness

• One harness assembly as shown

• Disconnect power to the appliance before starting any repair
• Handle connectors gently and match keyed plugs to their mating sockets
• Inspect connector pins and wiring routing; replace any damaged clips or grommets

This connector assembly secures and drives the freezer drawer bar so the drawer opens and closes smoothly. Replaces a worn or broken bar/gear assembly to restore proper drawer movement and alignment. What it does:

• Transfers drawer motion to the slide mechanism so the freezer drawer glides correctly
• Replaces worn or stripped gears that cause slipping, grinding, or uneven movement
• Secures the drawer bar to the internal slide/track to prevent misalignment or sagging
• Useful when a drawer won't open/close smoothly, catches, or rattles during operation

• Disconnect power before servicing and remove stored items from the drawer
• Generally replaces with basic hand tools; support the drawer while detaching and installing the assembly
• Inspect surrounding slide components for wear and replace if needed for reliable operation

This is a service spanner designed for appliance maintenance, giving a secure grip for loosening and tightening service fittings and retaining nuts. It helps access and remove service components safely and efficiently. What it does

• Provides the correct fit and leverage for specific appliance service fittings and retaining nuts.
• Helps free seized or over-tightened fittings that cause vibration or poor connections.
• Allows safe removal and reinstallation of components during repairs or routine maintenance.
• Reduces risk of damaging fasteners compared with improper or makeshift tools.

• Disconnect power and gas before servicing the appliance.
• Use proper hand protection and eye protection; hold the tool securely and apply steady force.
• Refer to the appliance service manual for the correct access points and torque specifications.
• Do not use as a substitute for other specialty tools unless specified by the manufacturer.

This center hinge assembly secures and allows smooth pivoting of the refrigerator's center door, restoring proper door alignment and closing. It replaces a worn or damaged hinge to reduce sagging and improve sealing. What it does:

• Provides the pivot point for the refrigerator's center door, maintaining correct door movement and alignment
• Helps the door close evenly to preserve the gasket seal and internal temperature
• Replaces broken, bent, or worn hinge hardware that can cause door sag or rubbing
• Works with existing hinge pins and mounting points to restore original function

• One center hinge assembly

• Requires basic hand tools; follow manufacturer instructions for removal and installation
• Support the door while removing or installing the hinge to prevent injury or damage
• Ensure all fasteners are tightened securely and door alignment is checked after installation
• Disconnect power if required by the appliance manufacturer before servicing

This center hinge assembly secures and pivots the upper/center refrigerator door, restoring proper door alignment and smooth opening. Designed to replace a worn, bent or broken center hinge to improve sealing and operation. What it does:

• Provides a mounting pivot for the upper/center refrigerator door to ensure correct swing and alignment
• Helps maintain an even door gap for a proper seal and consistent cooling
• Replaces damaged, bent or worn hinge components that cause rubbing, sagging, or noisy door movement
• Works with factory hinge pins and covers to restore original door function

• One center hinge assembly

• Installation requires removing the door and supporting it; have a helper to prevent damage or injury
• Use appropriate hand tools; avoid overtightening fasteners which can bind the hinge
• Inspect adjoining hinge pins and mounting screws; replace if worn for best results
• Disconnect power or follow manufacturer safety steps if working near electrical components

Left side upper hinge.

Right side upper hinge.

NOTE: This part also requires software update kit CJT30000002. DO NOT INSTALL WITHOUT UPDATING SOFTWARE. Call for more information.

The Compressor is an OEM part for LG refrigerators. As the primary component that circulates refrigerant to chill the refrigerator and freezer compartments, it is crucial for proper cooling operation. The compressor works with the condenser fan and evaporator coil to regulate temperatures inside the refrigerator.

Causes of a faulty compressor can include gradual breakdown of motor windings, loss of refrigerant pressure over time, or failure of electrical components vital to operation.

Symptoms of a bad compressor are:

• Elevated fridge/freezer temperatures unable to be maintained
• Frost patterns indicating poor or insufficient cooling
• Abnormal vibrations or sounds upon compressor cycling
• Error codes displayed regarding cooling performance

It is also compatible with Sears/Kenmore refrigerator models.


The Thermistor Assembly is an OEM part for LG refrigerators. As a key component, it plays an integral role in monitoring and regulating interior temperatures. Consisting of a thermistor sensor and connection wire harness, it communicates real-time temperature readings to the control board.

Symptoms of a bad thermistor assembly can include failure to properly detect temperature changes, causing inaccurate interior conditions, or affecting automatic defrost cycles. Breaks or shorts in the wiring can interrupt readings.

Causes of failure include general wear over time, damage from moisture exposure, or loose connections inhibiting communication. Thermistors may also fail prematurely in high-humidity environments.

Symptoms of a bad thermistor assembly include:

• Inability to maintain set interior temperatures
• Frost or ice buildup inside with poor defrosting
• Refrigerator failing to cool or cooling excessively
• Control panels displaying error codes relating to sensors

This OEM LG part is also compatible with Sears/Kenmore.


The Overload Compressor is an OEM part for LG refrigerators. This part protects the refrigerator's compressor from overheating and potential damage by acting as a safety device. It works by monitoring the compressor's electrical current and temperature. If the compressor operates under conditions that could lead to overheating or overcurrent, the overload protector will cut off the power to the compressor, allowing it to cool down before potentially restarting.

Causes of damage to the Overload Compressor can include power surges, electrical faults within the refrigerator, or a malfunctioning compressor that requires more current than usual to operate.

Symptoms of a bad Overload Compressor include:

• The refrigerator not cooling properly or not cooling at all
• The compressor failing to start, indicated by a clicking sound coming from the back of the refrigerator where the compressor is located.
• The refrigerator or freezer section warming up

This OEM LG part is also compatible with some Kenmore models.

This molded fan guide positions and supports the evaporator/air-circulation fan to keep airflow steady and reduce noise for proper refrigerator cooling. Replaces a cracked or broken guide to restore stable fan movement. What it does:

• Holds the fan blade or motor shaft in the correct position for consistent airflow
• Prevents rubbing, wobble, and vibration that cause noise or premature fan wear
• Helps maintain even cooling through unrestricted circulation in the freezer/refrigerator
• Common symptom: rattling, scraping, or noisy fan; reduced airflow or uneven temperatures

• One fan guide

• Disconnect power to the appliance before starting any repair
• Part typically installs behind interior panels; remove cover panels and the fan assembly to access
• Handle plastic tabs and clips gently to avoid breakage; use appropriate tools if clips are tight

This small stopper installs in the refrigerator to limit the travel of a moving component and keep it securely in place. Replacing a broken or missing stopper prevents over-extension and helps maintain smooth, aligned operation.

• Limits the range of motion for a door, bin, or drawer to prevent over-opening or accidental removal
• Helps keep interior components aligned and operating smoothly
• Replace if cracked, missing, or deformed
• Common symptoms: drawer or bin slides out too far, door swings past normal range, or a broken plastic stop is found

• Disconnect power before servicing; remove or support the affected bin/drawer/door
• Note the old stopper's orientation and location before removal
• Transfer and reuse any original screws or clips if applicable
• Snap or fasten the new stopper in place and test for smooth movement

This customized pin is a precision fastener that serves as a pivot or locating point within your appliance. It helps keep mating parts aligned and moving smoothly. Replace a bent, worn, or missing pin to restore proper operation. What it does

• Acts as a pivot/axle or locating pin between connected parts
• Maintains alignment to reduce wobble and uneven movement
• Supports smooth opening/closing or rotation at the joint
• Common signs it's needed: looseness, sagging or misalignment, scraping/squeaking at the pivot, or a visibly worn/bent/missing pin

• One customized pin

• Disconnect power (and shut off water supply, if applicable) before servicing
• Support the door/panel/assembly to remove load from the pin during removal/installation
• Note the orientation and order of any spacers, bushings, or washers and transfer them to the new pin
• Apply a light lubricant and verify smooth movement before restoring power

This cabinet roller supports the refrigerator and lets the unit roll in and out of place for cleaning or service. Replace a worn or broken roller to restore smooth movement and help keep the appliance properly positioned.

• Supports the base of the refrigerator and enables rolling movement
• Helps with safe positioning and service access without dragging
• Common failure signs: appliance is hard to move, scraping or rolling noises, a flat-spotted/cracked wheel, or a wheel that won't turn
• Replace when the roller is damaged, seized, or missing

• Disconnect power and shut off water supply; protect flooring before moving the appliance
• With help, pull the refrigerator forward and safely support it to access the roller
• Remove mounting fasteners, install the new roller, and reuse original hardware
• Confirm level and smooth movement before returning the unit to its location

The Drier Assembly is an OEM part for LG refrigerators. This part removes moisture and contaminants from the refrigerant, ensuring the system operates efficiently and effectively. The drier assembly helps maintain the proper function of the compressor and other cooling components, contributing to the longevity and performance of the refrigerator.

Causes of a bad drier assembly can include clogs from debris, wear and tear over time, or contamination from moisture or refrigerant leaks.

Symptoms of a bad drier assembly include:

• The refrigerator not cooling properly
• Frost or ice buildup on the evaporator coils
• Increased noise from the compressor
• Reduced efficiency and higher energy consumption
• You should replace the drier assembly if it becomes faulty or damaged.

This OEM LG part is also compatible with select Sears/Kenmore models.

This holder is a small mounting bracket used to secure internal components in place, helping keep parts aligned and stable for reliable operation. It provides a direct, OEM-compatible replacement to restore proper fit and function. What it does

• Secures and supports nearby components to prevent shifting or vibration.
• Restores proper alignment where a worn or broken holder causes rattling or loose parts.
• Helps maintain normal operation by keeping assemblies seated correctly.
• Works behind panels or inside assemblies where a dedicated bracket is required.

• One holder/mounting bracket as shown.

• Installation generally requires removing the panel or access cover where the holder is located.
• Use proper fasteners shown in your appliance; replace any damaged screws or clips as needed.
• Disconnect power before servicing electrical appliances to reduce shock risk.

This replacement drip tray catches and channels water beneath the appliance to prevent leaks and pooling. It helps maintain proper drainage and reduces the chance of water damage under your refrigerator or freezer. What it does:

• Collects condensation, defrost water, or minor leaks to keep the cabinet floor dry
• Directs water to the evaporator or drain system so it can safely evaporate
• Helps prevent pooling that can lead to odors or mildew
• Restores a damaged or missing tray to stop water from dripping onto the floor

• For safety, unplug the appliance and shut off water supply (if applicable) before installing
• Slide or snap the tray into the designated location; ensure it seats fully and aligns with the drain path
• Inspect surrounding seals and drain channels for blockages or damage while the tray is accessible

Restore proper airflow with this replacement fan assembly. It circulates air across the coils and through the cabinet so your refrigerator can move heat effectively and maintain consistent temperatures throughout. What it does:

• Drives airflow to support heat exchange at the coils
• Helps maintain stable, even temperatures inside the compartments
• Supports proper cooling performance and system reliability
• Common symptoms: fan not running or intermittent, unusual rattling/scraping noise, reduced airflow, warmer-than-normal temps or extended run times

• 1 fan assembly

• Disconnect power before servicing; wear cut-resistant gloves
• Access the fan compartment; remove covers/panels as designed
• Note wire orientation and transfer any reusable hardware from the old unit
• Secure the assembly; ensure the blade spins freely before restoring power and testing

The Evaporator Fan Blade is an OEM replacement part for LG refrigerators. It is a key component located inside the refrigerator that works to circulate cold air evenly throughout. The fan blade spins rapidly to distribute chilled air from the evaporator coil and refrigeration system, ensuring proper airflow and consistent temperatures across all shelves and compartments.

Symptoms of a bad evaporator fan blade include:

• Inconsistent or improper interior cooling temperatures
• Hot or warm spots developing inside the refrigerator
• Strange noises such as clicking or grinding emanating from the rear wall

Causes of a bad evaporator fan blade can be wear and tear over time, an accumulation of dust or debris on the blades restricting airflow, or accidental damage like dents or cracks to the blades affecting their ability to spin smoothly.

This OEM LG part is also compatible with select Sears/Kenmore brand models.

This sheath-style heater melts frost from the evaporator during automatic defrost cycles to keep airflow clear and temperatures stable. Replacing a failed heater helps stop recurring ice buildup and restore consistent cooling performance.

• Heats the evaporator to melt accumulated frost/ice during defrost
• Keeps air passages clear to maintain proper temperatures
• Helps prevent frost-packed evaporator covers and reduced cooling
• Common symptoms: heavy frost behind the freezer panel, fan noise from ice contact, weak cooling, long run times

• Disconnect power before servicing; allow any sharp edges to be avoided with cut-resistant gloves
• Access is typically behind the freezer's rear interior panel; remove shelves/drawers and panel to reach the evaporator
• Transfer any clips/sensors attached to the heater in the same positions; avoid bending fins or puncturing refrigerant lines
• Ensure connectors are fully seated and the heater is secured before restoring power and monitoring operation

This magnet-activated switch is a small sensor that tells the appliance when a door or lid is open or closed. Replacing a faulty switch restores proper lighting, door-ajar alerts, and safety interlocks for normal operation.

• Senses a nearby magnet to report door/lid open/closed status to the control
• Helps control interior lights, alarms, fans, and dispenser/ice interlocks on applicable units
• Failure symptoms can include lights staying on or off, false door-ajar beeps, or dispenser/ice disabled
• Common causes: moisture intrusion, damaged leads, or stuck internal contacts

• Disconnect power before servicing
• Access the switch at the door opening (behind trim/control housing or liner, location varies by model)
• Release locking tabs/fasteners, move wiring carefully, and install the new switch in the same orientation
• Restore power and verify operation by bringing a magnet near the switch to toggle

The Evaporator Fan Motor Assembly is an OEM replacement part for LG refrigerators. This assembly is responsible for circulating cold air from the evaporator coils throughout the refrigerator and freezer compartments. By doing so, it ensures that both compartments maintain the desired temperatures and that the cooling process is efficient.

Causes for a malfunctioning Evaporator Fan Motor Assembly can include motor wear from continuous operation, electrical issues like faulty wiring, obstructions preventing the fan blades from turning, or damage to the fan blades themselves.

Symptoms of a bad Evaporator Fan Motor Assembly include:

• Inconsistent temperatures in the refrigerator or freezer compartments
• Unusual noises, such as humming or buzzing, coming from the back of the refrigerator
• Reduced cooling efficiency, leading to food spoiling faster
• Frost buildup in the freezer due to poor air circulation

This OEM LG part is also compatible with Sears/Kenmore model refrigerators.

A replacement cover motor that powers the refrigerator's dispenser cover, allowing the door to open and close so you can access ice and water. Replaces a worn or failed motor to restore normal dispenser cover operation. What it does:

• Drives the dispenser cover mechanism so the cover opens when dispensing and closes when idle
• Helps keep the dispenser sealed to reduce drafts and prevent pests or debris from entering
• Stops or fails to move when worn, causing a stuck, slow, or noisy dispenser cover
• Works with the dispenser linkage and gears to coordinate cover motion with user controls

• One cover motor

• Disconnect power to the appliance before beginning any repair
• Remove dispenser trim and access panel per your model's service instructions to reach the motor
• Handle gears and linkage carefully; ensure proper alignment during reassembly and test cover operation before finishing

Damper motor support secures the damper motor assembly inside the refrigerator, keeping the air-control damper aligned so it opens and closes correctly. Replacing a damaged support restores proper airflow control and reduces noise. What it does:

• Secures and positions the damper motor assembly so the air-control damper moves smoothly.
• Keeps the motor and damper aligned to help prevent rattling, grinding, or loose motor noise.
• Supports consistent airflow between compartments to assist with even cooling.
• Resolve damper movement problems like the damper not opening or closing fully.

• Disconnect power to the appliance before starting work; remove food and shelves as needed for access.
• Remove the interior access panel to reach the damper assembly; handle plastic tabs and clips gently to avoid breakage.
• Align the motor and damper during reassembly and secure all fasteners; test damper operation before replacing panels and shelving.

This damper motor support replaces a broken or warped mount for the refrigerator's air damper assembly. It holds the damper motor and door securely so the system can meter freezer air into the fresh food compartment.

• Secures and aligns the air damper motor/door within the duct
• Helps ensure proper opening/closing of the damper to regulate airflow and temperature
• Damage can contribute to a warm or too-cold refrigerator and inconsistent temperatures
• May cause clicking or buzzing from the damper area or a visibly loose assembly

• Disconnect power to the refrigerator before servicing
• Access the damper behind the fresh food compartment duct/cover; remove shelves as needed
• Note wiring and orientation; transfer the existing damper motor and door to the new support and reuse fasteners
• Ensure the door moves freely and seals before reassembly; restore power and verify airflow

The Door Bracket is an OEM part for LG refrigerators. This bracket supports the refrigerator door by providing stability and ensuring proper alignment during opening and closing. It plays a crucial role in maintaining the door’s secure fit, which is essential for maintaining the internal temperature and efficiency of the appliance.

Common causes of a bad door bracket include wear and tear from frequent use, impact damage, or corrosion due to moisture.

Symptoms of a bad door bracket include:

• The refrigerator door not closing properly
• The door sagging or being misaligned
• Unusual noises when opening or closing the door
• Gaps in the door seal leading to temperature inconsistencies

This OEM LG part is also compatible with Sears/Kenmore.

This LED assembly is a backlight strip used to illuminate the display for clear, even picture brightness. Replacing a faulty strip restores proper screen illumination and can eliminate dark spots or missing segments. What it does:

• Provides the LED illumination source behind the LCD panel for even brightness
• Restores lost or uneven backlighting caused by failed LEDs or damaged strips
• Commonly replaces parts that cause dimming, flickering, or no light on power-up
• Connects to the display's LED driver board to receive power and signals

• Disconnect power and remove the display panel before replacing
• Handle the strip and connector carefully to avoid bending or damaging LEDs and flex cables
• Observe ESD precautions and avoid touching LED surfaces or circuit traces
• Reassemble panels and test before finalizing to ensure proper alignment and function

The Capacitor is an OEM part for LG refrigerators. It plays a vital role in the electrical system, providing the necessary power boost to start the compressor and maintain its operation. This component ensures that the refrigerator runs efficiently by stabilizing voltage and improving overall performance.

Common causes of a bad capacitor include electrical surges, wear and tear over time, or exposure to excessive heat.

Symptoms of a bad capacitor include:

• The refrigerator not cooling properly
• The compressor not starting or running intermittently
• Unusual noises coming from the refrigerator
• The refrigerator cycling on and off frequently

This OEM LG part is also compatible with Sears/Kenmore models.

Power cord assembly that restores the appliance's connection to household mains. Replaces a damaged or worn cord to help stop power loss, sparking, or intermittent operation and restore a safe power feed. What it does:

• Provides the main electrical connection from the wall outlet to the appliance so internal components receive line voltage.
• Replaces cords with visible damage, frayed insulation, exposed wires, or broken plug prongs.
• Can resolve symptoms such as no power, intermittent power, sparks at the plug, or breaker trips caused by a faulty cord.
• Restores the original style of power connection and strain-relief routing for a secure fit.

• Always disconnect power at the wall before attempting service.
• Basic hand tools may be required; secure the cord firmly with the appliance's strain relief and tighten screws.

This DC motor assembly powers a fan inside your appliance to move air where it's needed. Replacing a weak or failed motor restores proper airflow for stable temperatures and reliable performance. What it does:

• Drives a fan blade to circulate air within the appliance
• Supports consistent temperatures and efficient airflow
• Common failure signs: fan not running, intermittent operation, or grinding/squealing noises
• Contribute to poor cooling/heating and fan/motor-related error codes

• Includes: 1 DC motor assembly

• Disconnect power to the appliance before servicing
• Access the fan area, note wire routing/orientation, and remove mounting fasteners
• Transfer the fan blade and any mounting hardware from the original motor if needed
• Ensure the blade spins freely and connectors are fully seated before reassembly and power-up

This cover assembly protects a control board's printed circuit board (PCB) by shielding it from dust, moisture, and accidental contact. It helps keep the PCB secured and reduces the chance of shorting or damage during normal use. What it does:

• Shields the PCB from dirt, splashes, and foreign objects that can cause shorts or corrosion
• Secures the board in place to prevent movement and stress on connectors
• Helps maintain safe separation between live circuitry and user-accessible areas
• Reduces intermittent electrical issues caused by debris or loose components

• Always disconnect power to the appliance before starting any repair
• Handle the PCB and cover with care to avoid static discharge; use proper ESD precautions if available
• Align the cover to the board and fasten using the existing mounting points; do not overtighten screws
• After installation, restore power and verify normal operation

This ice maker lever is the mechanical arm that controls ice production by interacting with the ice maker's on/off and level-sensing mechanism. Replacing a broken or missing lever restores proper operation and helps prevent overfilling or no-ice conditions.

• Acts as the ice maker's shut-off arm to regulate ice production
• Lowers to allow ice making; raises to stop when the bin is full
• Common symptoms: ice maker won't stop making ice, no ice when arm is stuck up, broken/missing lever, lever won't stay in position
• Helps ensure consistent, reliable ice production control

• Disconnect power and shut off water before service
• Remove the ice bin to access the ice maker; gently release the lever from its pivots/linkage
• Note lever orientation; transfer and reuse any original springs, clips, or fasteners
• Reinstall components, restore power, and verify free up/down movement of the arm

The Ice Maker Assembly is an OEM replacement part for LG refrigerators. It contains the complete ice-maker.

Causes of a bad Ice Maker Assembly can include issues with proper ice ejection, ice cube size or shape inconsistencies, decreased ice production over time, mineral or sediment buildup affecting performance, or wear and tear from extended use.

Symptoms include:

• Incomplete or inconsistent ice filling of the ice tray
• Cracked, pitted, or misshapen ice cubes
• Ice cubes not ejecting from the tray properly
• Slowed or ceased ice production

This OEM LG ice maker assembly is also compatible with some Kenmore refrigerator models.

This sensor PCB assembly detects and relays sensor signals to the appliance control system, restoring accurate sensor feedback and communication when the original sensor board fails or malfunctions. Designed as a direct replacement board. What it does:

• Reads sensor inputs and converts them to signals the main control board can interpret.
• Replaces a failed or intermittent sensor board that causes incorrect readings or sensor-related error codes.
• Can resolve symptoms such as unexpected sensor faults, control errors, or appliances not responding to sensor changes.
• Matches the OEM board function; verify model compatibility before ordering.

• Always disconnect power before servicing to avoid shock or shorting the board.
• Use ESD precautions and handle the PCB by its edges to prevent static damage.
• Ensure all connectors are fully seated and the board is mounted in the original orientation.

This sub PCB assembly is an electronic control board that processes inputs and switches components, coordinating specific appliance functions. Replacing a failed board can restore normal operation and resolve dead controls, error codes, or intermittent, unpredictable behavior. What it does:

• Distributes and regulates control power and switches loads via onboard relays/triacs
• Interprets signals from sensors and the user interface to execute commands
• Coordinates timing and operation of related components per the appliance's program logic
• Failure may present as no power, won't start, unresponsive or flickering display, random beeps, or recurring error codes

• 1 sub PCB assembly

• Disconnect power to the appliance before servicing; verify no voltage is present
• Use ESD protection and handle the board by the edges
• Photograph wiring; transfer connectors one at a time and ensure they are fully seated
• Secure the board with existing fasteners/standoffs; perform any required reset or diagnostic per your model's service info

The Temperature Sensor is an OEM part for LG refrigerators. Also known as a thermistor, is responsible for sensing the temperature changes and providing the necessary feedback to the refrigerator's control board. It helps maintain accurate and consistent temperature levels, ensuring optimal food preservation and efficient cooling.

Causes of a faulty temperature sensor can include wear and tear over time, damage due to electrical issues or exposure to extreme temperatures, or sensor calibration issues. These factors can result in temperature inconsistencies, inaccurate readings, or improper cooling performance of the refrigerator.

Symptoms of a bad temperature sensor may include:

• Incorrect temperature readings on the control panel
• Temperature fluctuations inside the refrigerator
• Overcooling or inadequate cooling of food items

This OEM LG part can also be used on Kenmore/Sears appliances.

This water inlet valve assembly controls water flow into the washer, restoring proper fill and temperature selection so cycles start and run correctly. Use it to replace a failed or leaking inlet control on compatible machines. What it does:

• Opens and closes water flow to the washer during fill cycles
• Helps select hot, cold, or mixed fill when the washer requests a temperature
• Commonly replaces valves that cause no fill, slow fill, or only one temperature to fill
• Stops or reduces water flow when the valve is clogged, faulty, or leaking

• Disconnect power and shut off water supply before starting work
• Handle electrical connectors and water lines carefully to avoid damage
• Verify hose connections and test for leaks after installation

The Water Valve is an OEM part for LG refrigerators. This valve controls the flow of water to the refrigerator's ice maker and water dispenser, ensuring a steady and regulated supply.

Causes of a bad water valve can include wear and tear over time, mineral deposits from hard water clogging the valve, electrical issues, or physical damage from mishandling. These problems can result in the valve failing to open or close properly.

Symptoms of a bad water valve include:

• No water dispensing from the refrigerator
• The ice maker not producing ice
• Leaks around the valve area
• Unusual noises when the valve is operating
• Low water pressure or flow

This OEM LG part is also compatible with Sears/Kenmore models.

The Water Filter is an OEM part for LG refrigerators. This filter is designed to remove impurities and contaminants from the water, providing clean and fresh-tasting water and ice. It fits into the water filtration system of the refrigerator, ensuring that the water supplied to the dispenser and ice maker is of high quality.

Common causes of a bad water filter include regular wear and tear, accumulation of sediment and impurities, or damage to the filter housing. Over time, the filter's effectiveness diminishes, requiring replacement to maintain optimal performance.

Symptoms of a bad water filter include:

• Decreased water flow from the dispenser
• Unpleasant taste or odor in the water or ice
• The refrigerator indicating a need for filter replacement
• Visible sediment or discoloration in the water

This OEM LG part is also compatible with Sears/Kenmore.
