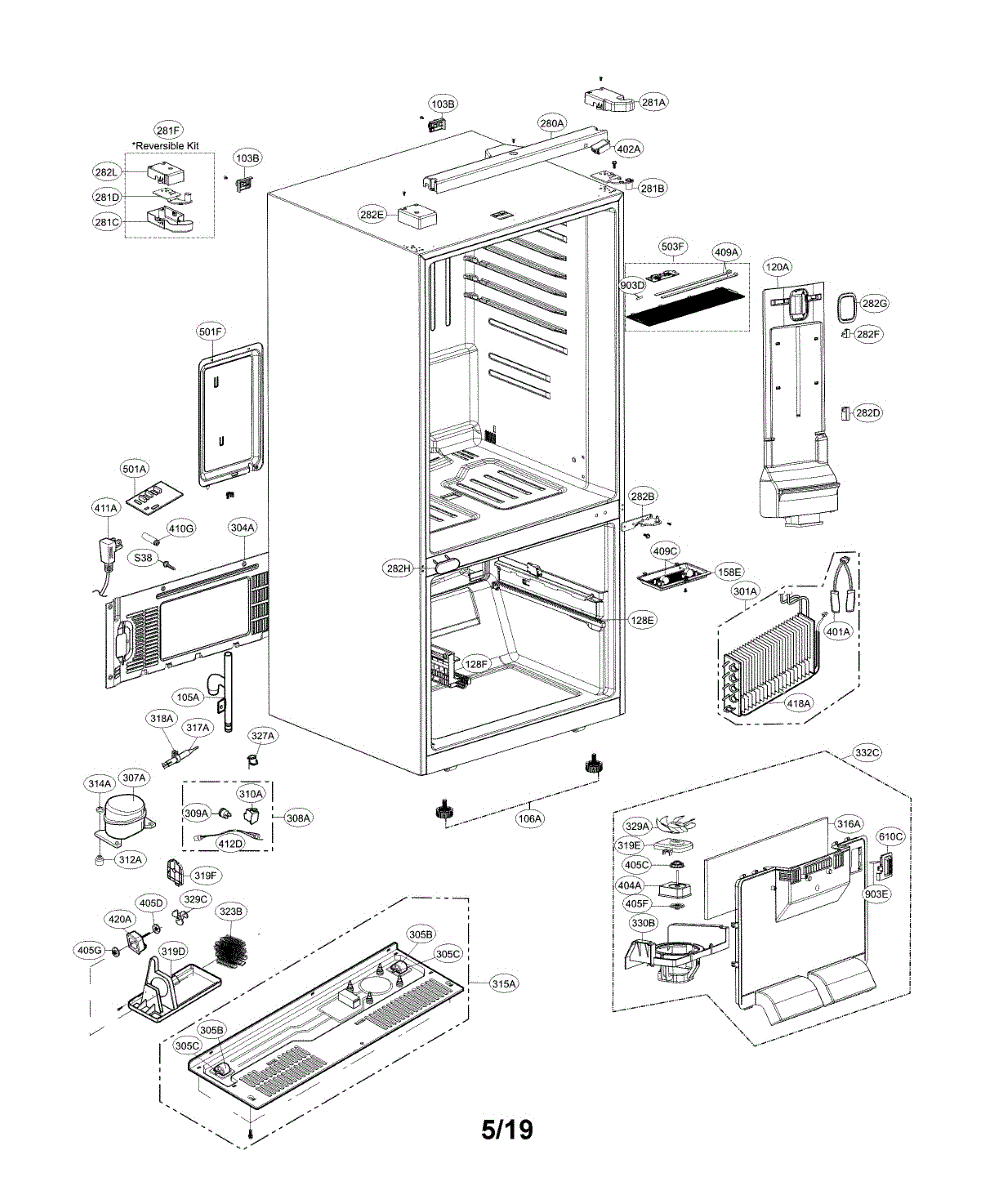

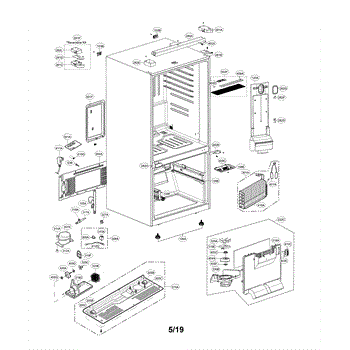

Parts for Kenmore Elite 79579029313: Case Parts

This screw is a direct-fit replacement fastener that secures panels, brackets, and internal components. Replacing a missing or stripped screw helps stop rattling and keeps parts aligned for reliable operation. What it does:

• Secures panels, trim, brackets, or internal components to restore proper fit
• Replaces missing or damaged hardware that can cause rattling or loose parts
• Restores alignment so doors, shelves, or assemblies operate smoothly
• Provides a straightforward hardware fix without replacing larger assemblies

• Use the matching screwdriver or driver bit to avoid stripping the head
• Do not overtighten — snug until seated to avoid damaging threads or plastic parts
• Disconnect power or follow appliance safety instructions before servicing electrical areas
• Keep removed hardware organized and save any damaged parts for inspection

This is a genuine replacement screw used to secure appliance panels and components. It restores proper fastening so panels and assemblies stay aligned and operate safely. What it does:

• Fastens panels, brackets, and small assemblies to maintain structural integrity
• Replaces missing or stripped screws that cause rattling or loose parts
• Helps stop vibration-related noise when used in its original mounting locations
• Matches the OEM fit to ensure proper alignment and clearance

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or component damage
• Disconnect power to the appliance before working on electrical components
• Replace all matching fasteners for even fit

The Drain Pipe Assembly is an OEM replacement part for LG refrigerators. It is a plastic tubing system that collects and removes liquid condensation from evaporator coils. Proper drainage is crucial to minimizing frost buildup and ensuring optimal cooling of food storage areas.

Symptoms of a bad drain pipe assembly include:

• Excessive frost or ice accumulation inside the refrigerator
• Puddling or leaks detected near evaporator housing
• Slow draining allowing water to pool versus emptying fully
• Cracks or breaks in the tubing prevent complete fluid removal

Causes are typically mineral sediment clogging drainage paths or deteriorating plastic from constant use. This OEM LG replacement pipe restores reliable condensate removal to maintain peak efficiency.

This OEM LG part is also compatible with Sears/Kenmore.

This adjustable leveling leg assembly supports and stabilizes the refrigerator. Replacing a worn or damaged leg restores proper leveling, reduces vibration and noise, and helps doors align and seal correctly.

• Provides height adjustment at the cabinet corner to level the appliance on uneven floors
• Helps prevent rocking, rattling, and excessive vibration
• Promotes proper door alignment and gasket sealing
• Replace if the foot is broken, missing, bent, or the threads are stripped and won't hold adjustment

• Disconnect power and turn off the water supply before servicing
• Protect the floor; with a helper, carefully tip and support the refrigerator
• Unscrew the old leg; hand-thread the new leg, then fine-tune height with a wrench until level
• Ensure both front legs share the load evenly and recheck door operation

The Guide Assembly Rail (RH) is an OEM part for LG refrigerators. This Right-hand rail is responsible for guiding the movement of drawers or shelves within the refrigerator, ensuring smooth and secure sliding. It helps maintain proper alignment and stability of the drawers, making it easier to access stored food items.

Causes of a bad guide rail can include wear and tear over time, damage due to heavy loads or excessive force when opening and closing the drawers, or misalignment from improper installation. A faulty rail can affect the performance of the drawer, leading to difficulties in accessing the refrigerator’s contents.

Symptoms of a bad guide rail include:

• Drawers not sliding in and out smoothly
• Misaligned or wobbly drawers
• Difficulty opening or closing drawers completely

This OEM LG part is also compatible with Sears/Kenmore.

The Guide Assembly, Rail (LH) is an OEM part for LG refrigerators. This component is located within the fridge compartment and is responsible for guiding and supporting the bottom drawer, ensuring it opens and closes smoothly along the right-hand side. The guide rail assembly helps the drawer maintain proper alignment and prevents it from tilting or binding during operation.

Causes of a bad guide rail assembly can include wear and tear from regular use, damage from overloading the drawer, or accidental impacts that may bend or misalign the rail.

Symptoms of a bad Guide Assembly, Rail (LH) include:

• Difficulty opening or closing the drawer
• The drawer not aligning properly
• Unusual noises when opening or closing the drawer

This OEM LG part is also compatible with Sears/Kenmore models.

This is the ice bucket that stores ice dispensed by your refrigerator's ice maker. A cracked, warped, or stuck bin can jam the auger or spill ice, leading to poor dispensing and messy freezers.

• Holds and dispenses harvested ice from the ice maker to the door chute or bin access
• Common failure signs: cracked bucket, ice not dispensing, auger not turning, ice clumping or spilling
• Restores smooth ice dispensing and proper storage in the freezer
• Built to fit the original mounting and drive interface for an easy swap

• Unplug the refrigerator and wear cut-resistant gloves
• Remove the old bin carefully; thaw any ice buildup before transferring
• Inspect the auger drive coupling for wear before installing the new bucket
• Seat the bucket fully so the drive engages; test dispense with a small amount of ice

A small protective cap that covers and protects a component connection or opening from dirt and moisture, helping maintain proper function and prolong component life. Simple replacement when the original cap is cracked, missing, or worn. What it does:

• Covers exposed fittings, terminals, or openings to keep out debris and moisture
• Helps prevent leaks or contamination at the sealed connection
• Restores a secure fit when the original cap is cracked, split, or degraded
• Commonly used where a small, removable protective seal is required

• Inspect mating surface and surrounding gasket/seal before installing; replace other damaged parts as needed
• Press the cap firmly into place until fully seated; no special tools usually required
• Wear gloves and disconnect power or water supply if working near energized or pressurized components

This roller is the small wheel that lets a sliding component move smoothly along its track. Replacing a worn or cracked roller restores easy, quiet operation and helps prevent binding, noise, and uneven travel.

• Supports and guides a moving bin, drawer, or rack on its track
• Reduces friction for smooth, even motion
• Common symptoms: sticking or hard-to-open movement, grinding/clicking noises, wobbling/misalignment, or a cracked/missing wheel
• Helps protect tracks and brackets from excess wear

• Disconnect power before servicing; wear gloves to protect hands
• Remove the sliding component to access the roller
• Release the clip/fastener, install the new roller, and transfer/reuse original hardware if applicable
• Test movement to ensure the roller is fully seated and tracking correctly; replace in pairs when applicable for even travel

Roller assembly approx. 1".

Roller assembly approx. 2".

This is the freezer drawer tray that sits inside the pull-out freezer compartment. It provides a stable, food-safe surface to organize and support frozen items and slides with the drawer for easy access.

• Holds and organizes frozen foods within the freezer drawer
• Helps maintain proper drawer operation and storage capacity
• Replace if cracked, warped, or missing
• Common signs include broken corners, instability, or items falling through

• Unplug the appliance and wear cut-resistant gloves
• Fully open the freezer drawer and remove any food items
• Lift out the old tray; seat the new tray into the supports
• Ensure it is level and slides smoothly with the drawer before use

A full replacement glass shelf assembly that restores stable storage and organization in your refrigerator. The tempered glass surface resists spills and provides a flat, easy-to-clean platform for food and containers. What it does

• Supports food, containers and small appliances to keep the fridge organized and usable
• Replaces cracked, chipped or shattered glass shelves that can no longer safely hold items
• Stops items from shifting or falling between compartments when properly installed
• Provides a smooth, easy-to-wipe surface to contain and clean up spills

• One refrigerator glass shelf assembly

• Unplug the refrigerator or disconnect power before servicing
• Remove all food and loose items from the shelf area before removing the old shelf
• Handle tempered glass carefully and wear gloves to avoid cuts
• Slide the shelf into the existing rails or clip pockets until it seats securely; do not force if misaligned

This rail holder secures the microwave door rail so the door stays aligned and operates smoothly. Replaces a worn or broken holder to reduce door wobble and improve closing action. What it does:

• Secures and supports the door rail assembly for proper door alignment
• Keeps the rail from shifting, preventing rubbing, rattling or uneven gaps
• Helps restore smooth opening and closing of the door
• Fits where the rail mounts to the door frame or trim

• One rail holder

• Disconnect power to the appliance before beginning any repair
• Use basic hand tools (screwdriver/trim tool) and handle plastic parts gently to avoid breakage
• Inspect surrounding clips/rails for damage and replace if needed for a lasting repair

This rail holder is the replacement support that secures an appliance rail in place, restoring proper alignment and smooth movement. It helps keep sliding components stable so drawers or rails track correctly and safely. What it does:

• Secures the rail or slide to the appliance frame to prevent sagging or misalignment
• Restores smooth, controlled movement of sliding parts
• Helps eliminate rattling, binding or uneven travel caused by a loose or broken holder
• Works as a direct-fit support when the original holder is damaged or worn

• Disconnect power and remove any movable components before beginning work
• Installation typically requires basic hand tools; keep fasteners from the original part for reuse if undamaged
• Inspect adjoining rails, slides and mounting points; replace any damaged hardware for best results

A replacement glide rail assembly that supports and guides a refrigerator/freezer drawer for smooth opening and closing. Restores proper drawer tracking and helps prevent sticking or misalignment. What it does:

• Provides the rail and mounting components that the drawer slides on for stable operation
• Restores smooth drawer movement and alignment when original rail is bent or worn
• Helps reduce drawer sticking, scraping, or uneven travel
• Intended for use where the OEM glide/rail assembly is specified

• One glide rail assembly

• Follow the appliance manufacturer's service manual for removal and installation steps
• Disconnect power and empty the drawer before working to prevent injury or damage
• Inspect mounting hardware and drawer slides; replace any damaged fasteners
• Use basic hand tools;

This guide assembly rail replaces a worn or damaged drawer slide to restore smooth, stable drawer movement and proper alignment. It helps reduce sticking, misalignment, and rattling for a secure fit and quiet operation. What it does:

• Guides and supports the drawer or compartment during open/close cycles
• Restores smooth sliding action and consistent alignment
• Reduces noise caused by worn or bent rails or guides
• Helps prevent drawers from catching or binding

• Disconnect power and empty the drawer before beginning service
• Removal of the drawer and access panel may be required; keep fasteners for reassembly
• Align the rail before tightening fasteners; use basic hand tools

This rail guide assembly replaces a worn or damaged drawer/rack guide to restore smooth, stable movement and help prevent the rack or drawer from binding or coming off track. Fits original mounting points for a direct replacement. What it does:

• Guides and supports the drawer or rack so it slides in and out smoothly
• Helps keep the rack/drawer aligned to prevent derailment or sticking
• Replaces broken or worn plastic or metal guide components that cause noisy or rough movement
• Restores intended fit and function of the sliding mechanism

• Disconnect power and remove contents from the drawer/rack before starting any work
• Basic hand tools may be required; follow OEM instructions for orientation and attachment
• Inspect mating slides and fasteners; replace any damaged clips or screws for secure fit

This genuine replacement knob shutter restores the control panel's knob opening and protects internal switches from debris while allowing knobs to engage properly. It helps maintain smooth knob operation and reduces dirt buildup behind the control surface. What it does:

• Covers the knob opening and guides the control knob into place for reliable engagement
• Protects internal switches and electronics from dust, crumbs, and spills
• Helps prevent accidental knob movement when not in use
• Restores proper fit and appearance of the control panel area

• One knob shutter

• Power off and unplug the appliance before beginning any work to avoid electrical shock
• Small fasteners or clips may need to be removed; use appropriate hand tools and keep track of hardware

Replace a cracked or missing produce bin so fruits and vegetables store at the proper humidity and your fridge stays organized. This direct-fit crisper drawer restores clean, reliable storage in the fresh-food section.

What it does

• Stores produce at a humidity level intended for fruits and vegetables
• Restores smooth pull-out/push-in operation when paired with intact slides
• Helps prevent spills and items dropping behind the drawers
• Replaces damaged bins that stick, wobble, or won’t seat correctly

What’s included
One vegetable/crisper drawer (sold individually).

Install notes

• Slide the old bin straight out; align and seat the new bin on the guides—no tools required
• Do not force; ensure the rail guides and center track are fully engaged
• Hand-wash only; avoid harsh cleaners that can stress and crack plastics

Usage tip
Keep heavier items on shelves above; overloading the bin can crack corners and stress the rails.

Restore a clean, reliable produce bin. This crisper drawer (vegetable tray) replaces cracked or missing bins so fruits and vegetables store properly and your fridge stays organized with smooth pull-out access.

What it does

• Provides dedicated produce storage in the fresh-food compartment
• Helps maintain proper humidity when used with the crisper cover
• Restores smooth slide-in/slide-out operation
• Helps prevent spills and items dropping behind the drawers
• Replaces damaged bins that stick, wobble, or won’t seat correctly

What’s included
One vegetable/crisper drawer bin (sold individually).

Install notes

• Unplug power before moving shelves or covers
• Pull the old bin straight out; align and seat the new bin fully on the guides
• Inspect rails and the crisper cover for cracks before reuse
• Hand-wash only; avoid harsh cleaners or high heat that can stress plastics

Replace a cracked or missing drawer cover to restore clean, organized storage in the fresh-food section. This cover sits above the drawer and helps keep items contained with smooth, reliable access.

What it does

• Forms the top cover over a pantry/crisper-style drawer
• Helps contain spills and prevents items from dropping behind the drawer
• Restores smooth slide-in/slide-out operation when the frame tabs are intact
• Replaces covers with broken corners, warped frames, or missing supports

What’s included
One drawer cover (tray cover).

Install notes

• Remove the drawer, lift out the damaged cover, and seat the new cover on its supports—do not force
• If your model uses a separate glass insert, handle carefully and transfer only if applicable
• Reinstall the drawer and verify smooth travel and full seating on the rails

The Crisper Drawer Cover Frame Assembly is an OEM part for LG refrigerators. This assembly includes the frame that supports the crisper drawer, allowing for smooth sliding and secure placement of the drawer within the refrigerator. It plays a crucial role in the organization and accessibility of your refrigerator's contents, particularly fruits and vegetables, by providing a dedicated storage space that helps maintain optimal humidity levels.

Over time, the crisper drawer cover frame can suffer from wear and tear or become damaged due to excessive force or heavy loading.

Symptoms of a bad Crisper Drawer Cover Frame Assembly include:

• Difficulty in sliding the crisper drawer in and out
• Misalignment or uneven placement of the drawer
• Visible cracks or breaks in the frame
• The drawer not fitting correctly within the frame

This OEM LG part is also compatible with some Kenmore models.

This supporter cover is a TV rear trim piece that protects and conceals internal components while restoring the set's appearance. It provides a finished look and covers the TV's support area for safe handling and cosmetic repair. What it does

• Covers and protects the TV's rear support area and nearby components from dust and incidental contact
• Restores the TV's exterior finish after damage or missing trim pieces
• Helps maintain correct spacing for the support/stand attachment area
• Common symptom: cracked, warped, missing, or loose rear trim exposing internal parts

• One supporter cover

• Unplug the TV and place it face down on a soft, non-abrasive surface before starting
• Installation may require removing screws or disengaging plastic clips; keep hardware organized
• Handle carefully to avoid scratching the display or bending mounting tabs
• Refer to the TV's service manual for disassembly instructions and torque/spec guidance

This decor tray is the replacement decorative trim that fits over the appliance door to restore appearance and proper panel alignment. It keeps the front looking finished and replaces damaged or worn trim pieces. What it does:

• Restores the exterior trim around the door for a finished, factory look
• Replaces cracked, faded, or dented decorative trim that affects appearance
• Helps maintain correct panel alignment and clearance along the door edge
• Compatible with the OEM mounting locations and clips used on the original assembly

• One decor tray

• Refer to your appliance's service manual or parts diagram for exact removal and reinstallation steps
• Typically requires removing the door or outer panel to access retaining clips or screws
• Handle trim carefully to avoid scratching the finish and to protect clip tabs from breaking
• Disconnect power before working on appliances with electrical components

This decor cover is a cosmetic trim piece that finishes and protects the mounting area on your appliance. Replace a cracked or missing cover to restore a clean, secure fit and a factory-finished look.

• Conceals fasteners and gaps for a clean, finished appearance
• Helps shield underlying components from dust, splashes, and snags
• Supports proper panel alignment and a secure fit
• Typical signs it's needed: cracked or broken cover, missing trim, loose fit, visible gaps, or rattling

• Disconnect power; also shut off gas/water before servicing
• Wear cut-resistant gloves and use a plastic pry tool to avoid surface damage
• Transfer any clips, tabs, or brackets from the old cover if required
• Align and snap/fasten the cover securely; do not overtighten screws

The Glass Shelf is an OEM replacement part for LG refrigerators. It provides sturdy, clear storage for items inside the refrigerator compartment. The glass shelf is designed to seamlessly integrate into the shelf system, dividing interior space for easy organization.

Causes of a bad glass shelf can include cracks or chips from heavy items, damage due to impact or mishandling, or general wear and tear over time.

Symptoms of a bad glass shelf include:

• Cracks or chips in the glass that compromise its structural integrity
• Leaks or moisture inside the fridge from a damaged shelf
• The shelf no longer fitting or functioning properly in the shelf system

This OEM LG part is also compatible with Sears/Kenmore.

This door gasket assembly seals a refrigerator door to help maintain an airtight cold compartment and reduce energy loss. It restores a tight seal so the appliance cools more efficiently and limits moisture intrusion. What it does:

• Creates an airtight seal around the refrigerator door to keep cold air in and warm air out
• Helps reduce condensation, frost buildup, and compressor run time caused by a leaking seal
• Prevents food spoilage by maintaining steady internal temperatures
• Replaces torn, warped, or hardened door gasket surfaces that no longer seat properly

• Disconnect power to the appliance before beginning work to avoid electrical hazards
• Remove door trim or fasteners as required for your model to access the gasket retaining channel
• Warm or slightly flex the gasket as needed to help seat it into the door channel; follow OEM instructions for proper alignment
• Inspect the door sealing surface and clean before installation; ensure the gasket seats evenly around the full perimeter

This drawer guide is the replacement rail that helps a freezer or refrigerator drawer open and close smoothly, restoring proper alignment and reducing sticking or grinding during use. Designed to match OEM fit and function. What it does:

• Guides the drawer along its track to ensure smooth, even movement
• Keeps the drawer aligned to prevent binding, rubbing, or tipping
• Reduces noise from scraping or catching when opening or closing
• Helps restore proper drawer seating and overall compartment accessibility

• One drawer guide (rail) as shown

• Inspect mating track and adjacent hardware for damage before installing
• Remove power or follow manufacturer safety guidance for accessing interior components
• Install with original fasteners; tighten securely but avoid over-torquing
• If multiple guides are worn or damaged, replace matching guides on the other side for best performance

A replacement pitcher guide that secures the water pitcher or pitcher-style container in the refrigerator door, helping keep the pitcher aligned and stable for smooth door operation and organized storage. What it does:

• Holds and aligns the refrigerator pitcher so it sits securely in the door bin.
• Reduces pitcher movement, rattling and tipping that can occur when opening or closing the door.
• Prevents the pitcher from shifting and potentially obstructing the door or other bins.

• Often snaps into the door bin or slides into a track; you may need to remove the bin or liner to access the guide.
• Use basic hand tools if required and avoid forcing parts to prevent damage.
• Follow the refrigerator service manual or OEM instructions for model-specific removal/installation steps.
• Disconnect power or follow safety guidance in the service manual when working near electrical components.

This door basket assembly replaces a cracked, broken or loose refrigerator door bin to restore secure storage for bottles, jars and small containers. Durable plastic construction mounts to the inner door shelf. What it does:

• Replaces a damaged or missing door bin that won't hold items securely
• Restores organized storage on the refrigerator door for bottles and containers
• Secures to the door using factory mounting tabs to prevent shifting or falling
• Helps prevent spills and lost storage capacity caused by cracked bins

• Remove all items from the door shelf before installing the new basket.
• Align the basket's mounting tabs with the door slots, then press until it snaps into place; do not force broken tabs.
• Inspect door mounting points for damage; replace any broken clips or supports as needed.
• Wear gloves to protect hands from sharp edges and broken plastic during removal.

This Door basket is the replacement door insert that holds and secures items in the appliance door, restoring safe storage and proper closure. Designed to replace a cracked, broken, or missing door basket. What it does

• Provides a molded storage pocket inside the appliance door so small items stay in place.
• Restores proper alignment and fit of the door interior when the original basket is damaged.
• Helps prevent items from shifting, rattling, or falling out during use.
• Commonly replaced when the basket is cracked, warped, or detached from the door.

• One door basket.

• Disconnect power and follow the appliance service manual before beginning repair.
• Removal/installation may require removing the door trim or inner liner—support the door to prevent damage.
• Wear gloves to protect against sharp edges and handle plastic clips carefully to avoid breakage.

The Door Basket is an OEM replacment part for LG French door refrigerators. It is a removable, flexible storage basket mounted inside the refrigerator door panel. The basket provides easy access to commonly used ingredients directly from the door.

Causes of a failing basket can include cracked or broken mounting clips over time.

Symptoms of an inadequate basket include:

• Inability to securely hold contents inside the fridge door
• Detachment from fasteners allowing it to dangle
• Holes or damage reducing usable storage space

This OEM LG replacement basket is also compatible with some Kenmore models.

The Door Closing Cam is an OEM part for LG refrigerators. This part ensures the refrigerator door closes smoothly and securely. It helps guide the door into the correct position and ensures a tight seal, which is essential for maintaining the internal temperature and efficiency of the appliance.

Causes of a bad door closing cam can include wear and tear over time, damage from repeated use, or accidental impacts that can misalign or break the cam.

Symptoms of a bad Door Closing Cam include:

• The door not closing properly or securely
• Difficulty in opening or closing the door
• Unusual noises when operating the door
• Misalignment of the door

This OEM LG part is also compatible with some Kenmore models.

RAIL,SLIDE-LEFT

RAIL,SLIDE-RIGHT

This replacement bar restores a broken or loose support/trim component on compatible LG appliances, helping keep shelves, doors or internal fittings secure and stable. It's a direct-fit swap when the original bar is damaged or worn. What it does

• Replaces a damaged or cracked support/trim bar to restore proper alignment and stability
• Stops wobbling, sagging or loose mounting where the original bar failed
• Helps maintain proper operation of the door, shelf or internal assembly tied to the bar
• Fits into existing mounting points for a straightforward component restore

• One replacement bar

• Unplug or disconnect power to the appliance before any service
• Remove adjacent trim, shelves or panels as needed to access the old bar
• Keep original fasteners; reuse if in good condition or replace with equivalent hardware

This connector assembly links refrigerator components with a secure, factory-style connection. Replace a damaged or loose connector to restore reliable operation and prevent intermittent performance of the part(s) attached to it. What it does:

• Joins two factory leads/components with a secure locking interface
• Restores a stable connection so the attached component operates reliably
• Helps address intermittent operation, no response, or flickering due to worn or heat-damaged connectors
• Replaces connectors with broken locking tabs, loosened contacts, or visible melting/corrosion

• 1 connector assembly

• Disconnect power before servicing; if working near water lines, also shut off the water supply
• Note connector orientation and routing; take photos to aid reassembly
• Depress the locking tab to release; avoid pulling on wires
• Seat the new connector fully until it locks; route away from sharp edges and moving parts

This hinge cover is a trim piece that snaps over the appliance door hinge to protect the hinge assembly and give the door a finished appearance. It helps keep the hinge area free of debris and reduces snagging. What it does:

• Covers and protects the hinge assembly and fasteners from dirt and wear
• Keeps clothing and fabric from catching on exposed hinge parts
• Restores the door's finished look after hinge service or damage
• Helps prevent debris buildup that can affect hinge movement

• One hinge cover

• Disconnect power to the appliance before starting any repair
• Typically installs by snapping or sliding over the hinge; basic hand tools may be needed to remove the door or adjacent trim
• Handle carefully to avoid scratching the finish; do not force into place
• Replace damaged components before installing the cover

Note: Top LEFT Hinge

Note: Top RIGHT hinge

This hinge cap is a small replacement cover that clips over the refrigerator door hinge to protect the hinge pin and give the hinge a finished appearance. It helps keep debris out of the hinge and maintains smooth door movement. What it does:

• Covers and protects the exposed hinge pin and hinge assembly from dirt and damage
• Keeps hinge lubrication cleaner to reduce sticking or squeaking
• Restores the finished look of a chipped or missing hinge cover
• Helps maintain proper hinge alignment by holding cover components in place

• Unplug the appliance or disconnect power before starting work
• Support or remove the door per the manufacturer's instructions to access the hinge if required
• Snap the cap into place over the hinge; avoid forcing to prevent breakage
• Inspect the entire hinge assembly and replace damaged components as needed

The Hinge Bushing is an OEM part for LG refrigerators. It serves as a crucial component in the door hinge mechanism, ensuring smooth and stable operation when opening and closing the refrigerator door.

You should replace this hinge bushing if it becomes worn out or damaged. Common causes of a bad hinge bushing include constant use leading to wear and tear, misalignment of the door, or physical damage due to impact.

Symptoms of a bad hinge bushing include:

• Difficulty in opening or closing the door
• The door sagging or not aligning properly
• Unusual noises like squeaking or grinding when the door is moved

This OEM LG part is also compatible with Sears/Kenmore.

A small retaining pin used to secure moving parts and keep components aligned for smooth operation. Replacing a worn or broken common pin can stop rattling and restore proper fit between linked parts. What it does:

• Holds or aligns two parts together so they move correctly and stay in position
• Helps prevent rattling, looseness, or parts slipping out of place
• Works as a simple mechanical fastener—no electronics involved

• One common pin

• Disconnect power to the appliance before beginning any service
• Keep track of small parts; lay out components in order to aid reassembly
• May require removal of trim or a hinge/retainer to access the pin—use basic hand tools
• If the pin is difficult to seat, do not force; inspect mating parts for damage

NOTE: This part also requires software update kit CJT30000002. DO NOT INSTALL WITHOUT UPDATING SOFTWARE. Call for more information.

The Compressor is an OEM part for LG refrigerators. As the primary component that circulates refrigerant to chill the refrigerator and freezer compartments, it is crucial for proper cooling operation. The compressor works with the condenser fan and evaporator coil to regulate temperatures inside the refrigerator.

Causes of a faulty compressor can include gradual breakdown of motor windings, loss of refrigerant pressure over time, or failure of electrical components vital to operation.

Symptoms of a bad compressor are:

• Elevated fridge/freezer temperatures unable to be maintained
• Frost patterns indicating poor or insufficient cooling
• Abnormal vibrations or sounds upon compressor cycling
• Error codes displayed regarding cooling performance

It is also compatible with Sears/Kenmore refrigerator models.


The Compressor Overload Protector Assembly is an OEM part for LG refrigerators. The compressor overload protector steps in if the compressor motor draws excessive current. It then interrupts the power to prevent overheating. The wire harness boosts the compressor to kick-start it, disengaging as soon as the motor reaches the desired speed.

Over time, the compressor overload protector can wear out or become damaged due to electrical issues, power surges, or constant exposure to high temperatures. A faulty protector can compromise the safety and efficiency of the refrigerator’s cooling system.

Symptoms of a bad compressor overload protector assembly include:

• The refrigerator not cooling properly
• The compressor frequently cycling on and off
• Clicking noises coming from the compressor area
• The refrigerator not turning on at all

This OEM LG part is also compatible with Sears/Kenmore models.

The Overload Compressor is an OEM part for LG refrigerators. This part protects the refrigerator's compressor from overheating and potential damage by acting as a safety device. It works by monitoring the compressor's electrical current and temperature. If the compressor operates under conditions that could lead to overheating or overcurrent, the overload protector will cut off the power to the compressor, allowing it to cool down before potentially restarting.

Causes of damage to the Overload Compressor can include power surges, electrical faults within the refrigerator, or a malfunctioning compressor that requires more current than usual to operate.

Symptoms of a bad Overload Compressor include:

• The refrigerator not cooling properly or not cooling at all
• The compressor failing to start, indicated by a clicking sound coming from the back of the refrigerator where the compressor is located.
• The refrigerator or freezer section warming up

This OEM LG part is also compatible with some Kenmore models.

This PTC cover is the protective housing that shields a PTC sensor/assembly from debris and physical damage, helping maintain reliable sensor performance and prolong component life in the appliance. What it does:

• Protects the PTC sensor or PTC assembly from dust, impact, and accidental contact
• Helps prevent shorting or intermittent sensor signals caused by contaminants
• Supports proper positioning and mounting of the PTC component
• Can help address symptoms such as visible sensor damage, exposed wiring, or intermittent operation related to a compromised sensor housing

• Disconnect power to the appliance before starting any repair
• Remove the outer panel(s) as needed to access the PTC location; handle surrounding wiring and components carefully
• Replace only with the correct OEM cover to ensure proper fit and protection

This damper cushions and isolates the refrigerator compressor to reduce vibration and noise for smoother operation. It helps maintain stable compressor mounting and prevents metal-to-metal contact that can cause wear or rattling. What it does:

• Absorbs compressor vibrations to reduce noise and movement
• Helps protect the compressor housing and mounting points from shock
• Can reduce rattling or knocking sounds originating near the compressor area
• Supports proper alignment of the compressor assembly during operation

• One compressor damper (mounting isolator)

• Turn off power at the breaker and unplug the appliance before servicing
• Inspect mounting area and hardware; replace any damaged fasteners before installing the damper
• Position the damper on the compressor mount as shown in the service manual and secure per OEM guidance

This small stopper installs in the refrigerator to limit the travel of a moving component and keep it securely in place. Replacing a broken or missing stopper prevents over-extension and helps maintain smooth, aligned operation.

• Limits the range of motion for a door, bin, or drawer to prevent over-opening or accidental removal
• Helps keep interior components aligned and operating smoothly
• Replace if cracked, missing, or deformed
• Common symptoms: drawer or bin slides out too far, door swings past normal range, or a broken plastic stop is found

• Disconnect power before servicing; remove or support the affected bin/drawer/door
• Note the old stopper's orientation and location before removal
• Transfer and reuse any original screws or clips if applicable
• Snap or fasten the new stopper in place and test for smooth movement

The Drier Assembly is an OEM part for LG refrigerators. This part is responsible for removing moisture and contaminants from the refrigerant. This ensures that the refrigerant circulates effectively and efficiently, preventing damage to other components and maintaining the refrigerator's cooling performance.

Causes of a bad Drier Assembly can include contamination from moisture entering the refrigerant lines, blockages from debris or particulates, and general wear and tear over time that reduces its effectiveness.

Symptoms of a bad Drier Assembly include:

• Reduced cooling efficiency or warm refrigerator temperatures
• Unusual noises from the refrigeration system
• The compressor running continuously or cycling frequently
• Frost buildup on the evaporator coils due to improper refrigerant flow

This OEM LG part is also compatible with Sears/Kenmore models.

This holder secures the dryer-related assembly in place to reduce movement and wear, helping maintain proper alignment and quieter operation. It's a simple replacement that restores part stability in the appliance. What it does:

• Secures a dryer assembly or component to the appliance frame to prevent shifting
• Helps reduce vibration and rubbing noises caused by a loose part
• Maintains correct alignment so related parts operate smoothly
• Used when the existing holder is cracked, broken, or missing

• Disconnect power before replacing any dryer components to avoid shock or injury
• Access location and removal steps vary by model; follow the appliance's service manual or exploded view
• Keep fasteners and adjacent parts organized for reassembly; replace any damaged clips or screws

This motor bracket is the OEM-style mounting bracket that secures the appliance motor to the cabinet, keeping the motor aligned and reducing vibration for reliable operation. It helps restore proper motor support and stable running. What it does:

• Provides a secure mounting point to hold the motor in correct position
• Maintains motor alignment to prevent belt slip and uneven wear
• Reduces vibration and noise caused by a loose or damaged motor mount
• Can resolve symptoms such as unusual motor noise, excessive vibration, or motor movement during operation

• Disconnect power (and gas if applicable) before starting any repair
• Basic hand tools are typically required; follow the appliance service manual for access steps
• Inspect surrounding components (mounting fasteners, motor and belts) and replace any damaged parts

This guide assembly directs and stabilizes the refrigerator/freezer fan to ensure consistent airflow across the evaporator and cooling components. Replacing a damaged guide restores proper air circulation and helps reduce noise from an unsteady fan. What it does

• Holds and centers the fan blade to maintain efficient airflow through the evaporator coil
• Prevents fan wobble or contact with housing that can cause noise or mechanical wear
• Helps ensure even cooling and can reduce frost build-up caused by disrupted airflow
• Supports proper airflow that contributes to consistent temperatures in the cooling compartment

• One guide assembly

• Disconnect power before beginning any repair and follow the appliance manufacturer's safety instructions
• Access may require removing interior panels or the evaporator/fan housing; retain fasteners for reassembly
• Inspect adjacent components while replacing the guide to ensure full repair
• Use only compatible parts and avoid forcing plastic tabs; if clips or screws are damaged, replace them

This fan assembly circulates air through the appliance so coils and internal components operate at the proper temperature. Replacing a failed or noisy fan can restore airflow and help prevent performance issues caused by weak circulation.

• Moves air across coils and components to support designed cooling/dehumidifying performance
• Helps maintain steady airflow to reduce overheating or icing conditions
• A failing fan can cause little to no airflow even when the unit is running
• Common symptoms: fan not spinning, intermittent operation, loud rattling/grinding, vibration, or thermal shutdown

• Disconnect power before servicing to avoid electrical shock or injury
• Access the fan area per your unit's service information; remove panels/shrouds as needed
• Note wire connections and mounting order; transfer any brackets, grommets, or hardware from the old assembly
• After installation, ensure the fan spins freely and clears all shrouds, then test operation before reassembly

The Fan Assembly is an OEM part for LG refrigerators. It is responsible for circulating air within the refrigerator and freezer compartments, ensuring consistent cooling and optimal temperature distribution. The fan assembly helps maintain the freshness of your food by evenly distributing cold air.

Common causes of a bad fan assembly include electrical issues, worn-out bearings, or obstructions that prevent the fan from spinning properly.

Symptoms of a bad fan assembly include:

• Unusual noises coming from the refrigerator
• Inconsistent temperatures within the fridge or freezer
• Frost buildup in the freezer
• Refrigerator running continuously or not cooling effectively

This OEM LG part is also compatible with Sears/Kenmore models.

This fan grille assembly directs airflow and protects the appliance fan while maintaining proper ventilation for cooling performance. It replaces a damaged or cracked grille to help reduce restricted airflow and rattling noises. What it does:

• Guides and channels air from the fan to improve circulation within the appliance
• Helps protect the fan blades from debris and accidental contact
• Reduces vibration-related noise caused by a broken or loose grille
• Restores a finished appearance to the fan area and helps maintain proper airflow paths

• One fan grille assembly as shown

• Disconnect power to the appliance before beginning any service
• Secure with clips or screws; retain fasteners and note their locations during removal
• Handle the grille gently to avoid cracking plastic tabs; align tabs before snapping into place
• If other components are damaged, inspect surrounding area and replace as needed

This controller assembly is the washer's main electronic control board that manages cycle selection, timing and user inputs to restore proper machine operation. Replacing a faulty board can resolve control, display or cycle issues. What it does:

• Interprets user commands and runs wash cycles according to selected settings
• Sends signals to motors, valves and sensors to start, stop and change operations
• Can cause unresponsive controls, no power to cycles or erratic behavior when faulty
• Works with display and touchpad/knob to provide status and error feedback

• Disconnect power before accessing the control panel to avoid shock
• Handle the board by its edges and avoid static discharge; use anti-static precautions
• Installation typically requires removing the console or rear access panel and disconnecting wiring harnesses

The Evaporator Fan Motor is an OEM part for LG refrigerators. It powers the evaporator fan located inside the refrigerator's cooling system. The evaporator fan circulates chilled air through ducts and into food storage compartments, helping maintain an even temperature.

Causes of a bad evaporator fan motor include failure due to bearing wear, component fatigue from continuous operation, damage from debris accumulation over time inhibiting rotation, or failure of electronic components controlling motor function.

Symptoms of a faulty evaporator fan motor include:

• Temperature fluctuations in refrigerator and freezer sections
• Intermittent cooling or inability to cool fully
• Abnormal fan noise or abnormal vibration
• Frost or moisture buildup within refrigerator ducts

This LG part is also compatible with some Kenmore models.

This motor support damper sits between the refrigerator's compressor and base to absorb vibration and movement. Replacing a worn damper helps quiet rattles and humming from the back of the cabinet and keeps the compressor properly supported.

• Cushions the compressor to reduce transmitted vibration and noise
• Helps quiet humming, buzzing, or rattling from the lower rear of the refrigerator
• Maintains proper compressor alignment and support on the base pan
• Common signs of wear: increased vibration/noise, a cracked or flattened damper, or noticeable compressor movement when running

• Unplug the refrigerator and pull it forward to access the rear; allow the compressor to cool before working
• Support the compressor to remove load from the mount before loosening hardware
• Replace the damper and tighten mounting hardware evenly without over-compressing the rubber
• Avoid bending or stressing refrigerant tubing; wear gloves and eye protection

The Rear Evaporator Motor Grommet is an OEM part for LG refrigerators. It's designed to secure and cushion the evaporator motor, ensuring it remains in place and operates quietly. This grommet plays a crucial role in minimizing vibrations and noise from the motor, which can otherwise lead to a disruptive refrigerator operation.

Causes of a bad Rear Evaporator Motor Grommet can result from deterioration due to cooling and thawing cycles in the refrigerator. Physical damage during cleaning or servicing may cause a loose motor fit.

Symptoms of a malfunctioning Rear Evaporator Motor Grommet include:

• Unusual noises or vibrations from the back of the refrigerator.
• The evaporator motor shifting out of place, which can affect cooling efficiency.
• Increased wear on the evaporator motor due to lack of proper cushioning and support.

This OEM LG part is also compatible with some Kenmore models.

The Rear Evaporator Motor Grommet is an OEM part for LG refrigerators. It's designed to secure and cushion the evaporator motor, ensuring it remains in place and operates quietly. This grommet plays a crucial role in minimizing vibrations and noise from the motor, which can otherwise lead to a disruptive refrigerator operation.

Causes of a bad Rear Evaporator Motor Grommet can result from deterioration due to cooling and thawing cycles in the refrigerator. Physical damage during cleaning or servicing may cause a loose motor fit.

Symptoms of a malfunctioning Rear Evaporator Motor Grommet include:

• Unusual noises or vibrations from the back of the refrigerator.
• The evaporator motor shifting out of place, which can affect cooling efficiency.
• Increased wear on the evaporator motor due to lack of proper cushioning and support.

This OEM LG part is also compatible with some Kenmore models.

The Front Evaporator Motor Grommet is an OEM part for LG refrigerators. This grommet cushions and secures the evaporator motor, reducing vibrations and noise during operation to ensure efficient cooling.

Causes of a bad grommet can include prolonged use leading to material fatigue, exposure to extreme temperatures, or physical damage from accidental impacts. A damaged grommet can result in increased noise and potential misalignment of the evaporator motor.

Symptoms of a bad evaporator motor grommet include:

• Increased noise from the refrigerator
• Vibrations or rattling sounds
• Poor cooling performance
• The evaporator motor becoming loose

This OEM LG part is also compatible with Sears/Kenmore.

This LED light assembly illuminates the refrigerator interior when the door opens, delivering bright, efficient lighting so you can easily see items. Replace a failed module to restore proper visibility inside your fridge.

• Provides interior illumination for the fresh food or freezer compartment
• Turns on and off with the door switch
• Helps you quickly find items and check food condition
• Common symptoms: no light when doors open, flickering/strobing, dim or intermittent lighting

• Disconnect power to the refrigerator before servicing
• Remove any lens/cover, release retaining tabs, and unplug the wire harness to remove the old module
• Connect the new assembly, align tabs, and snap/secure it into place; reinstall the cover
• Restore power and verify operation; the door switch activates the light

The Compressor Run Capacitor is an OEM part for LG refrigerators. It plays a critical role in the operation of the refrigerator's compressor by providing the necessary electrical boost to start and maintain the compressor's operation.

Causes of a bad compressor run capacitor can include electrical surges, overheating, or simply wear and tear over time. When the capacitor fails, it can no longer deliver the required electrical charge, which impacts the compressor's ability to start and run efficiently.

Symptoms of a bad compressor run capacitor include:

• The refrigerator not cooling properly
• The compressor not starting or running intermittently
• Unusual humming or clicking noises from the compressor area
• The refrigerator cycling on and off frequently

This OEM LG part is also compatible with Sears/Kenmore models.

The Compressor Overload Protector Assembly is an OEM part for LG refrigerators. The compressor overload protector steps in if the compressor motor draws excessive current. It then interrupts the power to prevent overheating. The wire harness boosts the compressor to kick-start it, disengaging as soon as the motor reaches the desired speed.

Over time, the compressor overload protector can wear out or become damaged due to electrical issues, power surges, or constant exposure to high temperatures. A faulty protector can compromise the safety and efficiency of the refrigerator’s cooling system.

Symptoms of a bad compressor overload protector assembly include:

• The refrigerator not cooling properly
• The compressor frequently cycling on and off
• Clicking noises coming from the compressor area
• The refrigerator not turning on at all

This OEM LG part is also compatible with Sears/Kenmore models.

This cover assembly protects the appliance's printed circuit board from debris, moisture and accidental contact, helping preserve reliable control operation. It provides a secure enclosure that keeps the PCB mounted and shielded during normal use. What it does:

• Shields the control board from dust, moisture splash and foreign objects that can cause shorts or component damage.
• Keeps wiring and connectors routed and secured to reduce strain and intermittent connections.
• Helps maintain correct spacing and alignment of the PCB for reliable electrical contacts.
• Useful when the original plastic cover is cracked, warped, missing or allows board exposure.

• One cover assembly for PCB.

• Disconnect power to the appliance before beginning any service to avoid shock or damage.
• Handle the PCB and connectors carefully; avoid touching board components or bending traces.
• Align cover over the PCB and fasten with the original screws or clips; do not overtighten plastic fasteners.

The Ice Maker Assembly Kit is an OEM part for LG refrigerators. This kit includes all the components necessary to produce ice efficiently, ensuring a steady supply of ice cubes for your household needs. This particular 12-cube ice maker assembly features a 10-wire harness.

Causes of a bad ice maker assembly can include wear and tear over time, issues with the water supply, or mechanical malfunctions that prevent the ice maker from operating correctly. These issues can lead to a reduction in ice production or complete failure of the ice maker.

Symptoms of a bad ice maker assembly include:

• No ice production
• Ice cubes being smaller than usual
• Leaks around the ice maker area
• Unusual noises during the ice-making process

This OEM LG part is also compatible with Sears/Kenmore.

The Gasket, Foam is an OEM part for LG refrigerators. This foam gasket creates an essential seal around the refrigerator door, helping to maintain cool interior temperatures and block warm air from entering. It also assists in preventing moisture exchange, keeping contents dry.

Symptoms of a damaged gasket include:

• Warm or unpleasant air feeling around the edges of the door
• Higher energy costs from poor insulation
• Extra frost or moisture buildup inside
• Visible air gaps when the door is closed

Causes may be general wear and breakdown over time due to repeated opening and closing of the door. Replace this LG OEM foam gasket to restore an efficient seal and optimal refrigerator performance. This gasket is compatible with models produced by Kenmore, Sears, Samsung, Electrolux, and GE as well.

The Inlet Water Valve Assembly is an OEM part for LG refrigerators, designed to manage the flow of water into the refrigerator's ice maker and water dispenser. This part ensures that your refrigerator provides clean, fresh water and ice on demand by controlling the water pressure and flow through the system. The valve assembly is key to maintaining the refrigerator's functionality and the freshness of the water and ice it dispenses.

Causes of a bad Valve Assembly, Water can include mineral build-up from hard water, which can block the valve and prevent it from opening or closing properly.

Symptoms of a bad Valve Assembly include:

• No water dispensed
• Leaking water from the refrigerator
• Ice maker not producing ice
• Strange noises coming from the refrigerator when the dispenser is used

This OEM LG part is also compatible with some Kenmore models.

This door switch cover houses and protects the refrigerator/freezer door switch, keeping the switch secure and aligned so the interior light and door-sensing functions work reliably. It's a direct-fit replacement for damaged or cracked covers. What it does:

• Protects the door switch from impacts, spills, and debris that can cause intermittent contacts or failure
• Keeps the switch properly positioned so the interior light turns on/off when the door opens and closes
• Helps ensure consistent door-sensing for control logic that manages defrost and cooling cycles
• Reduces the risk of moisture reaching the electrical switch components

• One door switch cover

• Power off and unplug the appliance before beginning any repair to avoid shock or damage
• Handle gently to avoid breaking the plastic tabs; some models use snap-in tabs or screws for mounting
• Verify switch alignment and operation before fully reassembling the door trim
• Replace the switch assembly as needed

This holder is a small mounting bracket that secures a mating component in place inside the appliance. Replacing a cracked or missing holder restores a firm, rattle-free fit and proper alignment.

• Provides a stable mount for the designated part
• Prevents shifting and vibration that can cause noise or premature wear
• Common signs of failure: broken tabs, stress cracks, or the attached part sagging or falling out
• When damaged, the connected component may be loose, noisy, or misaligned

• Disconnect power; if working near water tubing, also shut off the water supply
• Note the original orientation and mounting points; take a photo before removal
• Reuse existing fasteners and avoid overtightening to prevent cracking the plastic
• Ensure the attached component is secure and clears any moving parts before restoring power

The Temperature Sensor is an OEM part for LG refrigerators. It monitors the internal temperature and sends this information to the control board, ensuring that the refrigerator maintains the correct temperature for optimal food preservation.

Over time, temperature sensors can fail due to electrical issues, exposure to moisture, or wear and tear from continuous use.

Symptoms of a bad temperature sensor include:

• Inaccurate temperature readings
• The refrigerator or freezer being too warm or too cold
• The refrigerator running constantly or not running at all
• Error codes displayed on the control panel

This OEM LG part is also compatible with Sears/Kenmore models.

The Temperature Sensor is an OEM part for LG refrigerators. Also known as a thermistor, is responsible for sensing the temperature changes and providing the necessary feedback to the refrigerator's control board. It helps maintain accurate and consistent temperature levels, ensuring optimal food preservation and efficient cooling.

Causes of a faulty temperature sensor can include wear and tear over time, damage due to electrical issues or exposure to extreme temperatures, or sensor calibration issues. These factors can result in temperature inconsistencies, inaccurate readings, or improper cooling performance of the refrigerator.

Symptoms of a bad temperature sensor may include:

• Incorrect temperature readings on the control panel
• Temperature fluctuations inside the refrigerator
• Overcooling or inadequate cooling of food items

This OEM LG part can also be used on Kenmore/Sears appliances.
