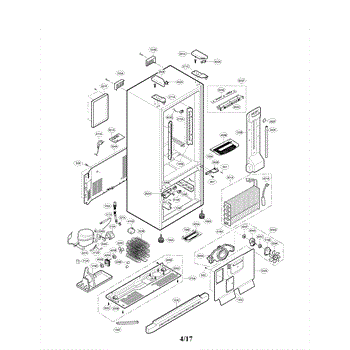

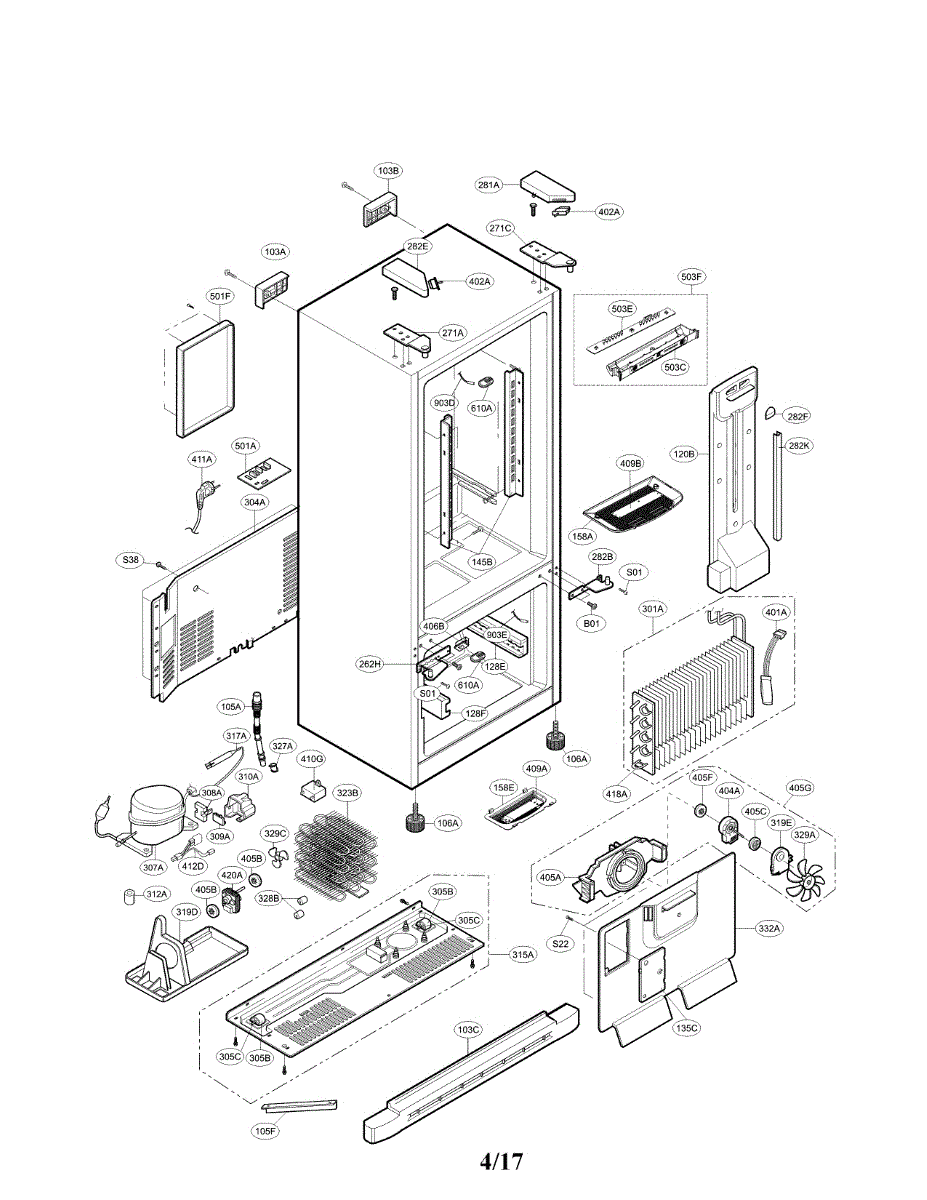

Parts for Lg LFC20770ST/01: Case Parts

This hinge bolt secures the hinge to the appliance cabinet or door, keeping alignment true and motion smooth. Replacing a stripped, missing, or corroded bolt helps restore proper door operation and reliable closing.

• Fastens the hinge to support and stabilize the door
• Helps maintain alignment for smooth opening and closing
• Replaces damaged, stripped, or missing hardware

• Disconnect power to the appliance; shut off water supply if applicable
• Support the door to prevent strain on remaining hardware; enlist a second person if needed
• Note the order/orientation of any shims or washers and transfer them during reassembly
• Start threads by hand to avoid cross-threading; tighten securely without overtightening

This lower cover is the front access panel that protects the appliance's internal components and gives the cabinet a finished look. It restores the lower front appearance and shields wiring and assemblies from dust and debris. What it does

• Replaces a cracked, dented, or missing lower front panel to restore protection and appearance
• Covers and protects wiring, hoses, and base components from dust and accidental contact
• Helps reduce drafts and keeps the cabinet interior cleaner
• Common symptom: visible damage, loose panel, or exposed lower components

• Remove power and disconnect the appliance before beginning any work.
• Usually secured with a few screws or clips at the front base; support the panel while removing fasteners to prevent drops.
• Use basic hand tools; avoid forcing clips to prevent cabinet damage.
• If wiring or components are exposed or damaged, inspect and address those issues before reassembly.

This center hinge assembly secures and pivots the refrigerator's middle door, restoring smooth door movement and proper alignment to help keep interior temperatures stable. It replaces a worn or damaged center hinge on compatible LG refrigerators. What it does:

• Provides the pivot point and structural support for the refrigerator's middle/center door
• Restores proper door alignment to help prevent gaps that can cause cooling loss
• Eliminates sagging, binding, or noisy door operation caused by a damaged hinge
• Works with existing door and frame components to maintain smooth opening/closing

• One center hinge assembly

• Requires basic hand tools and removing the door(s) for safe access; follow the refrigerator's service manual
• Support the door while removing and installing the hinge to prevent injury or damage
• Inspect mounting screws and surrounding trim; replace any damaged fasteners before reassembly
• Disconnect power if required by your repair steps

This center hinge assembly secures and pivots the refrigerator's middle door, restoring smooth door movement and proper alignment to help keep interior temperatures stable. It replaces a worn or damaged center hinge on compatible LG refrigerators. What it does:

• Provides the pivot point and structural support for the refrigerator's middle/center door
• Restores proper door alignment to help prevent gaps that can cause cooling loss
• Eliminates sagging, binding, or noisy door operation caused by a damaged hinge
• Works with existing door and frame components to maintain smooth opening/closing

• One center hinge assembly

• Requires basic hand tools and removing the door(s) for safe access; follow the refrigerator's service manual
• Support the door while removing and installing the hinge to prevent injury or damage
• Inspect mounting screws and surrounding trim; replace any damaged fasteners before reassembly
• Disconnect power if required by your repair steps

This drum support roller helps the dryer drum rotate smoothly and quietly by supporting the drum shaft and reducing friction. Replacing a worn roller restores proper drum movement and reduces noise. What it does:

• Supports the dryer drum shaft so the drum turns evenly during operation
• Prevents metal-on-metal contact that causes squealing, grinding or scraping noises
• Helps maintain correct drum alignment to avoid rubbing or uneven wear
• Works with the dryer's axle and bearing system to enable smooth rotation

• One roller

• Disconnect power and move the dryer to a safe, well-lit work area before starting
• Access requires removing the dryer front or rear panel depending on model
• Inspect the drum shaft, bearing, and idler components and replace any worn parts at the same time
• Wear eye protection and gloves; test the dryer empty after installation to confirm quiet, smooth operation

This is a replacement retaining pin used to secure small moving parts and assemblies in compatible LG appliances. It restores proper alignment and holds components in place so assemblies operate smoothly. What it does:

• Secures and locates components within an assembly to prevent shifting or disengagement
• Helps maintain proper alignment for moving parts that can cause noise or malfunction when loose
• Commonly used where a small, durable metal pin is needed to retain clips, levers, or linkages
• Simple, single-purpose part — replacement when the original is bent, worn, or missing

• One retaining pin

• Unplug the appliance or disconnect power before servicing
• Access the affected assembly per the appliance service instructions; small fasteners or clips may need removal
• Use pliers or appropriate hand tools to remove/install the pin; avoid forcing to prevent damage
• Keep track of orientation and any associated clips or washers during disassembly

The Compressor Start Relay is an OEM part for LG refrigerators, playing a critical role in the starting mechanism of the compressor. This small but crucial component helps to kickstart the compressor, enabling it to begin the refrigeration cycle that cools the interior of the fridge.

Causes of a bad Compressor Start Relay include wear and tear over time, electrical surges that can damage the relay, or overheating of the compressor unit.

Symptoms of a bad Compressor Start Relay include:

• The refrigerator failing to cool properly or maintain the set temperature.
• A noticeable increase in the electric bill due to the refrigerator working harder to maintain temperatures.
• Strange noises, such as clicking sounds from the compressor area
• The compressor not starting at all, leading to a complete lack of cooling within the refrigerator.

This OEM LG part is also compatible with some Kenmore models.

The Compressor Overload Protector is an OEM part for LG refrigerators. This critical component safeguards the compressor, which is the heart of the refrigeration system, from potential damage caused by excessive current draw or overheating.

Symptoms of a faulty compressor overload protector:

• Refrigerator not cooling properly or not running at all
• Compressor failing to start or repeatedly cycling on and off
• Buzzing or humming noises from the compressor area

Causes of a bad compressor overload protector can include electrical surges, wiring issues, or simply wear and tear over an extended period.

This OEM LG part is also compatible with Sears/Kenmore refrigerator models.

The Drier Assembly is an OEM part for LG refrigerators. This part is responsible for removing moisture and contaminants from the refrigerant. This ensures that the refrigerant circulates effectively and efficiently, preventing damage to other components and maintaining the refrigerator's cooling performance.

Causes of a bad Drier Assembly can include contamination from moisture entering the refrigerant lines, blockages from debris or particulates, and general wear and tear over time that reduces its effectiveness.

Symptoms of a bad Drier Assembly include:

• Reduced cooling efficiency or warm refrigerator temperatures
• Unusual noises from the refrigeration system
• The compressor running continuously or cycling frequently
• Frost buildup on the evaporator coils due to improper refrigerant flow

This OEM LG part is also compatible with Sears/Kenmore models.

This motor bracket is the OEM-style mounting bracket that secures the appliance motor to the cabinet, keeping the motor aligned and reducing vibration for reliable operation. It helps restore proper motor support and stable running. What it does:

• Provides a secure mounting point to hold the motor in correct position
• Maintains motor alignment to prevent belt slip and uneven wear
• Reduces vibration and noise caused by a loose or damaged motor mount
• Can resolve symptoms such as unusual motor noise, excessive vibration, or motor movement during operation

• Disconnect power (and gas if applicable) before starting any repair
• Basic hand tools are typically required; follow the appliance service manual for access steps
• Inspect surrounding components (mounting fasteners, motor and belts) and replace any damaged parts

This fan assembly circulates air through the appliance so coils and internal components operate at the proper temperature. Replacing a failed or noisy fan can restore airflow and help prevent performance issues caused by weak circulation.

• Moves air across coils and components to support designed cooling/dehumidifying performance
• Helps maintain steady airflow to reduce overheating or icing conditions
• A failing fan can cause little to no airflow even when the unit is running
• Common symptoms: fan not spinning, intermittent operation, loud rattling/grinding, vibration, or thermal shutdown

• Disconnect power before servicing to avoid electrical shock or injury
• Access the fan area per your unit's service information; remove panels/shrouds as needed
• Note wire connections and mounting order; transfer any brackets, grommets, or hardware from the old assembly
• After installation, ensure the fan spins freely and clears all shrouds, then test operation before reassembly

The Defrost Sensor Assembly is an OEM part for LG refrigerators. It plays a critical role in the defrost system by monitoring the temperature of the evaporator coil to ensure that it remains at the optimal temperature to prevent frost buildup. The sensor sends signals to the control board, triggering the defrost cycle when necessary.

Over time, the defrost sensor assembly can fail due to wear and tear, electrical issues, or exposure to moisture and temperature fluctuations. When the defrost sensor malfunctions, it can cause improper defrost cycles, leading to excessive frost buildup, reduced cooling efficiency, or the refrigerator not defrosting at all.

Symptoms of a bad defrost sensor assembly include:

• Excessive frost buildup on the evaporator coils
• Refrigerator or freezer not maintaining the correct temperature
• Increased energy consumption
• Refrigerator not defrosting properly

This OEM LG part is also compatible with Sears/Kenmore.

The Door Switch is an OEM part for LG refrigerators. It is located near the door hinge and is activated by the door's movement. When the door is closed, the switch is engaged, allowing the interior light to turn off and other functions to operate normally. When the door is opened, the switch is released, triggering the interior light to turn on and potentially activating other features, such as the ice dispenser or cooling system.

Causes of a faulty door switch can include wear and tear over time, mechanical damage from excessive force, or electrical issues.

Symptoms of a bad door switch may include:

• The interior light not turning on when the door is opened
• The interior light remains on when the door is closed
• Issues with the dispenser or other functions associated with the door switch

This DC fan motor drives the refrigerator's fan to circulate air across the coils and through the cabinet. Replacing a weak or failed motor restores proper airflow for consistent temperatures and reliable cooling performance.

• Spins the fan blade to move air through the cabinet and across heat-exchange coils
• Helps maintain even, stable temperatures throughout the appliance
• Typical failure symptoms: fan not running or intermittent, unusual humming/squealing/rattling near the fan area, poor cooling or temperature fluctuations
• Can reduce hot spots by restoring proper air circulation

• Disconnect power before servicing; use cut-resistant gloves
• Access the motor behind the rear cover or interior panel (location varies by model)
• Note connector orientation; disconnect harness, mount the new motor, and securely route wiring
• Ensure the blade spins freely with no obstructions; restore power and verify fan operation

The Rear Evaporator Motor Grommet is an OEM part for LG refrigerators. It's designed to secure and cushion the evaporator motor, ensuring it remains in place and operates quietly. This grommet plays a crucial role in minimizing vibrations and noise from the motor, which can otherwise lead to a disruptive refrigerator operation.

Causes of a bad Rear Evaporator Motor Grommet can result from deterioration due to cooling and thawing cycles in the refrigerator. Physical damage during cleaning or servicing may cause a loose motor fit.

Symptoms of a malfunctioning Rear Evaporator Motor Grommet include:

• Unusual noises or vibrations from the back of the refrigerator.
• The evaporator motor shifting out of place, which can affect cooling efficiency.
• Increased wear on the evaporator motor due to lack of proper cushioning and support.

This OEM LG part is also compatible with some Kenmore models.

The Front Evaporator Motor Grommet is an OEM part for LG refrigerators. This grommet cushions and secures the evaporator motor, reducing vibrations and noise during operation to ensure efficient cooling.

Causes of a bad grommet can include prolonged use leading to material fatigue, exposure to extreme temperatures, or physical damage from accidental impacts. A damaged grommet can result in increased noise and potential misalignment of the evaporator motor.

Symptoms of a bad evaporator motor grommet include:

• Increased noise from the refrigerator
• Vibrations or rattling sounds
• Poor cooling performance
• The evaporator motor becoming loose

This OEM LG part is also compatible with Sears/Kenmore.

The Refrigerator Door Switch is an OEM part for LG refrigerators, designed to signal the control system when the door is open or closed. This small but essential component plays a critical role in the overall operation of your refrigerator, including the activation of interior lights and the control of cooling functions.

Over time, the door switch can fail due to mechanical wear, accidental damage, or a buildup of debris that may prevent it from functioning correctly.

Symptoms of a bad Refrigerator Door Switch include:

• Interior lights not turning on or off appropriately with the door's position
• The refrigerator running longer than necessary, potentially leading to increased energy bills
• Unusual fluctuations in temperature inside the fridge, affecting food preservation

This OEM LG part can also be used on Kenmore/Sears appliances.

The Capacitor is an OEM replacement part for  LG refrigerators. It is an electronic component located next to the refrigerator compressor that stores electric charge between cycles of the power supply circuit. The capacitor plays an important role in providing stable starting power to the compressor motor.

Causes of a bad capacitor next to the compressor can include heat distress over thousands of start/stop cycles of the refrigerator.

Symptoms of a bad capacitor include:

• The compressor makes loud buzzing or grinding noises during the operation
• The compressor fails to start or cycles on and off frequently
• Temperature fluctuations inside the refrigerator
• Error codes related to compressor issues

This genuine LG replacement is compatible also with Kenmore Elite model refrigerators

This DC motor powers the appliance's cooling fan to move air across coils and through compartments. Replacing a weak or failed motor restores proper airflow for steadier temperatures and quieter, more efficient operation. What it does:

• Drives the fan that circulates air through the evaporator or across the condenser
• Helps maintain even cooling and prevent temperature swings
• Replaces a motor that won't start, runs intermittently, or makes grinding/squealing noises
• Can help address poor cooling, warm spots, or frost/ice buildup from lack of airflow

• 1 DC motor

• Disconnect power before servicing; wear cut-resistant gloves
• Access the fan area per service information (rear interior panel or machine compartment)
• Transfer the fan blade and any grommets/brackets/screws from the original motor if needed
• Seat the motor securely, route wires clear of the blade, and verify the fan spins freely before reassembly

The Freezer Temperature Sensor is an OEM part for LG refrigerators. This sensor monitors the temperature within the freezer compartment, sending readings to the refrigerator’s control board to maintain optimal temperature levels. It plays a crucial role in ensuring that the freezer operates efficiently and keeps food items properly frozen.

Over time, the temperature sensor can fail due to regular wear and tear, electrical issues, or exposure to extreme temperatures. A faulty sensor can lead to inaccurate temperature readings, affecting the freezer's performance.

Symptoms of a bad freezer temperature sensor include:

• Inconsistent freezer temperatures
• The freezer running continuously or not running at all
• Frost buildup in the freezer compartment
• The control board displaying error codes related to temperature

This OEM LG part is also compatible with Sears/Kenmore.

The Refrigerator Temperature Sensor is an OEM part for LG refrigerators. This sensor monitors the temperature inside the refrigerator and communicates with the control board to maintain the optimal cooling environment.

Common causes of failure include wear and tear over time, electrical issues, or exposure to moisture. A malfunctioning sensor can lead to inaccurate temperature readings, resulting in improper cooling or freezing.

Symptoms of a bad refrigerator temperature sensor include:

• Inconsistent refrigerator or freezer temperatures
• Food spoiling faster than usual
• Refrigerator running continuously or not running at all
• Error codes displayed on the control panel

This OEM LG part is also compatible with Sears/Kenmore models.
