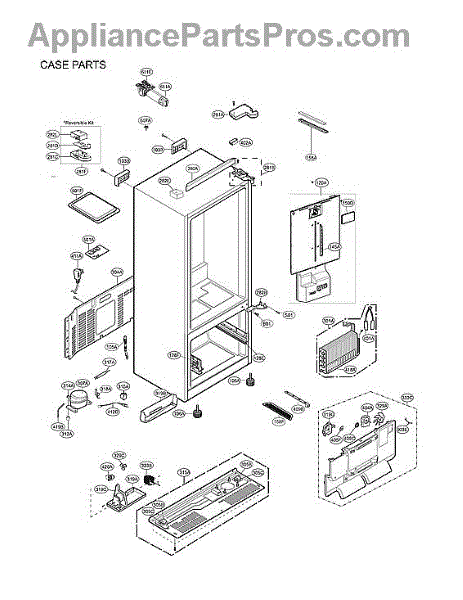

Parts for Lg LRDCS2603D/00: Case Parts

This screw is a direct-fit replacement fastener that secures panels, brackets, and internal components. Replacing a missing or stripped screw helps stop rattling and keeps parts aligned for reliable operation. What it does:

• Secures panels, trim, brackets, or internal components to restore proper fit
• Replaces missing or damaged hardware that can cause rattling or loose parts
• Restores alignment so doors, shelves, or assemblies operate smoothly
• Provides a straightforward hardware fix without replacing larger assemblies

• Use the matching screwdriver or driver bit to avoid stripping the head
• Do not overtighten — snug until seated to avoid damaging threads or plastic parts
• Disconnect power or follow appliance safety instructions before servicing electrical areas
• Keep removed hardware organized and save any damaged parts for inspection

This rail guide assembly secures and guides a refrigerator/freezer drawer for smooth opening and closing. It restores proper alignment and reduces drawer sticking or uneven movement so contents slide in and out reliably. What it does:

• Supports and guides the drawer along the cabinet rail for consistent motion
• Replaces worn or broken guide hardware that causes sticking, jamming, or misalignment
• Helps prevent drawer tilt and uneven loading that can block smooth operation
• Works with the drawer slide system to maintain proper track engagement

• Replace with power off and food removed from the drawer area
• Inspect mating slide and mounting clips; replace any damaged fasteners for reliable fit
• Typical install requires removal of the drawer and a few screws or clips; retest movement after installation

This replacement freezer tray is a direct-fit internal pan that catches drips and helps keep the freezer interior clean and organized. It restores proper drainage and containment for damaged or missing trays. What it does

• Replaces a cracked, warped, or missing freezer tray to prevent leaks and pooled water
• Guides melt water toward the freezer drain to reduce ice buildup and odors
• Provides a flat, stable surface for items stored in the freezer compartment
• Matches OEM fit and mounting points for straightforward replacement

• One replacement freezer tray

• Intended for in-compartment installation; remove food and unplug the appliance before starting
• Handle gently to avoid cracking plastic; wear gloves to protect hands and edges
• If tray mounts to clips or rails, align tabs before pressing into place; do not force
• Check freezer drain and gasket seating while tray is out; clean any debris before reinstalling

Roller assembly approx. 1".

Roller assembly approx. 2".

This tray/drawer liner provides the structural shelf for a refrigerator drawer, helping contain food and spills while supporting the sliding drawer assembly. It restores proper fit and a clean surface inside the drawer compartment. What it does:

• Replaces a cracked, warped, or damaged drawer tray so the drawer sits and slides correctly
• Holds deli items, fruits and vegetables, and loose containers to prevent spills
• Helps contain leaks and makes cleaning easier compared with a damaged liner
• Reduces drawer noise caused by a broken or misshapen tray

• One tray/drawer liner

• Remove all food and contents from the drawer before replacing the tray
• Slide the drawer fully out (follow owner's manual removal steps) and lift or unclip the old tray as required
• Seat the new tray fully in the drawer frame; verify smooth sliding before refilling

This glass refrigerator shelf replaces a damaged or missing shelf to restore usable storage space and proper organization. It gives a solid, easy-to-clean surface for holding food containers and deli items. What it does:

• Provides a stable shelf surface for storing foods and containers inside the refrigerator
• Restores proper shelving layout when a shelf is cracked, chipped, or broken
• Keeps items contained and helps maintain an organized interior
• Fits into existing shelf supports or track slots to sit securely in place

• One refrigerator glass shelf

• Remove food and any items from surrounding shelves before installing
• Slide into the shelf supports evenly; do not force into place
• Handle with care—glass can break if dropped or tipped
• Clean with a mild detergent and soft cloth before first use

The Tray Cover Assembly is an OEM part for LG French door refrigerators featuring flex zone adjustable tray systems. This assembly covers the tray area when retracted into the refrigerator door.

Causes of a bad tray cover assembly can include warping or deformation from temperature fluctuations, damage from overloading trays, or punctures reducing durability.

Symptoms of a bad tray cover assembly include:

• Gaps allowing cold air leaks when trays closed
• Difficulty fully inserting or removing adjustable trays
• Cracks or breaks compromising waterproof barrier
• Tray covers not staying securely in the retracted position

Replace yours today with this genuine OEM LG assembly to maintain optimal energy efficiency and safeguard contents. Covers keep foods fresh whether trays are hidden or extended. This replacement part is also compatible with Samsung, GE, and Kenmore refrigerator doors with flex storage options.

This rail holder secures the microwave door rail so the door stays aligned and operates smoothly. Replaces a worn or broken holder to reduce door wobble and improve closing action. What it does:

• Secures and supports the door rail assembly for proper door alignment
• Keeps the rail from shifting, preventing rubbing, rattling or uneven gaps
• Helps restore smooth opening and closing of the door
• Fits where the rail mounts to the door frame or trim

• One rail holder

• Disconnect power to the appliance before beginning any repair
• Use basic hand tools (screwdriver/trim tool) and handle plastic parts gently to avoid breakage
• Inspect surrounding clips/rails for damage and replace if needed for a lasting repair

This rail holder is the replacement support that secures an appliance rail in place, restoring proper alignment and smooth movement. It helps keep sliding components stable so drawers or rails track correctly and safely. What it does:

• Secures the rail or slide to the appliance frame to prevent sagging or misalignment
• Restores smooth, controlled movement of sliding parts
• Helps eliminate rattling, binding or uneven travel caused by a loose or broken holder
• Works as a direct-fit support when the original holder is damaged or worn

• Disconnect power and remove any movable components before beginning work
• Installation typically requires basic hand tools; keep fasteners from the original part for reuse if undamaged
• Inspect adjoining rails, slides and mounting points; replace any damaged hardware for best results

The Tray Assembly is an OEM part for LG refrigerators. This tray provides a dedicated storage compartment in the refrigerator's fresh food section. It holds fruits and vegetables separate from other items to help extend their freshness.

Causes of a bad tray can include cracks or breaks in the plastic due to age or excessive weight, or damage to the mounting hardware that secures it in place.

Symptoms of a bad tray include:

• The tray no longer fitting securely in the refrigerator
• Items placed in the tray sliding around more than expected
• Small pieces of the tray being cracked or broken off

This OEM LG part is also compatible with some Kenmore models.

The Tray Cover Assembly is an OEM part for LG French door refrigerators featuring flex zone adjustable tray systems. This assembly covers the tray area when retracted into the refrigerator door.

Causes of a bad tray cover assembly can include warping or deformation from temperature fluctuations, damage from overloading trays, or punctures reducing durability.

Symptoms of a bad tray cover assembly include:

• Gaps allowing cold air leaks when trays closed
• Difficulty fully inserting or removing adjustable trays
• Cracks or breaks compromising waterproof barrier
• Tray covers not staying securely in the retracted position

Replace yours today with this genuine OEM LG assembly to maintain optimal energy efficiency and safeguard contents. Covers keep foods fresh whether trays are hidden or extended. This replacement part is also compatible with Samsung, GE, and Kenmore refrigerator doors with flex storage options.

This Vegetable Tray Assembly replaces a damaged or worn crisper pan to keep produce contained and stable in the refrigerator. It restores a clean, level surface for fruits and vegetables and helps maintain normal storage organization. What it does:

• Replaces cracked, warped, or broken crisper drawer pans that allow leaks or unstable storage
• Provides a smooth, easy-to-clean surface for storing fruits and vegetables
• Supports proper drawer alignment so the crisper slides in and out smoothly
• Helps prevent produce from sitting in spills or pooling liquids

• Disconnect power to the refrigerator or follow the manufacturer's safety guidance before servicing.
• Remove the existing crisper drawer and slide the tray into the drawer compartment, aligning rails and stops.
• Inspect drawer tracks and guides for damage; replace or clean as needed to ensure smooth operation.

A replacement vegetable tray assembly that holds produce in the refrigerator crisper area and restores proper storage support and airflow. Designed to fit into the factory crisper slot and keep fruits and vegetables organized. What it does:

• Replaces a cracked, warped, or missing crisper tray to restore stable storage for produce
• Supports the crisper drawer and helps maintain proper airflow around stored items
• Prevents direct contact between produce and the refrigerator floor, reducing bruising
• Fits into the existing crisper housing and works with the factory slide/rail system

• Installation is user-serviceable; remove crisper drawer and slide the tray into place on the rails
• Inspect surrounding rails and supports for damage before installing the new tray
• Use gentle pressure to seat the tray—do not force or bend the part
• Unplug refrigerator or disconnect power if removing components that expose electrical parts

This TV cover assembly replaces the outer cabinet trim that protects internal components and gives the set a finished appearance. It restores a clean exterior and helps keep dust and debris away from electronics. What it does:

• Replaces damaged, cracked or missing cabinet trim to improve appearance and protect internal parts
• Covers and secures rear/internal openings to reduce dust buildup
• Restores proper mounting surfaces for screws and other trim pieces
• Helps prevent accidental contact with internal components

• One TV cover assembly

• Refer to the TV service manual for disassembly and reassembly steps specific to your model
• Disconnect power and allow the TV to fully cool before beginning work
• Use appropriate screwdrivers and keep fasteners organized during removal and installation
• If clips or mounting hardware appear damaged, replace them to ensure a secure fit

This name plate is the exterior emblem that mounts to the appliance's front panel. It replaces a missing, cracked, or faded badge to restore a clean, factory look and cover the designated trim area.

• Attaches to the outer panel to display brand/series identification
• Restores a finished appearance where the original emblem sits
• Direct replacement for a lost, damaged, or worn badge
• Typical symptoms: missing emblem, loose or broken tabs, peeling, or discoloration

• Disconnect power before servicing the appliance
• Carefully remove the old emblem; release any tabs from behind or peel away remaining adhesive
• Clean and dry the mounting surface; remove all residue for best fit
• Align with the recess/holes and press evenly until fully seated

This small stopper fits inside the handle assembly to limit travel and keep the handle properly seated. Replacing a worn or missing stopper restores a solid, secure feel when opening and closing your appliance.

• Provides a positive stop for handle movement
• Helps keep the handle aligned and seated against its mounts
• Replaces a cracked, deformed, or missing stopper
• Common signs: handle feels loose or wobbly, over-rotates, or shifts/clicks during use

• Unplug the appliance before servicing to prevent injury
• Support the handle and protect the finish while removing fasteners
• Note the original stopper's orientation and install the new one the same way
• Tighten fasteners evenly; do not overtighten to avoid damaging plastic or finishes

Keep your refrigerator sealed to maintain temperature and efficiency with this replacement door gasket assembly. Designed to restore a tight door seal and help prevent condensation, frost build-up, and food spoilage when the original seal is damaged. What it does:

• Replaces a worn, torn, or deformed refrigerator door gasket to restore proper sealing.
• Helps maintain consistent interior temperature by preventing warm air leaks.
• Reduces frost buildup and excessive compressor runtime caused by poor seals.
• Can improve energy efficiency and help prevent food spoilage from temperature fluctuations.

• Intended for refrigerator door replacement; refer to your model's service manual for exact fit and procedure.
• Remove power to the appliance before starting any repair to avoid electrical hazards.
• Clean the door flange before installing the new gasket to ensure a proper seal.
• If adhesive or retaining clips are used, follow OEM instructions and allow adhesives to cure fully before closing the door.

Replace a cracked or missing bin on your refrigerator door with this door basket assembly. It restores safe, organized storage so condiments, jars, and bottles stay upright, visible, and easy to reach.

• Mounts to the inner door liner to hold bottles, jars, and small items
• Helps keep contents upright during door opening/closing
• Direct replacement for damaged, warped, or missing bins
• Common symptoms: bin won't stay seated, broken tabs, loose/sagging fit, or tipping items

• Remove items from the old bin and lift straight up to release it from the door slots
• Align the new bin's hooks/tabs with the slots and press down until fully seated
• Confirm a secure fit before loading; distribute weight evenly and avoid overloading
• Handle plastic carefully; allow the bin to reach room temperature before installation if delivered cold

This door basket is the bin that mounts on the refrigerator door to hold bottles, condiments, and small items. Replacing a cracked or loose bin restores secure, organized door storage and helps prevent spills or items falling.

• Provides stable, easy-access storage on the refrigerator door
• Replaces a broken, missing, or loose door bin
• Common symptoms: cracked plastic, broken locking tabs, won't stay seated, falls off the door
• Helps keep smaller containers upright and organized

• Remove items from the old bin; lift it up and out of the door liner slots
• Align the new bin's hooks with the door guides for the intended position and press down until fully seated
• Verify it is locked in place before loading; avoid overloading

The Door Basket is an OEM part for LG refrigerators. It provides additional storage space on the refrigerator door, allowing for the organization and easy access to items such as bottles, jars, and condiments. The basket is designed to fit securely into the door, maximizing the available storage area.

Causes of a bad door basket can include wear and tear from regular use, cracks or breaks due to overloading, or damage from accidental impacts. These factors can compromise the basket's ability to hold items securely.

Symptoms of a bad door basket include:

• Cracks or breaks in the basket material
• Items not staying in place or falling out when the door is opened
• Difficulty in fitting the basket securely onto the door

This OEM LG part is also compatible with Sears/Kenmore.

The Door Closing Cam is an OEM part for LG refrigerators. This part ensures the refrigerator door closes smoothly and securely. It helps guide the door into the correct position and ensures a tight seal, which is essential for maintaining the internal temperature and efficiency of the appliance.

Causes of a bad door closing cam can include wear and tear over time, damage from repeated use, or accidental impacts that can misalign or break the cam.

Symptoms of a bad Door Closing Cam include:

• The door not closing properly or securely
• Difficulty in opening or closing the door
• Unusual noises when operating the door
• Misalignment of the door

This OEM LG part is also compatible with some Kenmore models.

RAIL,SLIDE-LEFT

RAIL,SLIDE-RIGHT

This connector assembly links refrigerator components with a secure, factory-style connection. Replace a damaged or loose connector to restore reliable operation and prevent intermittent performance of the part(s) attached to it. What it does:

• Joins two factory leads/components with a secure locking interface
• Restores a stable connection so the attached component operates reliably
• Helps address intermittent operation, no response, or flickering due to worn or heat-damaged connectors
• Replaces connectors with broken locking tabs, loosened contacts, or visible melting/corrosion

• 1 connector assembly

• Disconnect power before servicing; if working near water lines, also shut off the water supply
• Note connector orientation and routing; take photos to aid reassembly
• Depress the locking tab to release; avoid pulling on wires
• Seat the new connector fully until it locks; route away from sharp edges and moving parts

This hinge cover is a trim piece that snaps over the appliance door hinge to protect the hinge assembly and give the door a finished appearance. It helps keep the hinge area free of debris and reduces snagging. What it does:

• Covers and protects the hinge assembly and fasteners from dirt and wear
• Keeps clothing and fabric from catching on exposed hinge parts
• Restores the door's finished look after hinge service or damage
• Helps prevent debris buildup that can affect hinge movement

• One hinge cover

• Disconnect power to the appliance before starting any repair
• Typically installs by snapping or sliding over the hinge; basic hand tools may be needed to remove the door or adjacent trim
• Handle carefully to avoid scratching the finish; do not force into place
• Replace damaged components before installing the cover

This upper hinge assembly secures and pivots the refrigerator door, restoring proper door support and alignment so the door opens and closes smoothly. Ideal for replacing worn or damaged top hinge hardware. What it does:

• Supports the top of the refrigerator door and provides the pivot point for smooth opening and closing
• Restores proper door alignment to reduce gaps and improve sealing
• Replaces worn or bent hinge parts that can cause door sag or uneven closing
• Helps eliminate squeaks and binding at the top hinge

• Disconnect power to the appliance and empty or secure door contents before starting
• Remove door trim or screws as needed to access the hinge; keep track of fasteners
• Reuse existing mounting hardware only if undamaged; replacement fasteners may be required
• After installation, check door alignment and adjust as necessary for an even seal

This upper hinge assembly secures the top of the refrigerator/freezer door and restores proper door alignment for reliable opening and closing. Replacing a worn or damaged hinge helps stop sagging, rubbing, and improper sealing. What it does:

• Supports the top of the appliance door and provides the pivot point for smooth door movement.
• Restores correct door alignment to improve sealing and help maintain internal temperature.
• Reduces noise, scraping, or rubbing caused by a bent or worn hinge.
• Prevents further strain on door seals and bottom hinge when properly installed.

• Disconnect power before starting and remove food from the door(s) as needed.
• Support the door while removing and installing the hinge; a second person may be required for heavier doors.
• Keep original fasteners if reusing; replace any damaged screws or bushings with OEM parts.
• After installation, check door alignment and operation; do not overtighten fasteners.

This hinge cap is a small replacement cover that clips over the refrigerator door hinge to protect the hinge pin and give the hinge a finished appearance. It helps keep debris out of the hinge and maintains smooth door movement. What it does:

• Covers and protects the exposed hinge pin and hinge assembly from dirt and damage
• Keeps hinge lubrication cleaner to reduce sticking or squeaking
• Restores the finished look of a chipped or missing hinge cover
• Helps maintain proper hinge alignment by holding cover components in place

• Unplug the appliance or disconnect power before starting work
• Support or remove the door per the manufacturer's instructions to access the hinge if required
• Snap the cap into place over the hinge; avoid forcing to prevent breakage
• Inspect the entire hinge assembly and replace damaged components as needed

The Hinge Assembly is an OEM component specifically designed for LG refrigerators. This assembly attaches to the center refrigerator door panel and allows for smooth opening and closing.

Symptoms of a bad hinge assembly include:

• Loose or sagging doors that do not close properly
• Difficulty opening/closing the refrigerator door
• Severe shaking or vibrations from uneven tension
• Scratches or damage to surrounding door/cabinet areas

Causes of a worn hinge assembly can include normal wear from years of use opening/closing the heavy door. Moving components like hinges endure the stress that may loosen mounting points over time.

This OEM LG part is also compatible with Sears/Kenmore models. Replacing the hinge assembly restores proper balance and tension for easy access to your LG refrigerator. Regular maintenance ensures long-lasting performance.


The Hinge Bushing is an OEM part for LG refrigerators. It serves as a crucial component in the door hinge mechanism, ensuring smooth and stable operation when opening and closing the refrigerator door.

You should replace this hinge bushing if it becomes worn out or damaged. Common causes of a bad hinge bushing include constant use leading to wear and tear, misalignment of the door, or physical damage due to impact.

Symptoms of a bad hinge bushing include:

• Difficulty in opening or closing the door
• The door sagging or not aligning properly
• Unusual noises like squeaking or grinding when the door is moved

This OEM LG part is also compatible with Sears/Kenmore.

This evaporator assembly is the sealed refrigeration coil and housing that absorbs heat inside the refrigerator/freezer to enable cooling. Replacing a faulty evaporator restores proper heat transfer for normal cooling performance. What it does:

• Circulates refrigerant through the evaporator coil to remove heat from the cabinet air.
• Helps prevent frost buildup when working correctly; heavy frost on the evaporator can indicate failure.
• Restores cooling when a damaged or corroded evaporator reduces cold production or causes inconsistent temperatures.
• Works as the core heat-absorption component in the appliance's sealed refrigeration loop.

• Disconnect power to the appliance before starting any repair.
• Access typically requires removing interior panels and defrosting the evaporator area; follow manufacturer service instructions.
• Handle carefully to avoid sharp edges and damage to the coil or tubing.

A small retaining pin used to secure moving parts and keep components aligned for smooth operation. Replacing a worn or broken common pin can stop rattling and restore proper fit between linked parts. What it does:

• Holds or aligns two parts together so they move correctly and stay in position
• Helps prevent rattling, looseness, or parts slipping out of place
• Works as a simple mechanical fastener—no electronics involved

• One common pin

• Disconnect power to the appliance before beginning any service
• Keep track of small parts; lay out components in order to aid reassembly
• May require removal of trim or a hinge/retainer to access the pin—use basic hand tools
• If the pin is difficult to seat, do not force; inspect mating parts for damage

This damper cushions and isolates the refrigerator compressor to reduce vibration and noise for smoother operation. It helps maintain stable compressor mounting and prevents metal-to-metal contact that can cause wear or rattling. What it does:

• Absorbs compressor vibrations to reduce noise and movement
• Helps protect the compressor housing and mounting points from shock
• Can reduce rattling or knocking sounds originating near the compressor area
• Supports proper alignment of the compressor assembly during operation

• One compressor damper (mounting isolator)

• Turn off power at the breaker and unplug the appliance before servicing
• Inspect mounting area and hardware; replace any damaged fasteners before installing the damper
• Position the damper on the compressor mount as shown in the service manual and secure per OEM guidance

This small stopper installs in the refrigerator to limit the travel of a moving component and keep it securely in place. Replacing a broken or missing stopper prevents over-extension and helps maintain smooth, aligned operation.

• Limits the range of motion for a door, bin, or drawer to prevent over-opening or accidental removal
• Helps keep interior components aligned and operating smoothly
• Replace if cracked, missing, or deformed
• Common symptoms: drawer or bin slides out too far, door swings past normal range, or a broken plastic stop is found

• Disconnect power before servicing; remove or support the affected bin/drawer/door
• Note the old stopper's orientation and location before removal
• Transfer and reuse any original screws or clips if applicable
• Snap or fasten the new stopper in place and test for smooth movement

This holder secures the dryer-related assembly in place to reduce movement and wear, helping maintain proper alignment and quieter operation. It's a simple replacement that restores part stability in the appliance. What it does:

• Secures a dryer assembly or component to the appliance frame to prevent shifting
• Helps reduce vibration and rubbing noises caused by a loose part
• Maintains correct alignment so related parts operate smoothly
• Used when the existing holder is cracked, broken, or missing

• Disconnect power before replacing any dryer components to avoid shock or injury
• Access location and removal steps vary by model; follow the appliance's service manual or exploded view
• Keep fasteners and adjacent parts organized for reassembly; replace any damaged clips or screws

This drip tray collects and channels excess water inside the appliance to the evaporation area, helping prevent puddles and water damage. Fits original-equipment configurations. What it does

• Catches defrost and condensation water that drains from the interior
• Directs water toward the appliance's evaporation/heat area to allow safe evaporation
• Helps prevent water pooling on shelves or the floor near the appliance
• Commonly replaced when cracked, warped, or leaking

• One drip tray as shown

• Disconnect power before service and remove stored food from nearby compartments
• Often accessed by removing lower drawers or kick plate; keep track of mounting clips and screws
• Inspect surrounding drain tube and seals for clogs or damage while replacing the tray
• Replace immediately to avoid leaks

This fan guide directs airflow inside the appliance to improve cooling efficiency and protect the fan assembly. It replaces a worn or broken guide so the fan blades run without rubbing and airflow stays properly channeled. What it does:

• Channels air from the fan to the correct internal passageways for consistent cooling
• Keeps fan blades centered and prevents contact with surrounding components
• Helps reduce vibration and noise caused by a damaged or loose guide
• Common symptom: noisy fan, blade rubbing, or uneven cooling in the compartment

• One replacement fan guide

• Disconnect power before servicing to avoid shock or injury
• Remove access panels and the fan assembly to reach the guide
• Inspect adjacent fan blades and mounts for damage; replace any worn parts
• Reassemble panels and test operation before returning appliance to service

The Fan Guide Assembly is an OEM component specifically designed for LG refrigerators equipped with rear evaporator fans. This assembly guides proper airflow within the refrigerator compartment.

Symptoms of a bad fan guide assembly include:

• Development of warm or cool spots inside fridge surfaces
• Excessive frost or moisture buildup at specific locations
• Reduced temperature fluctuation stability
• Abnormally loud fan operation sounds

Causes of failure can be damage allowing fan blade strikes, cracks reducing structural integrity over time, or accumulation of dust clogging air passages.

Replace yours today with this genuine OEM LG assembly to maintain optimized cooling throughout storage areas. Smooth, balanced airflow preserves food freshness evenly. This replacement part is compatible with Frigidaire, GE, and Samsung models for factory fit and function. Proper air distribution helps maintain energy efficiency.

The Evaporator Fan Blade is an OEM replacement part for LG refrigerators. It is a key component located inside the refrigerator that works to circulate cold air evenly throughout. The fan blade spins rapidly to distribute chilled air from the evaporator coil and refrigeration system, ensuring proper airflow and consistent temperatures across all shelves and compartments.

Symptoms of a bad evaporator fan blade include:

• Inconsistent or improper interior cooling temperatures
• Hot or warm spots developing inside the refrigerator
• Strange noises such as clicking or grinding emanating from the rear wall

Causes of a bad evaporator fan blade can be wear and tear over time, an accumulation of dust or debris on the blades restricting airflow, or accidental damage like dents or cracks to the blades affecting their ability to spin smoothly.

This OEM LG part is also compatible with select Sears/Kenmore brand models.

The Fan and Grille Assembly is an OEM component designed for LG refrigerators. This assembly circulates air within the refrigerator compartment to maintain even cooling temperatures.

Causes of a bad fan and grille assembly can include failure of motorized fan components over time, buildup of dust or debris restricting airflow, or physical damage to fan blades.

Symptoms of a bad fan and grille assembly include:

• Development of warm spots within the fridge
• Excessive frost or ice buildup inside
• Louder than normal operating sounds
• Inability to maintain proper temperature settings

Replace yours today with this genuine OEM LG assembly to restore optimized air circulation for balanced cooling. This replacement assembly is compatible with Kenmore, Frigidaire, and GE refrigerator models. Proper airflow is essential for energy efficiency and food freshness.

The Controller Assembly is an OEM part for LG French door refrigerators. This crucial assembly governs temperature regulation, cycle functions, and user interface menus.

Symptoms of a bad controller assembly include:

• Inability to adjust temperatures from the control panel
• Constantly running or cycling without maintaining ranges
• Digital displays dimming, flickering, or unresponsive
• Refrigerator failing to power on or function properly

Causes of failure can involve water damage corroding circuitry, faulty programming chips, or worn internal connections.

Replace yours today with this genuine OEM LG assembly before component breakdowns risk food safety or increase utility costs. This controller is also compatible with Samsung, KitchenAid, and GE refrigerator models.

The SWITCH, MAGNET is an OEM part for LG refrigerators. It is a switch designed to function in conjunction with the magnetic door seal, indicating to the refrigerator when the door is open or closed. This allows the refrigerator to regulate temperatures properly based on door positioning.

Symptoms of a bad switch, magnet can include:

•  Temperature control issues, with the fridge struggling to maintain proper coolness levels
•  The fridge fails to switch to energy-saving modes when the door is closed
•  Lights not turning on or off correctly when the door is opened or closed

Replace yours today with this genuine OEM LG part to ensure consistent and reliable temperature control. This OEM LG part is also compatible with Sears/Kenmore.

The Evaporator Fan Motor Assembly is an OEM replacement part for LG refrigerators. This assembly is responsible for circulating cold air from the evaporator coils throughout the refrigerator and freezer compartments. By doing so, it ensures that both compartments maintain the desired temperatures and that the cooling process is efficient.

Causes for a malfunctioning Evaporator Fan Motor Assembly can include motor wear from continuous operation, electrical issues like faulty wiring, obstructions preventing the fan blades from turning, or damage to the fan blades themselves.

Symptoms of a bad Evaporator Fan Motor Assembly include:

• Inconsistent temperatures in the refrigerator or freezer compartments
• Unusual noises, such as humming or buzzing, coming from the back of the refrigerator
• Reduced cooling efficiency, leading to food spoiling faster
• Frost buildup in the freezer due to poor air circulation

This OEM LG part is also compatible with Sears/Kenmore model refrigerators.

The Rear Evaporator Motor Grommet is an OEM part for LG refrigerators. It's designed to secure and cushion the evaporator motor, ensuring it remains in place and operates quietly. This grommet plays a crucial role in minimizing vibrations and noise from the motor, which can otherwise lead to a disruptive refrigerator operation.

Causes of a bad Rear Evaporator Motor Grommet can result from deterioration due to cooling and thawing cycles in the refrigerator. Physical damage during cleaning or servicing may cause a loose motor fit.

Symptoms of a malfunctioning Rear Evaporator Motor Grommet include:

• Unusual noises or vibrations from the back of the refrigerator.
• The evaporator motor shifting out of place, which can affect cooling efficiency.
• Increased wear on the evaporator motor due to lack of proper cushioning and support.

This OEM LG part is also compatible with some Kenmore models.

The Front Evaporator Motor Grommet is an OEM part for LG refrigerators. This grommet cushions and secures the evaporator motor, reducing vibrations and noise during operation to ensure efficient cooling.

Causes of a bad grommet can include prolonged use leading to material fatigue, exposure to extreme temperatures, or physical damage from accidental impacts. A damaged grommet can result in increased noise and potential misalignment of the evaporator motor.

Symptoms of a bad evaporator motor grommet include:

• Increased noise from the refrigerator
• Vibrations or rattling sounds
• Poor cooling performance
• The evaporator motor becoming loose

This OEM LG part is also compatible with Sears/Kenmore.

This LED light strip assembly restores the backlight that illuminates an LED TV screen, improving picture brightness and uniformity when the display is dim or has dark spots. What it does:

• Replaces the TV's backlight LED strips that provide even screen illumination
• Can correct symptoms such as a dark screen with audio, dim or uneven brightness, or bright vertical/horizontal bands
• Works with the TV's existing power and driver boards to light the display when functioning
• Designed as a direct-fit board for compatible TV panel assemblies

• One LED light strip assembly

• Unplug the TV and remove the power cord before disassembly to avoid shock
• Handle the LCD panel and LED strip carefully; avoid touching LEDs or circuitry directly
• Protect against static discharge (use grounding strap or touch chassis) and keep screws/parts organized
• Test the TV after reconnecting the assembly but before final reassembly to confirm repair

The Power Cord Assembly is an OEM replacement part for LG refrigerators. It includes the electrical cord and strain relief that links the refrigerator to an external power source.

This power cord assembly safely delivers electricity from the wall outlet to the internal compressor and fan modules. It facilitates proper cooling functions through this transmission of alternating current.

Symptoms of a bad power cord can include:

• Abnormal sounds such as humming or buzzing from within
• Tripped circuit breakers interfering with operations
• Indicators of cord damage like frays or exposed wiring
• Inconsistencies in interior temperature maintenance

Causes may involve normal wear over extended use, physical stress, or accidental damage to the cord insulation.

Replacing the power cord assembly with this genuine LG OEM part restores a reliable electrical pathway. It ensures a continued power supply to keep foods fresh and frozen.

This wire harness assembly routes and organizes the appliance's electrical connections, delivering power and signals between the control and other components. Replacing a damaged or burnt harness helps restore safe, reliable operation and reduce intermittent electrical issues.

• Distributes electrical power and signal paths for proper component operation
• Maintains correct wire routing and secure connector interfaces to prevent chafing or loose connections
• Failure symptoms can include no power/won't start, dead display or lights, intermittent operation, tripped breaker/fuse, or wiring-related error codes
• Visible damage such as melted connectors, brittle insulation, or arcing marks indicates replacement is needed

• Disconnect power before servicing; also shut off water or gas supplies
• Photograph original routing; move connectors one at a time to avoid miswiring
• Do not pull on wires—release locking tabs and seat connectors fully
• Re-secure with original clips/ties, keeping wiring clear of hot, sharp, or moving parts

This DC motor drives the refrigerator's circulation fan, moving air across the coils and through the compartments for steady, efficient cooling. Replacing a weak, noisy, or seized motor restores airflow and temperature stability. What it does:

• Converts DC power into rotation to spin the attached fan and promote airflow
• Supports efficient heat exchange for even compartment temperatures
• Common symptoms: fan not running or intermittent, loud humming/squealing/grinding, warm spots or frost buildup, longer run times
• Contributes to reduced ice production or error codes in some models

• 1 DC motor

• Disconnect power and wear cut-resistant gloves; internal panels may have sharp edges
• Access the motor behind the interior panel or rear service panel; note connector orientation and wire routing
• Transfer the fan blade, grommets, and any mounting hardware from the old motor if needed
• Seat the blade fully and verify it spins freely before reassembly and restoring power

This cover assembly protects the appliance's printed circuit board from debris, moisture and accidental contact, helping preserve reliable control operation. It provides a secure enclosure that keeps the PCB mounted and shielded during normal use. What it does:

• Shields the control board from dust, moisture splash and foreign objects that can cause shorts or component damage.
• Keeps wiring and connectors routed and secured to reduce strain and intermittent connections.
• Helps maintain correct spacing and alignment of the PCB for reliable electrical contacts.
• Useful when the original plastic cover is cracked, warped, missing or allows board exposure.

• One cover assembly for PCB.

• Disconnect power to the appliance before beginning any service to avoid shock or damage.
• Handle the PCB and connectors carefully; avoid touching board components or bending traces.
• Align cover over the PCB and fasten with the original screws or clips; do not overtighten plastic fasteners.

The Main Control Board is an OEM part for LG refrigerators. As the central electronic component, it regulates all cooling system functions including temperature management, compressor operation, fan speed control, and more.

Causes of a bad main control board can include power surges, moisture damage, or deterioration of integrated circuits over many years of use.

Symptoms of a bad control board include:

• Erratic or flashing temperature displays
• Inability to adjust temperatures or settings properly
• The refrigerator failing to cool or freezer not maintaining temperature
• Electrical buzzing or humming noises coming from inside

This LG part is also compatible with some Kenmore models.

The Ice Maker Assembly Kit is an OEM part for LG refrigerators. This kit includes all the components necessary to produce ice efficiently, ensuring a steady supply of ice cubes for your household needs. This particular 12-cube ice maker assembly features a 10-wire harness.

Causes of a bad ice maker assembly can include wear and tear over time, issues with the water supply, or mechanical malfunctions that prevent the ice maker from operating correctly. These issues can lead to a reduction in ice production or complete failure of the ice maker.

Symptoms of a bad ice maker assembly include:

• No ice production
• Ice cubes being smaller than usual
• Leaks around the ice maker area
• Unusual noises during the ice-making process

This OEM LG part is also compatible with Sears/Kenmore.

This holder assembly is a structural mounting piece that supports and secures an internal component in your appliance. Replacing a cracked or worn bracket helps restore proper alignment and keeps parts stable during everyday use.

• Provides a rigid mounting point for the attached component
• Keeps parts aligned to reduce movement and vibration
• Helps prevent rattling or noise from loose mounts
• Common signs of failure: visible cracks/broken tabs, looseness, or parts that won't stay seated

• Disconnect power and, if applicable, turn off the water supply before service
• Note the orientation of the original part to match fitment
• Reuse existing mounting screws or hardware unless the manufacturer specifies otherwise
• Do not overtighten fasteners; the secured component is fully seated and stable

The Filter assembly,water is an OEM component specifically designed for LG refrigerator water filters. This assembly contains activated carbon blocks that remove impurities from the water supply as it flows through.

Causes for replacement include normal filter exhaustion from heavy water use, or accidental damage. LG recommends changing the filter every 6 months for optimum performance.

Causes of a bad water filter assembly include:

• Impurities detected in taste tests of dispensed water
• Slimy or unappealing buildup in water lines or dispenser area
• Error codes or functionality issues with the dispenser

This OEM LG part is also compatible with select Sears/Kenmore refrigerators.

This water filter assembly replaces the refrigerator's water filtration module to help restore clear-tasting water and steady flow. Fits models that use the AGF80300705 assembly and installs at the refrigerator water inlet. What it does:

• Filters sediment and common taste/odor contaminants to improve drinking water quality
• Restores reduced water flow caused by a clogged or failing filter module
• Helps reduce visible particulates and cloudiness in dispensed water
• Prevents unfiltered water from reaching the dispenser/ice maker when installed

• Turn off refrigerator water supply before replacing the assembly to avoid leaks
• Hand-tighten connections; avoid overtightening fittings to prevent damage
• Run and discard the manufacturer-recommended initial volume of water after install to flush the system

This ice/water tube assembly routes water between the dispenser and the ice/water components to restore proper water flow. It replaces damaged, kinked, or leaking tubing to help stop drips and restore dispensing. What it does:

• Carries water from the supply or valve to the ice maker/dispenser
• Prevents leaks and maintains consistent water flow when intact
• Commonly replaced for visible cracks, splits, or persistent leaks
• Helps stop intermittent dispensing or weak water flow caused by damaged tubing

• Shut off the refrigerator power and water supply before starting
• Inspect and replace any worn seals or clips when reattaching the tube
• Avoid sharp bends or kinks when routing the tube; secure with existing clips

This foam gasket is a flexible seal strip that helps close gaps and reduce vibration and air or water leaks around the appliance access area. It restores proper sealing to improve performance and reduce noise and moisture escape. What it does

• Provides a soft, compressible seal to block air or water from escaping at the joint or door area
• Cushions panels and reduces vibration and rattling during operation
• Helps prevent moisture buildup and drafts that can cause performance issues
• Addresses common symptoms like visible leaks, increased noise, or loose-fitting panels

• One foam gasket seal strip

• Install in the OEM-specified location and orientation; trim to fit only if the manufacturer instructions allow
• Clean mating surfaces of dirt, grease, and old adhesive before applying for best adhesion
• Use appropriate adhesive or fasteners recommended by the manufacturer when required
• Disconnect power and water and follow basic safety precautions before servicing

This refrigerator water inlet valve assembly controls the flow of household water into the appliance. Replacing a faulty valve restores proper water delivery to the ice maker and/or dispenser and can stop leaks or continuous filling issues. What it does:

• Opens and closes to direct incoming water to the ice maker and/or dispenser as commanded
• Regulates fill so ice trays and dispenser receive the correct amount of water
• Resolves no water from dispenser, no ice or small/thin cubes
• Addresses slow fill/low flow, dripping from the back of the fridge, or continuous water flow
• A failing valve may buzz or click without dispensing water

• 1 water inlet valve assembly

• Unplug the refrigerator and turn off the household water supply before starting
• Place a towel or tray to catch residual water; relieve line pressure by dispensing until flow stops
• Note tubing and wire positions; transfer any mounting hardware from the old valve if needed
• After installation, restore water and power, check all connections for leaks, and flush the water system to purge air

A small trim cap that covers and protects an exposed fastener or access opening, restoring the appliance's finished appearance and helping keep dirt and moisture out of the opening. What it does:

• Covers exposed screw heads or access holes to improve appearance
• Helps prevent dirt and moisture from entering openings around fasteners
• Restores a flush, finished surface after repair or panel removal
• Reduces the chance of snagging or accidental contact with recessed hardware

• One cap cover

• Disconnect power to the appliance before starting any repair
• Press into place over the fastener or opening until fully seated; no special tools usually required
• Avoid forcing or prying to prevent breakage of the cap or surrounding trim
• Replace any damaged surrounding trim or retainers to ensure a secure fit

The Temperature Sensor is an OEM part for LG refrigerators. Also known as a thermistor, is responsible for sensing the temperature changes and providing the necessary feedback to the refrigerator's control board. It helps maintain accurate and consistent temperature levels, ensuring optimal food preservation and efficient cooling.

Causes of a faulty temperature sensor can include wear and tear over time, damage due to electrical issues or exposure to extreme temperatures, or sensor calibration issues. These factors can result in temperature inconsistencies, inaccurate readings, or improper cooling performance of the refrigerator.

Symptoms of a bad temperature sensor may include:

• Incorrect temperature readings on the control panel
• Temperature fluctuations inside the refrigerator
• Overcooling or inadequate cooling of food items

This OEM LG part can also be used on Kenmore/Sears appliances.
