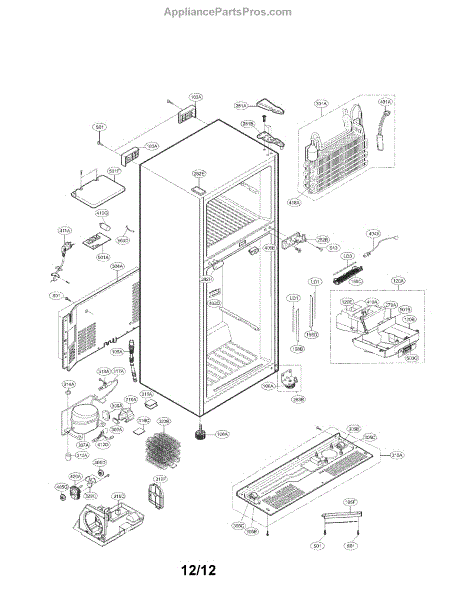

Parts for Lg LTC24380ST/00: Case Parts

This is a genuine replacement screw used to secure appliance panels and components. It restores proper fastening so panels and assemblies stay aligned and operate safely. What it does:

• Fastens panels, brackets, and small assemblies to maintain structural integrity
• Replaces missing or stripped screws that cause rattling or loose parts
• Helps stop vibration-related noise when used in its original mounting locations
• Matches the OEM fit to ensure proper alignment and clearance

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or component damage
• Disconnect power to the appliance before working on electrical components
• Replace all matching fasteners for even fit

This customized screw is the manufacturer-specified fastener used to secure appliance components and panels at their mounting points. Replace a missing, stripped, or corroded original to restore a tight fit, proper alignment, and help eliminate vibration or rattling.

• Secures brackets, covers, and panels to the chassis at designated mounting points
• Maintains alignment and stability of the assembly during operation
• Helps address loose or rattling components caused by a missing or damaged fastener
• Direct replacement for the original fastener used in the specified location

• Disconnect power; shut off water before servicing
• Match head/length to the original; transfer any original clips or washers if used
• Start threads by hand to avoid cross-threading; use the correct driver bit
• Tighten until snug—do not overtighten into plastic or thin sheet metal

This leveling leg assembly stabilizes and levels your refrigerator so it sits solidly on the floor and the doors align correctly. Replacing a worn or stripped leg helps reduce rocking and vibration and restores smooth leveling adjustment.

• Provides height adjustment to level the cabinet on uneven floors
• Supports the unit to prevent rocking or wobbling
• Helps doors close and seal properly when the cabinet is level
• Symptoms may include persistent wobble, vibration/rattling, or a stripped/bent foot or screw

• Unplug the refrigerator and use a helper to prevent tipping injuries.
• Protect flooring; remove the kickplate/grille for access if present.
• Thread out the worn leg; hand-thread the new assembly and adjust height—do not over-extend.
• Level side-to-side and front-to-back per your owner's manual, then reattach any panels.

This control case assembly is the replacement outer housing that holds and protects the appliance control board and user interface, restoring a secure fit and proper button/panel alignment for safe operation. What it does:

• Houses and protects the control board and associated electronics from dust, moisture, and accidental contact
• Keeps control panel buttons and switches properly aligned for reliable user input
• Prevents loose or rattling control components that can cause intermittent operation or noise
• Supports the front panel and display mounting for normal appearance and functionality

• Disconnect power to the appliance before starting any repair to avoid electric shock.
• Handle the control board and connectors carefully; avoid touching circuit traces or components.
• Basic hand tools are typically required to remove the panel and transfer the control board into the new housing.
• If the control board is damaged or shows corrosion, this part replaces only the housing unless otherwise specified.

This hinge cover is a replacement trim piece that hides and protects the appliance door hinge for a finished appearance and safer edges. It restores the original look and helps prevent dirt buildup around the hinge. What it does:

• Covers and protects the door hinge assembly from dust and debris.
• Restores the appliance's finished appearance by replacing cracked or missing trim.
• Helps keep clothing and hands from catching on exposed hinge parts.
• Can reduce noise from loose trim that rubs against the cabinet or door.

• Hinge cover

• Disconnect power (and water if applicable) before servicing the appliance.
• Remove the outer panel or access trim to reach the hinge area.
• Align cover over the hinge and secure using the existing clips or fasteners; do not force or pry plastic parts.
• If screws are used, tighten snugly but avoid over-torquing to prevent cracking.

Upper hinge assembly that restores proper door pivot and alignment for smooth opening and closing. Replacing a worn or damaged upper hinge helps reduce sag, noise, and uneven sealing so the door closes correctly. What it does:

• Supports and pivots the refrigerator door for stable, controlled movement.
• Keeps the door aligned so the gasket seals evenly and the interior stays cold.
• Use when the door sags, binds, grinds, squeaks, or does not latch evenly.
• Replace bent, worn, or damaged hinge components that cause misalignment.

• Disconnect power and remove items from the door before starting; follow all safety precautions.
• Door removal and reinstallation often require a second person to support the door.
• Hinge orientation and hardware before tightening; follow the manufacturer service instructions for final alignment.
• Reuse or replace mounting screws and bushings as needed; do not overtighten fasteners.

Restore smooth, proper door movement with this Center Hinge Assembly. It supports the refrigerator door at the middle pivot point, helping maintain alignment and ensuring the door opens and closes correctly to seal out warm air.

• Supports the door at the center pivot for stable operation
• Helps correct issues like a sagging, misaligned, or rubbing door
• Can reduce squeaks or binding when opening/closing
• Helps the door seal contact the cabinet evenly for proper cooling

• Disconnect power and clear items from the door before service
• Support the door to prevent drops; remove hinge cover and mounting screws
• Transfer any shims/spacers in the original order for proper alignment
• After reassembly, verify door alignment and gasket seal

A small retaining pin used to secure moving parts and keep components aligned for smooth operation. Replacing a worn or broken common pin can stop rattling and restore proper fit between linked parts. What it does:

• Holds or aligns two parts together so they move correctly and stay in position
• Helps prevent rattling, looseness, or parts slipping out of place
• Works as a simple mechanical fastener—no electronics involved

• One common pin

• Disconnect power to the appliance before beginning any service
• Keep track of small parts; lay out components in order to aid reassembly
• May require removal of trim or a hinge/retainer to access the pin—use basic hand tools
• If the pin is difficult to seat, do not force; inspect mating parts for damage

This PTC thermistor assembly feeds temperature feedback to the control so the appliance can monitor conditions and run sensor-based cycles correctly. Replacing a failed sensor restores reliable automatic operation and prevents errors that lead to inconsistent results.

• Detects temperature changes and sends a resistance signal to the main control for sensor/auto functions
• Helps regulate time and power during sensor-driven cycles for consistent performance
• Failure symptoms can include "sensor" errors, cycles ending too soon or running too long, or inconsistent results
• In some models, a bad sensor may prevent sensor modes from starting

• Disconnect power before servicing; microwaves can retain dangerous high voltage—discharge the capacitor before touching internal components
• Access and mounting location vary by model; commonly found behind the grille or near the control in the air duct path
• Route the harness exactly as original; keep wiring away from sharp edges and hot areas
• Avoid touching the sensing tip; ensure all connectors are fully seated

This relay cover is a protective housing that shields a washer or dryer relay assembly from dust, moisture, and accidental contact, helping maintain safe and reliable operation of the appliance's control components. What it does:

• Protects the relay and nearby wiring from debris and moisture that can cause shorts or corrosion
• Helps prevent accidental contact with relay terminals during maintenance
• Reduces risk of electrical arcing or damage when relays switch under load
• Can improve long-term reliability of the control assembly when installed and intact

• Disconnect power to the appliance before servicing to avoid electrical shock
• Remove access panels as needed to reach the relay area; basic hand tools typically required
• Handle control board and components carefully to avoid damage from electrostatic discharge
• Replace only with the specified cover; do not modify or force-fit

This small stopper installs in the refrigerator to limit the travel of a moving component and keep it securely in place. Replacing a broken or missing stopper prevents over-extension and helps maintain smooth, aligned operation.

• Limits the range of motion for a door, bin, or drawer to prevent over-opening or accidental removal
• Helps keep interior components aligned and operating smoothly
• Replace if cracked, missing, or deformed
• Common symptoms: drawer or bin slides out too far, door swings past normal range, or a broken plastic stop is found

• Disconnect power before servicing; remove or support the affected bin/drawer/door
• Note the old stopper's orientation and location before removal
• Transfer and reuse any original screws or clips if applicable
• Snap or fasten the new stopper in place and test for smooth movement

This restrainer is a small retaining clip that helps secure moving or removable components in place, reducing rattles and keeping parts aligned for reliable operation. It's a simple replacement for worn or broken clips. What it does:

• Holds a cover, panel, or door-related component in proper position to prevent shifting
• Reduces noise caused by loose or vibrating parts
• Restores original fit where a broken or missing clip allows movement
• Simple mechanical function — no electrical connections or calibration

• One restrainer

• Disconnect power (and water if applicable) before beginning repairs
• Inspect surrounding mounting points for damage; replace any broken tabs or fasteners
• Typically installs with basic hand tools; align clip and press or snap into place until secure

The Drier Assembly is an OEM part for LG refrigerators. This part removes moisture and contaminants from the refrigerant, ensuring the system operates efficiently and effectively. The drier assembly helps maintain the proper function of the compressor and other cooling components, contributing to the longevity and performance of the refrigerator.

Causes of a bad drier assembly can include clogs from debris, wear and tear over time, or contamination from moisture or refrigerant leaks.

Symptoms of a bad drier assembly include:

• The refrigerator not cooling properly
• Frost or ice buildup on the evaporator coils
• Increased noise from the compressor
• Reduced efficiency and higher energy consumption
• You should replace the drier assembly if it becomes faulty or damaged.

This OEM LG part is also compatible with select Sears/Kenmore models.

This holder is a small mounting bracket used to secure internal components in place, helping keep parts aligned and stable for reliable operation. It provides a direct, OEM-compatible replacement to restore proper fit and function. What it does

• Secures and supports nearby components to prevent shifting or vibration.
• Restores proper alignment where a worn or broken holder causes rattling or loose parts.
• Helps maintain normal operation by keeping assemblies seated correctly.
• Works behind panels or inside assemblies where a dedicated bracket is required.

• One holder/mounting bracket as shown.

• Installation generally requires removing the panel or access cover where the holder is located.
• Use proper fasteners shown in your appliance; replace any damaged screws or clips as needed.
• Disconnect power before servicing electrical appliances to reduce shock risk.

This fan assembly circulates air through the appliance so coils and internal components operate at the proper temperature. Replacing a failed or noisy fan can restore airflow and help prevent performance issues caused by weak circulation.

• Moves air across coils and components to support designed cooling/dehumidifying performance
• Helps maintain steady airflow to reduce overheating or icing conditions
• A failing fan can cause little to no airflow even when the unit is running
• Common symptoms: fan not spinning, intermittent operation, loud rattling/grinding, vibration, or thermal shutdown

• Disconnect power before servicing to avoid electrical shock or injury
• Access the fan area per your unit's service information; remove panels/shrouds as needed
• Note wire connections and mounting order; transfer any brackets, grommets, or hardware from the old assembly
• After installation, ensure the fan spins freely and clears all shrouds, then test operation before reassembly

This controller assembly is the display/control circuit board used in compatible units. Replacing a failed board restores proper front-panel operation so you can select settings, view status, and run the appliance reliably again.

• Governs user input and display functions for the appliance's front panel
• Resolves issues like unresponsive buttons, blank or erratic display, or incorrect function selection
• Helps restore normal operation when the original board is shorted or damaged
• Designed to fit per manufacturer specifications for the intended models

• Disconnect power before servicing; electronic components can store charge
• Handle the board by edges; avoid static discharge—use ESD protection if available
• Photograph wire and connector positions before removal to ensure proper reconnection
• Do not overtighten mounting screws; verify all harnesses are fully seated

This motor support damper sits between the refrigerator's compressor and base to absorb vibration and movement. Replacing a worn damper helps quiet rattles and humming from the back of the cabinet and keeps the compressor properly supported.

• Cushions the compressor to reduce transmitted vibration and noise
• Helps quiet humming, buzzing, or rattling from the lower rear of the refrigerator
• Maintains proper compressor alignment and support on the base pan
• Common signs of wear: increased vibration/noise, a cracked or flattened damper, or noticeable compressor movement when running

• Unplug the refrigerator and pull it forward to access the rear; allow the compressor to cool before working
• Support the compressor to remove load from the mount before loosening hardware
• Replace the damper and tighten mounting hardware evenly without over-compressing the rubber
• Avoid bending or stressing refrigerant tubing; wear gloves and eye protection

The Rear Evaporator Motor Grommet is an OEM part for LG refrigerators. It's designed to secure and cushion the evaporator motor, ensuring it remains in place and operates quietly. This grommet plays a crucial role in minimizing vibrations and noise from the motor, which can otherwise lead to a disruptive refrigerator operation.

Causes of a bad Rear Evaporator Motor Grommet can result from deterioration due to cooling and thawing cycles in the refrigerator. Physical damage during cleaning or servicing may cause a loose motor fit.

Symptoms of a malfunctioning Rear Evaporator Motor Grommet include:

• Unusual noises or vibrations from the back of the refrigerator.
• The evaporator motor shifting out of place, which can affect cooling efficiency.
• Increased wear on the evaporator motor due to lack of proper cushioning and support.

This OEM LG part is also compatible with some Kenmore models.

The Refrigerator Door Switch is an OEM part for LG refrigerators, designed to signal the control system when the door is open or closed. This small but essential component plays a critical role in the overall operation of your refrigerator, including the activation of interior lights and the control of cooling functions.

Over time, the door switch can fail due to mechanical wear, accidental damage, or a buildup of debris that may prevent it from functioning correctly.

Symptoms of a bad Refrigerator Door Switch include:

• Interior lights not turning on or off appropriately with the door's position
• The refrigerator running longer than necessary, potentially leading to increased energy bills
• Unusual fluctuations in temperature inside the fridge, affecting food preservation

This OEM LG part can also be used on Kenmore/Sears appliances.

This harness assembly routes power and signals between appliance components to restore electrical connections and normal operation. It replaces damaged or frayed wiring to stop intermittent power, control failures, or no-start conditions. What it does:

• Reconnects power and control circuits between major components
• Replaces damaged, burned, or frayed wires and connectors that cause intermittent or lost function
• Restores reliable signal paths to controls, sensors, and motors
• Helps resolve symptoms like sporadic operation, failure to start, or component non-response

• Disconnect power to the appliance before accessing electrical components.
• Match connectors and wire routing to the original harness during installation to avoid pin miswiring.
• Inspect connector pins and mating terminals for damage; replace the harness if pins are bent or corroded.

The Capacitor is an OEM replacement part for  LG refrigerators. It is an electronic component located next to the refrigerator compressor that stores electric charge between cycles of the power supply circuit. The capacitor plays an important role in providing stable starting power to the compressor motor.

Causes of a bad capacitor next to the compressor can include heat distress over thousands of start/stop cycles of the refrigerator.

Symptoms of a bad capacitor include:

• The compressor makes loud buzzing or grinding noises during the operation
• The compressor fails to start or cycles on and off frequently
• Temperature fluctuations inside the refrigerator
• Error codes related to compressor issues

This genuine LG replacement is compatible also with Kenmore Elite model refrigerators

This power cord assembly supplies AC power from the wall outlet to your appliance. Replacing a frayed, heat-damaged, or loose cord restores safe, reliable operation and can eliminate intermittent power loss.

• Carries line voltage and ground into the unit to power controls and components
• Routes electricity safely into the cabinet to protect internal wiring
• Replace at the first sign of damage to reduce shock or fire risk

• Disconnect power at the outlet/breaker before servicing
• Compare the new cord to the original; transfer any clips or grommets from the old cord if needed
• Route and secure the cord exactly as original; keep clear of sharp edges and moving parts
• Ensure all connections are fully seated and the ground is properly secured before restoring power

The Heater Sheath is an OEM part for Frigidaire refrigerators. It contains a heating coil that provides regulated temperatures within the fridge. The sheath helps direct airflow while protecting internal insulation.

Causes of a faulty heater sheath can include normal wear from years of cooling cycles. Mineral deposits accumulating on the coil could disrupt temperature regulation. Physical damage puts it at risk for air and moisture leakage issues.

Symptoms of a failed heater sheath are:

• Fluctuating interior temperatures and issues maintaining the temperature setting
• Frost or ice buildup within the fridge compartments
• Increased energy usage without adequate chilling performance

This OEM replacement part is compatible with brands including Electrolux, Gibson, Kelvinator, and Kenmore.

This DC motor powers the appliance's cooling fan to move air across coils and through compartments. Replacing a weak or failed motor restores proper airflow for steadier temperatures and quieter, more efficient operation. What it does:

• Drives the fan that circulates air through the evaporator or across the condenser
• Helps maintain even cooling and prevent temperature swings
• Replaces a motor that won't start, runs intermittently, or makes grinding/squealing noises
• Can help address poor cooling, warm spots, or frost/ice buildup from lack of airflow

• 1 DC motor

• Disconnect power before servicing; wear cut-resistant gloves
• Access the fan area per service information (rear interior panel or machine compartment)
• Transfer the fan blade and any grommets/brackets/screws from the original motor if needed
• Seat the motor securely, route wires clear of the blade, and verify the fan spins freely before reassembly

This part is a refrigerator control board. This part manages the functions of the refrigerator. This could include cooling the refrigerator and running the defrost times.Since the control board controls the functions of the refrigerator, without it not much will function correctly. If this part has gone bad, the refrigerator will not cool, the lights won't turn on, and the fan won't run. It is important to unplug the refrigerator before attempting to replace the control board. Some people choose to wear work gloves during the replacement process to protect their hands. Be sure to place food in a temperature safe location while replacing this part as the unit will not cool.This specific control board is compatible with refrigerators units that are manufactured by Kenmore and LG. This part is sold individually. It is sourced directly from the manufacturer.

The PCB Assembly, Display is an OEM part for LG refrigerators. It is responsible for controlling the refrigerator's display functions and interface. This board monitors temperature and cycle settings and regulates the input/output of operational data to the control panel. It assists users by displaying temperatures, selections, and error codes.

Causes of a bad display board can include liquid damage, thermal stresses from opening/closing doors over time, and short circuits due to manufacturing defects.

Symptoms of a bad PCB assembly include:

• Faulty or unreadable control panel display
• Buttons not responding properly
• Random error codes appearing
• Glitches in temperature or function display

This genuine LG replacement ensures dependable control panel performance. It preserves your investment and restores full refrigerator operations. This part is also compatible with Sears/Kenmore models utilizing LG components and controls.

The Refrigerator Temperature Sensor is an OEM part for LG refrigerators. This sensor monitors the temperature inside the refrigerator and communicates with the control board to maintain the optimal cooling environment.

Common causes of failure include wear and tear over time, electrical issues, or exposure to moisture. A malfunctioning sensor can lead to inaccurate temperature readings, resulting in improper cooling or freezing.

Symptoms of a bad refrigerator temperature sensor include:

• Inconsistent refrigerator or freezer temperatures
• Food spoiling faster than usual
• Refrigerator running continuously or not running at all
• Error codes displayed on the control panel

This OEM LG part is also compatible with Sears/Kenmore models.
