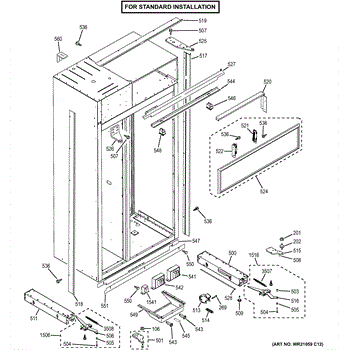

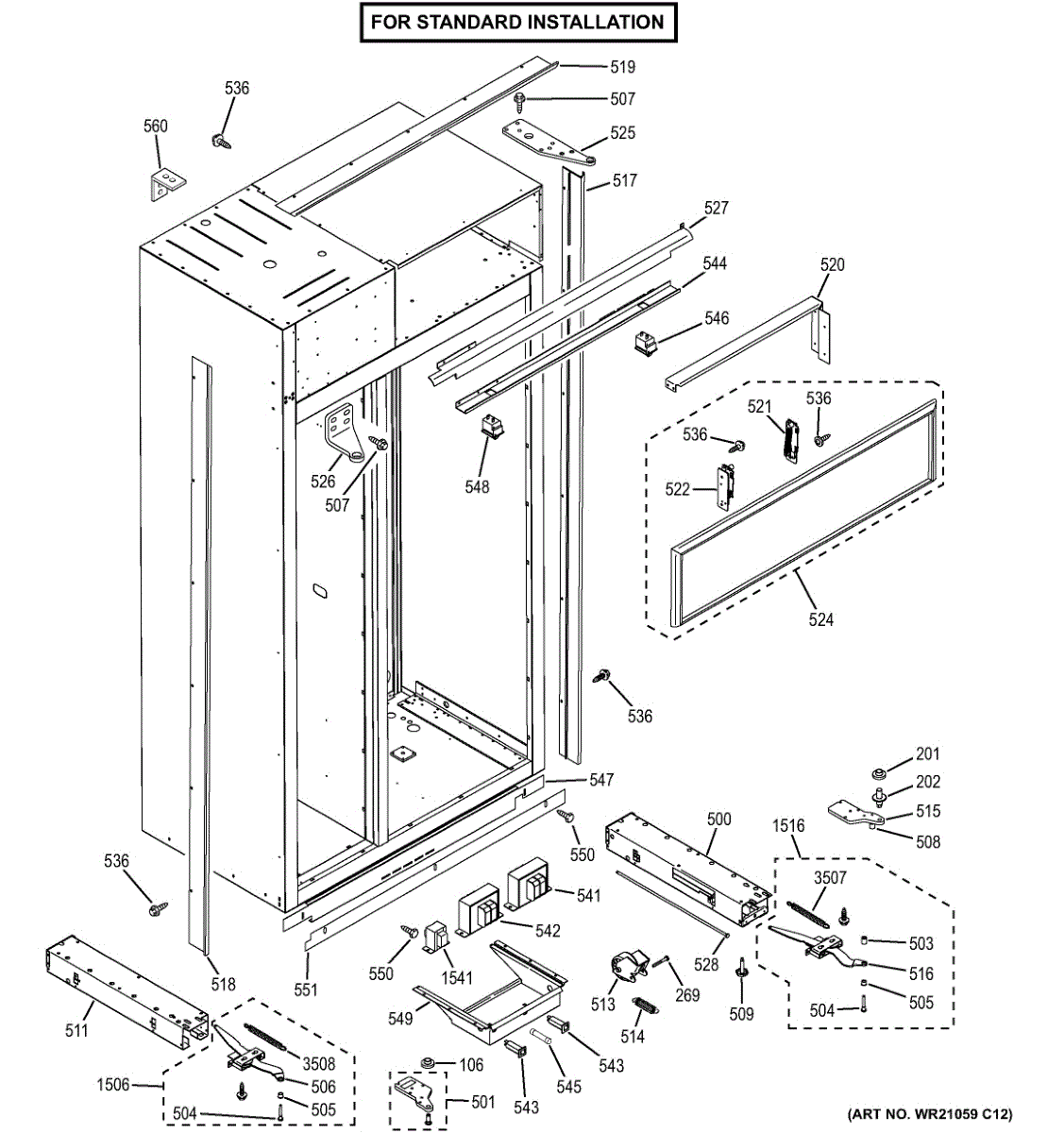

Parts for Ge ZIS420NHB: Case Parts - Standard Parts

Replace your refrigerator water filter every 6 months to maintain clean water and ice. Removes contaminants for fresh taste. Easy DIY install in minutes.

Bottom hinge bushing for refrigerator freezer doors. Installs at the lower hinge to help the door pivot smoothly. Replace if worn, cracked, or missing.

Replace a cracked, worn, or missing refrigerator door hinge pin. This lower hinge pin secures the door to the cabinet and allows smooth opening and closing.

This replacement key pivot is the small pivoting pin that supports the refrigerator/freezer door key or latch mechanism, restoring secure pivoting and smooth operation at the key location. A direct-fit OE-design replacement. What it does

• Provides the pivot point for the door/key mechanism so the key or latch rotates smoothly
• Restores proper alignment when the original pivot is worn, bent, or broken
• Helps prevent a loose or wobbly key or a latch that fails to engage
• Works as a simple, serviceable part of the door/lock assembly

• One key pivot

• Disconnect power to the appliance before beginning any repair
• Remove door trim or access panel as needed; keep small parts organized
• Replace the pivot and check movement; avoid forcing parts that do not align

Right-hand base channel provides lower structural support for refrigerator doors. Replace if bent, cracked, or missing to restore proper door alignment.

Secures bottom freezer door hinge to cabinet, preventing door sagging and ensuring a tight seal. Replace when freezer door misaligns or won't close properly.

Door closure spacer for side-by-side refrigerators. Replaces broken, worn, or missing spacers that ensure proper door alignment and seal.

Shoulder bolt for refrigerator assembly. Secures internal components and panels. Replace if bolt is stripped, missing, or no longer holding parts firmly.

Replace the actuator arm in your side-by-side refrigerator. This lever controls mechanism movement and may need replacement if cracked or broken.

Bottom door hinge screw secures the lower hinge assembly to your refrigerator door. Replace if stripped, missing, or damaged to restore door alignment.

Replacement door stop cam riser for freezers and refrigerators. Installs on door hinge to control door swing and positioning. Replace if cracked or worn.

Left hand base channel provides lower cabinet support for your freezer. Replace if cracked, bent, or damaged to restore proper alignment and stability.

Replaces worn or broken rear drawer roller in refrigerators and freezers. Restores smooth drawer glide and prevents sticking or scraping on tracks.

Plastic pulley wheel for refrigerator door hinge assemblies. Replaces cracked, broken, or worn spring wheels causing binding or rough door movement.

Bottom hinge case for side-by-side refrigerators. Covers and protects the lower door hinge assembly. Replace if cracked, broken, or missing.

Right side case trim for refrigerators. Covers the side panel edge for a finished look. Replace if cracked, broken, or missing for proper appearance.

Cosmetic trim piece that covers the side edge of the freezer case on bottom-mount refrigerators. Replace if cracked, broken, or missing to restore appearance.

Left grille hinge assembly for bottom-mount refrigerators. Replaces broken, cracked, or worn hinge components that secure the grille panel to the door.

Left-side grill hinge secures your refrigerator's lower access panel. Replace when bent, worn, broken, or missing to restore stable alignment and operation.

Base support shaft that keeps the refrigerator drum aligned and rotating smoothly. Replace if worn, damaged, or causing wobble and alignment issues.

This 8-32 x 5/8" Phillips screw is a stainless steel fastener used to secure panels and components in appliances. It resists corrosion and provides a reliable, low-profile Phillips head fastening solution. What it does:

• Fastens panels, brackets and trim where an 8-32 x 5/8" screw is specified
• Stainless steel construction helps resist rust in humid or food-prep environments
• Phillips head accepts standard drivers for quick, positive installation
• Replaces worn or stripped fasteners that cause loose or rattling parts

• One 8-32 x 5/8" Phillips stainless steel screw

• Unplug the appliance or disconnect power before beginning work
• Use a properly sized Phillips screwdriver to avoid cam-out or stripping
• Tighten until snug; avoid over-tightening which can strip threads or crack plastics

Refrigerator not cooling or lights flickering? This 140VA transformer regulates voltage to control boards and components. Moderate DIY repair.

Refrigerator lights not working or flickering? This light transformer supplies power to your refrigerator's interior lighting system. Direct fit part.

Refrigerator not cooling properly or freezer icing up? The defrost thermostat monitors evaporator temperature during defrost cycles. DIY repair in 30-45 minutes.

Fix refrigerator lights that won't turn on when you open the door. This light door switch activates interior lighting. DIY repair in under 30 minutes.

Fixes freezer or fridge light staying on, or ice dispenser not working when door closes. Simple 5-minute DIY fix with putty knife—video included.

Mounting screw for refrigerator doors, shelves, kickplates, and interior components. Replace missing, stripped, or corroded screws during repairs.

Controls freezer door linkage assembly alignment. Replace if the actuator is cracked, broken, or worn, causing misaligned or sticking linkages.

Refrigerator door hinge link actuator assembly. Installs at the bottom hinge to control door closing. Replace if cracked, broken, or spring damaged.

Fix dark refrigerator interior with this LED lighting transformer. Restores consistent illumination when doors open. Challenging install, 1-2 hours.

Replacement door closure spring for refrigerators. Installs between door hinge and leveling leg box. Replace if broken, corroded, or missing.

Replaces broken or fatigued refrigerator door closure spring. Restores tension for secure door closing and proper seal. Blue torsion spring.
