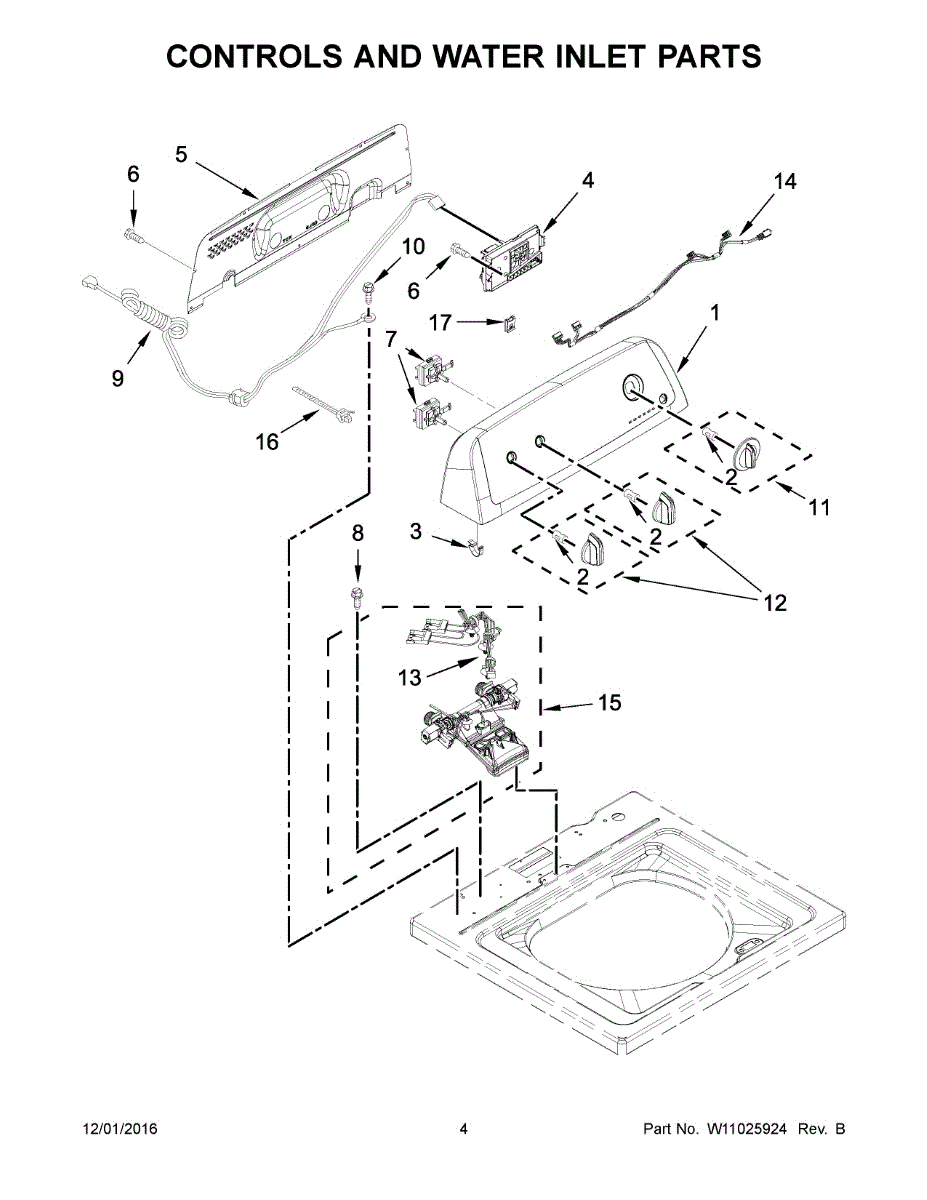

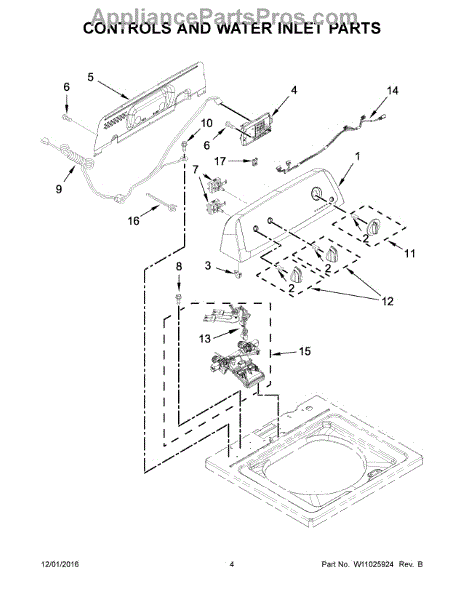

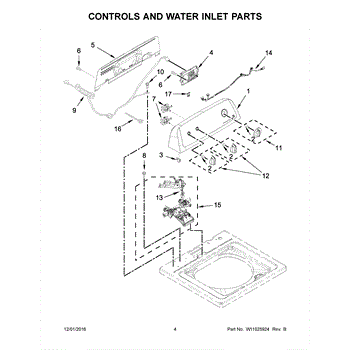

Parts for Whirlpool 4KWTW4605FW0: 03 - Controls And Water Inlet Parts

The Knob Spring Clip is an OEM part for Whirlpool appliances, specifically designed for use in washers and dryers. This small but essential component is responsible for securing the control knob to the control panel, ensuring that the knob stays firmly in place during operation.

Common causes of a bad spring clip include frequent use, accidental impacts, or wear and tear over time. A faulty spring clip can result in the control knob becoming loose or falling off, making it difficult to operate the appliance.

Symptoms of a bad knob spring clip include:

• The control knob is loose or wobbly
• The control knob falls off easily
• Difficulty in turning or setting the control knob
• The appliance not responding correctly to knob adjustments

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Console Clip is an OEM part compatible with Whirlpool dryers. This clip secures the control console assembly to the top panel, ensuring it is firmly mounted during operation. Properly functioning clips are necessary to maintain the correct alignment of controls and prevent detachment.

Causes of a bad clip can include wear and fatigue from repeated opening and closing of the dryer door. Excessive force or impact could also bend or break the clip over time.

Symptoms of a bad clip include:

• Loose console assembly that is not securely fastened
• Misaligned or dangling controls that do not sit flush
• Dislodged console at risk of detaching from housing
• Missing clip leaving an open mounting point

This OEM Whirlpool replacement clip is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

A rotary encoder switch that detects knob position and tells the control board which cycle to run, restoring accurate cycle selection and user input response. Fits behind the console control knob to register user settings. What it does:

• Converts knob rotation into electronic signals the control board uses to select cycles
• Restores correct cycle selection when the console doesn't respond to knob input
• Helps eliminate erratic or incorrect cycle selection and intermittent control responses
• Works as the user-input sensor for multi-position cycle knobs

• Always disconnect power before servicing the console or control panel
• Access typically requires removing the console or control panel trim; handle clips and connectors gently
• Align the encoder and knob spline when installing to ensure smooth operation
• Replace only with the exact part number to ensure proper fit and function

Number-8, 18-thread screw used to secure panels, brackets and small assemblies in Whirlpool appliances. Replacing a missing or damaged screw restores secure mounting and helps stop rattling or loose parts. What it does:

• Fastens trim, panels, brackets or small appliance components that use a #8-18 threaded fastener
• Restores secure mounting when a screw is lost, stripped or damaged
• Helps eliminate vibration-related noise from loose parts
• Simple replacement part for basic fastening needs

• Disconnect power to the appliance before servicing and work on a cool, stable surface
• Use the correct screwdriver or driver bit to avoid cam-out or stripped heads
• Thread in straight and tighten until snug; do not over-torque to avoid stripping threads or damaging components
• Replace with the identical screw type and size for proper fit and function

The Screw is an OEM component compatible with Whirlpool washing machines. This screw secures the rear bulkhead to the tub, ensuring vibrations are reduced through solid mounting points. Properly installed screws dampen oscillating movement.

Causes of a bad screw include damage from water exposure like corrosion or breakage from stress concentrations if the tub bangs around during imbalanced loads.

Symptoms of a bad screw include:

• Loose or detached rear bulkhead allowing side-to-side play
• Excessive noise and shaking felt through the surrounding walls
• Development of micro-cracks around screw holes over time
• Potential leak paths if holes are no longer sealed

This Whirlpool replacement screw restores a stable suspension system. It is compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Knob is an OEM replacement part for Whirlpool washers and dryers. The control knob lets you control cycle settings. Remove the knob by pulling it straight off its post.

Causes of a bad knob can include wear and tear over time resulting in loose or unstable function, cracks or chips in the plastic housing, or damage due to impact or abuse during removal from the post.

Symptoms of a bad knob include:

• Difficulty rotating or selecting settings
• Settings that do not stay in place after selection
• Cracked or broken knob housing
• Knob constantly moving out of the desired setting

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This knob assembly replaces the "modifier" control knob on the console so you can adjust settings smoothly and reliably again. Restore a secure, positive-turn feel when the original knob is cracked, stripped, or missing.

• Attaches to the control shaft to select and adjust options/settings
• Replaces knobs that are cracked, broken, or missing
• Fixes a knob that spins freely, slips, or won't turn the control
• Restores proper selection and tactile feedback during use

• Disconnect power to the appliance before servicing
• Pull the old knob straight off the shaft; avoid prying against the panel
• Align the flat/splines on the new knob with the shaft and press on firmly until fully seated
• The pointer aligns with the panel markings before use

This wire harness routes power and control signals between the appliance's electrical components, restoring proper connectivity and operation when the original harness is damaged or faulty. It's a direct-fit electrical assembly designed for straightforward replacement. What it does:

• Provides the main electrical connections between control, power source, and other components
• Replaces damaged, frayed, or burned wiring that can cause intermittent or complete loss of function
• Helps eliminate symptoms like no power to controls, intermittent operation, or blown fuses/trips
• Maintains factory-style connector fit and routing to reduce vibration and wear

• One complete wire harness assembly

• Always disconnect power (unplug or shut off circuit breaker) before inspecting or replacing wiring
• Route harness and secure connectors per the appliance wiring diagram to avoid pinching or heat exposure

The Wire Harness is an OEM replacement part for Whirlpool washing machines. It serves as the electrical wiring system, connecting various components and allowing them to communicate and transfer power efficiently.

Symptoms of a bad wire harness include:

• Washer not powering on or receiving electricity
• Specific components or functions not operating correctly
• Error codes or warning lights displayed on the control panel
• Burning smell or visible signs of electrical damage

Causes of a bad wire harness can include physical damage from impact or pinching, exposure to moisture or water, electrical surges or shorts, and general wear and tear over time. Faulty wiring can disrupt the proper operation of the washer's systems.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washing machine models.

This replacement nut secures appliance parts and hardware to keep assemblies stable and prevent loose connections. It's a simple, direct replacement for worn or missing fastening hardware to restore proper fit and reduce vibration. What it does:

• Fastens mounting studs, brackets or panels to hold components in place
• Restores secure mechanical connections that can loosen over time
• Helps eliminate rattling, vibration and misaligned panels caused by missing or stripped hardware
• Provides a straightforward, durable replacement for corroded or damaged nuts

• Disconnect power to the appliance before beginning any repair
• Use the correct-size wrench or socket; ensure threads engage smoothly before tightening
• Tighten until snug—avoid overtightening that can strip threads or damage components
• Inspect mating threads and replace any damaged studs or hardware for a reliable repair
