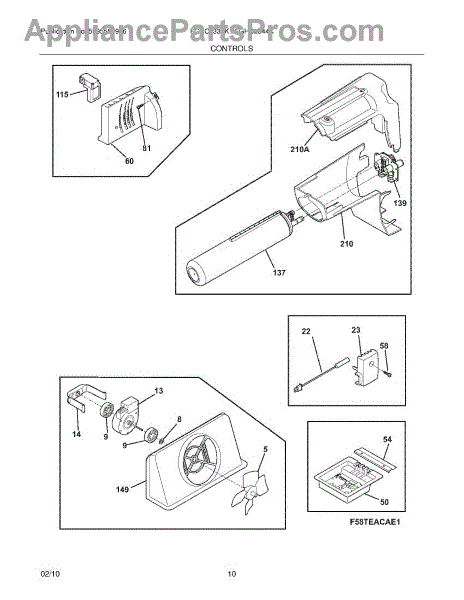

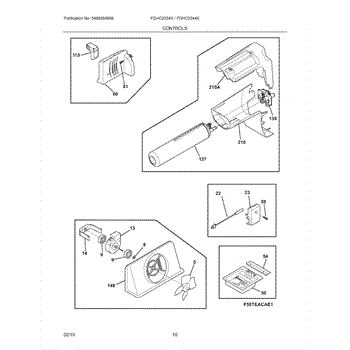

Parts for Frigidaire FGHC2334KP2: 11 - Controls Parts

The Water Filter is an OEM replacement part for Frigidaire refrigerators. This PureSource Ultra Ultrawf Refrigerator Water Filter is designed to provide superior filtration, ensuring that your water and ice are clean and refreshing.

With the Frigidaire Refrigerator Water Filter, you can enjoy up to six months of crystal-clear water and ice. For the filter bypass, order part number 242294402. Get the most out of your Frigidaire appliance with a new OEM water filter, and enjoy clean, refreshing water and ice every time!

Causes of a bad part:

• Overused or expired
• Clogged by excessive impurities

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


The Evaporator Fan Blade is an OEM part for Frigidaire refrigerators, designed to circulate air over the refrigerator coils and through the food compartment. The fan blade works in conjunction with the evaporator fan motor, and together, they play a key role in the cooling process by distributing cool air evenly throughout the refrigerator and freezer.

Causes of a bad evaporator fan blade can include physical damage, such as cracks or bends in the blade itself, which can occur over time due to wear and tear or during cleaning and maintenance.

Symptoms of a bad Evaporator Fan Blade include:

• Unusual noises coming from the refrigerator, such as humming or buzzing
• The refrigerator or freezer compartment is not cooling adequately

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Nylon

A replacement bushing that supports a rotating shaft and reduces wear between moving metal parts, restoring smooth, quiet operation. Fits OEM specification to ensure proper alignment and long-lasting performance. What it does:

• Cushions and guides a rotating shaft or drum to prevent metal-on-metal contact
• Reduces noise, vibration, and wobble caused by worn support surfaces
• Helps maintain proper shaft/drum alignment for even operation
• Limits premature wear to adjacent bearings, seals, and housing

• One bushing

• Disconnect power before starting any repair and follow OEM disassembly instructions
• Replacement typically requires access to the motor/shaft or drum housing; some disassembly may be necessary
• Inspect adjacent bearings and seals and replace if worn to prevent repeat failures

The Evaporator Fan Motor is an OEM replacement part for Electrolux refrigerators. It is responsible for circulating air throughout the refrigerator’s interior to maintain consistent cooling and optimal temperature distribution. This motor works to move air over the evaporator coils, aiding in the cooling process and ensuring that the refrigerator and freezer compartments remain at the desired temperature.

Over time, the evaporator fan motor can wear out or fail due to mechanical stress, dust or debris accumulation, or electrical issues. A malfunctioning motor can lead to uneven cooling or inadequate refrigeration, impacting the overall performance of the appliance.

Symptoms of a bad evaporator fan motor include:

• Unusual noises such as rattling or humming
• Inconsistent or inadequate cooling
• Ice buildup in the freezer or refrigerator compartments
• The refrigerator running constantly without reaching the desired temperature

This OEM replacement is also compatible with Electrolux, Frigidaire, Gibson, Kelvinator, and Kenmore models.

NOTE: THE CHANGE FROM 4-WIRE TO 3-WIRE DOES NOT IMPACT PART

The evaporator fan motor mounting clip secures the freezer fan motor to its bracket, keeping it properly positioned to move air across the evaporator. A broken or missing clip can cause vibration, noise, or poor airflow.

• Holds the evaporator fan motor firmly in the freezer fan assembly
• Maintains proper fan blade alignment and clearance
• Helps prevent vibration, rattling, or scraping noises
• Common signs of failure: loose/wobbling motor, blade contact, inconsistent airflow

• Disconnect power before servicing; wear cut-resistant gloves
• Remove freezer shelves/bins and the rear panel to access the fan assembly
• Release the old clip, position the motor, and snap the new clip fully into the bracket
• Ensure the fan spins freely and wiring is clear before reassembly and restoring power

The Temperature Sensor (10K NTC) is an OEM replacement part for Frigidaire refrigerators. This sensor monitors the internal temperature of the refrigerator or freezer compartment, sending signals to the control board to regulate cooling cycles. It ensures the appliance maintains the correct temperature for optimal food preservation.

Temperature sensors can fail due to wear over time, electrical issues, or exposure to moisture. A malfunctioning sensor can cause inaccurate temperature readings, leading to improper cooling or freezing.

Symptoms of a bad temperature sensor include:

• Fluctuating or incorrect temperatures in the refrigerator or freezer
• Food spoiling faster than expected or freezing inappropriately
• Error codes related to temperature regulation
• The refrigerator running continuously or cycling too often

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

A replacement main power control board that manages power distribution and control signals for the appliance, restoring electronic control when the original board fails. Replaces a failed PCB assembly to help return normal control operation. What it does:

• Routes and regulates incoming power to the appliance's control systems and relays.
• Enables electronic control of compressor, fans, lights and user-interface circuits.
• Works as the central logic board that interprets user inputs and sensor signals.

• One main power control board (PCB assembly)

• Disconnect all power before servicing to avoid shock or damage to electronics.
• Handle the board by its edges and avoid static discharge; use an anti-static strap if available.
• Verify model compatibility and connector orientation before installing; do not force connectors.

This factory fastener secures appliance panels and components. Replace a missing, stripped, or corroded screw to restore a tight, rattle-free fit and keep brackets and covers properly aligned.

• Fastens panels, brackets, and internal parts as specified by the manufacturer
• Helps maintain alignment and reduces vibration/rattling
• Replace if the head is stripped, threads are damaged, or corrosion is present
• Symptoms include loose/missing hardware, gaps, or rattling during operation

• Disconnect power; shut off gas/water if applicable before servicing
• Use the correct driver/bit size to avoid stripping the head
• Start threads by hand to prevent cross-threading; do not overtighten
• Match screw length/thread to the location; replace in sets when required

The damper control regulates the flow of cold air from the freezer into the fresh food compartment, helping maintain steady temperatures. Replacing this assembly restores proper airflow and consistent cooling.

• Opens and closes the air door to meter cold air from the freezer into the refrigerator
• Helps maintain the set temperature and even cooling across shelves
• Common failure signs: fresh food section too warm or too cold, weak/no airflow, clicking or grinding from the damper area
• Visible damage or a door stuck in one position can indicate replacement is needed

• Disconnect power before servicing
• Access the damper in the refrigerator control/air duct area; remove covers and retain screws per your model
• Transfer any mounting hardware or seals from the old assembly if needed
• After installation, ensure the door moves freely and allow up to 24 hours for temperatures to stabilize

The Water Filter is an OEM replacement part for Frigidaire refrigerators. This PureSource Ultra Ultrawf Refrigerator Water Filter is designed to provide superior filtration, ensuring that your water and ice are clean and refreshing.

With the Frigidaire Refrigerator Water Filter, you can enjoy up to six months of crystal-clear water and ice. For the filter bypass, order part number 242294402. Get the most out of your Frigidaire appliance with a new OEM water filter, and enjoy clean, refreshing water and ice every time!

Causes of a bad part:

• Overused or expired
• Clogged by excessive impurities

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


This water filter base secures the refrigerator's replaceable water filter cartridge and directs filtered water to the dispenser and icemaker. Replacing a damaged base restores a proper seal and helps prevent leaks and flow interruptions. What it does:

• Holds and seals the water filter cartridge so water passes through the filter media
• Directs filtered water to the dispenser and icemaker plumbing
• Prevents leaks caused by cracked or worn filter housing
• Can resolve low water flow, intermittent dispensing, or water taste issues when base is leaking or not sealing

• One water filter base assembly

• Turn off refrigerator and shut off the water supply before starting
• Relieve system pressure by dispensing water until flow stops, if applicable
• Remove the old housing carefully; inspect O-rings and replace if damaged
• Hand-tighten only; check connections and test for leaks after restoring water and power

This shroud assembly is the molded housing that directs airflow and protects internal components. It restores proper airflow routing for efficient operation and helps reduce noise and debris entry around the blower area. What it does:

• Directs and channels airflow from the blower to the vent or drum, improving performance.
• Protects the blower motor and wiring from lint, debris, and incidental contact.
• Helps reduce blower noise by enclosing and stabilizing the blower area.
• Worn, cracked, or damaged shrouds can contribute to reduced airflow, unusual noise, or visible gaps near the blower.

• One shroud assembly

• Disconnect power (and gas if applicable) before beginning work.
• Remove outer panels or access covers to reach the blower housing.
• Support the blower/motor assembly during removal and align mounting tabs carefully; avoid forcing fasteners.

This replacement door seal creates a tight perimeter seal to help keep conditioned air inside and reduce moisture or frost buildup. Fits factory specifications to restore proper sealing and improve efficiency. What it does

• Forms an airtight barrier around the door to limit air exchange and energy loss
• Helps prevent frost, condensation, and water pooling inside or under the appliance
• Reduces strain on the compressor by maintaining correct internal temperature
• Common symptom fix for visible gaps, torn or flattened gasket, or excessive frost buildup

• Seal as shown

• Disconnect power or unplug the appliance before starting any service
• Clean the door frame thoroughly before installing to ensure a good seal
• Work the gasket into the channel evenly; avoid overstretching or twisting
• If clips or retainer strips are present, follow OEM guidance for proper seating

This water filter housing secures the refrigerator's filter and channels water to the dispenser and ice maker, restoring proper flow and helping prevent leaks when the original housing is cracked or damaged. What it does:

• Holds the water filter in place and seals the filter bay
• Directs filtered water to the dispenser and ice maker
• Helps stop leaks caused by cracked or worn housings
• Addresses symptoms like reduced water flow, drifting pressure, or a loose filter connection

• Shut off the refrigerator water supply and dispense water to relieve line pressure before starting
• Disconnect power to the appliance for safety
• Inspect and replace any worn O-rings or seals; use only compatible filters and seals
• Hand-tighten connections and check for leaks after reinstall; do not overtighten plastic fittings

This refrigerator water filter mount secures the filter head/housing to the liner so the cartridge seats squarely and seals. Replace a cracked or loose mount to restore a snug fit and help prevent leaks or vibration.

• Holds the water filter housing firmly in place
• Aligns the cartridge for proper engagement with the filter head
• Helps maintain a watertight seal at the filter connection
• Common symptoms: filter won't lock in or sits crooked, drips around the filter area, difficulty installing/removing the filter, or rattling from a loose housing

• Disconnect power and shut off the water supply; dispense water to relieve line pressure
• Remove the filter and any cover/trim to access the mount; retain existing screws for reuse
• Install the new mount and tighten screws gently to avoid cracking plastic
• Reinstall the filter, restore water and power, flush the dispenser, and check for leaks
