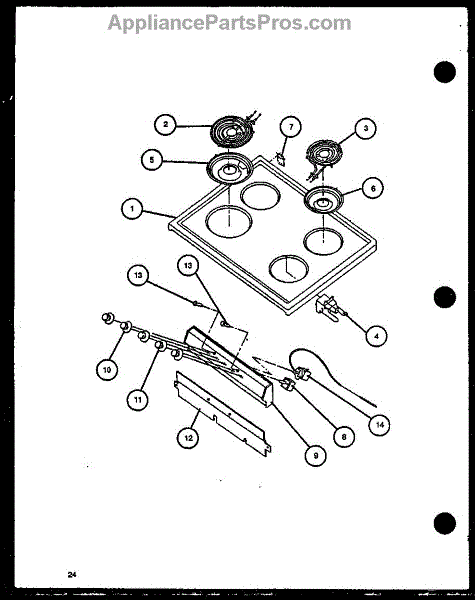

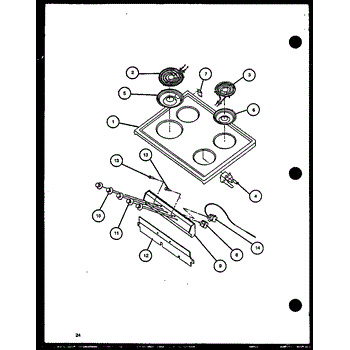

Parts for Amana CBE22AAG/P1137943NG: Cooktop Parts

This 8-inch surface burner element delivers heat on an electric cooktop or range. Replacing a worn or open element restores even heating on the burner zone and reliable response to temperature settings.

• Heats the 8-inch cooking zone when the surface control is turned on
• Helps maintain consistent pan temperature for boiling, simmering, and frying
• Common symptoms: burner won't heat, heats unevenly or intermittently, visible blistering/breaks in the coil, or scorch marks at the terminals
• Replacing a damaged element can prevent further damage to the receptacle/terminal block

• Disconnect power at the breaker and allow the unit to cool completely
• Handle the element by the bracket; avoid bending the coil
• For plug-in setups, pull the old element straight out and firmly seat the new one; for wired connections, move wires one at a time to the matching terminals and secure properly
• Inspect the receptacle/terminal block and wiring; replace if burnt or loose before restoring power

This 6-inch surface coil element restores reliable heat to one burner on your electric range. Replace a burned-out or damaged coil to bring back consistent, even heating for everyday cooking.

• Provides cooking heat for a 6-inch burner position on electric ranges/cooktops
• Helps resolve a burner that won't heat or heats intermittently
• Addresses uneven heating or visible hot spots on the coil
• Replaces elements with visible breaks, blistering, or burned terminals

• Disconnect power at the breaker and allow the cooktop to cool completely before servicing
• For plug-in coil models: lift the element, pull straight out of the receptacle, and remove from the support/drip pan
• Align the new element's terminals with the receptacle, push firmly until fully seated, and set into the support
• Inspect the receptacle and wiring for heat damage and replace any compromised components before use

Color: Black.
