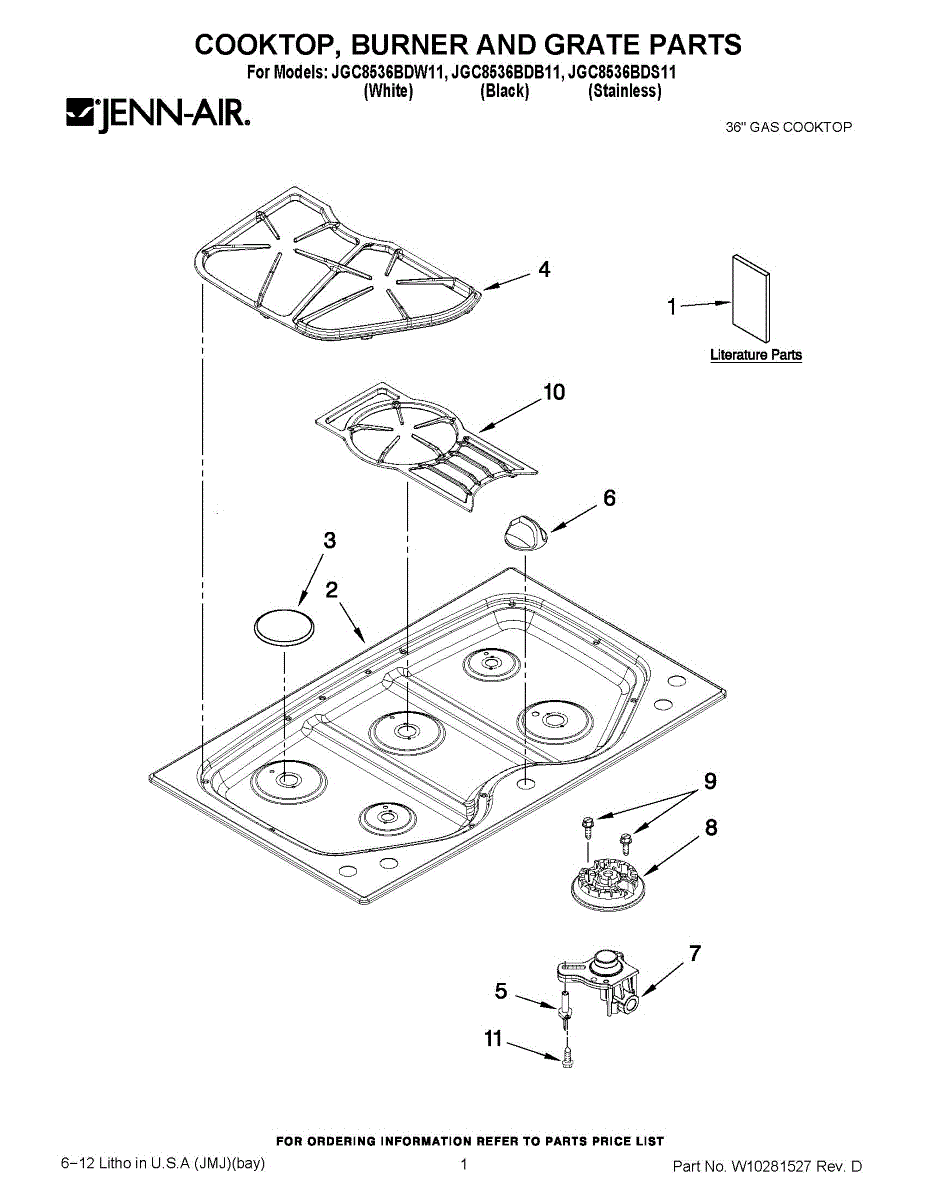

Parts for Maytag JGC8536BDS11: 01 - Cooktop, Burner And Grate Parts

Color: Black

Color: Black. Size: Large.

6,000 BTU. Color: Coal matte black. Measures about 2 inches in diameter.

This surface burner control knob restores smooth, precise heat selection on your cooktop or range. Replace a cracked, loose, or missing knob to regain clear settings and confident control with a clean, factory look.

• Attaches to the burner valve/infinite switch shaft to turn the surface burner on/off and adjust heat
• Resolves issues like slipping, wobbling, or a knob that won't turn or stay on the stem
• Helpful when indicator markings are worn or hard to read
• Returns the front panel to a clean, factory appearance with the correct fit

• Ensure all controls are off and the cooking surface is cool before starting
• Pull the old knob straight off the stem; do not pry against the panel
• Align the new knob with the stem and press firmly until fully seated
• Turn through all settings to verify smooth, accurate operation

This orifice holder secures the gas orifice in a burner assembly to ensure proper alignment and gas flow for reliable ignition and flame performance. It fits the specified burner configuration and replaces a damaged or missing holder. What it does:

• Holds the burner orifice in place so the burner can ignite correctly
• Maintains correct orifice alignment for consistent flame shape and heat output
• Common symptom fix: burner won't light or produces a weak/uneven flame
• Works with the matching orifice sized for the listed burner application

• Turn off gas supply and electrical power before servicing the appliance
• Handle small parts carefully and confirm correct orientation during reassembly
• Check surrounding gaskets and seals and replace if deteriorated

This orifice holder secures the gas orifice at the burner tube, maintaining correct gas flow for reliable ignition and steady flames. It's used on compatible gas cooktop/range burners to restore proper burner performance. What it does

• Holds the burner orifice in the correct position so gas flows evenly to the burner ports
• Helps restore steady, even flame size and consistent ignition
• Commonly replaced when the orifice or holder is damaged, corroded, or misaligned
• Works with 12.5k orifices designed for specified burner output

• One orifice holder (12.5k)

• Turn off the gas supply and unplug the appliance before starting work
• Remove burner grates and caps to access the holder; handle parts carefully to avoid damage
• Reinstall securely so the orifice seats correctly; check for proper ignition and flame pattern after reassembly

This gas surface-burner orifice holder serves the 15K burner position on many cooktops/ranges. It routes gas from the valve to the burner orifice and keeps the burner properly aligned for consistent ignition and flame.

• Channels gas from the surface valve to the orifice for the 15K burner
• Rigidly locates the burner base and orifice for correct flame pattern and ignition
• Common symptoms of a failed holder include: burner clicking but not lighting, weak/small or uneven flame, or intermittent ignition on that burner
• Replacement restores proper alignment and gas flow at the affected burner

• Shut off gas supply and disconnect power; allow the appliance to cool
• Remove grates, caps, and burner heads; lift/open the top to access the holder
• Note orientation, disconnect tubing, remove mounting screws, and install the new holder in the same position; transfer any fittings as needed
• After reassembly, perform a soap-and-water leak check at all serviced connections before use

The Large Burner Head is an OEM part for Whirlpool gas ranges and cooktops. It is designed to fit over the burner base and distribute the gas evenly for efficient and consistent heating.

Causes of a bad burner head can include blockages from food debris or residue buildup, warping or damage from high heat exposure, or general wear and tear over time.

Symptoms of a bad Large Burner Head include:

• Uneven heating or hot spots on the burner
• Yellow or irregular flame patterns
• Difficulty igniting the burner or keeping it lit
• Loud popping or hissing noises during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Torx Screw is an OEM replacement part for Whirlpool brand appliances. The Torx Screw is responsible for providing secure and stable connections between different components of washing machines, dryers, dishwashers, and more. These screws are characterized by their star-shaped drive design, which offers better torque transfer and reduces the risk of stripping or cam-out. Sold individually. 7-18 x 3/4"

Causes of a bad Torx screw can include stripping of the screw head, rust or corrosion from prolonged exposure to moisture, or damage from over-tightening or cross-threading. A compromised screw can lead to loose or insecure parts, which can affect the performance and safety of the appliance.

Symptoms of a bad Torx screw include:

• The screw head being stripped and difficult to turn
• Rust or corrosion visible on the screw
• The screw not holding components securely
• Loose or rattling parts within the appliance

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
