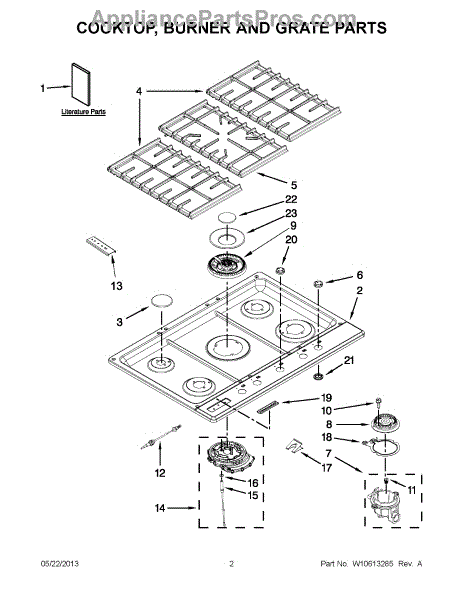

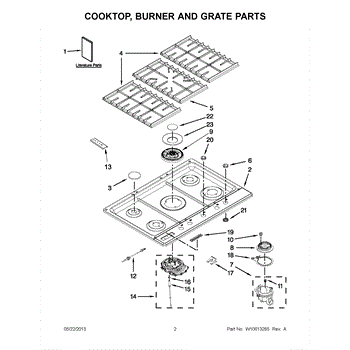

Parts for Kitchenaid KFGS366VSS03: 01 - Cooktop, Burner And Grate Parts

This semi-rapid burner cap fits over the burner head to help shape and stabilize the gas flame for consistent cooking performance. It restores proper flame pattern and protects the burner from spills and debris. What it does:

• Centers and shapes the burner flame for even heating
• Helps prevent flame lifting and uneven or noisy flames
• Protects burner head from food spills and corrosion
• Useful when a cracked, warped or missing cap causes poor burner performance

• Turn off the appliance and allow the burner to cool completely before servicing
• Remove burner grate and lift off the old cap; set the replacement cap into place aligned with the burner head
• Do not force into position—ensure proper seating for correct flame pattern

This replacement burner cap fits the rapid/high burner and restores proper flame shape and heat distribution for gas cooktops. It helps you get even cooking and reliable ignition when the original cap is damaged or missing. What it does:

• Sits atop the rapid (high) burner to direct flame and protect the burner head
• Promotes even flame pattern for consistent cooking performance
• Can reduce flickering or uneven flames caused by a warped or cracked cap
• Helps prevent burner head damage from spills and overheating

• Allow the cooktop and burners to cool completely before handling.
• Make sure the burner head is clean and properly seated; place the cap onto the burner so it sits flat and centered.
• No special tools are typically required; if a cap is damaged, remove and replace rather than forcing into place.

This auxiliary burner cap replaces a worn or damaged cap on gas cooktop/range auxiliary burners to help restore proper flame shape and heat distribution. Designed for a direct fit on compatible OEM burner bases. What it does:

• Covers the auxiliary burner head to direct flame and protect the burner ports
• Helps improve even heating and consistent flame pattern when properly seated
• Commonly replaced when the cap is cracked, warped, or shows heavy corrosion
• Fits onto the burner base; does not include the burner base, igniter, or grates

• Allow the cooktop to cool and disconnect power/gas per appliance safety instructions before servicing
• Remove grates and lift off the old cap; clean burner base of debris before installing the new cap
• Align and seat the cap firmly on the burner base so it sits flat and centered

This burner control knob replaces a worn or broken knob on your range or cooktop. Made for the standard burner position, it restores smooth on/off and heat-level adjustment while keeping the control panel looking clean and complete.

• Attaches to the burner/element control shaft to turn the burner on/off and adjust heat
• For the standard burner position; other burner types may use different knobs
• Common fix for knobs that are cracked, stripped, loose, or missing
• Restores a positive feel and clear setting selection

• Disconnect power and, if applicable, shut off gas before servicing
• Pull the old knob straight off the control shaft; do not bend or twist the shaft
• Align the new knob with the shaft flat and press straight on until fully seated
• Verify smooth operation through all settings before use

This is the gas cooktop/range rapid burner head. It directs gas and airflow to create an even, reliable flame on the large "rapid" burner, helping your cooktop heat quickly and cook evenly.

• Distributes gas through calibrated ports to form a stable flame on the rapid burner
• Can help resolve weak or uneven flames, delayed ignition, or frequent burner re-lighting
• Replacing a damaged, clogged, or warped head can restore proper burner performance
• Designed to fit the rapid (largest) burner position on compatible units

• Disconnect power and shut off gas before servicing
• Remove the burner cap, lift off the old head, and clean the mounting surface
• Align the new head with the orifice and locating tabs; seat it flat and secure any screws if present
• Reassemble, restore gas/power, and test for proper ignition and flame

Auxiliary burner head that distributes flame on the small simmer burner of gas cooktops and ranges. Replaces a warped, clogged, or damaged head to restore reliable ignition, correct flame pattern, and consistent low-heat performance.

• Directs the gas/air mix through flame ports for even simmer heat
• Helps restore proper ignition when the old head is fouled or damaged
• Can help with delayed ignition or repeated clicking due to misaligned/blocked ports

• Shut off gas supply and disconnect power; allow the surface to cool completely
• Remove grate and burner cap; lift off the old head
• Clean the burner base and align the new head with the orifice and igniter; seat flat
• Reinstall the cap and grate; restore gas/power and verify flame quality and ignition

This burner head sits atop the semi-rapid gas burner on the cooktop, shaping the flame and distributing heat evenly to your cookware for reliable day-to-day cooking performance.

• Directs gas and air mixture to create a stable, even flame on the semi-rapid burner
• Can help address uneven flames, poor ignition, or weak heating at that burner position
• Restores proper heat distribution when the original head is clogged, warped, or damaged
• Designed to fit the semi-rapid burner location as specified by the manufacturer

• Disconnect power and shut off gas before servicing
• Ensure the burner area is clean; remove debris that could affect flame pattern
• Align the ports and locating features carefully; do not overtighten any fasteners
• After installation, check for proper ignition and a consistent blue flame

This surface burner head distributes gas to create an even, consistent flame on your range's cooktop. Replacing a damaged or clogged head restores reliable ignition and proper heat on the affected burner. What it does:

• Directs the gas/air mix through flame ports for an even flame pattern
• Works with the spark igniter and burner cap to light the burner
• Helps ensure steady simmering and full burner output
• Worn, corroded, or clogged heads can cause weak, uneven, yellow, or no flame

• 1 surface burner head

• Disconnect power and shut off gas; allow the cooktop to cool
• Remove grate and burner cap, then lift off or unfasten the old head
• Position the new head over the orifice and igniter; secure with the original hardware
• Reinstall the cap and grate, restore gas/power, and verify ignition and flame pattern

This M4-0.7 screw is a small metric fastener used to secure panels, brackets, and internal components on compatible Whirlpool appliances. Replace stripped or missing screws to restore secure mounting and reduce rattles. What it does:

• Secures trim, access panels, brackets or small assemblies in place.
• Helps stop loose or vibrating panels that can cause noise or misalignment.
• Replaces missing, stripped, or damaged fasteners to restore proper fit.
• Compatible where an M4 diameter, 0.7mm thread-pitch screw is specified.

• Always unplug the appliance or shut off power at the breaker before servicing.
• Use the correct sized screwdriver or bit to avoid cam-out or head damage.
• Do not overtighten—tighten until snug and parts are properly seated.
• Keep removed hardware organized so replacements go back in the original locations.

This electrode wiring connects the igniter electrodes to the range's ignition system so burners receive the spark they need. It restores reliable ignition for gas burners and reduces intermittent or no-spark symptoms. What it does:

• Carries ignition voltage from the control module to the igniter electrodes
• Enables consistent sparking at burner electrodes so burners light reliably
• Helps eliminate intermittent or no-spark/no-light symptoms at burners
• Designed to route and secure electrode leads safely within the cooktop/range cavity

• One electrode wiring harness as shown

• Turn off gas supply and disconnect power before beginning any service
• Handle electrode tips and wiring gently; avoid bending or damaging electrodes
• Verify proper routing and connector seating to prevent shorting or arcing

This surface ignitor is the replacement part that creates the spark to light a cooktop burner, restoring reliable ignition for your gas range so burners light when knobs are turned. What it does:

• Generates the spark needed to ignite a surface burner
• Helps when a burner clicks but fails to light or only lights intermittently
• Addresses ignition problems caused by a cracked, worn or non-sparking ignitor
• Can reduce repeated clicking or delayed ignition

• Turn off the appliance power and shut off the gas supply before beginning service
• Handle the ceramic/porcelain ignitor carefully—it is fragile and can break if dropped
• Verify electrical connector is fully seated and free of corrosion before reassembly

This surface burner ignitor creates the spark that lights gas at a cooktop/range burner. Replacing a worn or cracked electrode restores quick, reliable ignition and helps prevent repeated clicking or failed lighting at that burner.

• Generates a high-voltage spark at the burner to ignite gas
• Common fix for a surface burner that won't light or takes many clicks to light
• Addresses visible cracks, chips, or burned ignition tip on the electrode

• Disconnect power and shut off gas supply before servicing; allow the appliance to cool
• Handle the ceramic insulator carefully; avoid touching the electrode tip
• Note wire routing and ensure a secure connection to the harness/spark module
• Position the electrode correctly relative to the burner head for consistent ignition

This hardware kit contains the small mounting parts needed to secure and support the appliance component. It provides replacement fasteners and brackets to restore proper fit and stability after service. What it does:

• Replaces worn or missing mounting pieces that cause loose panels or components
• Restores proper alignment and support for the associated assembly
• Helps stop rattling, vibration, or movement caused by missing hardware
• Matches OEM fit and function when used as a direct replacement

• Intended for technicians or experienced DIYers; inspect the kit before installation
• Use appropriate hand tools; tighten fasteners to manufacturer torque where specified
• Disconnect power and follow all safety procedures before servicing the appliance
• Replace only the parts shown for your specific model

This Holder ORF is a small mounting bracket designed to secure a nearby component and restore proper alignment and stability. It replaces a worn or broken holder so moving parts sit and operate correctly. What it does:

• Secures and supports a component assembly to prevent sagging or misalignment
• Keeps parts from shifting, rubbing, or vibrating during normal operation
• Helps stop noises caused by loose or damaged mounting points
• Restores proper fit and movement where the original holder has failed

• One Holder ORF

• Disconnect power and/or water supply before servicing the appliance
• Access the mounting location by removing the appropriate panel or trim
• Retain existing fasteners unless replacements are specified; part typically installs with screws or clips

Surface ignitor that generates the spark to light a gas cooktop or range burner, restoring reliable ignition. Use this electrode to replace cracked, chipped, or non-sparking ignitors so burners light properly. What it does

• Produces the high-voltage spark at the burner needed to ignite gas
• Replaces damaged or worn electrodes that cause no spark, weak sparking, or intermittent ignition
• Works with compatible Whirlpool gas ranges and cooktops that use a standing surface ignitor
• Helps restore normal burner ignition without replacing the entire burner assembly

• Turn off electrical power and close the gas supply before servicing
• Handle the ceramic insulator and tip carefully to avoid damage
• Avoid bending or over-tightening the electrode when installing

This small retaining ring secures a component in place to help keep moving parts aligned and stable during operation. It provides a simple, durable hold to prevent unwanted movement and maintain proper appliance function. What it does:

• Holds shafts, bearings or assemblies in position to prevent axial movement
• Helps maintain alignment of rotating or sliding parts
• Worn or cracked rings can allow parts to shift, causing noise, vibration or binding
• Replacing a damaged ring restores secure fit and reduces related symptoms

• Disconnect power before servicing the appliance to avoid shock or injury
• Use appropriate snap-ring or pliers tools for safe removal and installation
• Inspect mating grooves and surrounding components for wear when replacing the ring

The Clip is an OEM component specifically designed for Whirlpool free-standing electric ranges, securely fastening rack guides, and wire assemblies. This versatile clip features corrosion-resistant anchors and firm spring coils.

Causes of failure involve metal fatigue weakening the spring over years of expansion and contraction during heating, worn surfaces losing grip, or damaged barbs failing to anchor the racks correctly.

Symptoms of a bad cooking rack clip include:

• Loosened racks skewing pans off-center
• Detached wires posing burn and electrical hazards
• Rattling components exacerbating noises
• Difficulty transferring baking sheets without obstruction

Replace yours today with this genuine OEM Whirlpool clip. Compatible with KitchenAid, Maytag, and Jenn-Air appliances as well, its reinforced coils maintain constant tension for organized baking.

Color: Stainless

This replacement control knob restores a worn, cracked or missing stove/dryer control interface so you can easily select heat and cycle settings. Durable plastic construction and simple push-on fit make it a quick fix. What it does:

• Replaces a damaged or missing control knob so the appliance dial turns smoothly
• Provides a clear grip for selecting temperature, cycle or timer settings
• Stops slipping, cracking or broken pointer issues that prevent proper selection
• Fits the original control shaft to restore normal user control

• One control knob

• Disconnect power to the appliance before servicing electrical or heating controls
• Pull the old knob straight off the control shaft; press the new knob firmly into place
• If the knob resists or the shaft is damaged, inspect the control shaft and replace any worn components
• No calibration required after installation; test operation at low power first

This burner inner cap is the small metal cap that sits on the center of a gas cooktop burner head to help direct and shape the flame for even heating. Replacing a damaged or misplaced cap restores correct burner performance and consistent cooking heat. What it does:

• Covers the burner head and helps direct gas flow for a stable, even flame
• Helps maintain proper flame pattern to avoid hot spots and uneven cooking
• Can resolve weak, flickering, or irregular flames when the cap is warped or missing
• Protects the burner head from spills and debris that can block ports

• Turn off the range and allow the burner to cool completely before servicing
• Remove the burner grate and lift off the old cap; seat the new cap flat onto the burner head
• Do not force or pry the cap into place—align it and let it sit naturally on the burner surface
• After installation, check burner ignition and flame pattern; if you smell gas or see unsafe flames, stop use.

This burner cap fits over a gas burner head to direct and stabilize the flame for efficient cooking. It replaces a cracked, warped, or missing cap to help restore even heating and reliable ignition. What it does:

• Centers and shapes the burner flame for consistent heat distribution
• Protects the burner base from spills and debris that can affect ignition
• Helps prevent uneven or yellow flames caused by damaged caps
• Can resolve ignition issues when improper flame pattern is due to a damaged cap

• Disconnect gas supply and ensure the range is off and completely cool before servicing.
• Lift off grates and position the cap flat on the burner head; no special tools normally required.
• Clean burner head and surrounding area of debris before reinstalling to ensure proper seating.
