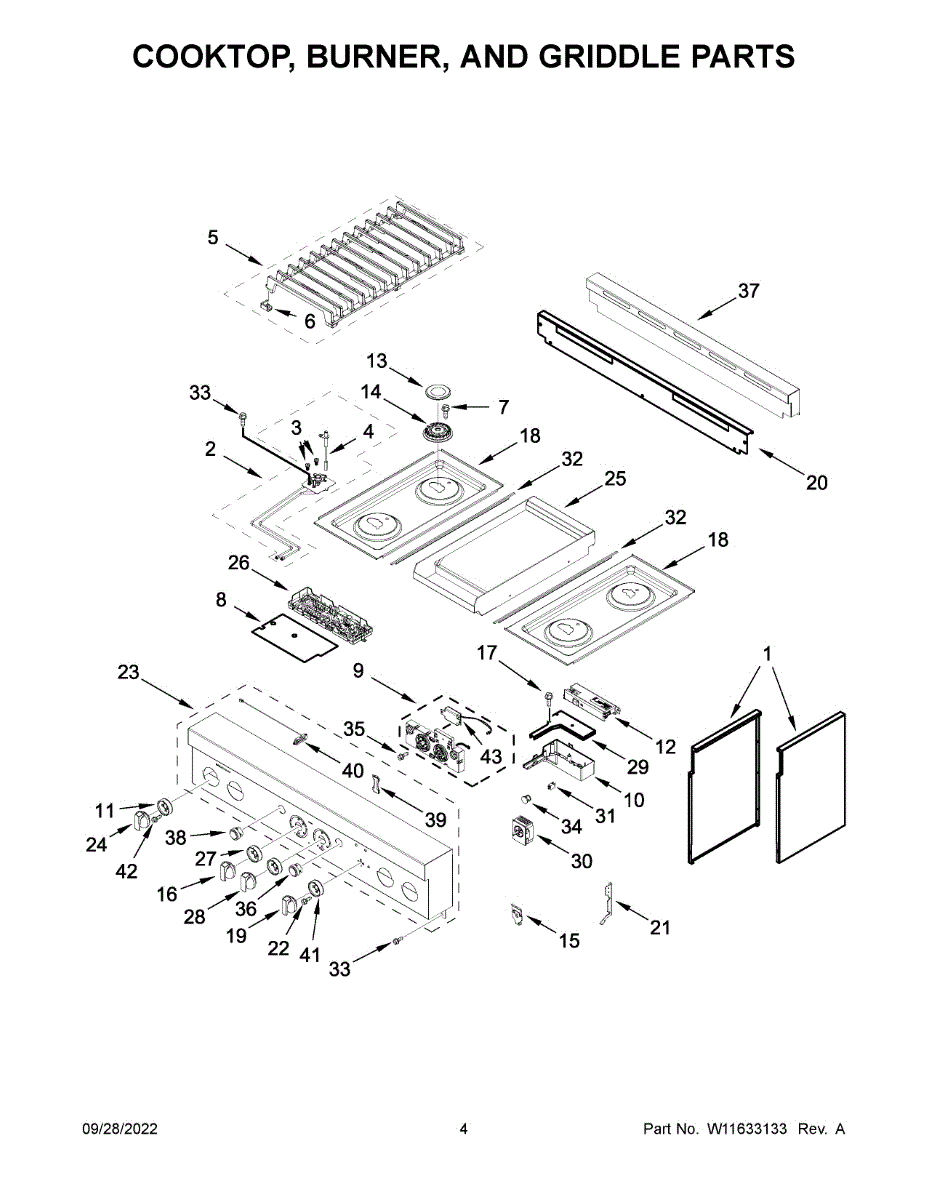

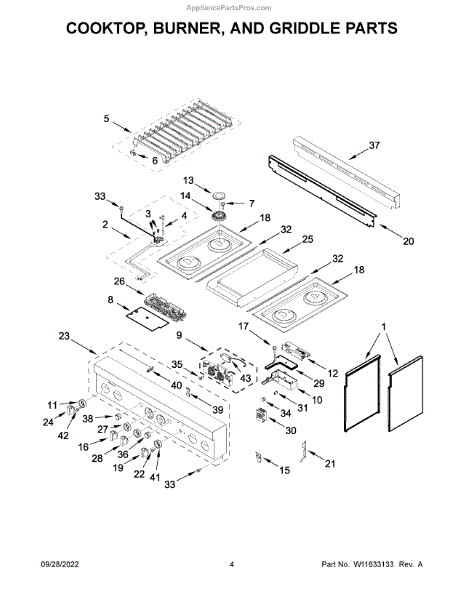

Parts for Jenn-Air JGRP536HM05: Cooktop, Burner, And Griddle Parts

This Holder ORF is the mounting bracket that keeps the ORF assembly securely positioned inside the appliance, helping prevent movement that can cause noise or intermittent component issues. Durable replacement to restore proper part alignment. What it does:

• Secures the ORF assembly or related component to the appliance frame
• Prevents shifting or vibration that can lead to rattling or loose connections
• Helps maintain reliable electrical/mechanical contact for the ORF assembly
• Restores proper fit after damage or wear to the original holder

• Disconnect power before beginning any repair to avoid electrical shock
• Basic hand tools are usually required; handle clips and tabs gently to avoid breakage
• Inspect surrounding fasteners and mounting points; replace any damaged hardware

This brass burner orifice meters natural gas to the burner for correct flame size and reliable cooking heat. Replaces a worn or clogged orifice to restore consistent ignition and even burner performance. What it does:

• Controls gas flow to the burner for a stable, properly sized flame
• Helps correct low, uneven, or weak burner flames caused by a restricted orifice
• Prevents rich/sooty combustion from an oversized orifice
• Used where a 2.5k BTU natural gas flow rate is required for the burner

• Turn off gas and electricity before servicing; follow all safety precautions
• Remove burner cap and unscrew old orifice; install new orifice hand-tight then snug with appropriate tool
• Do not overtighten; check for gas leaks after installation using a leak-safe method

This orifice controls natural gas flow to a burner for a precise 17.5K BTU output, restoring proper flame size and consistent heating. Use when a burner produces weak, uneven, or no flame. What it does:

• Meter gas to the burner for a 17.5K BTU natural gas flame
• Helps correct low or uneven burner flames and improves heat output
• Commonly replaced when a burner won't light, sputters, or shows an unstable/yellow flame
• Works as the fixed orifice that matches appliance gas pressure and burner design

• Shut off gas supply and disconnect power before servicing
• Replace only with the correct orifice size for safe operation
• Use proper fittings and thread sealant rated for gas; check all connections for leaks

This is a 10" heavy-duty igniter wire used to connect the oven igniter to the control/safety device, ensuring reliable spark transfer for proper ignition. It replaces worn or damaged wiring to restore safe burner operation. What it does:

• Conducts the ignition current between the igniter and the control/safety module
• Helps the oven or range light and maintain a consistent flame
• Commonly replaced when ignition is intermittent, the oven won't light, or wiring is visibly damaged
• Heavy-duty construction reduces breakage and improves durability

• Turn off power to the appliance and shut off the gas supply before starting any repair
• Handle carefully to avoid damaging insulation or connectors; replace if frayed, corroded, or nicked
• Route and secure the wire away from moving parts and high-heat areas

The Grate Pad is an OEM component for Whirlpool gas and electric ranges. Located underneath grates atop burner assemblies, this insulating pad protects the cooktop surface during use.

Symptoms of a degraded or improperly fitting grate pad include:

• Scratches or nicks appearing on the ceramic glass cooktop
• The range of burners becoming more difficult to clean
• Noise or vibration issues heard from the cooktop area

Causes related to normal wear over extended use, exposure to cleaning chemicals, or damage from heavy pans accidentally sliding off grates.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This bezel knob is the trim-style control used on the cooktop/oven control panel to allow easy selection of settings and to keep the control stem protected. It restores a secure, easy-to-turn control surface. What it does

• Replaces a cracked, worn, or missing control bezel to restore safe, reliable control operation
• Covers and protects the control stem from dirt and grease buildup
• Provides a tactile surface for turning and selecting heat or function settings
• Helps prevent accidental contact with the control shaft

• Turn off power to the appliance before servicing; for ranges/ovens, disconnect power at the breaker
• Typically installs by pulling the old bezel straight off the control stem and pushing the new bezel onto the stem until seated
• Inspect the control stem and switch for damage before installing; if the stem is damaged, do not install this part alone

This electronic control board replaces the appliance's main control module to restore proper operation of timed cycles, displays and user commands. It provides the control logic that manages the unit's functions and user interface. What it does:

• Manages and sequences appliance functions such as cycle selection, timing and accessory control
• Powers and communicates with the display and touch/selector controls
• Interprets user inputs and triggers valves, motors and other components
• Faulty boards can cause unresponsive controls, incorrect cycles, intermittent operation, or display error codes

• Disconnect power to the appliance before starting any repair to avoid electrical shock
• Handle the board by the edges and avoid static discharge—use an anti-static wrist strap if available
• Verify connector orientation and secure all wiring; do not force connectors

This burner head replaces a damaged or clogged surface burner to restore proper gas flow and even flames on a gas cooktop. It provides a stable burner base for the burner cap and helps maintain consistent heat for cooking. What it does:

• Directs gas to the burner ports so the burner cap produces an even flame
• Helps restore normal burner performance when flames are weak, uneven, or misdirected
• Works with the existing burner cap and igniter to light and sustain a steady flame
• Prevents flame lift and popping caused by warped or clogged burner openings

• One surface burner head

• Turn off the gas supply and disconnect power to the range before beginning work
• Allow the appliance to cool completely; remove the burner cap and replace the burner head, ensuring ports align correctly
• Hand-tighten and seat parts; avoid over-tightening and verify the burner cap sits flat on the head
• If the igniter or burner cap is damaged or cracked, replace those components as well for reliable operation

This surface burner head directs and shapes the gas flame for even heating on a gas cooktop. It restores proper flame pattern and helps burners light and heat cookware reliably. What it does:

• Replaces a damaged or warped burner head to restore consistent flame distribution.
• Helps correct uneven heating, sputtering flames, or flame lift caused by cracked or corroded heads.
• Works with compatible cooktop caps and grates to safely contain the burner flame.
• Fits the factory burner assembly to maintain proper spacing and ignition performance.

• One replacement burner head

• Turn off gas supply and power to the appliance before beginning any work.
• Clean surrounding surface and check burner cap and orifice for debris before reassembly.
• Hand-tighten and seat parts; avoid overtightening.
• Use only with compatible burner caps, grates, and factory-specified components.

This small plastic clip secures appliance panels, trim, or wiring to prevent movement and rattling, restoring proper fit and quiet operation. It's a simple, low-cost part that helps keep components held in place. What it does:

• Acts as a retainer to hold panels, trim pieces, or harnesses in position
• Prevents rattling, vibration noise, and loose or misaligned parts
• Helps maintain proper spacing and alignment of adjacent components
• Commonly replaced when clips are broken, cracked, or missing

• One clip/retainer

• Disconnect power (and water if applicable) before beginning any work
• Clip typically snaps into place; may require a flat screwdriver or trim tool to remove/install
• Inspect surrounding mounting points for damage before fastening replacement clip
• Replace all corresponding fasteners for even fit

This replacement screw restores secure fastening for appliance panels and components, helping stop loose parts and rattling so controls and panels stay aligned. Use when original screws are missing, stripped, or damaged. What it does:

• Secures panels, trim, control boards, brackets, or components to the appliance frame
• Stops rattling, vibration noise, and loose or misaligned parts caused by missing or damaged fasteners
• Replaces stripped, corroded, or missing screws to restore proper fit and function
• Matches OEM fit and threading for straightforward hardware replacement when the correct screw is identified

• Turn off power and unplug the appliance before accessing internal components
• Use the correct screwdriver or bit to avoid stripping the head; do not force mismatched drivers
• Tighten until snug—do not overtighten, which can strip threads or crack plastic
• Keep removed hardware organized and verify the replacement screw matches the original before installation

The Knob is an OEM part for Whirlpool ranges. As the user interface for selecting functions, these knobs allow for precise temperature and burner controls.

Causes of a bad knob can include damage from harsh cleaning chemicals, loose or worn retaining screws, or normal wear and tear over time.

Symptoms of a bad knob include:

• loose, wobbly, or improperly functioning knobs
• fading or crackling of printed numbers/icons
• missing screw caps or mounting hardware
• knobs that do not turn smoothly or snap fully into place

This Whirlpool replacement knob restores accuracy in the workflow. Compatible with legacy models, it ensures continued ease of use. This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, and Kenmore.

This infinite switch is the control that regulates heat for a range's surface top burner, letting you vary burner temperature smoothly for cooking. It replaces a worn or failed control to restore adjustable burner heat. What it does:

• Controls the top burner's heat level by cycling power to the surface element
• Restores adjustable temperature when a burner won't change heat settings
• Stops erratic cycling or constant-on surface caused by a failed switch
• Helps eliminate no-heat or intermittent-heat symptoms at the affected burner

• Disconnect power to the range before servicing to avoid electrical shock
• Remove the cooktop or control panel to access the switch
• Take care when handling glass cooktops, trim, and wiring harnesses to avoid damage

This indicator light lamp assembly notifies you when a control or function is active and restores visible status feedback for your appliance. It's a small, direct-replacement lamp used on control panels and status indicators. What it does:

• Illuminates control-panel indicators so you can see operating status and selected settings.
• Replaces a dim, flickering, or non-working indicator light.
• Helps diagnose control and user-interface issues by restoring visible feedback.
• Fits into the panel socket and connects to the existing wiring harness.

• Disconnect power to the appliance before starting any repair to avoid shock.
• Access typically requires removing the control or trim panel; keep screws and fasteners organized.
• Handle the lamp and lens carefully to avoid damage; do not force-fit.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This 8-32 x 5/8 screw replaces missing or damaged hardware specified by the manufacturer to secure panels, brackets, and internal components in your appliance. Restores a tight, rattle-free fit to help prevent vibration and misalignment.

• Provides the correct 8-32 thread and 5/8-inch length where specified
• Secures sheet-metal panels, brackets, and internal assemblies
• Replaces missing, stripped, or corroded screws
• Symptoms include loose or rattling panels, misaligned parts, or hardware that won't stay tight

• Disconnect power; shut off gas before servicing
• Support panels/components while removing or installing hardware
• Start threads by hand to avoid cross-threading; tighten only until snug
• Match the original screw's location and orientation for proper fit

This push button is a direct-fit replacement control panel button that restores reliable tactile input for appliance functions. Replaces a worn, broken, or sticky button so you can select settings and start cycles with confidence. What it does:

• Acts as the tactile switch you press on the control panel to select functions or start cycles
• Restores unresponsive, cracked, or stuck buttons that prevent proper control operation
• Helps eliminate intermittent or no-response symptoms caused by damaged button surfaces or housings
• Matches OEM fit and form for straightforward replacement on compatible units

• Disconnect power (unplug or shut off breaker) before attempting service
• Access may require removal of the control panel or bezel—use appropriate hand tools
• Handle the button and surrounding plastic carefully to avoid cracking clips or tabs

This rear vent trim restores the finished stainless-steel look and protects the gap at the back of a 36" freestanding gas range. It replaces a damaged, bent or missing vent trim so the rear vent area looks and functions correctly. What it does:

• Covers and protects the rear vent opening on a 36" freestanding gas range
• Restores a clean stainless-steel appearance where the range meets the wall
• Prevents objects from entering the vent gap and reduces visible damage
• Useful if the original trim is dented, loose, corroded or missing

• 1 rear vent trim (stainless steel, 36")

• Disconnect power and turn off gas supply before starting service
• Use basic hand tools to remove the old trim and secure the replacement
• Handle edges carefully — trim may have sharp edges

This push button is a replacement control-panel button that restores proper user input and tactile feedback for your appliance's front controls. It gives a secure, responsive press so cycles and functions register correctly. What it does:

• Acts as the user-facing actuator for a control switch on the appliance control panel
• Helps restore missing, stuck, or non-responsive button presses
• Common symptom: buttons feel loose, don't click, or fail to activate selected cycles
• Works with the corresponding control switch assembly to transmit user input

• One replacement push button

• Disconnect power to the appliance before servicing to avoid shock or damage
• Often snaps into the control panel; may require removal of the panel or bezel
• Handle panel edges carefully to avoid damage; use a trim tool if needed
• If the underlying switch is damaged, the switch assembly may also need replacement

The Speaker is an OEM component specifically designed for Whirlpool brand washers. It alerts users with chime tones or voice prompts during cycle operation or any error states. Precise acoustic engineering allows for clear audio reception even amid operating vibrations.

Symptoms of a bad speaker include:

• No audio tones or voice prompts were heard
• Muffled, distorted, or unusually loud sounds
• Speaker making rattling or buzzing noises

Causes can be damage from water damage, defects in the audio circuitry, or aging components.

This speaker ensures optimal user communication. Without it, you cannot verify cycle progress or troubleshoot issues. Its dependable performance maintains the washer's convenience.

This Whirlpool OEM part fits perfectly while extending the equipment's lifespan. It is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.
