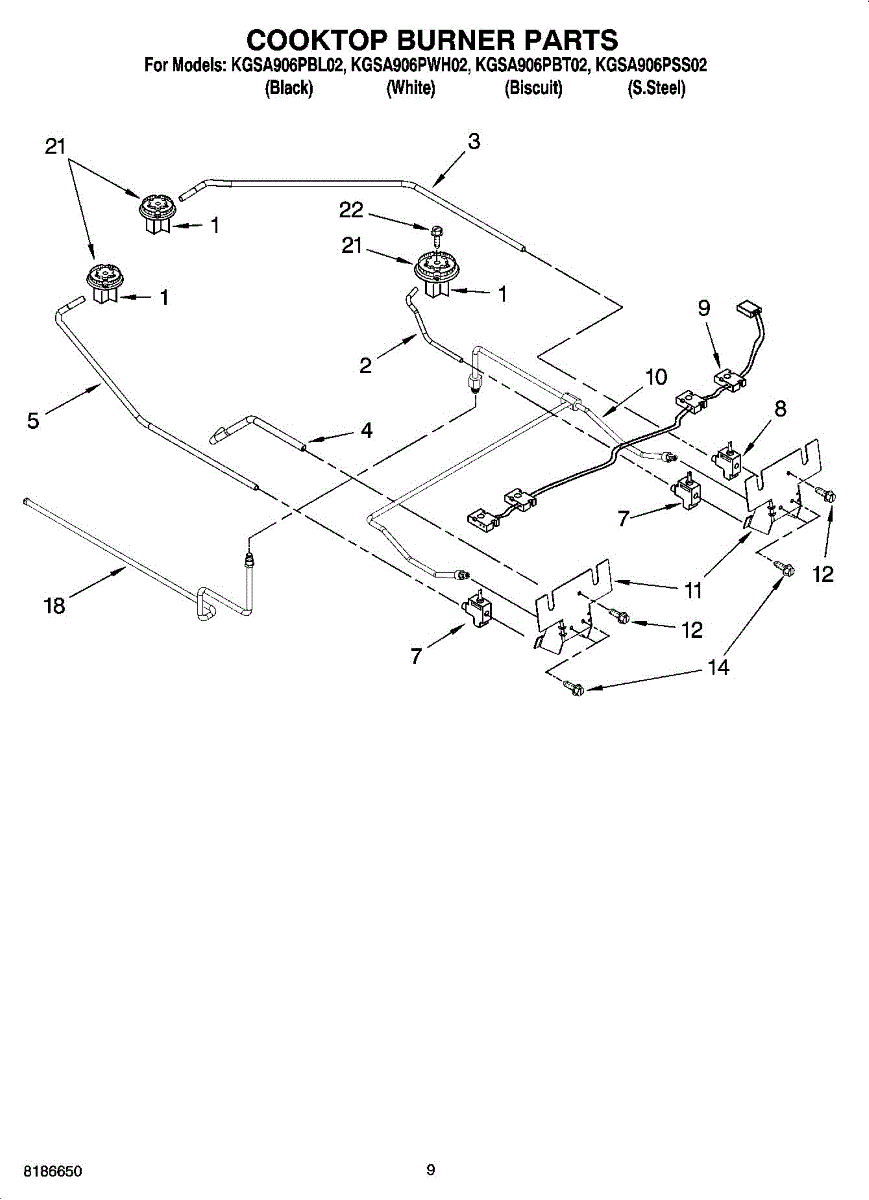

Parts for Kitchenaid KGSA906PSS02: 06 - Cooktop Burner Parts

Includes ignitor and orifice. Size: Small. To order ignitor separately use WP9782116.

This orifice holder secures the gas orifice in the burner assembly so the appliance meters fuel safely and reliably. It restores proper burner alignment and helps ensure consistent flame delivery for safe cooking performance. What it does:

• Holds the gas orifice in the correct position within the burner assembly
• Helps maintain a steady, properly directed flame for even heating
• Can reduce burner misalignment issues and intermittent flame problems
• Works with the valve/orifice assembly to support normal gas flow at the burner

• One orifice holder

• Designed for use with the original burner/orifice assembly; follow OEM diagram for placement
• Turn off gas supply and electricity before servicing; follow all safety precautions
• Use basic hand tools; handle orifice components carefully to avoid damage

This small burner valve controls gas flow to a single cooktop burner, restoring reliable ignition and flame control. Use when a burner won't light, has weak or uneven flame, or fails to respond to the control knob. What it does

• Regulates gas flow to the burner for proper ignition and flame adjustment
• Replaces a worn or leaking valve that can cause no flame or low/irregular flame
• Helps restore consistent heat output and safe burner operation
• Works with the range's control knob mechanism to open and close gas flow

• One small burner gas valve

• Disconnect power and shut off the household gas supply before servicing
• Only install on compatible appliances; follow OEM diagram and torque specs when available
• If you smell gas during testing or installation, stop.

This replacement gas burner valve controls gas flow to a large surface burner, restoring proper flame control and reliable heating for gas ranges. Designed to match OEM fit and function for direct replacement. What it does

• Regulates gas flow to a large cooktop burner so the flame lights and holds steady
• Restores normal heat output when a burner won't light or produces a weak/uneven flame
• Works with the cooktop's control knob to adjust flame size safely and predictably
• Helps stop intermittent gas flow that can cause poor cooking performance

• Turn off the appliance's gas supply and electrical power before starting work.
• Replace only with the exact part; follow OEM instructions.
• Check all connections for proper seal after installation; test operation at low flame first.

This wire harness connects the control/switch assembly to the appliance's thermal cutoff and control circuits, restoring reliable electrical connections for proper operation. It's a direct-fit replacement when the original wiring is damaged or corroded. What it does:

• Provides the factory routing and connectors between the control/switch and TCB/thermal cutoff
• Re-establishes lost or intermittent power caused by damaged wiring or broken terminals
• Helps stop failures that cause controls to be unresponsive or cycles to stop unexpectedly
• Uses OEM-style terminals and insulation to match original fit and function

• One wire harness (switch TCB) as shown

• Disconnect power before starting — verify the appliance is completely de-energized
• Take photos of existing wire routing and connector locations to ensure correct reassembly
• Plug connectors fully and secure the harness along original clips or tie points; avoid sharp edges
• If terminals are damaged at mating parts, inspect and replace those components rather than splicing connectors

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

Size: Large.

The Torx Screw is an OEM replacement part for Whirlpool brand appliances. The Torx Screw is responsible for providing secure and stable connections between different components of washing machines, dryers, dishwashers, and more. These screws are characterized by their star-shaped drive design, which offers better torque transfer and reduces the risk of stripping or cam-out. Sold individually. 7-18 x 3/4"

Causes of a bad Torx screw can include stripping of the screw head, rust or corrosion from prolonged exposure to moisture, or damage from over-tightening or cross-threading. A compromised screw can lead to loose or insecure parts, which can affect the performance and safety of the appliance.

Symptoms of a bad Torx screw include:

• The screw head being stripped and difficult to turn
• Rust or corrosion visible on the screw
• The screw not holding components securely
• Loose or rattling parts within the appliance

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
