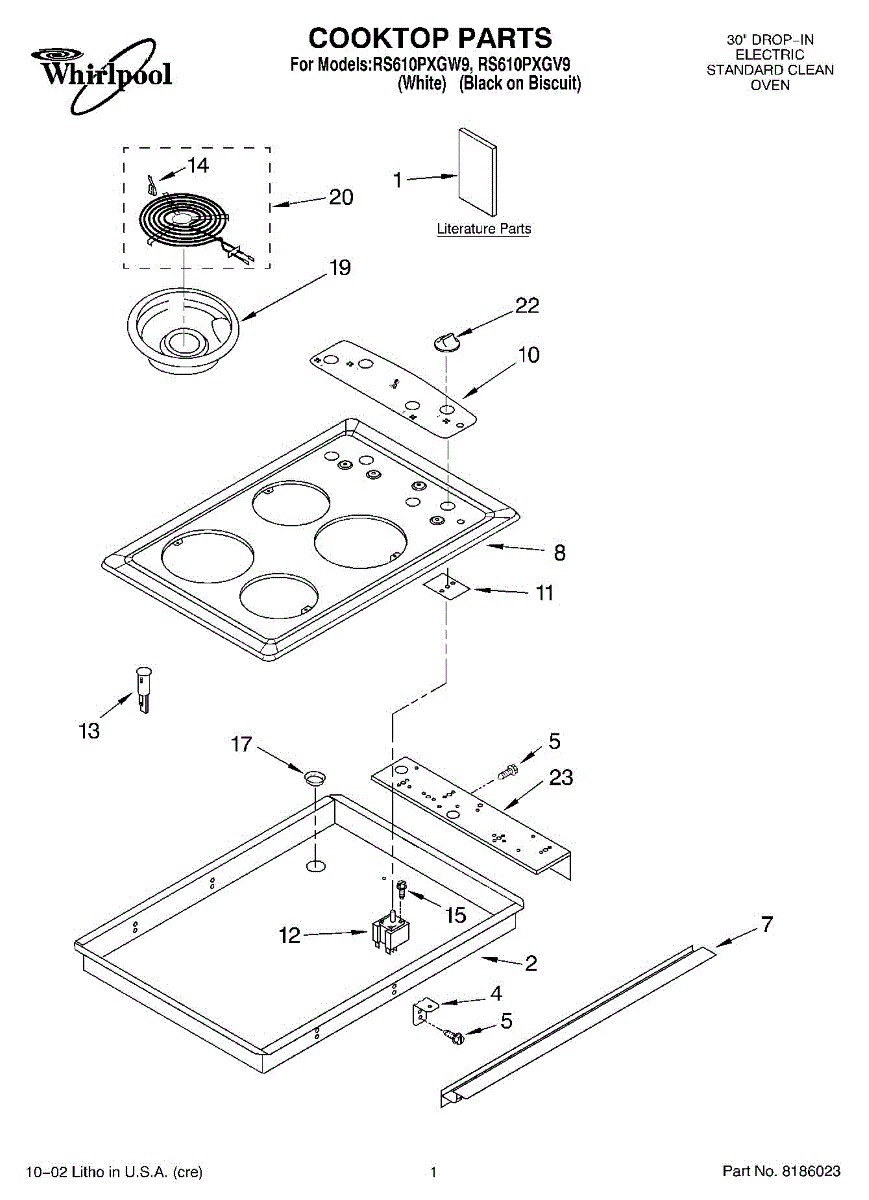

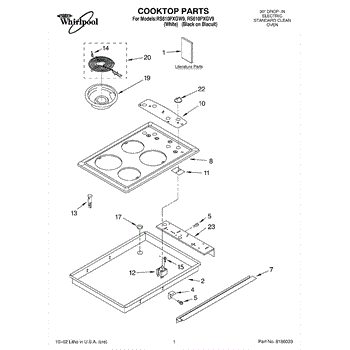

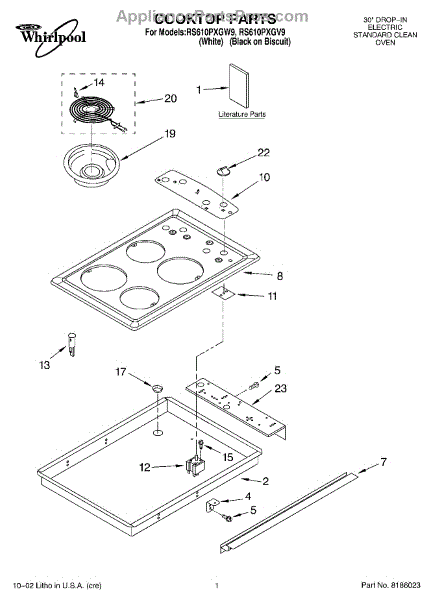

Parts for Whirlpool RS610PXGV9: 01 - Cooktop, Literature Parts

Secures cooktop panels, burner components, and trim pieces. Replace missing, stripped, or damaged screws to eliminate rattles and keep parts aligned.

White model main top.

Color: Biscuit.

Color: Black.

Seals and cushions the switch bracket mounting area on your cooktop. Replace if worn to prevent moisture and debris intrusion. Confirm fit with your model.

Burner only works on high or won't heat properly? This infinite switch controls temperature settings for electric cooktop elements. DIY-friendly repair.

Fix a burner that won't turn off, stays on high, or won't heat. This infinite switch controls your cooktop element's power. Moderate DIY repair.

A 240V indicator light that signals when a high-voltage heating circuit is active, helping you confirm element or oven status at a glance. Fits the original control assemblies that use a panel-mounted signal lamp. What it does

• Illuminates to show the related 240V heating circuit or element is powered.
• Helps diagnose heating issues by indicating whether power is reaching the control or element.
• Visible on the front control panel for quick status checks during operation.
• Designed for direct replacement of the panel-mounted indicator lamp.

• Disconnect power at the breaker before accessing the control panel or wiring.
• Handle the lamp and lens carefully to avoid damage; use proper replacement tools.
• Verify correct function after installation by restoring power and observing the indicator during a heat cycle.

Replace missing or worn element clips if your range burner shifts, sags, or won't stay positioned. This spring clip secures the heating element to its bracket.

8-32 x 1/4 inch mounting screw for cooktops and ranges. Secures components and panels in place. Replace if stripped, corroded, or missing.

Replace a cracked or missing side rail grommet on your oven rack. This small plastic grommet fits into the rack rail to provide smooth gliding and support.

Drip pan installs under range burners to catch spills and grease. Replace if cracked, warped, corroded, or heavily stained for a clean cooktop.

Metal drip pan that fits under electric coil burners to catch spills and boil-overs. Replace cracked, rusted, or heavily stained pans to restore appearance.

Burner not heating evenly or has hot spots? This 6-inch surface element coil restores consistent heat for simmering and boiling. Simple plug-in fix.

Range burner not heating or heating unevenly? This 8-inch surface element restores proper cooking heat. Easy DIY installation in under 15 minutes.

Black control knob for electric range or cooktop burners. Replaces cracked, broken, melted, or missing knobs. Measures 2 inches in diameter. Snaps on easily.
