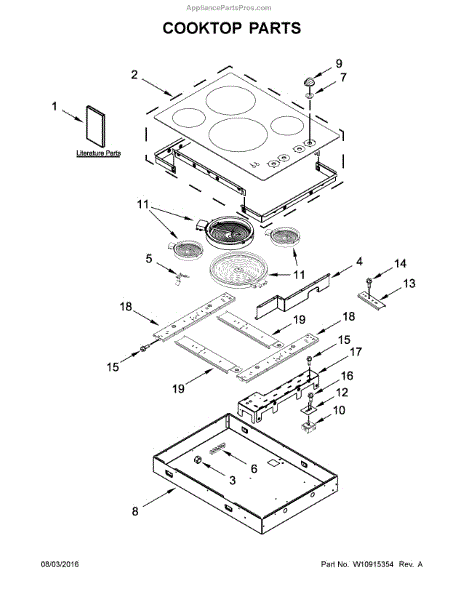

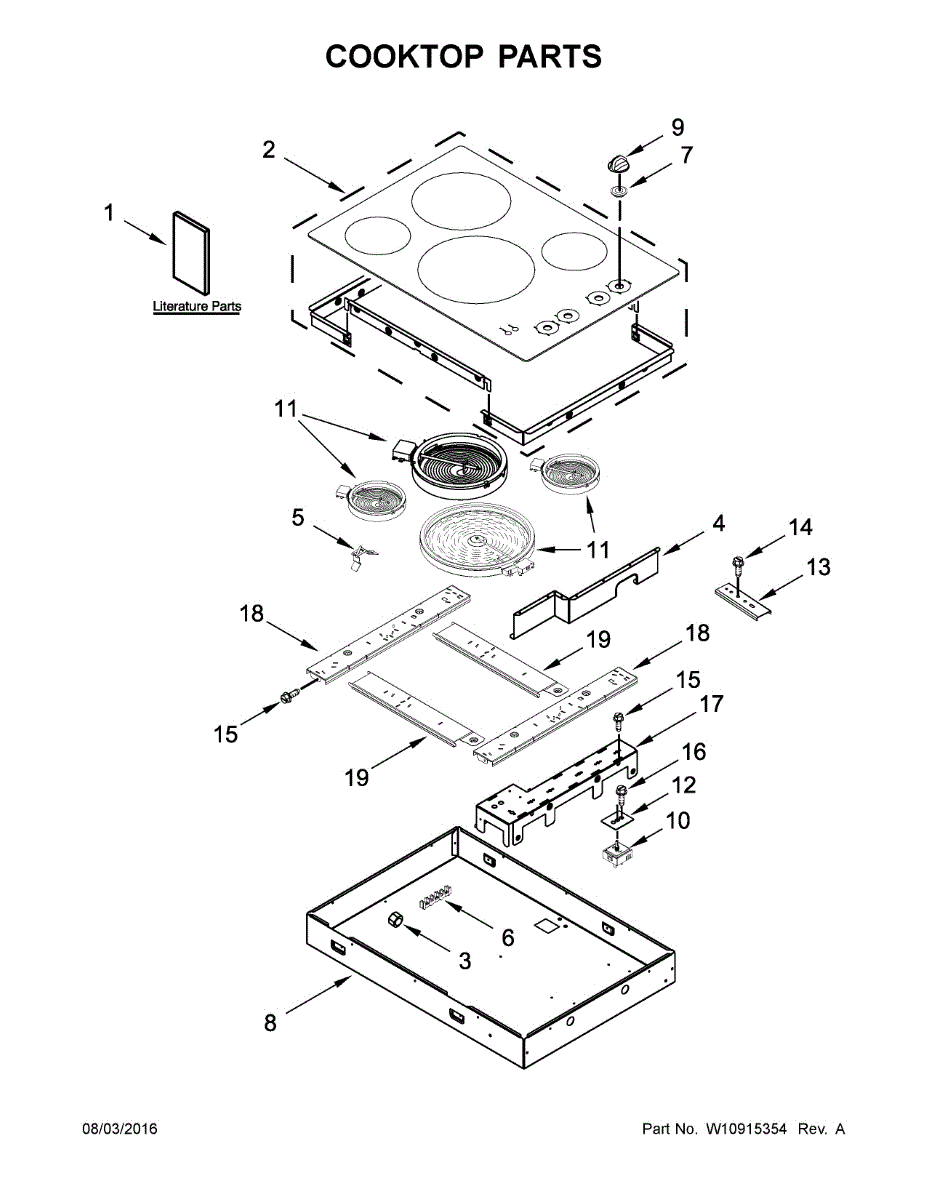

Parts for Amana AEC6540KFB00: Cooktop Parts

Size: 10-32

This heat shield protects nearby cabinet and internal components from excess heat by directing and containing heat away from sensitive parts. It helps prevent heat damage and keeps the appliance operating safely. What it does:

• Shields surrounding panels and components from direct contact with heat sources
• Reduces risk of scorched or discolored cabinet surfaces near the heater or burner
• Helps keep insulation and wiring from overheating
• Can stop heat-related noises from expanding metal near the heating area

• One heat shield

• Turn off and unplug the appliance (or shut off gas supply) and allow all components to fully cool before starting
• Use appropriate hand protection; shield edges may be sharp
• Reinstall fasteners snugly but avoid overtightening; follow OEM diagram for correct placement

This small spring applies tension to hold an element in the correct position within the appliance, helping maintain reliable contact and stable operation. Replacing a worn spring can restore proper element support and performance.

• Provides push tension to keep the element seated and secure
• Helps prevent intermittent heating due to poor element contact
• Common signs include rattling, poor element stability, or intermittent heat

• Disconnect power and allow the unit to cool before service
• Access the element mounting area; note original spring placement
• Use needle-nose pliers to remove and install the spring carefully
• Inspect adjacent clips and wiring; replace damaged parts as needed

Color: black. Measures about 1-1/2 inches in diameter.

This replacement control knob restores user control of appliance settings and provides a secure, easy-to-grip surface for turning dials. It's designed to replace a worn, missing, or damaged knob so you can set temperatures or functions with confidence. What it does:

• Replaces a worn, cracked, or missing control knob to restore manual control
• Allows precise selection of heat, temperature, or function settings
• Provides a secure grip when turning the appliance dial
• Helps resolve symptoms like a loose, hard-to-turn, or unreadable knob

• Disconnect power to the appliance before starting any repair
• Align the knob splines with the shaft and push straight on until it seats; do not force
• Keep removed hardware and old parts for reference during reassembly

The Infinite Switch is an OEM component specifically designed for Whirlpool ranges and cooktops. It is an electronic interface responsible for controlling cooktop burner operation, selecting power levels, or specialized infinite heating settings.  Precise switch functioning allows customizable and convenient cooking control.

Causes of failure are typically related to water intrusion corrupting internal circuits or normal wear of integrated circuits and contact pads with extensive use over time.

Symptoms of a bad infinite switch include:

• Non-responsive or intermittent burner/element operation
• Inability to select specialized infinite heat functions
• Fault codes or error messages shown relating to control issues

This OEM Whirlpool part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Replacement infinite switch that restores variable heat control for a surface heating element on an electric range, letting you adjust burner temperature smoothly and accurately. What it does:

• Regulates power to a surface heating element so the burner produces the selected heat level.
• Replaces a failed or worn rotary control that no longer changes element output.
• Common symptoms: burner won't heat, only heats at one setting, temperature jumps or fluctuates, or knob turns with no effect.
• Fits behind the console and connects to existing element wiring and control knob.

• Disconnect the appliance power before removing the console or control panel to avoid electrical shock.
• Confirm wire locations and take a photo before disconnecting to ensure correct reconnection.
• Secure the switch in place and reconnect wires firmly; test all settings after reassembly.

This surface burner infinite switch regulates power to a range or cooktop's heating element, letting you adjust heat from simmer to boil. Replace a failed switch to restore smooth, consistent temperature control at the knob.

• Regulates the on/off cycling of a surface element based on the selected knob setting
• Can help resolve a burner not heating, stuck on high, or heat that won't adjust consistently
• Addresses intermittent heating or a burner that won't turn off
• Installs in the control panel behind the surface burner knob

• Disconnect power at the breaker or unplug the appliance before servicing
• Access the control panel; label or photograph wire positions on the old switch
• Move wires to the matching terminals on the new switch and secure the switch
• Reinstall the knob, restore power, and test burner operation

The Infinite Switch is an OEM replacement part for Whirlpool ranges. This component regulates the power supply to the heating elements, allowing users to adjust the temperature levels on the stovetop. By turning the knob connected to the infinite switch, users can set the cooking temperature to low, medium, high, or anywhere in between, ensuring precise heat control for various cooking needs.

Symptoms of a bad Infinite Switch include:

• Heating elements not heating up or overheating
• Inability to adjust the temperature of the burners
• The burners heating intermittently or not at all
• Electrical buzzing or sparking noises during operation

Causes for a malfunctioning Infinite Switch can include electrical issues such as wiring problems, wear and tear from regular use, or internal failures within the switch that affect its ability to regulate power.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

1800 watt

The Surface Element is an OEM part for Whirlpool stoves and cooktops. It is the heating element located on the cooktop, responsible for providing heat to pots and pans for cooking.

Common causes of a bad surface element include wear and tear from repeated use, overheating, or electrical issues. Ensuring the element is functioning correctly is crucial for efficient and safe cooking.

Symptoms of a bad surface element include:

• Element not heating up
• Inconsistent or uneven heating
• Visible damage or burning on the element
• Sparking or electrical issues when the element is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: 1200 watt - LR / RR element

The Radiant Surface Element is an OEM part for Whirlpool ranges. It provides the heat necessary for cooking by radiating heat through the cooktop surface. This element is designed to fit under the glass surface of your range, delivering consistent and even heat for various cooking tasks.

Causes of a bad radiant surface element can include wear and tear from regular use, overheating, or damage due to impact. Electrical issues can also affect the performance of the element, leading to inconsistent heating.

Symptoms of a bad Radiant Surface Element include:

• Uneven heating or hot spots
• The element not heating up at all
• Visible damage or burn marks on the element
• Difficulty in controlling the temperature

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: 2500 watts R/F element

This switch bracket mounting seal replaces a worn or damaged seal that cushions and protects the door or control switch mounting area. It helps keep the switch assembly seated and reduces debris and moisture intrusion for reliable operation. What it does:

• Seals the switch bracket mounting area to protect the switch from lint, dust and moisture
• Helps keep the switch properly positioned for accurate door or control sensing
• Can prevent intermittent or failed switch contacts caused by contamination or misalignment
• Useful when replacing a brittle, torn or missing mounting seal during switch or door repairs

• Disconnect power to the appliance before starting any repair
• Remove the door or panel per service instructions to access the switch bracket area
• Fit the seal into the bracket groove or around the switch housing, ensuring full seating without stretching
• Inspect adjacent clips or screws and reuse or replace as needed; test the switch function after reassembly

This hardware kit contains the small mounting parts needed to secure and support the appliance component. It provides replacement fasteners and brackets to restore proper fit and stability after service. What it does:

• Replaces worn or missing mounting pieces that cause loose panels or components
• Restores proper alignment and support for the associated assembly
• Helps stop rattling, vibration, or movement caused by missing hardware
• Matches OEM fit and function when used as a direct replacement

• Intended for technicians or experienced DIYers; inspect the kit before installation
• Use appropriate hand tools; tighten fasteners to manufacturer torque where specified
• Disconnect power and follow all safety procedures before servicing the appliance
• Replace only the parts shown for your specific model

This wire harness routes power and control signals between appliance components, restoring electrical connections for proper operation. It replaces a damaged or worn harness to help resolve intermittent power, control failures, or component non-responsiveness. What it does:

• Provides the factory wiring paths for power and signal distribution between control and components
• Restores lost or intermittent electrical connections caused by frayed, burned, or broken wires
• Helps stop symptoms such as no power to a module, controls not responding, or certain functions failing
• Matches OEM connector groups and wire lengths for a direct replacement

• One wire harness assembly

• Replace only with the exact OEM harness; disconnect power before beginning work
• Take photos or label connections before removal to ensure correct reassembly
• Secure harness away from heat sources, sharp edges, and moving parts to prevent future damage

This switch seal is a small rubber gasket that protects a control or door switch from moisture and debris, helping maintain reliable operation and prevent damage to the switch assembly. What it does:

• Creates a moisture- and dust-resistant barrier around a switch to reduce shorting and corrosion
• Helps keep switches operating smoothly by blocking contaminants that cause sticking or intermittent contacts
• Supports safe electrical performance by keeping water away from switch terminals and housings
• Common symptom linkage: switch malfunction, intermittent control, or moisture-related failures near switch area

• Disconnect power to the appliance before inspecting or replacing the seal
• Remove surrounding trim or components carefully to avoid damaging the switch or housing
• Confirm correct orientation and full seating of the seal during reassembly for an effective barrier
• If the switch shows damage or corrosion, replace the switch assembly as well

This foam tape is used to seal and cushion mating surfaces in your appliance. Replacing a worn strip restores a snug fit, helps reduce noise, and helps maintain proper airflow, heat, or moisture control where specified by the manufacturer.

• Provides a compressible seal between components per the unit's parts diagram
• Cushions panels and trim to reduce vibration, buzzing, or rattling
• Helps prevent air, steam, or heat leaks at joints and seams
• Replace if the original tape is torn, flattened, missing, or contaminated

• Disconnect power and shut off gas/water as applicable; allow the appliance to cool before service
• Note the original tape placement; remove old material and residue, then clean and dry surfaces
• Apply per the service manual; avoid stretching; press evenly to ensure full contact
• If the OEM procedure calls for trimming, cut carefully to length and avoid gaps or overlaps
