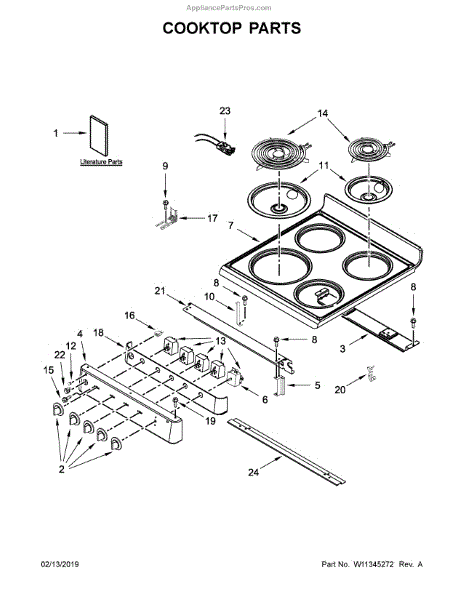

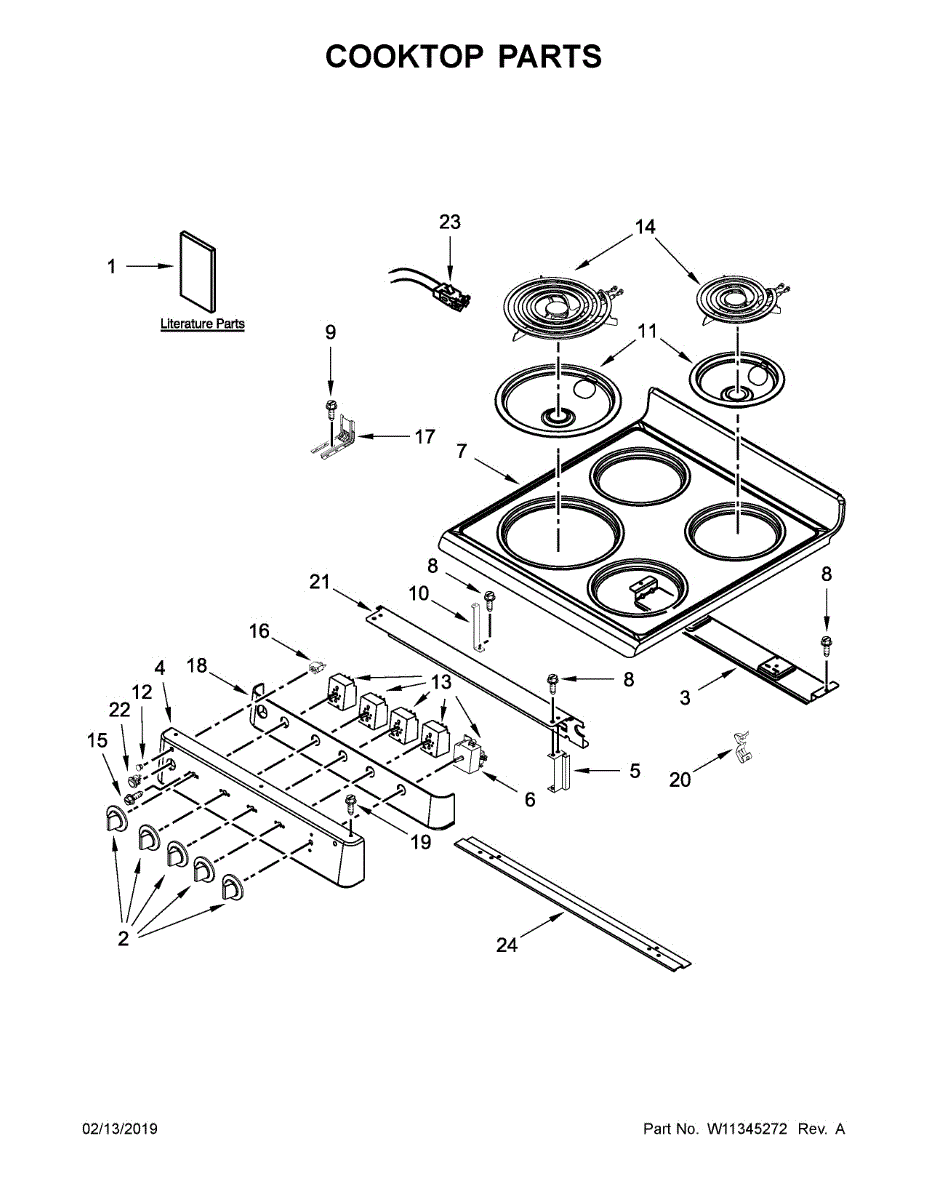

Parts for Amana AEP222VAW3: Cooktop Parts

Color: White

This support is a replacement mounting bracket that stabilizes a specific appliance component and restores proper alignment. Replacing a worn or broken support helps stop excessive movement and prevents related wear on surrounding parts. What it does:

• Secures and stabilizes the related assembly to the cabinet or frame
• Prevents sagging, vibration, and misalignment that can cause noise or uneven operation
• Maintains correct spacing for linked components, reducing rubbing or wear
• Helps restore proper function when the original support is cracked, bent, or broken

• One support

• High-level replacement: typically fastener-mounted; inspect surrounding fasteners and mounting surfaces
• Use correct fasteners and torque per manufacturer guidance; replace any damaged hardware
• Disconnect power and follow all safety procedures before starting work

This replacement support is a mounting bracket that helps stabilize internal appliance components to reduce vibration and maintain proper alignment for reliable operation. What it does:

• Secures and supports internal parts to prevent excess movement and rattling
• Restores proper alignment that can reduce noise or intermittent contact
• Helps prevent undue wear on adjoining components caused by vibration
• Useful when original bracket is cracked, bent, or missing

• High-level fit: installs where the original support/bracket was mounted; verify orientation before tightening
• Use appropriate hand tools; avoid over-tightening fasteners to prevent damage
• Disconnect power (and water if applicable) before beginning any repair
• If fasteners or adjacent components are damaged, replace them for a secure installation

This thermostat is a temperature-sensitive safety switch for range and wall-oven systems. It opens or closes its electrical contacts at a set temperature to help regulate heat, protect components, and keep the appliance operating safely and reliably.

• Senses temperature and opens/closes the circuit at its calibrated threshold
• Helps prevent overheating by interrupting power when excessive heat is detected
• Automatically resets once temperatures drop, depending on design and application
• Common failure signs include no heat, heat dropping out during preheat/bake, or no continuity through the thermostat when cool

• Disconnect power at the breaker; if gas, also shut off the gas supply before servicing
• Access the part per your model; photograph wiring and move connectors to the new thermostat one at a time
• Reinstall in the original orientation and location so it senses heat correctly; do not alter factory routing
• After installation, run a brief test cycle to confirm normal operation

Factory replacement screw that secures appliance components and hardware. Use it to replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and help prevent loosening or damage from vibration.

• Fastens brackets, panels, or internal parts at the original mounting points
• Replaces worn or missing hardware to correct loose or misaligned components
• Helps reduce vibration-related noise and movement
• Matches the original thread and length specified for the application

• Disconnect power; shut off water or gas if applicable before servicing
• Compare to the original for thread and length match before installation
• Start threads by hand to avoid cross-threading; tighten snugly—do not overtighten
• Reuse any original spacers/washers if present; replace if damaged

Screws for range anti tip bracket: WP3801F656-51. Includes 2 screws.

The Stove Top Drip Pan is an OEM replacement part for Whirlpool gas and electric ranges. It is located underneath the stove burners and grates to catch and contain grease drippings and spills. Over time, grease and cooking residue buildup can cause drip pans to crack, warp or corrode.

Symptoms of a bad stove top drip pan include:

• Grease spillovers outside of the drip pan area
• Flames or heating elements obstructed by built-up debris
• Warping or cracking of the pan surface
• Difficulty removing or cleaning the drip pan

Causes can be normal wear from heat and long-term grease exposure. Accidental damage during cleaning is also possible.

 This OEM part is also compatible with Maytag, Jenn-Air, Amana and some Kenmore models.

The Stove Top Drip Pan is an OEM replacement part for Whirlpool ranges. It is the shallow metal pan located below the stove burner elements that collects grease and food particles. The drip pan helps direct spills and drips away from the burner area to the bottom drawer for easy cleanup.

Symptoms of a bad drip pan include:

• Grease or food spilling below the burners outside of the pan
• Burner elements showing signs of corrosion or damage from drips
• The drip pan no longer fitting properly or securely in place

Causes can be warping or damage of the drip pan over time due to exposure to heat. Dents and structural changes compromise its ability to direct drips properly.

This OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

If you require a compatible 6-inch drip bowl, suggest considering our WPW10196406 model for a perfect fit. For a black option include the 6-inch W10290353RW and 8-inch WPW10290350 models.

This replacement light lens covers the appliance's bulb, protecting it from contact, moisture, and splashes while diffusing illumination. Replacing a cracked or missing lens restores safe, even lighting and keeps the bulb properly shielded. What it does:

• Shields the bulb from contact, moisture, and debris
• Diffuses light for more even illumination with reduced glare
• Helps protect the socket area from contamination
• Typical symptoms: cracked, warped, or missing lens; discoloration; exposed bulb; harsh or uneven lighting

• Includes: 1 light lens

• Disconnect power to the appliance before servicing; allow the lamp/area to cool completely
• Wear gloves and eye protection when handling an old or broken lens
• Remove retaining screws, tabs, or clips and note lens orientation for reassembly
• Reuse existing hardware if required; do not overtighten; restore power and test light operation

Infinite switch that controls the top surface burner's heat range, restoring adjustable temperature settings and proper burner response. Replace a failed switch when a surface element won't heat or loses variable control. What it does:

• Regulates power to a surface element so you can select low-to-high heat; failure can cause no heat or only high heat.
• Provides stepped/infinite heat selection for smooth temperature changes; intermittent or erratic heating often indicates switch wear.
• Completes the circuit between the control knob and the burner element; an unresponsive or cycling burner can point to a bad switch.
• Physical symptoms may include a loose knob, inability to hold selected settings, or a surface element that won't turn on.

• Disconnect power at the breaker before servicing and work only on a cool cooktop.
• Access may require removing the element or lifting the cooktop.
• Match and secure wire terminals exactly; do not bend or force terminals. Confirm all connections are correct before restoring power.

Infinite switch (6") replaces the rotary control that regulates power to an electric cooktop or range surface element, restoring adjustable heat control so burners respond correctly when you change the knob. What it does:

• Regulates variable power to a surface heating element, allowing smooth, stepped heat adjustments.
• Replaces a failed or worn control that causes a burner to not heat or only heat on certain settings.
• Can correct symptoms like no heat, burner stuck on one setting, or inconsistent element behavior.
• Operates as the user-facing control behind the range knob for manual temperature selection.

• Disconnect electrical power at the breaker before servicing to prevent shock.
• Access is usually from the back or front control panel; remove knobs and any backguard per your service manual.
• The replacement switch matches the old part's shaft length and terminal layout before installation.

The Coil Surface Element is a 6-inch OEM part for Whirlpool ranges. It is responsible for radiating heat from its coils to cook food positioned above the stovetop grates.

Symptoms of a faulty coil surface element include:

• Slow or uneven heating of pots and pans
• Hot and cold spots on cooking surfaces
• Element coils glowing dimly or not at all
• Buzzing or crackling noises coming from below cookware

Causes can be mineral deposits coating the coils over time, physical damage like bending or breaks, or standard wear of heating filaments inside.

This genuine OEM Whirlpool part is also compatible with the electric ranges of Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, and Kenmore brands.

The Surface Element is an OEM component specifically designed for Whirlpool ranges and cooktops. It provides the heating source for cookware on the stove surface.

Causes of a bad element include deterioration of insulation material over time, carbonization or damage from pans slammed onto the element, or contact with moisture.

Symptoms of a bad element include:

• Inability to heat cookware sufficiently
• Uneven or incomplete heating of pans placed above
• Burn marks or discoloration visible on the element
• Crackling or popping noises heard from below pans

This part is also compatible with some Kenmore, Frigidaire, and select GE range models. Proper cooking performance and safety are maintained with an OEM surface element replacement when needed.

This machine screw is used across appliances to secure brackets, covers, and internal components. Replacing a missing or stripped fastener helps keep parts aligned and tight, reducing vibration and preventing loose or shifting assemblies.

• Provides machine-thread fastening for panels, brackets, and internal parts
• Helps eliminate rattling, vibration, and loose fits
• Restores proper attachment when the original screw is stripped, missing, or corroded
• Used wherever an 8-32 screw is specified in the service manual or parts list

• Disconnect power to the appliance; turn off gas/water if applicable
• Match the screw to the original location to confirm size and thread
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten to prevent stripping or cracking

Replacement indicator light for control panels that restores visible status and cycle feedback. Ideal when the control-panel light is dim, cracked, or not illuminating—helps active functions and cycle progress at a glance. What it does:

• Illuminates to indicate active functions and cycle/status information on the control panel.
• Replaces a cracked, burnt-out, dim, or non-functioning indicator light.
• Common symptoms it can fix: a dark, flickering, or intermittently working panel indicator.

• Disconnect power (unplug or shut off the circuit breaker) before servicing the appliance.
• Access may require removing the control panel or lens; follow the owner's manual or service guide for panel removal.
• Handle the light and lens carefully to avoid damage; avoid touching bulb surfaces with bare hands.

This mounting bracket secures and supports appliance components, providing a stable attachment point to keep parts aligned and reduce movement during operation. It's a simple, durable metal bracket used where a fixed support is required. What it does:

• Provides a secure attachment point for panels, assemblies, or internal components
• Keeps parts aligned to prevent vibration, noise, or rubbing
• Restores proper fit and function when a bracket is bent, cracked, or missing
• Compatible with OEM mounting locations that accept this bracket style

• One mounting bracket

• Turn off power and disconnect the appliance before beginning any repair
• Use appropriate fasteners and torque to match the original hardware; replace any damaged screws
• Handle sharp edges carefully and wear gloves to protect your hands

Color: Black. For biscuit order 98008169. For white order WP98008544.

The thermostat bulb clip is an OEM component specifically designed for Whirlpool drop-in electric ranges, securely fastening the thermostat sensor bulb. This clip features corrosion-resistant spring coils and precision tips.

Symptoms of a bad thermostat bulb clip include:

• Dangling thermostat bulb
• Temperatures inside oven might be incorrect because sensor bulb is not mounted correctly.

Causes of failure involve metal fatigue weakening the thermostat bulb clip over years of expansion and contraction during heating, worn surfaces losing grip, or damaged barbs failing to anchor the thermostat bulb.

Replace yours today with this genuine OEM Whirlpool clip. Compatible with Jenn-Air, GE, and select Kenmore appliances, reinforced coils maintain constant tension assuring safety. Reliable glass retention enhances interior illumination for tasks.

This light switch is the replacement rocker-style control that turns the oven/cabinet light on and off so you can safely check cooking progress without opening the door. It provides a direct, user-facing switch function and restores reliable light control. What it does

• Replaces a faulty rocker light switch that won't turn the oven/cabinet light on or off
• Restores responsive on/off control for the interior light so you can view contents without opening the door
• Helps eliminate intermittent or non-working light due to a worn or failed switch
• Fits into the original switch opening and interfaces with the existing wiring harness

• One (1) light switch (rocker-style)

• Disconnect power to the appliance before beginning any repair to avoid electric shock
• May require removing the control/inner panel or light housing to access the switch—use appropriate hand tools
• Verify wire locations and harness connection before removal; swap wires one at a time or photograph connections

The Surface Burner Receptacle is an OEM part for Whirlpool ranges. It is designed to hold the surface burner element in place and provide the electrical connection needed for the burner to heat up. This component ensures a secure and efficient transfer of electricity to the burner element, allowing for proper cooking performance.

Causes of a bad surface burner receptacle can include regular wear and tear from frequent use, exposure to high temperatures, or damage due to corrosion or accidental impact. These factors can lead to poor electrical connections or the burner element not staying securely in place.

Symptoms of a bad surface burner receptacle include:

• Burner element not heating or heating inconsistently
• Burner element not fitting securely or wobbly in its socket
• Visible signs of damage, such as burns or melted plastic around the receptacle

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This cable tie secures wiring and the power cord to the appliance chassis to help prevent chafing, pinching, or loose connections. Simple, low-cost part that restores proper wire routing and strain relief. What it does

• Holds wiring and harnesses in place to prevent rubbing against sharp edges
• Helps reduce risk of intermittent power or connector strain caused by loose wires
• Keeps harnesses routed for correct clearance and component access
• Useful during repairs to restore original wire routing and strain relief

• One cable tie (wire harness retainer)

• Safety first: disconnect the appliance from power before inspecting or replacing wiring components
• Remove the damaged or existing retainer and route harnesses to match original OEM routing before installing the new tie
• Trim excess tie tail; do not overtighten—secure, but avoid crushing wires
• Replace any tie that's melted, cracked, or otherwise damaged rather than reusing it
