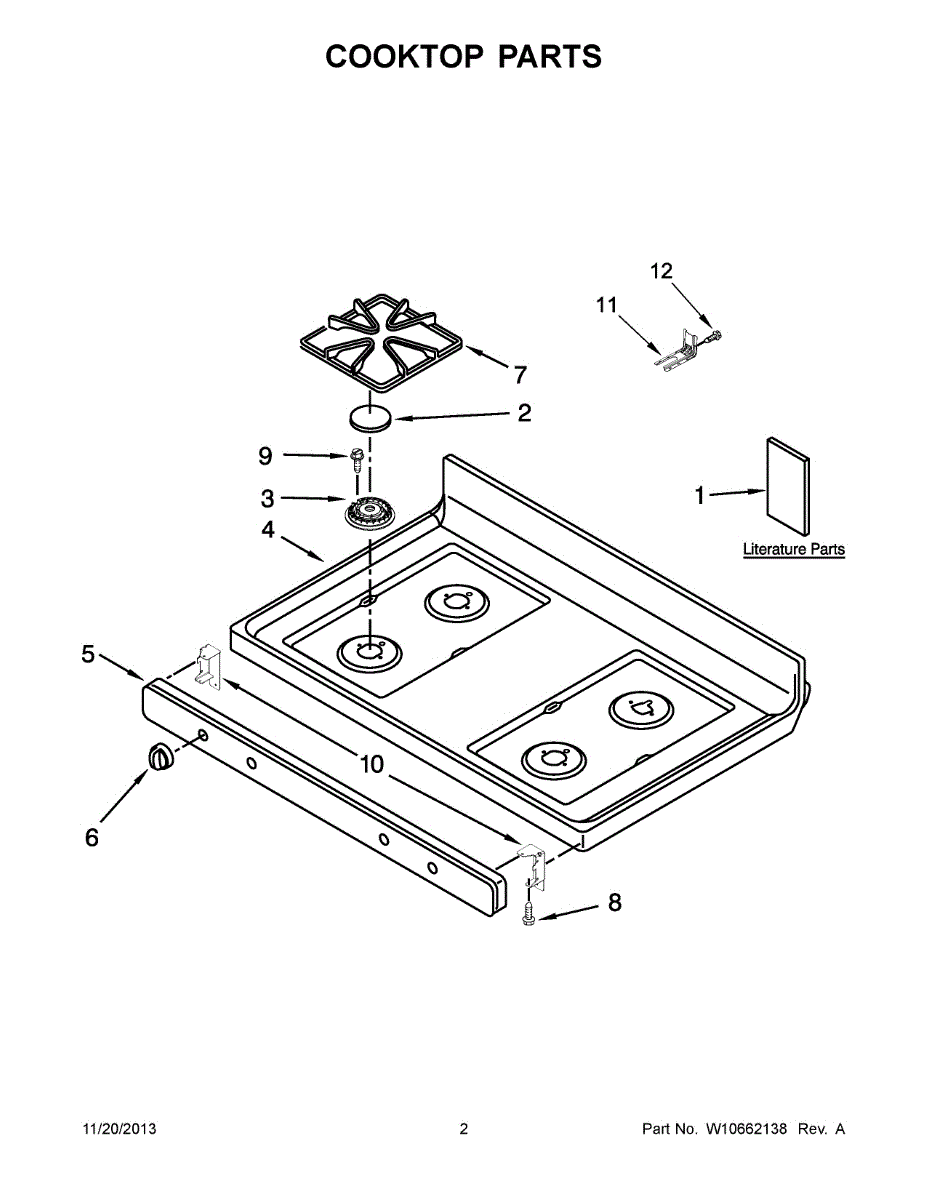

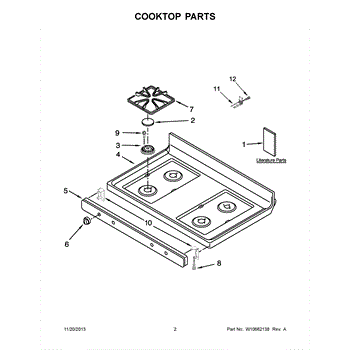

Parts for Amana AGR5630BDB1: 02 - Cooktop Parts

These wetstone brown burner caps replace worn or damaged caps on compatible gas cooktop burners to restore correct flame shape and even heating. They provide a finished appearance and protect the burner head from spills and debris. What it does:

• Covers and protects the burner head from spills, food debris, and corrosion
• Helps direct and shape the gas flame for more consistent heating
• Restores a uniform appearance to the cooktop surface
• Can resolve uneven or irregular flame pattern caused by chipped or warped caps

• Turn off gas and allow the cooktop to cool completely before handling parts
• Remove grates and lift old caps straight off; seat new caps flat on the burner base
• Do not force caps; ensure proper alignment with the burner head for safe operation

Replacement brown burner caps for gas cooktops that restore the finished appearance and help stabilize the burner flame for reliable operation. Use this kit when caps are cracked, chipped, corroded, or missing. What it does:

• Covers and protects the burner head while shaping the flame for stable combustion; replace if flames appear uneven or lift.
• Replaces damaged caps that can cause poor ignition, soot buildup, or an unsightly cooktop surface.
• Restores correct cap alignment over the burner for consistent spark/ignition behavior and even heating.
• Matches the original color and finish to keep the cooktop looking uniform.

• Turn off the gas supply and allow the cooktop to fully cool before servicing.
• Remove the old caps, clean the burner head area of debris, then seat each new cap flat on the burner.
• Do not operate the appliance with cracked or broken caps.

Replacement burner head for gas cooktops and ranges that directs the flame for even heating and restores burner performance. Ideal when a burner is damaged, clogged, or producing weak or uneven flames. What it does:

• Directs gas flow to the burner ports to produce an even, stable flame for consistent cooking.
• Replaces a warped, cracked, or clogged burner head that causes uneven heating or reduced heat output.
• Can resolve ignition issues related to misaligned or damaged burner components.
• Fits standard surface burner assemblies.

• Turn off the appliance's gas supply and power, and make sure the cooktop is completely cool before starting.
• Remove the grate and old burner head, clean the area of debris, then seat the new burner head onto the burner base so it sits flush.
• No special tools are usually required; ensure ports are unobstructed and the head is properly aligned before testing.

The Surface Burner Base is an OEM part for Whirlpool ranges and cooktops. This component is a critical part of the stove's burner assembly, housing the gas outlet and providing a stable platform for the burner cap and flame spreader. It is specifically designed to handle the rigors of daily cooking, ensuring an even and controlled flame that enhances your cooking precision.

Symptoms of a failing Surface Burner Base include:

• Uneven flames or poor heat distribution
• Difficulty in lighting the burner
• Gas leaks detected around the burner area
• Visible signs of corrosion or damage to the base

Common causes for burner base issues can include continual exposure to high temperatures, spills that lead to clogging or corrosion, and normal wear and tear.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Surface Burner and Electrode is an OEM part for Whirlpool cooktops and ranges. This component is essential for igniting the gas burner, ensuring efficient and reliable cooking performance. The burner provides a stable flame for cooking, while the electrode generates the spark needed to ignite the gas. Includes the igniter. The compatible screw is part number WP3368921 / AP6008125

You should replace the surface burner and electrode if they become faulty. Causes of a bad surface burner and electrode can include regular wear and tear, food residue buildup, or damage from high heat. A malfunctioning burner or electrode can lead to ignition issues and inefficient cooking.

Symptoms of a bad surface burner and electrode include:

• The burner not igniting or taking multiple attempts to light
• Weak or inconsistent flames
• Clicking sound without ignition when trying to light the burner
• Uneven cooking or hotspots on cookware

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White

Color: Black

Color: Black.

Color: White.

The Control Knob is an OEM part for Whirlpool ranges and cooktops. It allows users to adjust the heat levels of the burners, providing precise control over cooking temperatures.

Causes of a bad control knob can include regular wear and tear, accidental impact causing cracks or breaks, or the inner mechanism wearing out, making it difficult to control the burner settings accurately.

Symptoms of a bad control knob include:

• The knob not turning or being difficult to turn
• The knob feeling loose or wobbly
• Inaccurate heat level adjustments
• The knob not staying in place or slipping

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Control Knob is an OEM replacement part for Whirlpool gas ranges. It is the manually operated rotary component that selects cooking features and temperature settings on the stovetop burners. Measures about 2 inches in diameter. For white order WP8273104. For biscuit order WP8273106.

Causes of a bad control knob include normal wear of internal components over extensive cooking cycles. Stripping or deterioration of the knurled gripping surface also reduces functionality.

Symptoms of a failed control knob involve:

• Difficulty in turning or fully engaging desired burners
• Loose, detached, or misaligned positioning on the control panel
• Inaccurate burner selection leading to scorched pans or undercooked meals
• Knob continuously self-adjusting from intended temperature settings

Compatible brands include KitchenAid, Jenn-Air, and some Kenmore gas ranges and cooktops as well.

This cooktop grate kit replaces damaged or worn grates to restore stable, even support for pots and pans on a gas range. It helps maintain proper burner performance and keeps cookware level during cooking. What it does:

• Provides a sturdy surface for cookware so pots and pans sit flat and stable over burners
• Protects the cooktop surface from spills and direct flame contact
• Restores proper cookware alignment if existing grates are warped, chipped, or heavily worn
• Helps reduce wobble and improves cooking consistency when grates are compromised

• Turn burners off and allow the cooktop to cool completely before removing or installing grates
• Lift old grates straight up; install new grate pieces so they sit flush and stable over each burner
• No special tools typically required, but follow your range manual for any model-specific steps

Replace worn or damaged cooktop grates with this grate kit to restore a stable, level platform for your pots and pans. It helps maintain safe, consistent pan support and keeps your range or cooktop looking and performing its best. What it does:

• Supports cookware above the burners at the correct height
• Restores level, stable pan support when grates are cracked, warped, or missing
• Helps reduce rocking or tipping of pots and pans
• Common signs it's needed: chips or cracks, grates won't sit flat, unstable cookware

• One grate kit

• Turn off all burners and allow the appliance to cool completely before handling
• Lift off old grates; clean support ledges and burner surrounds
• Position new grates per the burner layout; ensure they sit level and centered
• Verify pan stability before cooking

The Torx Screw is an OEM replacement part for Whirlpool brand appliances. The Torx Screw is responsible for providing secure and stable connections between different components of washing machines, dryers, dishwashers, and more. These screws are characterized by their star-shaped drive design, which offers better torque transfer and reduces the risk of stripping or cam-out. Sold individually. 7-18 x 3/4"

Causes of a bad Torx screw can include stripping of the screw head, rust or corrosion from prolonged exposure to moisture, or damage from over-tightening or cross-threading. A compromised screw can lead to loose or insecure parts, which can affect the performance and safety of the appliance.

Symptoms of a bad Torx screw include:

• The screw head being stripped and difficult to turn
• Rust or corrosion visible on the screw
• The screw not holding components securely
• Loose or rattling parts within the appliance

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

The Anti Tip Bracket is an OEM component specifically designed for Whirlpool ranges. This bracket plays a crucial safety role in preventing the range from accidentally tipping over if excessive weight is applied to the open oven door.

The anti-tip bracket secures tightly to the floor or wall behind the range, linking it securely in place. It allows the oven door to function while ensuring the entire appliance remains stable even under heavy use.

Causes of a bad bracket can include damage, deterioration of mounting hardware over time, or failure to install properly according to manufacturer instructions.

Symptoms of a faulty anti-tip bracket include:

• The range appears unsecured and able to wobble or rock backward
• Looseness between the bracket and mounting surface
• Cracks or breaks in the anti-tip bracket material

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


Screws for range anti tip bracket: WP3801F656-51. Includes 2 screws.
