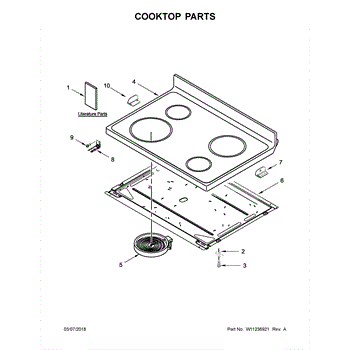

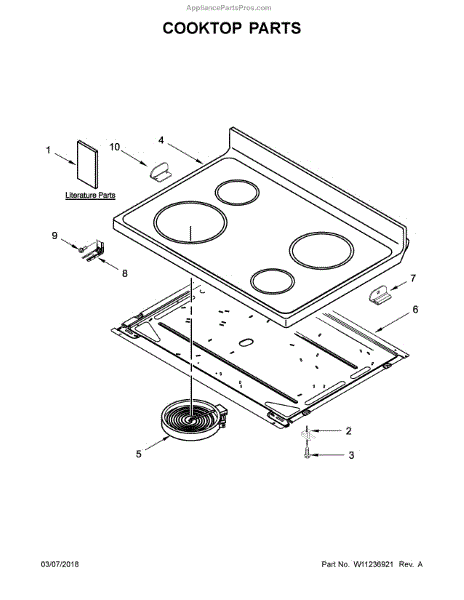

Parts for Ikea IES350XW5: Cooktop Parts

This small spring applies tension to hold an element in the correct position within the appliance, helping maintain reliable contact and stable operation. Replacing a worn spring can restore proper element support and performance.

• Provides push tension to keep the element seated and secure
• Helps prevent intermittent heating due to poor element contact
• Common signs include rattling, poor element stability, or intermittent heat

• Disconnect power and allow the unit to cool before service
• Access the element mounting area; note original spring placement
• Use needle-nose pliers to remove and install the spring carefully
• Inspect adjacent clips and wiring; replace damaged parts as needed

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

Color: White

This 1500W ribbon surface element is a direct-replacement electric cooktop burner that restores even, consistent heat for everyday cooking. Designed to match OEM specs and replace a damaged or non-heating surface element quickly. What it does:

• Produces heat for pans and cookware at the cooktop's mid-power burner location
• Replaces an element that won't heat, heats unevenly, or has visible damage
• Provides the ribbon-style heating element used on many electric ranges for consistent surface temperature
• Helps restore normal surface control knob function when the element is the faulty component

• Disconnect power at the breaker and ensure the cooktop is cool before starting
• Handle the element carefully to avoid bending terminals or damaging insulation
• Verify terminal connections are secure and match the original wiring layout

This 2000-watt surface heating element restores steady, responsive heat to a cooktop burner. Replace a weak or failed element to bring back quick heat-up and even, consistent cooking performance. What it does:

• Supplies up to 2000 watts of heat to the selected burner zone
• Works with the surface control to achieve and maintain set temperatures
• Common fix for: burner not heating, slow or uneven heating, or intermittent operation
• Replace if the element shows visible damage such as cracks, blistering, or burned spots

• 1 surface heating element (2000W)

• Disconnect power at the breaker and allow the cooktop to cool fully before servicing
• Lift/remove the cooktop to access the element; handle the glass carefully
• Move wires and any mounting clips from the old element to the new one, one connection at a time, matching positions
• Secure connections before reassembly; if issues persist, inspect the surface switch and wiring harness

Screws for range anti tip bracket: WP3801F656-51. Includes 2 screws.

This ground wire provides a safe chassis connection to restore proper grounding and reduce shock and electrical-fault risk. It replaces a frayed, corroded or missing ground lead to help keep the appliance electrically safe. What it does

• Connects the appliance chassis to the grounding system to prevent stray voltage on metal surfaces
• Restores a secure ground path if the original wire is broken, loose, or corroded
• Helps stop intermittent power faults or nuisance tripping caused by a compromised ground
• Addresses symptoms like visible wire damage, loose ground connection points, or grounding-related electrical issues

• One ground wire

• Always disconnect power (unplug or shut off the circuit breaker) before starting work
• Attach the ring/terminal ends to the designated chassis ground screw and the equipment ground point
• Route the wire away from moving parts, heating elements, and sharp edges; secure with existing clips or fasteners
• If terminal hardware is missing or damaged, replace with equivalent OEM-style fasteners and torque to specification

This replacement screw secures appliance panels and components to keep parts aligned and stable. Use it to replace missing or damaged fasteners that cause loose trim, rattling, or unsecured panels for safer, quieter operation. What it does:

• Fastens panels, brackets, trim pieces, or small components in place
• Restores proper alignment and stops vibration or rattling caused by loose hardware
• Replaces stripped, corroded, or missing screws to prevent parts from shifting or falling
• Compatible where the OEM lists part W11244557 as the required fastener

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten securely but avoid over-tightening, which can strip threads or crack parts
• Replace like-for-like; length before installing
