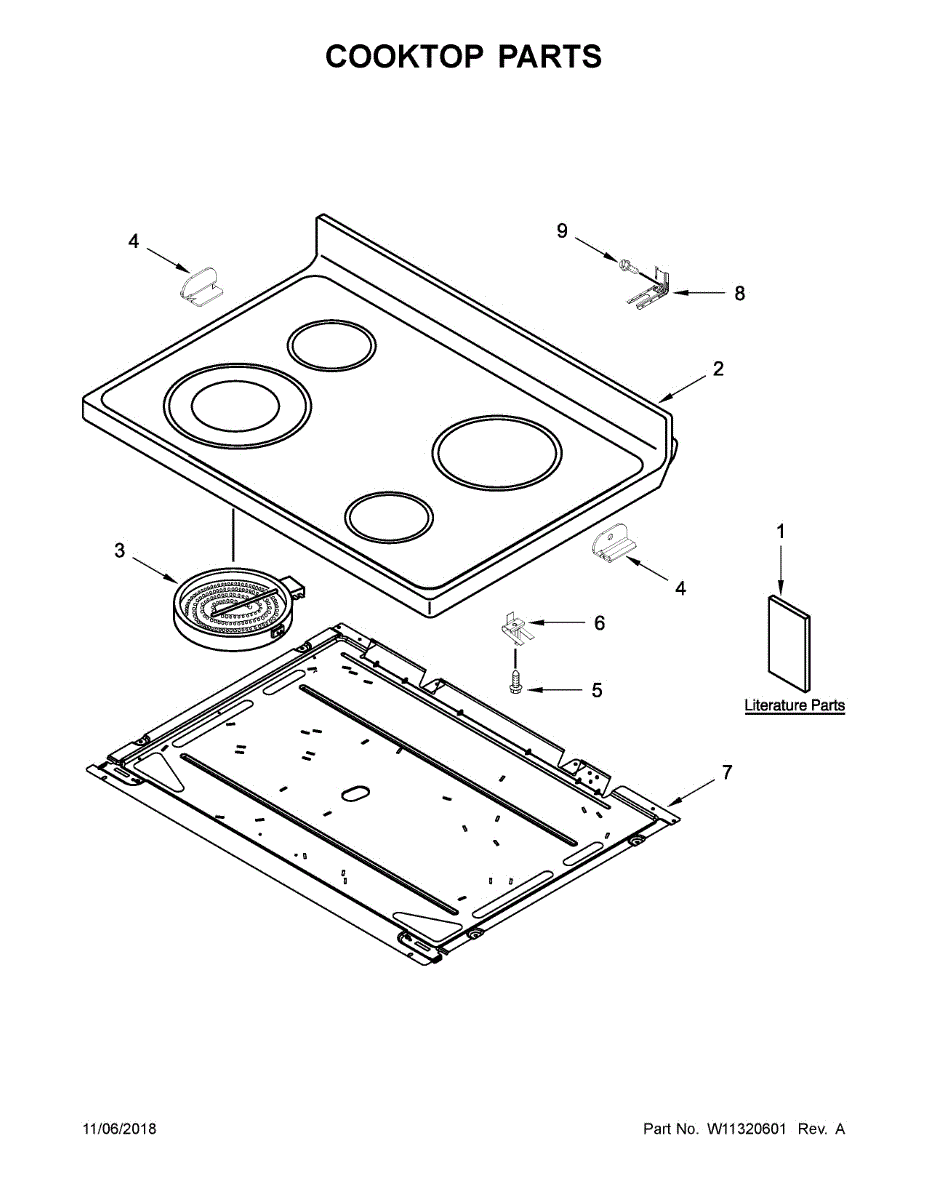

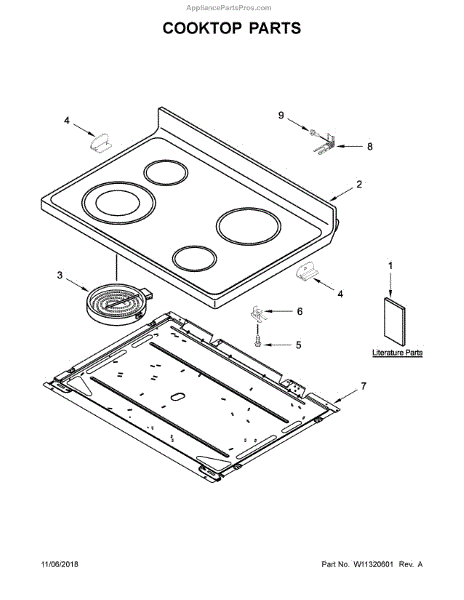

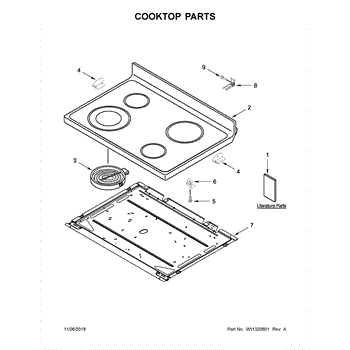

Parts for Ikea IES360GW0: Cooktop Parts

The Cooktop is an OEM part for Whirlpool ranges. It contains a smooth glass surface and essential electronic modules that control the various heating elements underneath.

Causes of a bad cooktop are typically due to cracked or broken glass from heavy impacts or thermal stress over many usage cycles. Component failures in the control modules can also arise with continual heating and cooling.

Symptoms of a bad cooktop include:

• Nonresponsive or incorrectly functioning heating elements
• Faulty temperature sensing leading to inaccurate cooking
• Cracks or chips in the smooth glass surface
• Loose or failed external temperature displays

This authentic Whirlpool replacement cooktop is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore electric range models.

1800 watt

The Surface Element is an OEM part for Whirlpool stoves and cooktops. It is the heating element located on the cooktop, responsible for providing heat to pots and pans for cooking.

Common causes of a bad surface element include wear and tear from repeated use, overheating, or electrical issues. Ensuring the element is functioning correctly is crucial for efficient and safe cooking.

Symptoms of a bad surface element include:

• Element not heating up
• Inconsistent or uneven heating
• Visible damage or burning on the element
• Sparking or electrical issues when the element is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: 1200 watt - LR / RR element

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This small spring applies tension to hold an element in the correct position within the appliance, helping maintain reliable contact and stable operation. Replacing a worn spring can restore proper element support and performance.

• Provides push tension to keep the element seated and secure
• Helps prevent intermittent heating due to poor element contact
• Common signs include rattling, poor element stability, or intermittent heat

• Disconnect power and allow the unit to cool before service
• Access the element mounting area; note original spring placement
• Use needle-nose pliers to remove and install the spring carefully
• Inspect adjacent clips and wiring; replace damaged parts as needed

Screws for range anti tip bracket: WP3801F656-51. Includes 2 screws.

This wire harness routes power and signals between the appliance's electrical components to restore proper connectivity and function. It replaces a damaged or worn harness to help stop intermittent power loss or non-responsive controls. What it does:

• Re-establishes secure electrical connections between control boards, motors, and sensors
• Prevents shorts and intermittent operation caused by frayed or broken wires
• Addresses symptoms like loss of power to components, erratic operation, or no response from controls
• Matches OEM routing and connector types for a direct-replacement fit when specified by the manufacturer

• One replacement wire harness

• Turn off power at the breaker and unplug the appliance before beginning any work
• Compare connectors and wire colors to the original harness to confirm correct fit before installation
• Route harness along original clips and channels to avoid heat or abrasion damage

This wire harness connects the appliance's control and power circuits so switches, sensors, and motors can communicate and receive power. It replaces a damaged or worn wiring assembly to restore reliable electrical connections. What it does:

• Routes power between control board, motors, and user-interface components
• Replaces frayed, broken, or burnt wires that can cause intermittent operation
• Helps resolve symptoms like no power to components, unresponsive controls, or intermittent function
• Ensures secure connector fit to prevent arcing or loss of signal

• One factory-style wire harness assembly as shown

• Disconnect power (unplug or shut off breaker) before starting any repair
• Take reference photos of existing connections to ensure correct reinstallation
• Match connector shapes, pin counts, and wire colors; secure all plugs fully
• If wires or connectors are melted or burnt, inspect surrounding components for damage

The Wire Harness is an OEM component specifically designed for Whirlpool ranges. As the central electrical backbone, it powers and connects key modules like the control panel, oven lights, ignition system and gas valves.

Causes of a faulty wire harness can include cracks or breaks in the insulation over time, limiting its ability to safely transmit electrical currents and gas lines.

Symptoms of a bad wire harness include:

• Lights or burners failing to ignite or heat as expected
• Control panel or knob failures such as unintended selections
• The entire range ceasing functions or tripping safety devices

This OEM Whirlpool part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore range models.
