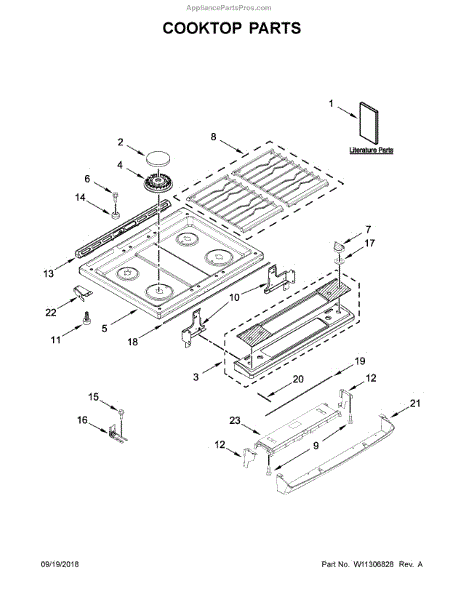

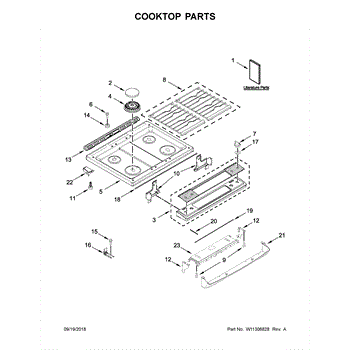

Parts for Ikea IGS790GS0: Cooktop Parts

The Burnr-Head is an OEM part for Whirlpool gas ranges. It serves as the metal surface underneath the gas burner that facilitates flame ignition and heat conduction to cookware above.

Causes of a bad Burnr-Head can include cracks or punctures that develop over extended use. Mineral deposits from repeated cooking or accidental damage are also possible issues.

Symptoms of a bad burnr-head include:

• Unstable or unreliable burner flames
• Inefficient heating and hot or cold spots
• Potential gas leaks or exposure concerns if integrity is compromised

This genuine Whirlpool replacement is compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore as well.

This flame spreader is the replacement metal cap that directs and evens gas flames for an auxiliary/simmer burner, restoring consistent heat distribution across small cookware. Fits the auxiliary burner assembly on compatible gas ranges. What it does:

• Guides and evens the burner flame for more consistent heat across the auxiliary/simmer burner
• Helps maintain a stable, centered flame for small cookware
• Reduces uneven cooking caused by distorted or damaged spreaders
• Compatible with the auxiliary/AB burner configuration in affected gas ranges

• One flame spreader for an auxiliary burner

• Turn off the gas supply and electrical power; ensure the appliance and burner are cool before servicing
• Remove the burner cap and existing spreader per the model-specific diagram, then seat the new spreader in the burner base
• Reinstall burner cap and test operation;
• Do not force parts; use only manufacturer-recommended replacement components

Replacement burner head for gas cooktop surface burners. Restores proper flame pattern and consistent heating by directing gas flow through the burner ports for safer, more even cooking. What it does:

• Directs and shapes gas flow to produce an even, stable flame across cookware.
• Helps restore consistent heating when the burner head is clogged, corroded, warped, or producing uneven or yellow-tipped flames.
• Re-establishes proper ignition and flame spread when the original head is damaged or worn.
• Works with the range's surface burner assembly when seated and aligned correctly.

• Turn off gas supply and ensure the appliance is cool before servicing.
• Remove grates and burner caps, lift off the old head, and seat the replacement flat on the burner base.
• Clean ports gently with a soft brush or pipe cleaner; do not use abrasive tools that could enlarge ports.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This is a genuine replacement mounting screw used to secure appliance panels and components. It restores proper fastening to reduce vibration and prevent parts from loosening during normal operation. What it does:

• Secures panels, brackets, or trim to the appliance frame
• Prevents rattling or vibration caused by loose fasteners
• Keeps wiring and small components held in place
• Helps maintain proper alignment of removable parts

• Disconnect power to the appliance before servicing
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand, then tighten until snug; do not overtighten
• Keep removed fasteners organized to ensure correct reassembly

This drawer glide supports the appliance's drawer and provides a smooth, guided track for opening and closing. Replacing a worn or broken glide restores stable movement, proper alignment, and helps prevent sticking, dragging, or derailing. What it does:

• Provides the sliding interface between the drawer and the cabinet frame
• Keeps the drawer aligned for smooth in-and-out motion
• Reduces friction and noise from a worn or damaged glide
• Common fix for drawers that stick, bind, tilt, or pop off the track

• 1 drawer glide

• Disconnect power to the appliance before servicing
• Remove the drawer to access the glide and note the original orientation
• Release retaining tabs or remove mounting fasteners; transfer any reusable hardware
• Install the new glide, avoid overtightening fasteners, reseat the drawer, and test travel

This end cap panel is a replacement trim piece that restores the finished edge and protects the appliance cabinet where panels meet. It helps maintain a clean look and keeps edges covered after repair or panel replacement. What it does

• Covers and protects the outer edge of a cabinet or control panel section to prevent exposed edges and wear
• Restores a flush, finished appearance after removing or replacing surrounding panels
• Helps keep dirt and moisture from reaching internal edges and seams
• Matches OEM fit and attachment points for reliable alignment

• One end cap panel

• Designed to snap or screw into existing mounting points — handle gently to avoid cracking plastic
• Turn off and unplug the appliance before removing nearby panels
• Inspect adjacent clips or fasteners and replace if damaged to ensure secure fit
• No special tools typically required; a screwdriver and trim tool may be helpful

The Trim Vent is an OEM component specifically designed for Whirlpool gas ranges. Located at the rear of the unit above the oven cavity, the trim vent serves an important safety and ventilation purpose.

Constructed of heat-resistant sheet metal with a powder-coated finish, the trim-vent features an internal layered baffle system and a rear-mounted exhaust fan. This facilitates the extraction of hot oven emissions and fumes up and out of the kitchen space.

This exhaust vent adheres to all codes and regulations regarding temperature ratings and venting performance. It attaches securely to the framework of the gas range with mounting brackets.

Symptoms of a bad trim-vent include:

• Excessive heat or smoke escaping from the oven cavity
• Improper venting of emissions leads to buildup of residue
• Detached, bent, or corroded vent body

Color: Black

This OEM part is also compatible with KitchenAid, Jenn-Air, Amana, Kenmore, and select GE gas range models.

This replacement bumper cushions and protects the appliance door or panel, helping stop metal-on-metal contact, reduce noise, and prevent chipping or wear. Simple, low-profile part that restores smooth, quiet door operation. What it does:

• Cushions door or panel to prevent hard impacts and protect finishes
• Reduces rattling and vibration-related noise during operation
• Helps the door close more softly and sit flush with the cabinet
• Prevents premature wear where edges contact the cabinet

• Disconnect power to the appliance before starting any repair.
• Inspect the damaged bumper and surrounding area, then remove the old bumper by hand or with a non-marring tool.
• Press the new bumper into the original mounting location until fully seated; no special tools normally required.
• If the bumper mounts to a clip or bracket that's damaged, replace the bracket.

Screws for range anti tip bracket: WP3801F656-51. Includes 2 screws.

This anchor tip secures the washer agitator to the transmission shaft so the agitator turns with the washer drive. Replaces a worn or damaged anchor tip to restore proper agitator engagement and reduce slipping. What it does:

• Secures the agitator to the drive shaft so the agitator rotates with the motor
• Helps prevent the agitator from slipping or spinning independently
• Commonly used when the agitator feels loose, makes grinding or clicking noises, or stops agitating
• Simple, low-profile part that works behind the agitator cap

• One anchor tip

• Disconnect power and water before starting any repair
• Remove agitator/agitator cap to access and replace the anchor tip per OEM instructions
• Inspect mating surfaces and replace any additional worn components if engagement remains poor

The Bushing is an OEM replacement part for Whirlpool wall ovens. This component acts as a sleeve to reduce friction and ensure smooth movement in various mechanical parts of the oven, such as door hinges or rotating elements. Properly functioning bushings help maintain the alignment and durability of these parts over time.

Causes of a bad Bushing can include wear and tear from repeated use, lack of lubrication leading to increased friction, or damage caused by misalignment or heavy loads. A failing bushing can lead to inefficient operation or damage to connected components.

Symptoms of a bad Bushing include:

• Squeaking or grinding noises during oven door movement
• Difficulty opening or closing the oven door smoothly
• Misalignment of moving parts

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Replacement gasket that restores a tight seal to the appliance door and helps prevent water or air leaks. Replaces worn, cracked, or compressed seals so the door closes properly and reduces moisture or heat loss. What it does:

• Seals the door opening to stop leaks of water, steam, or heated air.
• Helps maintain proper temperature and efficiency by preventing air exchange.
• Reduces condensation, odors, and cycling caused by a poor seal.
• Common signs you need this part: visible gaps or damage, leaks around the door, excess moisture, or poor heating/cooling performance.

• Disconnect power and water (if applicable) and allow the appliance to cool before starting.
• Clean and dry the mating surface to ensure a proper fit; remove old adhesive or debris.
• Align the gasket into the door channel or groove and press evenly; avoid stretching the material.
• If the door or mounting hardware is bent or damaged, repair those parts before installing the gasket.

This oven door gasket seals the oven cavity to keep heat and moisture in for even cooking and energy efficiency. A worn or damaged gasket can cause heat loss, longer cook times, or visible smoke/odor. What it does:

• Creates a tight seal between the oven door and cavity to retain heat and moisture
• Helps maintain consistent bake and roast temperatures for even cooking
• Reduces heat escaping that can trigger longer cook cycles or cycling issues
• Limits smoke and food odors from leaking into the kitchen

• Disconnect power and allow the oven to cool completely before servicing
• Remove the door per the manufacturer instructions if needed to access the gasket channel
• Inspect the gasket channel for debris and clean before installing the new gasket for a proper seal
• The gasket is fully seated along the door perimeter and check for pinched or twisted sections

The black Control Console is an OEM part for Whirlpool gas ranges. Located at the front of the control panel area, it incorporates touch controls and LED displays for thoroughly customized cooking.

Symptoms of a faulty control console include:

• Unresponsive buttons that do not select temperature settings
• Inoperable cooktop or oven displays and indicators
• Foreign substances obstructing touch sensitivity
• Physical cracks compromising the protective sealing

Causes often involve buildup interfering with circuit boards or residue infiltration degrading electrical paths over time. Impact accidents can fracture components as well.

Compatible models also include those by Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and Kenmore.

This machine-thread screw secures brackets, panels, and trim inside your appliance. Replacing a missing or stripped fastener restores a tight fit, reduces rattles, and keeps assemblies properly aligned. What it does:

• 10-32 machine-thread screw used to fasten metal components
• Maintains alignment and stability of panels, brackets, and trim
• Replace if threads are stripped, head is damaged, corroded, or missing
• Common symptoms: loose panel/handle, vibration noises, gaps or misalignment

• 1 screw

• Disconnect power (and gas, if applicable) before servicing
• Support the component and start threads by hand to avoid cross-threading
• Use the correct driver; do not overtighten to prevent stripping
• Match thread size and length specified for your model
