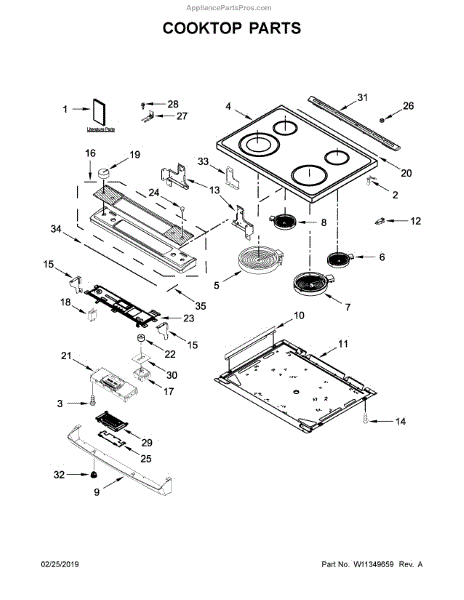

Parts for Ikea YIEL730CS2: Cooktop Parts

This small spring applies tension to hold an element in the correct position within the appliance, helping maintain reliable contact and stable operation. Replacing a worn spring can restore proper element support and performance.

• Provides push tension to keep the element seated and secure
• Helps prevent intermittent heating due to poor element contact
• Common signs include rattling, poor element stability, or intermittent heat

• Disconnect power and allow the unit to cool before service
• Access the element mounting area; note original spring placement
• Use needle-nose pliers to remove and install the spring carefully
• Inspect adjacent clips and wiring; replace damaged parts as needed

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This dual radiant surface element restores even, responsive heat to a smooth-top range or cooktop. It replaces a failed burner so the inner and outer rings heat correctly for dependable everyday cooking.

• Provides heat to a dual-size cooking zone beneath the glass surface
• Works with the surface control to use the inner ring alone or both inner and outer rings
• Common symptoms: burner won't heat, only one ring heats, slow or uneven heating, visible scorching or damage on the element
• Helps restore consistent temperature control and full dual-ring operation

• Disconnect power at the breaker before servicing; elements carry high current
• Lift or remove the cooktop to access the element
• Note wire locations and transfer any mounting brackets/clips from the old element
• Center the element under the burner outline and secure all connections before restoring power

The Surface Element is an OEM part for Whirlpool stoves and cooktops. It is the heating element located on the cooktop, responsible for providing heat to pots and pans for cooking.

Common causes of a bad surface element include wear and tear from repeated use, overheating, or electrical issues. Ensuring the element is functioning correctly is crucial for efficient and safe cooking.

Symptoms of a bad surface element include:

• Element not heating up
• Inconsistent or uneven heating
• Visible damage or burning on the element
• Sparking or electrical issues when the element is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: 1200 watt - LR / RR element

The Radiant Surface Element is an OEM part for Whirlpool ranges. It provides the heat necessary for cooking by radiating heat through the cooktop surface. This element is designed to fit under the glass surface of your range, delivering consistent and even heat for various cooking tasks.

Causes of a bad radiant surface element can include wear and tear from regular use, overheating, or damage due to impact. Electrical issues can also affect the performance of the element, leading to inconsistent heating.

Symptoms of a bad Radiant Surface Element include:

• Uneven heating or hot spots
• The element not heating up at all
• Visible damage or burn marks on the element
• Difficulty in controlling the temperature

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: 2500 watts R/F element

Surface heating element that supplies a 700-watt top-burner heat source for compatible electric ranges, restoring reliable low-heat cooking and precise simmering performance on the affected burner. What it does:

• Provides 700W of heat for a small/simmer cooktop burner to support low- and medium-heat cooking.
• Replaces a burner element that won't heat, heats intermittently, or shows visible damage or burn marks.
• Restores normal burner operation so cookware heats more evenly on that zone.
• Fits into the existing cooktop receptacle and connects to the range wiring without additional heating components.

• Disconnect power at the circuit breaker or unplug the range before servicing.
• Allow the old element to cool fully before removal; handle terminals carefully to avoid bending.
• Inspect terminal clips and wiring for damage during installation; replace any damaged connectors or receptacles.

• Wattage: 700W
• Sold individually

This mounting bracket secures a component or panel to the appliance frame, keeping it aligned and stable during operation. Replace a cracked or bent bracket to stop looseness, rattling, or shifting and restore proper support.

• Anchors the specified component or panel to the chassis
• Maintains correct position and spacing for reliable operation
• Helps reduce vibration and noise from a loose mount
• Common symptoms: broken or missing bracket, bent metal, sagging/misaligned component, difficulty fastening parts

• Disconnect power before service; shut off water supply if applicable
• Note orientation and fastener locations; transfer existing screws/clips if needed
• Support the component while removing/installing the bracket to prevent strain
• Tighten fasteners evenly; avoid overtightening to prevent damage

This replacement pan is the appliance's drip tray that catches and channels condensate or minor spills to help prevent water from pooling inside the cabinet. It restores proper water collection and reduces the risk of internal leaks. What it does:

• Collects condensate, drips or minor leaks from the evaporator/hoses and channels it to the drain area
• Helps prevent water from pooling beneath components that could cause odor or corrosion
• Restores the appliance's intended water-management function when a cracked or warped pan causes leaks
• Suitable when you see standing water, dripping inside the cabinet, or water under the appliance

• One replacement pan as pictured

• Turn off and unplug the appliance (or shut off power at the breaker) before servicing
• Remove access panels or shelving as needed to reach the pan; keep track of fasteners
• Inspect surrounding hoses and mounts for damage while the pan is out; replace damaged parts as required

This replacement screw secures appliance panels and components to keep parts aligned and stable. Use it to replace missing or damaged fasteners that cause loose trim, rattling, or unsecured panels for safer, quieter operation. What it does:

• Fastens panels, brackets, trim pieces, or small components in place
• Restores proper alignment and stops vibration or rattling caused by loose hardware
• Replaces stripped, corroded, or missing screws to prevent parts from shifting or falling
• Compatible where the OEM lists part W11244557 as the required fastener

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten securely but avoid over-tightening, which can strip threads or crack parts
• Replace like-for-like; length before installing

This end cap panel is a replacement trim piece that restores the finished edge and protects the appliance cabinet where panels meet. It helps maintain a clean look and keeps edges covered after repair or panel replacement. What it does

• Covers and protects the outer edge of a cabinet or control panel section to prevent exposed edges and wear
• Restores a flush, finished appearance after removing or replacing surrounding panels
• Helps keep dirt and moisture from reaching internal edges and seams
• Matches OEM fit and attachment points for reliable alignment

• One end cap panel

• Designed to snap or screw into existing mounting points — handle gently to avoid cracking plastic
• Turn off and unplug the appliance before removing nearby panels
• Inspect adjacent clips or fasteners and replace if damaged to ensure secure fit
• No special tools typically required; a screwdriver and trim tool may be helpful

This surface burner infinite switch is the behind-the-knob control for an electric cooktop or range. It regulates power to a single surface element so you can dial in and maintain the heat you need.

• Regulates on/off power cycling to a coil or radiant surface element for variable heat control
• Helps address issues such as a burner not heating, only heating on high, not turning off, or fluctuating temperature
• Installs behind the control panel; connects with spade terminals to line, load, and element leads
• Single-surface-element control for one burner position

• Disconnect power before servicing; this component carries high voltage
• Note wire positions or transfer one wire at a time from the old switch to the new switch
• Secure the switch to the control panel and align the shaft with the control knob
• Reassemble and verify smooth low-to-high burner operation

The Infinite Switch is an OEM part for Whirlpool ranges. It is the control switch for the surface element that allows the user to adjust the heating element to different power levels for precise cooking control.

Causes of a bad Infinite Switch can include overheating, damage from spilled liquids or debris beneath the control panel, or failure due to years of repeated use and exposure to heat.

Symptoms of a bad Infinite Switch include:

• Inability to adjust heating element power levels
• Element remaining stuck on high heat
• Switch malfunctions such as intermittent power or failure to turn off completely
• Visible damage, corrosion, or loose connections around the control area

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Infinite Switch is an OEM part for Whirlpool ranges. This switch is responsible for controlling the operation of the surface element on your range, allowing you to adjust the heat levels for cooking.

A bad surface element switch can occur due to regular wear and tear, electrical issues, or physical damage. If you notice symptoms such as an unresponsive switch, inability to adjust the heat levels, or inconsistent heating, it may be time to replace the surface element switch.

Symptoms of a bad surface element switch include:

• Unresponsive switch
• Inability to adjust heat levels
• Inconsistent or inadequate heating

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Infinite Switch is an OEM part for Whirlpool ranges. It contains internal switches that control cooking functions and safety features.

Causes of a bad switch set can be related to prolonged high-heat exposure, moisture, or accidental impact damage. Over many uses, normal component wear also occurs.

Symptoms of a bad switch include:

• Inoperable or unresponsive dials/buttons
• Failure to ignite burners or maintain set temperatures
• Stovetop elements do not turn off properly
• Oven will not initiate bake or broil cycles

This switch replacement is also compatible with select Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore ranges.

Surface unit indicactor light.

Replacement gasket that restores a tight seal to the appliance door and helps prevent water or air leaks. Replaces worn, cracked, or compressed seals so the door closes properly and reduces moisture or heat loss. What it does:

• Seals the door opening to stop leaks of water, steam, or heated air.
• Helps maintain proper temperature and efficiency by preventing air exchange.
• Reduces condensation, odors, and cycling caused by a poor seal.
• Common signs you need this part: visible gaps or damage, leaks around the door, excess moisture, or poor heating/cooling performance.

• Disconnect power and water (if applicable) and allow the appliance to cool before starting.
• Clean and dry the mating surface to ensure a proper fit; remove old adhesive or debris.
• Align the gasket into the door channel or groove and press evenly; avoid stretching the material.
• If the door or mounting hardware is bent or damaged, repair those parts before installing the gasket.

This gasket seals and cushions a door or control switch, helping keep out moisture and debris so the switch can operate reliably. Use it to restore a proper seal and reduce false trips or intermittent switch contact. What it does:

• Provides a protective seal around a door or control switch to limit dust and moisture intrusion
• Cushions the switch assembly to reduce wear and noise from repeated use
• Helps maintain consistent switch engagement and reliable operation
• Common service part when a switch area shows visible gaps, wear, or causes intermittent function

• Power off and unplug the appliance before starting any repair
• Handle the gasket and adjacent wiring carefully to avoid damage; replace any brittle clips or fasteners

This red indicator light lens covers the control-panel light opening. It restores a clean, finished look and keeps the status light easy to see while helping protect the opening from debris and accidental contact.

• Covers and diffuses the indicator light for clear visibility
• Fills the control panel opening for a finished, factory appearance
• Helps shield the opening from dust, splashes, and contact
• Common fixes: cracked, missing, loose, or discolored indicator lens

• Disconnect power by unplugging the appliance or switching off the breaker before servicing
• Access the control panel/backguard per your model's instructions
• Release the old lens (tabs/retainer) and press the new lens into the opening until fully seated
• Restore power and verify the indicator light is visible through the lens

This mounting bracket secures appliance components to the cabinet or chassis, restoring proper alignment and support. Designed to replace damaged or missing brackets, it helps reduce vibration and prevent parts from shifting during use. What it does

• Provides a stable anchor point for internal components or panels
• Restores proper alignment and fit between the appliance cabinet and mounted parts
• Helps reduce vibration and rattling caused by loose or broken supports
• Commonly replaced when bracket is bent, cracked, or missing

• Inspect adjacent fasteners and mounting holes; replace any stripped screws or damaged hardware
• Use appropriate tools and mounting hardware for secure installation; torque to OEM recommendation if available
• Disconnect power before working on electrical appliances and follow all safety guidelines

This Bumper is an OEM part for Whirlpool ranges. Serving as a protective barrier, it cushions and safeguards various parts of the range. Engineered to fit seamlessly, it ensures stability and protection for specific range models.

What causes a bad part:
Continuous use, exposure to heat, or physical impact can lead to wear and tear of the Bumper. Harsh cleaning agents or abrasive materials during maintenance can also contribute to its degradation.

Symptoms for a bad part:

• Loose or detached bumpers
• Visible cracks or damage on the bumper
• Increased vibration or instability in the range

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This anchor tip secures the washer agitator to the transmission shaft so the agitator turns with the washer drive. Replaces a worn or damaged anchor tip to restore proper agitator engagement and reduce slipping. What it does:

• Secures the agitator to the drive shaft so the agitator rotates with the motor
• Helps prevent the agitator from slipping or spinning independently
• Commonly used when the agitator feels loose, makes grinding or clicking noises, or stops agitating
• Simple, low-profile part that works behind the agitator cap

• One anchor tip

• Disconnect power and water before starting any repair
• Remove agitator/agitator cap to access and replace the anchor tip per OEM instructions
• Inspect mating surfaces and replace any additional worn components if engagement remains poor

Screws for range anti tip bracket: WP3801F656-51. Includes 2 screws.

The Control Board is an OEM replacement part for Whirlpool ranges. It is responsible for controlling and regulating various functions of the range, such as temperature settings, timers, and cooking modes.

A bad control board can occur due to electrical malfunctions, component failure, or damage. If you notice symptoms such as unresponsive buttons, error codes on the display, or the range not functioning properly, it may be time to replace the control board.

Symptoms of a bad control board include:

• Unresponsive buttons or controls
• Error codes displayed on the control panel
• Malfunctioning or inconsistent temperature settings

Restore your range by replacing the faulty or damaged control board with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


A replacement gasket that seals the infinite (surface) control switch to the cooktop or console, helping keep moisture, grease and debris out of the switch area for cleaner operation and a better seal. What it does

• Seals the infinite switch to the panel to help prevent liquid and food intrusion into the switch housing.
• Cushions and stabilizes the switch for a firmer knob fit and reduced vibration.
• Helps protect the switch contacts from contamination that can cause intermittent control behavior.
• Use when the existing gasket is cracked, flattened, missing, or allowing spills into the controls.

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Remove the control knob and access the infinite switch per your model's service instructions.
• Seat the gasket fully around the switch housing so it lies flat against the console; replace if damaged or compressed.
• Inspect the switch and wiring while replacing the gasket; replace the switch if there is visible damage.

The Vent Trim is an OEM part for Whirlpool ranges. It enhances the appearance of your kitchen while providing a finished look to the range vent area. It covers the gaps and edges around the range vent, creating a clean design.

A bad vent trim can occur due to wear and tear, accidental damage, or improper installation. If you notice symptoms such as loose or missing trim, gaps around the vent area, or an uneven and unfinished look, it may be time to replace the vent trim.

Symptoms of a bad vent trim include:

• Loose or missing trim
• Gaps around the range vent area
• Uneven and unfinished appearance

Repair your range by replacing the worn-out or damaged vent trim with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This insert is a small OEM component designed to fit into a specific location on your appliance to secure, align, or finish an assembly. Replacing a worn, damaged, or missing insert restores proper fit and clean appearance.

• Provides a snug interface or cover within the designated assembly
• Helps prevent looseness, vibration, or gaps in the connected part
• Replaces cracked, worn, or missing insert pieces
• Common symptoms include loose or wobbly parts, misalignment, or a missing cap/cover

• Disconnect power and shut off gas/water before servicing
• Refer to your model's parts diagram to confirm location and orientation
• Use non-marring tools to avoid cosmetic damage
• Seat the insert fully; do not overtighten adjacent fasteners

This oven door gasket seals the oven cavity to keep heat and moisture in for even cooking and energy efficiency. A worn or damaged gasket can cause heat loss, longer cook times, or visible smoke/odor. What it does:

• Creates a tight seal between the oven door and cavity to retain heat and moisture
• Helps maintain consistent bake and roast temperatures for even cooking
• Reduces heat escaping that can trigger longer cook cycles or cycling issues
• Limits smoke and food odors from leaking into the kitchen

• Disconnect power and allow the oven to cool completely before servicing
• Remove the door per the manufacturer instructions if needed to access the gasket channel
• Inspect the gasket channel for debris and clean before installing the new gasket for a proper seal
• The gasket is fully seated along the door perimeter and check for pinched or twisted sections

The Keypad Wire Harness is an OEM part for Whirlpool ranges. This component is essential for connecting the keypad to the control board, enabling communication between user inputs and the range's operational functions.

Causes of a bad keypad wire harness can include wear and tear from regular use, exposure to heat and moisture, or physical damage due to mishandling or accidental impact. Electrical issues such as short circuits or frayed wires can also lead to malfunctioning.

Symptoms of a bad keypad wire harness include:

• Unresponsive keypad buttons
• Intermittent or inconsistent range operation
• Error codes related to keypad communication
• The range not powering on or off correctly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
