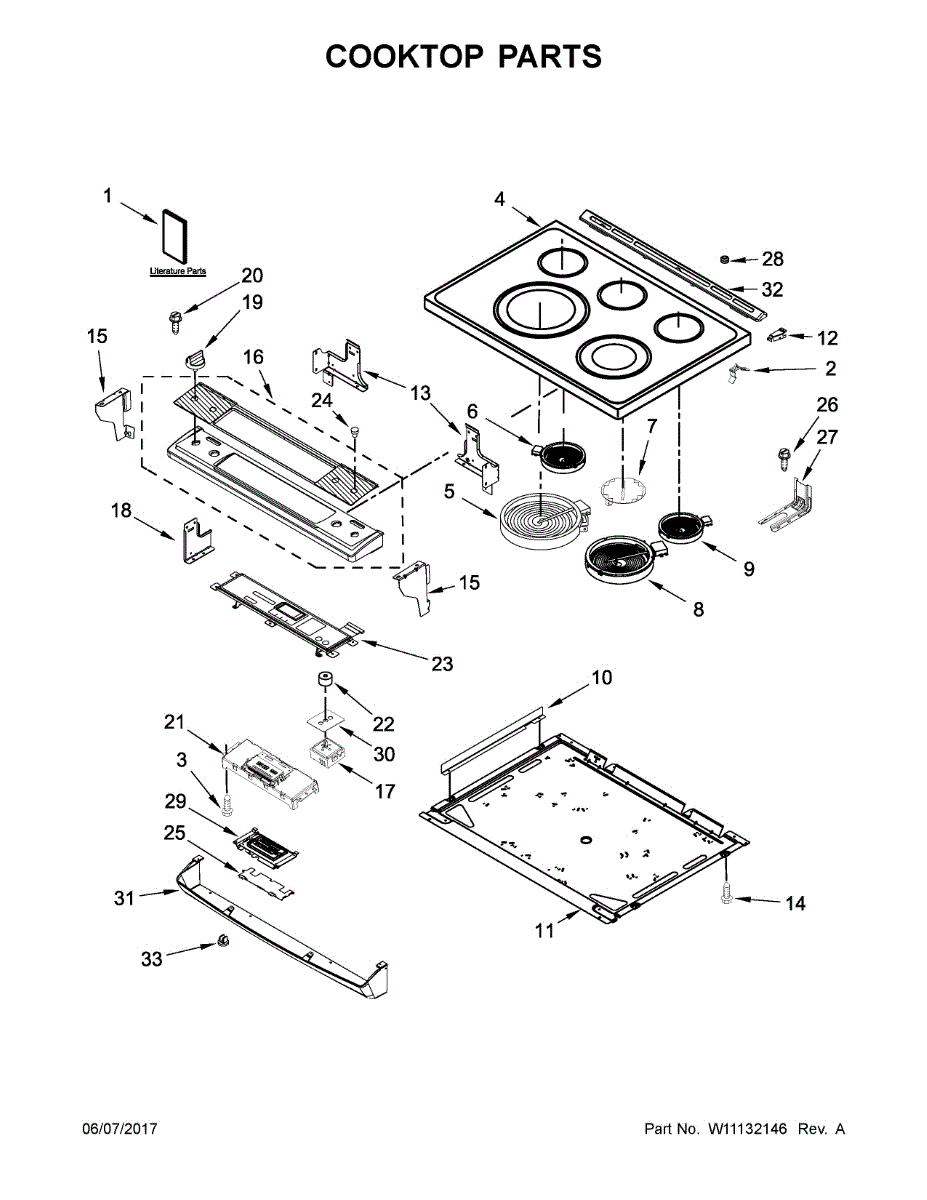

Parts for Kenmore 664.95123611 (66495123611, 664 95123611): Cooktop Parts

This small spring applies tension to hold an element in the correct position within the appliance, helping maintain reliable contact and stable operation. Replacing a worn spring can restore proper element support and performance.

• Provides push tension to keep the element seated and secure
• Helps prevent intermittent heating due to poor element contact
• Common signs include rattling, poor element stability, or intermittent heat

• Disconnect power and allow the unit to cool before service
• Access the element mounting area; note original spring placement
• Use needle-nose pliers to remove and install the spring carefully
• Inspect adjacent clips and wiring; replace damaged parts as needed

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

The surface element is an OEM part for Whirlpool electric ranges. It is responsible for generating heat through its electric coils or elements on the cooktop.

Causes of a bad surface element can include wear and tear over time, cracks or damage to the electric coils from heat stress or impact, or failure of the underlying electric components.

Symptoms of a bad surface element include:

• Slow or uneven heating of the cooktop surface
• Hot or cold spots when cooking
• Elements failing to glow red when turned on
• Burned or charred pans and cookware
• Tripped breakers or blown fuses

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, and some Kenmore electric ranges and cooktops.

This is a radiant surface heating element for smooth-top electric ranges. It replaces a failed burner to restore up to 1300 watts of even heat and dependable temperature control under the glass-ceramic cooktop. What it does:

• Generates radiant heat beneath the glass surface when powered by the burner control
• Restores proper heating if a burner will not heat, heats unevenly, or cycles off too quickly
• Helps eliminate long heat-up times caused by a weakened or open element
• Replaces elements with visible damage such as broken ribbons, burn spots, or charred terminals

• 1 radiant surface element (1300W)

• Disconnect power at the breaker or unplug the range before servicing
• Allow the cooktop to cool fully; lift/prop the glass top to access the element
• Note wire positions; transfer any mounting brackets/clips from the old element and reconnect wires securely
• Handle the element carefully and avoid stressing the ribbon; reassemble and test the burner before finalizing

This surface heating element restores dependable heat to an electric range or cooktop's top burner. Replacing a failed element helps the burner heat evenly and respond correctly to temperature settings for everyday cooking.

• Supplies controlled heat to the selected surface burner during cooking
• Common symptoms: no heat, intermittent heating, only part of the element glows, or visible damage such as hot spots or breaks
• Often tests open for continuity when failed
• Inspect the element receptacle/terminal block and wiring for heat damage during replacement

• Disconnect power at the breaker and allow the cooktop to cool completely before servicing
• Handle the element carefully; avoid bending terminals or touching heating surfaces with bare hands
• Transfer any brackets/insulators from the original element if present, and route wiring exactly as original
• Ensure a secure fit and connections before restoring power and testing

Replace a failed surface heating element to restore reliable, even heat on your electric cooktop or range. This 3200-watt element helps get that cooking zone working properly again.

• Generates heat for the selected surface burner when turned on
• Works with the control to reach and maintain the set cooking temperature
• Useful when the old element shows visible breaks or burn marks

• Disconnect power at the breaker/fuse box and allow the cooktop to cool completely
• Access the element beneath the cooktop top panel per your model's procedure
• Label/photograph wire locations; transfer wires and any mounting hardware from the old element
• Handle the element and glass surface carefully to prevent damage

The Surface Element is an OEM part for Whirlpool stoves and cooktops. It is the heating element located on the cooktop, responsible for providing heat to pots and pans for cooking.

Common causes of a bad surface element include wear and tear from repeated use, overheating, or electrical issues. Ensuring the element is functioning correctly is crucial for efficient and safe cooking.

Symptoms of a bad surface element include:

• Element not heating up
• Inconsistent or uneven heating
• Visible damage or burning on the element
• Sparking or electrical issues when the element is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: 1200 watt - LR / RR element

This replacement pan is the appliance's drip tray that catches and channels condensate or minor spills to help prevent water from pooling inside the cabinet. It restores proper water collection and reduces the risk of internal leaks. What it does:

• Collects condensate, drips or minor leaks from the evaporator/hoses and channels it to the drain area
• Helps prevent water from pooling beneath components that could cause odor or corrosion
• Restores the appliance's intended water-management function when a cracked or warped pan causes leaks
• Suitable when you see standing water, dripping inside the cabinet, or water under the appliance

• One replacement pan as pictured

• Turn off and unplug the appliance (or shut off power at the breaker) before servicing
• Remove access panels or shelving as needed to reach the pan; keep track of fasteners
• Inspect surrounding hoses and mounts for damage while the pan is out; replace damaged parts as required

This replacement screw secures appliance panels and components to keep parts aligned and stable. Use it to replace missing or damaged fasteners that cause loose trim, rattling, or unsecured panels for safer, quieter operation. What it does:

• Fastens panels, brackets, trim pieces, or small components in place
• Restores proper alignment and stops vibration or rattling caused by loose hardware
• Replaces stripped, corroded, or missing screws to prevent parts from shifting or falling
• Compatible where the OEM lists part W11244557 as the required fastener

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten securely but avoid over-tightening, which can strip threads or crack parts
• Replace like-for-like; length before installing

This end cap panel is a replacement trim piece that restores the finished edge and protects the appliance cabinet where panels meet. It helps maintain a clean look and keeps edges covered after repair or panel replacement. What it does

• Covers and protects the outer edge of a cabinet or control panel section to prevent exposed edges and wear
• Restores a flush, finished appearance after removing or replacing surrounding panels
• Helps keep dirt and moisture from reaching internal edges and seams
• Matches OEM fit and attachment points for reliable alignment

• One end cap panel

• Designed to snap or screw into existing mounting points — handle gently to avoid cracking plastic
• Turn off and unplug the appliance before removing nearby panels
• Inspect adjacent clips or fasteners and replace if damaged to ensure secure fit
• No special tools typically required; a screwdriver and trim tool may be helpful

The Infinite Switch is an OEM part for Whirlpool ranges. This switch is responsible for controlling the operation of the surface element on your range, allowing you to adjust the heat levels for cooking.

A bad surface element switch can occur due to regular wear and tear, electrical issues, or physical damage. If you notice symptoms such as an unresponsive switch, inability to adjust the heat levels, or inconsistent heating, it may be time to replace the surface element switch.

Symptoms of a bad surface element switch include:

• Unresponsive switch
• Inability to adjust heat levels
• Inconsistent or inadequate heating

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Infinite Switch is an OEM replacement part for Whirlpool ranges. It is responsible for regulating the power and heat output of the surface elements on your range, allowing you to adjust the temperature for cooking.

A bad surface element control infinite switch can occur due to wear and tear, electrical issues, or damage to the switch mechanism. If you notice symptoms such as inability to adjust the temperature, uneven heating, or the surface element not turning on or off, it may indicate a faulty infinite switch.

Symptoms of a bad infinite switch include:

• Inability to adjust the temperature
• Uneven heating
• Surface element not turning on or off

Restore your range by replacing the faulty or damaged surface element control infinite switch with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


The Infinite Switch is an OEM part for Whirlpool ranges. It controls the heat levels of the elements on your cooktop, allowing you to adjust the temperature for precise cooking.

Causes of a bad infinite switch can include electrical malfunctions, wear and tear from frequent use, or physical damage due to impacts or spills.

Symptoms of a bad infinite switch include:

• Burners not heating up or heating inconsistently
• Burners stuck on a single heat setting
• No response when adjusting the heat level
• Sparks or electrical odors coming from the control area

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Knob is an OEM part for Whirlpool electric ranges. It provides tactile control of the temperature and function settings. These stove knobs must withstand constant exposure to heat and require durability.

Causes of a bad knob include normal wear from frequent adjustments, heat exposure during cooking, or potential impact damage.

Symptoms of a bad knob include:

• Inability to grip or turn the knob easily
• Possible inaccurate temperature or function selection
• A loose, at-risk-of-falling-off knob poses a safety concern
• Reduced aesthetic and functionality of the control area

This Whirlpool OEM replacement knob directly replaces the original for a seamless fit and restores full functionality. It is compatible with KitchenAid, Jenn-Air, Maytag, Amana, and select Kenmore range models as well. Replace yours to maximize usability and keep your range operating safely.


This machine screw is used across appliances to secure brackets, covers, and internal components. Replacing a missing or stripped fastener helps keep parts aligned and tight, reducing vibration and preventing loose or shifting assemblies.

• Provides machine-thread fastening for panels, brackets, and internal parts
• Helps eliminate rattling, vibration, and loose fits
• Restores proper attachment when the original screw is stripped, missing, or corroded
• Used wherever an 8-32 screw is specified in the service manual or parts list

• Disconnect power to the appliance; turn off gas/water if applicable
• Match the screw to the original location to confirm size and thread
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten to prevent stripping or cracking

This gasket seals and cushions a door or control switch, helping keep out moisture and debris so the switch can operate reliably. Use it to restore a proper seal and reduce false trips or intermittent switch contact. What it does:

• Provides a protective seal around a door or control switch to limit dust and moisture intrusion
• Cushions the switch assembly to reduce wear and noise from repeated use
• Helps maintain consistent switch engagement and reliable operation
• Common service part when a switch area shows visible gaps, wear, or causes intermittent function

• Power off and unplug the appliance before starting any repair
• Handle the gasket and adjacent wiring carefully to avoid damage; replace any brittle clips or fasteners

This red indicator light lens covers the control-panel light opening. It restores a clean, finished look and keeps the status light easy to see while helping protect the opening from debris and accidental contact.

• Covers and diffuses the indicator light for clear visibility
• Fills the control panel opening for a finished, factory appearance
• Helps shield the opening from dust, splashes, and contact
• Common fixes: cracked, missing, loose, or discolored indicator lens

• Disconnect power by unplugging the appliance or switching off the breaker before servicing
• Access the control panel/backguard per your model's instructions
• Release the old lens (tabs/retainer) and press the new lens into the opening until fully seated
• Restore power and verify the indicator light is visible through the lens

This mounting bracket secures appliance components to the cabinet or chassis, restoring proper alignment and support. Designed to replace damaged or missing brackets, it helps reduce vibration and prevent parts from shifting during use. What it does

• Provides a stable anchor point for internal components or panels
• Restores proper alignment and fit between the appliance cabinet and mounted parts
• Helps reduce vibration and rattling caused by loose or broken supports
• Commonly replaced when bracket is bent, cracked, or missing

• Inspect adjacent fasteners and mounting holes; replace any stripped screws or damaged hardware
• Use appropriate tools and mounting hardware for secure installation; torque to OEM recommendation if available
• Disconnect power before working on electrical appliances and follow all safety guidelines

Screws for range anti tip bracket: WP3801F656-51. Includes 2 screws.

This anchor tip secures the washer agitator to the transmission shaft so the agitator turns with the washer drive. Replaces a worn or damaged anchor tip to restore proper agitator engagement and reduce slipping. What it does:

• Secures the agitator to the drive shaft so the agitator rotates with the motor
• Helps prevent the agitator from slipping or spinning independently
• Commonly used when the agitator feels loose, makes grinding or clicking noises, or stops agitating
• Simple, low-profile part that works behind the agitator cap

• One anchor tip

• Disconnect power and water before starting any repair
• Remove agitator/agitator cap to access and replace the anchor tip per OEM instructions
• Inspect mating surfaces and replace any additional worn components if engagement remains poor

This Bumper is an OEM part for Whirlpool ranges. Serving as a protective barrier, it cushions and safeguards various parts of the range. Engineered to fit seamlessly, it ensures stability and protection for specific range models.

What causes a bad part:
Continuous use, exposure to heat, or physical impact can lead to wear and tear of the Bumper. Harsh cleaning agents or abrasive materials during maintenance can also contribute to its degradation.

Symptoms for a bad part:

• Loose or detached bumpers
• Visible cracks or damage on the bumper
• Increased vibration or instability in the range

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This part is a replacement oven control board. It provides control over the various functions of the oven, such as bake, broil, temperature control, timers, and more. It also includes the display that shows temperature, function, timer, and clock-related information. The control board is exposed to high heat and moisture regularly, which can damage soldered components causing the board to fail. Signs of a failing or damaged oven control board include difficulty changing temperatures or oven function, or a complete lack of operability. To replace the oven control board, the user should first turn off the circuit breaker or unplug the oven. Next, remove the front cowling and control knobs to access the controls beneath, and remove that board, as well. The oven control board is the bottom-most component in the stack. Reassemble the oven in reverse order after installing the new board.This is a genuine OEM part and it is sold individually. It fits Kenmore, Whirlpool, and Maytag ovens with the controls at the front.

A replacement gasket that seals the infinite (surface) control switch to the cooktop or console, helping keep moisture, grease and debris out of the switch area for cleaner operation and a better seal. What it does

• Seals the infinite switch to the panel to help prevent liquid and food intrusion into the switch housing.
• Cushions and stabilizes the switch for a firmer knob fit and reduced vibration.
• Helps protect the switch contacts from contamination that can cause intermittent control behavior.
• Use when the existing gasket is cracked, flattened, missing, or allowing spills into the controls.

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Remove the control knob and access the infinite switch per your model's service instructions.
• Seat the gasket fully around the switch housing so it lies flat against the console; replace if damaged or compressed.
• Inspect the switch and wiring while replacing the gasket; replace the switch if there is visible damage.

This mounting bracket secures a component or panel to the appliance frame, keeping it aligned and stable during operation. Replace a cracked or bent bracket to stop looseness, rattling, or shifting and restore proper support.

• Anchors the specified component or panel to the chassis
• Maintains correct position and spacing for reliable operation
• Helps reduce vibration and noise from a loose mount
• Common symptoms: broken or missing bracket, bent metal, sagging/misaligned component, difficulty fastening parts

• Disconnect power before service; shut off water supply if applicable
• Note orientation and fastener locations; transfer existing screws/clips if needed
• Support the component while removing/installing the bracket to prevent strain
• Tighten fasteners evenly; avoid overtightening to prevent damage

This trim vent replaces a damaged or worn vent grille to restore proper airflow appearance and help direct air where the appliance needs it. It's a direct-replacement exterior trim piece that cleans up the unit's vent opening. What it does:

• Covers and protects the appliance vent opening while providing a finished appearance
• Directs airflow and helps prevent debris from entering the vent area
• Replaces cracked, broken, or faded vent trim that affects appearance or fit
• Helps reduce rattling or loose trim that can occur with damaged vent pieces

• One trim vent (single grille piece)

• Disconnect power to the appliance before beginning any work
• Typically installs with snap-in tabs or a few screws; avoid forcing to prevent breakage
• Inspect surrounding clips or screws and replace if worn for a secure fit

This insert is a small OEM component designed to fit into a specific location on your appliance to secure, align, or finish an assembly. Replacing a worn, damaged, or missing insert restores proper fit and clean appearance.

• Provides a snug interface or cover within the designated assembly
• Helps prevent looseness, vibration, or gaps in the connected part
• Replaces cracked, worn, or missing insert pieces
• Common symptoms include loose or wobbly parts, misalignment, or a missing cap/cover

• Disconnect power and shut off gas/water before servicing
• Refer to your model's parts diagram to confirm location and orientation
• Use non-marring tools to avoid cosmetic damage
• Seat the insert fully; do not overtighten adjacent fasteners

The Keypad Wire Harness is an OEM part for Whirlpool ranges. This component is essential for connecting the keypad to the control board, enabling communication between user inputs and the range's operational functions.

Causes of a bad keypad wire harness can include wear and tear from regular use, exposure to heat and moisture, or physical damage due to mishandling or accidental impact. Electrical issues such as short circuits or frayed wires can also lead to malfunctioning.

Symptoms of a bad keypad wire harness include:

• Unresponsive keypad buttons
• Intermittent or inconsistent range operation
• Error codes related to keypad communication
• The range not powering on or off correctly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
