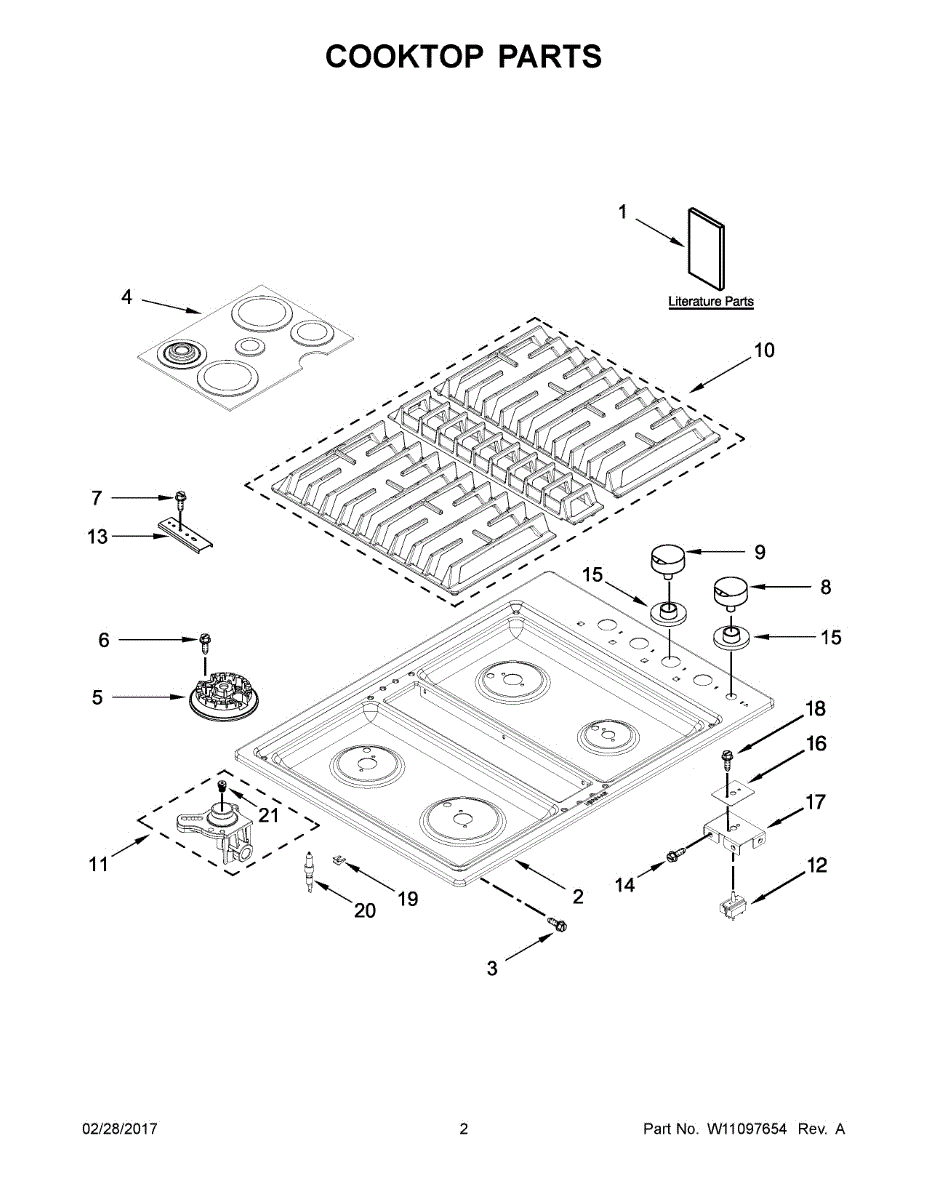

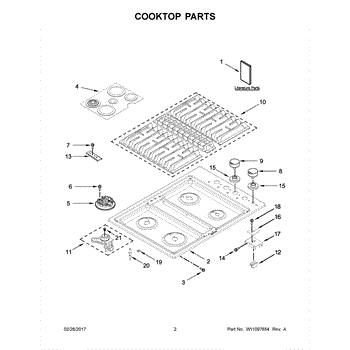

Parts for Kitchenaid KCGD500GSS00: 02 - Cooktop Parts

The Surface Burner Cap Set is an OEM part specifically designed for Whirlpool cooktops. These burner caps make direct contact with cookware during heating.

Causes of faulty caps include scratches and pits diminishing heat conduction over years of constant use. Metal integrity can degrade gradually.

Symptoms of a bad cap set include:

• Slow, inefficient cooking with prolonged cook times
• Scorching or burning more likely due to poor contact
• Aesthetic deterioration with discoloration and wearing away

This OEM Whirlpool part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore cooktop models as well.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

A small replacement holder used to secure related components inside the appliance, restoring proper fit and preventing rattles or misalignment. Installs quickly and is a direct-fit replacement when the original holder is broken or missing. What it does:

• Anchors or supports a nearby component to keep it aligned and stable
• Prevents vibration noise and movement caused by a loose or damaged holder
• Helps maintain correct spacing for adjacent parts that rely on the holder
• Common symptom: loose piece, rubbing or rattling sounds, or visible breakage at the mount

• One Holder ORF part (single retainer)

• Disconnect power and water (if applicable) before starting any repair
• Handle small plastic parts carefully to avoid damage during installation
• Use basic hand tools; follow the parts diagram for placement

This Holder ORF is a direct-replacement mounting bracket that secures the ORF assembly in place so components stay aligned and stable. Restores proper fit and reduces movement that can cause noise or wear. What it does:

• Secures the ORF assembly to the appliance chassis to maintain correct alignment
• Prevents vibration and rattling caused by a loose or damaged holder
• Helps keep connected parts in place for reliable operation
• Replaces worn or broken brackets that can allow shifting or misalignment

• Disconnect power before servicing the appliance to avoid shock or injury
• Simple screw or snap-in installation; use common hand tools as needed
• Inspect surrounding clips and fasteners; replace if damaged

This holder (ORF) secures the associated component in place to keep the appliance operating smoothly and help prevent movement or noise from a loose part. It's a simple replacement when the original is cracked, worn, or missing. What it does:

• Holds and stabilizes the related OEM component in the appliance assembly
• Replaces cracked, broken, or missing holders that cause rattling or improper alignment
• Restores proper fit so adjacent parts engage and move as intended
• Helps prevent shifting or wear that can lead to additional part damage

• Disconnect power and remove any food, dishes or removable parts before servicing
• Use basic hand tools and follow the appliance service manual for access instructions
• Handle plastic parts carefully to avoid over-torquing fasteners or creating stress cracks

This ORF holder is a replacement mounting bracket that secures the ORF assembly in place, restoring proper positioning and reducing movement that can cause noise or connection issues. What it does

• Secures the ORF assembly to the appliance frame to prevent shifting or detachment
• Keeps wiring or tubing routed and supported to reduce wear and chafing
• Helps eliminate rattling or loose-part noises caused by a displaced ORF assembly
• Maintains correct alignment for reliable operation of the ORF component

• One ORF holder (mounting bracket)

• Disconnect power (and water if applicable) before starting any repair
• Basic hand tools are usually required; follow OEM diagram for correct orientation
• Handle small plastic parts carefully to avoid cracking during installation

This hardware kit contains the small mounting parts needed to secure and support the appliance component. It provides replacement fasteners and brackets to restore proper fit and stability after service. What it does:

• Replaces worn or missing mounting pieces that cause loose panels or components
• Restores proper alignment and support for the associated assembly
• Helps stop rattling, vibration, or movement caused by missing hardware
• Matches OEM fit and function when used as a direct replacement

• Intended for technicians or experienced DIYers; inspect the kit before installation
• Use appropriate hand tools; tighten fasteners to manufacturer torque where specified
• Disconnect power and follow all safety procedures before servicing the appliance
• Replace only the parts shown for your specific model

This is a knob bezel that is used on a variety of ranges, stoves, and ovens. The knob bezel sits behind the burner knobs. It acts as a base for the knob assembly. Regular use can cause damage to the knob bezel. It can also break and be lost. When this occurs, the knob bezel will need to be replaced.Replacing the knob bezel is simple and takes only a short amount of time. No tools are required for the process but a pair of work gloves can be useful. First, makes sure the stove or range is powered off and none of the burners are hot. Located the knob with the damaged or missing bezel and pull on it to bring it out of the stove. The knob bezel can be removed by hand. Install the new bezel and replace the knob.The knob bezel is a genuine OEM part and is sold as an individual product. It is made to be used with ranges, ovens, and stoves manufactured by Whirlpool and KitchenAid.

This genuine replacement screw secures appliance components so panels, brackets, and assemblies stay tight and properly aligned. Replacing stripped, rusted, or missing hardware restores a solid fit and helps prevent rattles, shifting, or looseness over time.

• Fastens panels, brackets, and internal parts to maintain proper alignment
• Helps resolve issues caused by missing or damaged screws
• Restores secure mounting after service where original hardware is lost
• Use when threads are stripped or the screw head is damaged and won't tighten

• Disconnect power; turn off gas supply if applicable before servicing
• Match screw location and length to your model's parts diagram for correct placement
• Start threads by hand to avoid cross-threading; use the correct driver bit
• Snug firmly but do not overtighten to prevent damage to mounting points

This ignitor retaining clip secures the oven or range ignitor to the burner assembly so the ignitor stays properly positioned for reliable ignition. It's a small replacement part that restores proper ignitor mounting and alignment. What it does:

• Holds the oven/range ignitor in place on the burner assembly to maintain correct positioning
• Helps ensure consistent ignition by preventing the ignitor from shifting or coming loose
• Commonly replaced when the original clip is broken, bent, or missing
• Fits directly where the factory clip secures the ignitor to the burner housing

• Turn off power and gas supply to the appliance before starting any repair
• Access typically requires removing the oven burner or inner panel; follow the manufacturer service instructions
• Use appropriate tools to remove the old clip and secure the new clip without over-bending

This surface ignitor provides the ignition source for a gas cooktop surface burner, restoring reliable lighting so burners light quickly and evenly. It's a direct-fit replacement designed for the range's factory ignition system. What it does

• Supplies the ignition energy for a surface burner so gas ignites when a burner is turned on
• Replaces a cracked, damaged or non-functioning ignitor that won't light the burner
• Helps stop symptoms like repeated clicking, weak ignition, or burners that won't light
• Works with the cooktop's original ignition module and gas valve to ensure normal burner operation

• Disconnect power to the appliance before starting any service to avoid shock risk
• Turn off the gas supply and allow parts to cool before accessing the cooktop
• Handle the ignitor carefully—ceramic and tip are fragile and can break if dropped or bent
• After installation, restore power/gas and verify each burner lights properly; do not attempt repairs beyond your skill level

This surface ignitor is the replacement electrode that creates the spark to light gas burners on a cooktop. It restores reliable spark ignition so burners light quickly and consistently. What it does:

• Produces the spark at a surface burner to ignite gas flow
• Replaces cracked, worn, or non-sparking electrodes
• Common symptom: burner clicks but fails to light or lights intermittently
• Works with single-point surface ignition systems where an electrode projects near the burner

• One surface ignitor

• Disconnect power and shut off the gas supply before starting work
• Handle the ceramic insulator and electrode tip carefully to avoid damage
• Basic hand tools are typically required; follow manufacturer diagram for correct positioning
• After installation, test each burner for proper spark and flame pattern

This surface ignitor is the replaceable ceramic spark electrode that creates the spark needed to light a gas cooktop burner. Replacing a worn or cracked ignitor restores reliable ignition and helps burners light quickly and safely. What it does:

• Generates the spark that lights the burner when the control is turned on
• Commonly used when a burner won't ignite or sparks but won't light
• Works with the cooktop's ignition system and switches to initiate ignition
• Helps eliminate intermittent ignition and inconsistent burner lighting

• One surface ignitor (ceramic spark electrode)

• Disconnect power to the range and turn off the gas supply before starting
• Handle the ceramic tip carefully; it is fragile and can crack if dropped or flexed
• Access typically requires removing the cooktop or burner assembly

This surface ignitor is the replacement spark electrode that lights cooktop or range burners, restoring reliable ignition so you can cook safely and efficiently. Designed to match OEM fit and function for compatible gas appliances. What it does:

• Generates the spark that ignites burner gas when the control is turned on
• Stops continuous clicking or lack of spark that prevents burners from lighting
• Works with surface/top burners and common ignition modules to initiate flame
• Helps eliminate intermittent ignition issues caused by a damaged or worn electrode

• Turn off gas supply and disconnect power to the appliance before servicing
• Handle the ceramic insulator and electrode tip carefully; avoid touching the tip with bare hands
• Inspect wiring and the igniter mounting for damage; replace only if compatible with your model

This orifice spud directs gas flow to a burner for proper ignition and flame control. Replacing a worn or damaged spud restores consistent burner performance and helps return the appliance to safe, reliable operation. What it does:

• Controls and directs gas flow to a burner for correct ignition and flame shape
• Helps maintain even, consistent flame height across the burner
• Commonly replaced when burner ignition is unreliable or flame is weak/uneven
• Small part that can affect overall burner efficiency and stability

• Turn off the gas supply and disconnect power before servicing
• Use appropriate hand tools; avoid overtightening fittings
• Inspect mating fittings and gaskets for damage and replace if needed

This orifice spud is the small gas fitting that meters fuel to a stovetop or oven burner, helping maintain the correct flame size for safe, efficient cooking. It replaces a damaged or worn spud to restore proper burner operation. What it does

• Controls gas flow to the burner so the burner lights and maintains a steady flame
• Can resolve weak, uneven, or hard-to-light burners when the spud is clogged, damaged, or worn
• Works with the burner tube and orifice for correct fuel delivery
• Designed to match OEM fit and function for affected gas cooking appliances

• One orifice spud

• This is a gas appliance part: turn off the gas supply and electrical power before servicing
• Access may require removing burner grates, caps, and burner components; keep parts organized for reassembly
• Inspect surrounding seals and tubing for damage when replacing; tighten fittings securely but avoid overtightening

This orifice spud directs gas flow to a cooktop/oven burner for consistent flame performance. It replaces a worn or damaged spud to help restore even heating and reliable ignition. What it does

• Controls and directs gas from the valve into the burner for proper flame shape
• Helps maintain consistent heat at the burner for cooking performance
• Can reduce uneven flames or intermittent ignition when the original spud is damaged or clogged
• Used at the burner connection as part of the gas delivery path

• One orifice spud

• Install only on compatible gas appliances;
• Turn off gas supply and electricity to the appliance before servicing
• Use proper tools and replacement orientation; avoid damaging threads or seating surfaces

This orifice spud is the small metal fitting that meters gas to a cooktop or range burner, restoring proper flame size and heat control. It fits into the burner manifold to direct fuel flow for safe operation. What it does:

• Regulates gas flow to a specific burner for correct flame height and heat output
• Helps restore even or full-strength flames when a burner is weak or uneven
• Can resolve ignition difficulty or burners that won't stay lit when caused by a worn or damaged spud
• Works as a direct replacement for the corresponding burner orifice in the manifold assembly

• One orifice spud

• Turn off the appliance's gas supply and electrical power before servicing
• Use appropriate wrenches and avoid overtightening to prevent damage to threads
• After installation, check all connections for gas leaks with a soap solution; do not use an open flame
