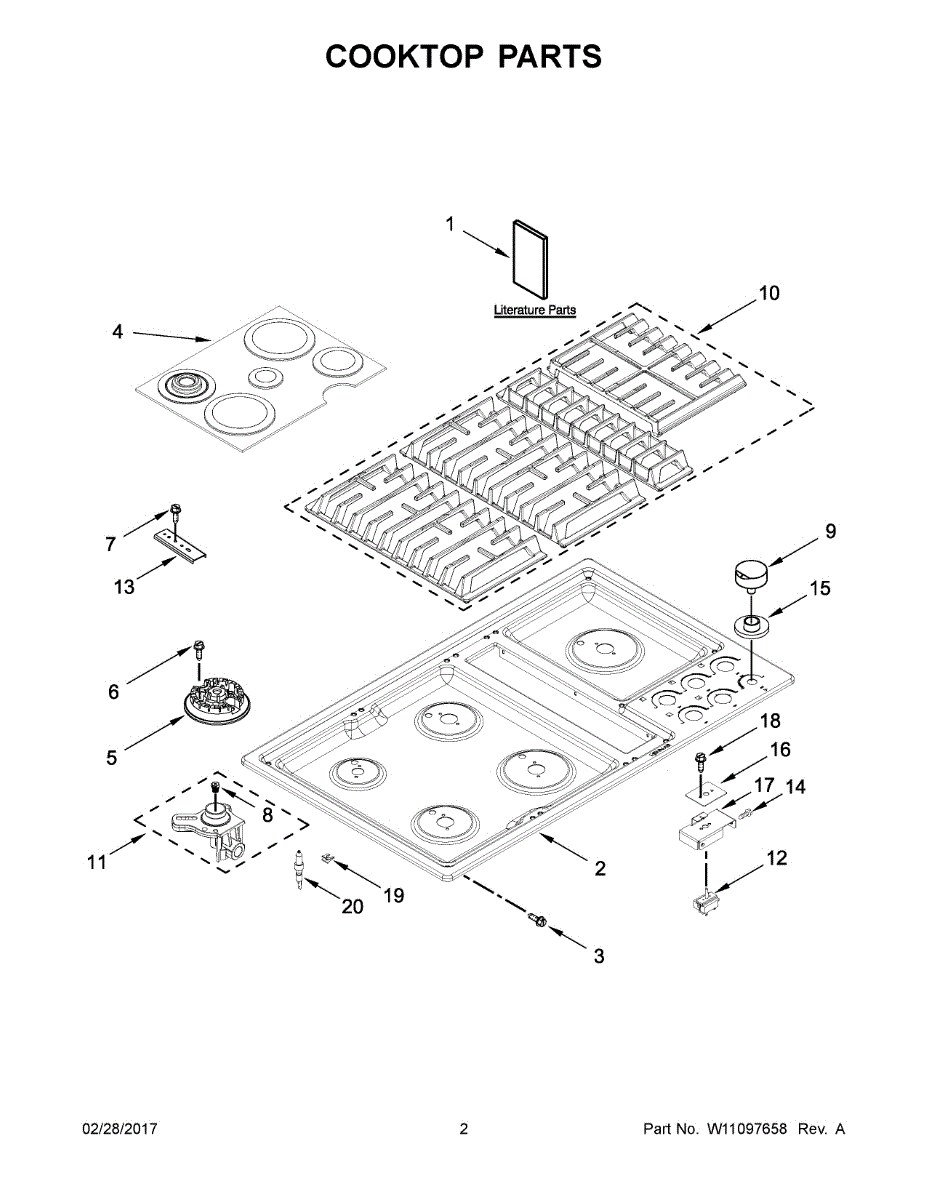

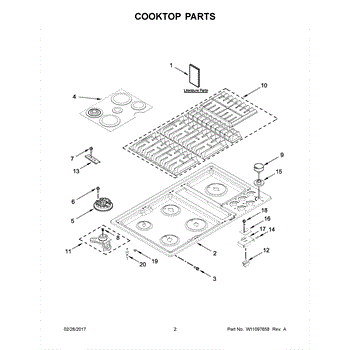

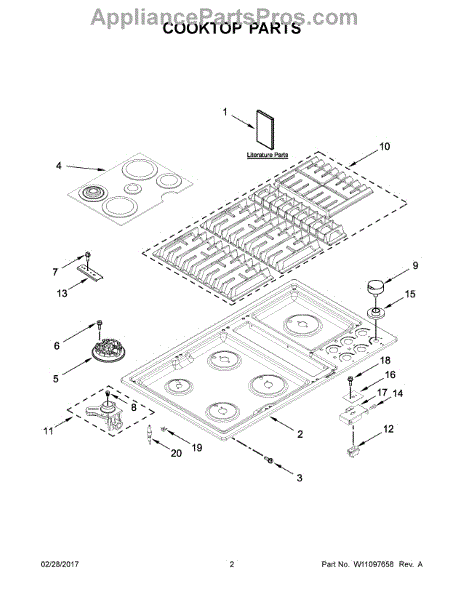

Parts for Kitchenaid KCGD506GSS00: 02 - Cooktop Parts

The Screw is an OEM part for Whirlpool appliances. This specific screw is used in various locations within Whirlpool appliances, securing components and ensuring the stability and proper alignment of parts. It is designed to fit precisely and maintain a firm hold, contributing to the overall functionality and safety of the appliance.

Over time, screws can become worn or stripped due to regular use, corrosion, or over-tightening.

Causes of a bad screw include wear and tear, exposure to moisture leading to rust, and over-tightening which can strip the threads.

Symptoms of a bad screw include:

• Loose or wobbly components
• Misalignment of parts
• Noise due to vibrating or loose parts
• Difficulty in securing or removing the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Surface Burner Cap Kit is an OEM replacement part for Whirlpool ranges. It includes replacement caps that fit over the coil surface elements on the stovetop.

Causes of failure can be warping or discoloration from high heat over time. Scratches or cracks may form from cookware impacts or cleaning accidents.

Symptoms of worn burner caps include:

• Caps that rock or are loose on elements
• Discoloration, charring or melted appearance
• Visible coil surfaces compromising safety

This genuine OEM kit is also compatible with electric ranges from Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, and Admiral brands.

This burner head replaces a damaged or corroded round surface burner to restore even gas flow and consistent flame for cooking. It fits the stove's sealed top burner assembly and helps maintain safe, efficient heating. What it does:

• Directs gas to the cooktop burner ports so the burner ignites and produces an even flame
• Replaces warped or clogged burner heads that cause uneven heating or small, unstable flames
• Helps eliminate orange or noisy flames caused by damaged burner ports
• Restores proper spacing for burner cap seating, improving ignition reliability

• One burner head

• Turn off gas supply and disconnect power to the appliance before replacing any gas parts
• Remove burner cap and existing head; lift new head into place and verify proper fit and cap seating
• Inspect burner ports for debris; clean with a soft brush and avoid drilling or enlarging ports

This burner head fits on a gas range surface to distribute gas for the cooktop flame and restore even, consistent heating. Replaces a damaged or corroded burner head to improve ignition and burner performance. What it does:

• Directs gas flow to produce a stable, even flame for cookware heating
• Restores proper burner ignition when flame is weak or uneven
• Prevents flame distortion caused by dents, corrosion, or clogged ports
• Helps eliminate sputtering or intermittent heating from a damaged head

• Turn off the appliance and shut off gas supply before servicing
• Allow components to cool fully and disconnect power if applicable
• Remove burner cap and grate, then lift out the old head and set the new head in place; verify alignment before reassembly
• If you smell gas or experience ignition issues after installation, stop.

The Surface Burner Base is an OEM part for Whirlpool ranges. It provides a stable and even surface for the surface burner to sit on, allowing for heat distribution during cooking.

A bad surface burner base can be caused by wear and tear, exposure to high temperatures, or damage due to spills or cleaning agents. If you notice uneven heating, unstable burner flames, or difficulty in igniting the burner, it may indicate a problem with the surface burner base.

Symptoms of a bad surface burner base include:

• Uneven heating or hot spots on the cookware
• Unstable or irregular burner flames
• Difficulty in lighting or maintaining a consistent flame
• Excessive wobbling or movement of the burner

This Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Flame Spreader is an OEM part for Whirlpool ranges. It provides a stable and even surface for the surface burner to sit on, allowing for heat distribution during cooking.

A bad flame spreader can be caused by wear and tear, exposure to high temperatures, or damage due to spills or cleaning agents. If you notice uneven heating, unstable burner flames, or difficulty in igniting the burner, it may indicate a problem with the flame spreader.

Symptoms of a bad flame spreader include:

• Uneven heating or hot spots on the cookware
• Unstable or irregular burner flames
• Difficulty in lighting or maintaining a consistent flame
• Excessive wobbling or movement of the burner

Replace your faulty flame spreader with this genuine OEM part to restore your range.

This Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This orifice spud secures the burner orifice and helps direct gas from the valve to the burner for proper ignition and stable flames. Replace a worn or damaged spud to restore correct burner performance. What it does:

• Holds the burner orifice in place and aligns it with the gas valve for consistent gas flow
• Helps maintain proper flame size and stability for safe cooking
• Can be replaced when a burner fails to light, produces a weak or uneven flame, or when the spud is physically damaged
• Supports correct sealing at the orifice to reduce risk of gas leaks when installed correctly

• One orifice spud

• Shut off gas supply and electrical power before starting work; follow local codes and safety practices
• Access typically requires removing the cooktop or burner assembly; handle components carefully to avoid damage
• Inspect the orifice and surrounding seals/gaskets and replace if damaged; this part alone may not fix unrelated valve or igniter issues

This orifice spud directs gas flow to a cooktop/oven burner for consistent flame performance. It replaces a worn or damaged spud to help restore even heating and reliable ignition. What it does

• Controls and directs gas from the valve into the burner for proper flame shape
• Helps maintain consistent heat at the burner for cooking performance
• Can reduce uneven flames or intermittent ignition when the original spud is damaged or clogged
• Used at the burner connection as part of the gas delivery path

• One orifice spud

• Install only on compatible gas appliances;
• Turn off gas supply and electricity to the appliance before servicing
• Use proper tools and replacement orientation; avoid damaging threads or seating surfaces

This orifice spud directs gas flow to a burner for proper ignition and flame control. Replacing a worn or damaged spud restores consistent burner performance and helps return the appliance to safe, reliable operation. What it does:

• Controls and directs gas flow to a burner for correct ignition and flame shape
• Helps maintain even, consistent flame height across the burner
• Commonly replaced when burner ignition is unreliable or flame is weak/uneven
• Small part that can affect overall burner efficiency and stability

• Turn off the gas supply and disconnect power before servicing
• Use appropriate hand tools; avoid overtightening fittings
• Inspect mating fittings and gaskets for damage and replace if needed

This orifice spud is the small gas fitting that meters fuel to a stovetop or oven burner, helping maintain the correct flame size for safe, efficient cooking. It replaces a damaged or worn spud to restore proper burner operation. What it does

• Controls gas flow to the burner so the burner lights and maintains a steady flame
• Can resolve weak, uneven, or hard-to-light burners when the spud is clogged, damaged, or worn
• Works with the burner tube and orifice for correct fuel delivery
• Designed to match OEM fit and function for affected gas cooking appliances

• One orifice spud

• This is a gas appliance part: turn off the gas supply and electrical power before servicing
• Access may require removing burner grates, caps, and burner components; keep parts organized for reassembly
• Inspect surrounding seals and tubing for damage when replacing; tighten fittings securely but avoid overtightening

This orifice spud is the small metal fitting that meters gas to a cooktop or range burner, restoring proper flame size and heat control. It fits into the burner manifold to direct fuel flow for safe operation. What it does:

• Regulates gas flow to a specific burner for correct flame height and heat output
• Helps restore even or full-strength flames when a burner is weak or uneven
• Can resolve ignition difficulty or burners that won't stay lit when caused by a worn or damaged spud
• Works as a direct replacement for the corresponding burner orifice in the manifold assembly

• One orifice spud

• Turn off the appliance's gas supply and electrical power before servicing
• Use appropriate wrenches and avoid overtightening to prevent damage to threads
• After installation, check all connections for gas leaks with a soap solution; do not use an open flame

The Knob is an OEM component specifically designed for Whirlpool ranges. It controls the temperature setting on one of the range's oven or cooktop elements. The knob is manufactured with durable plastic construction and precise markings for reliably adjusting appliance functions.

Causes of a bad knob necessitating replacement include stripping or wearing of the plastic material. Over time and frequent use, knobs can become loose, flawed, or fail to stay securely in position.

Symptoms of a problematic knob consist of:

• Loose, wobbly, or missing temperature indicators
• The knob is difficult to turn or adjust
• Inaccurate temperature control from a faulty knob

This OEM Whirlpool replacement knob helps maintain the usability and functions of your range. It is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This cooktop grate kit replaces damaged or worn grates on compatible gas ranges, restoring a stable surface for cookware and helping burners heat evenly. Durable construction maintains proper pot and pan support. What it does:

• Provides a stable, level surface for cookware to sit on the burner
• Restores correct spacing so flames heat cookware efficiently
• Replaces cracked, warped or heavily worn grates that cause instability
• Helps prevent pots and pans from rocking or sliding during use

• Turn off the range and let all parts cool completely before handling
• No special tools typically required—place grates into position on the cooktop
• Inspect burner caps and openings for proper alignment after installation
• If you smell gas or suspect a leak, stop.

A small replacement holder used to secure related components inside the appliance, restoring proper fit and preventing rattles or misalignment. Installs quickly and is a direct-fit replacement when the original holder is broken or missing. What it does:

• Anchors or supports a nearby component to keep it aligned and stable
• Prevents vibration noise and movement caused by a loose or damaged holder
• Helps maintain correct spacing for adjacent parts that rely on the holder
• Common symptom: loose piece, rubbing or rattling sounds, or visible breakage at the mount

• One Holder ORF part (single retainer)

• Disconnect power and water (if applicable) before starting any repair
• Handle small plastic parts carefully to avoid damage during installation
• Use basic hand tools; follow the parts diagram for placement

This Holder ORF is a direct-replacement mounting bracket that secures the ORF assembly in place so components stay aligned and stable. Restores proper fit and reduces movement that can cause noise or wear. What it does:

• Secures the ORF assembly to the appliance chassis to maintain correct alignment
• Prevents vibration and rattling caused by a loose or damaged holder
• Helps keep connected parts in place for reliable operation
• Replaces worn or broken brackets that can allow shifting or misalignment

• Disconnect power before servicing the appliance to avoid shock or injury
• Simple screw or snap-in installation; use common hand tools as needed
• Inspect surrounding clips and fasteners; replace if damaged

This holder (ORF) secures the associated component in place to keep the appliance operating smoothly and help prevent movement or noise from a loose part. It's a simple replacement when the original is cracked, worn, or missing. What it does:

• Holds and stabilizes the related OEM component in the appliance assembly
• Replaces cracked, broken, or missing holders that cause rattling or improper alignment
• Restores proper fit so adjacent parts engage and move as intended
• Helps prevent shifting or wear that can lead to additional part damage

• Disconnect power and remove any food, dishes or removable parts before servicing
• Use basic hand tools and follow the appliance service manual for access instructions
• Handle plastic parts carefully to avoid over-torquing fasteners or creating stress cracks

This ORF holder is a replacement mounting bracket that secures the ORF assembly in place, restoring proper positioning and reducing movement that can cause noise or connection issues. What it does

• Secures the ORF assembly to the appliance frame to prevent shifting or detachment
• Keeps wiring or tubing routed and supported to reduce wear and chafing
• Helps eliminate rattling or loose-part noises caused by a displaced ORF assembly
• Maintains correct alignment for reliable operation of the ORF component

• One ORF holder (mounting bracket)

• Disconnect power (and water if applicable) before starting any repair
• Basic hand tools are usually required; follow OEM diagram for correct orientation
• Handle small plastic parts carefully to avoid cracking during installation

This hardware kit contains the small mounting parts needed to secure and support the appliance component. It provides replacement fasteners and brackets to restore proper fit and stability after service. What it does:

• Replaces worn or missing mounting pieces that cause loose panels or components
• Restores proper alignment and support for the associated assembly
• Helps stop rattling, vibration, or movement caused by missing hardware
• Matches OEM fit and function when used as a direct replacement

• Intended for technicians or experienced DIYers; inspect the kit before installation
• Use appropriate hand tools; tighten fasteners to manufacturer torque where specified
• Disconnect power and follow all safety procedures before servicing the appliance
• Replace only the parts shown for your specific model

The Screw is an OEM part for Whirlpool appliances. This specific screw is used in various locations within Whirlpool appliances, securing components and ensuring the stability and proper alignment of parts. It is designed to fit precisely and maintain a firm hold, contributing to the overall functionality and safety of the appliance.

Over time, screws can become worn or stripped due to regular use, corrosion, or over-tightening.

Causes of a bad screw include wear and tear, exposure to moisture leading to rust, and over-tightening which can strip the threads.

Symptoms of a bad screw include:

• Loose or wobbly components
• Misalignment of parts
• Noise due to vibrating or loose parts
• Difficulty in securing or removing the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This is a knob bezel that is used on a variety of ranges, stoves, and ovens. The knob bezel sits behind the burner knobs. It acts as a base for the knob assembly. Regular use can cause damage to the knob bezel. It can also break and be lost. When this occurs, the knob bezel will need to be replaced.Replacing the knob bezel is simple and takes only a short amount of time. No tools are required for the process but a pair of work gloves can be useful. First, makes sure the stove or range is powered off and none of the burners are hot. Located the knob with the damaged or missing bezel and pull on it to bring it out of the stove. The knob bezel can be removed by hand. Install the new bezel and replace the knob.The knob bezel is a genuine OEM part and is sold as an individual product. It is made to be used with ranges, ovens, and stoves manufactured by Whirlpool and KitchenAid.

A replacement gasket that seals the infinite (surface) control switch to the cooktop or console, helping keep moisture, grease and debris out of the switch area for cleaner operation and a better seal. What it does

• Seals the infinite switch to the panel to help prevent liquid and food intrusion into the switch housing.
• Cushions and stabilizes the switch for a firmer knob fit and reduced vibration.
• Helps protect the switch contacts from contamination that can cause intermittent control behavior.
• Use when the existing gasket is cracked, flattened, missing, or allowing spills into the controls.

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Remove the control knob and access the infinite switch per your model's service instructions.
• Seat the gasket fully around the switch housing so it lies flat against the console; replace if damaged or compressed.
• Inspect the switch and wiring while replacing the gasket; replace the switch if there is visible damage.

This genuine replacement screw secures appliance components so panels, brackets, and assemblies stay tight and properly aligned. Replacing stripped, rusted, or missing hardware restores a solid fit and helps prevent rattles, shifting, or looseness over time.

• Fastens panels, brackets, and internal parts to maintain proper alignment
• Helps resolve issues caused by missing or damaged screws
• Restores secure mounting after service where original hardware is lost
• Use when threads are stripped or the screw head is damaged and won't tighten

• Disconnect power; turn off gas supply if applicable before servicing
• Match screw location and length to your model's parts diagram for correct placement
• Start threads by hand to avoid cross-threading; use the correct driver bit
• Snug firmly but do not overtighten to prevent damage to mounting points

This ignitor retaining clip secures the oven or range ignitor to the burner assembly so the ignitor stays properly positioned for reliable ignition. It's a small replacement part that restores proper ignitor mounting and alignment. What it does:

• Holds the oven/range ignitor in place on the burner assembly to maintain correct positioning
• Helps ensure consistent ignition by preventing the ignitor from shifting or coming loose
• Commonly replaced when the original clip is broken, bent, or missing
• Fits directly where the factory clip secures the ignitor to the burner housing

• Turn off power and gas supply to the appliance before starting any repair
• Access typically requires removing the oven burner or inner panel; follow the manufacturer service instructions
• Use appropriate tools to remove the old clip and secure the new clip without over-bending

This surface ignitor is the replacement spark electrode that lights a gas cooktop burner, restoring reliable ignition so burners spark quickly and cooking can resume. Designed to match the original fit and function. What it does:

• Creates the spark needed to ignite a gas burner when the knob is turned
• Replaces cracked, broken, or non-sparking electrodes that cause no-light or delayed-light symptoms
• Stops continuous clicking or intermittent sparking caused by a damaged ignitor
• Matches OEM mounting and electrical connection points for proper operation

• One surface ignitor

• Disconnect power and shut off the gas supply before beginning work
• Handle the ceramic electrode carefully; avoid bending or twisting the tip
• Remove burner cap/grate and mounting screws to access and replace the ignitor
• Test ignition after reconnecting power and restoring gas per appliance manufacturer's safety instructions

This surface ignitor creates the spark that lights a gas cooktop burner, restoring reliable ignition so burners light quickly and consistently. Designed to replace a worn or broken surface ignitor on compatible gas ranges. What it does:

• Generates the ignition spark needed for a surface/burner to light
• Replaces cracked, chipped or non-sparking ignitors
• Commonly used when burners fail to light, spark weakly, or clicking continues without ignition
• Works with the cooktop's ignition system to provide repeatable ignition

• Always disconnect power to the appliance and shut off the gas supply before starting
• Handle the ignitor carefully; the ceramic/glass tip is fragile and can break if dropped
• Align and secure the ignitor per the cooktop's burner assembly; avoid overtightening fasteners
• Test ignition after reinstalling panels;

This surface igniter is the replacement spark electrode used on gas cooktop burners to create the spark that lights the burner. It restores reliable ignition so burners light when you turn the control knob. What it does:

• Produces the spark that ignites the gas at a surface/burner element
• Replaces a cracked, worn, or non-sparking electrode
• Common fix for burners that click but won't light or that fail to spark
• Works with the existing electrode wiring and mounting location

• Disconnect power to the range and turn off the gas supply before starting
• Handle the ceramic tip gently to avoid chipping; do not touch the tip with bare hands
• Confirm correct orientation and secure mounting; match wiring to original connections
