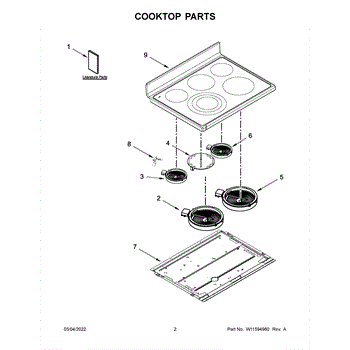

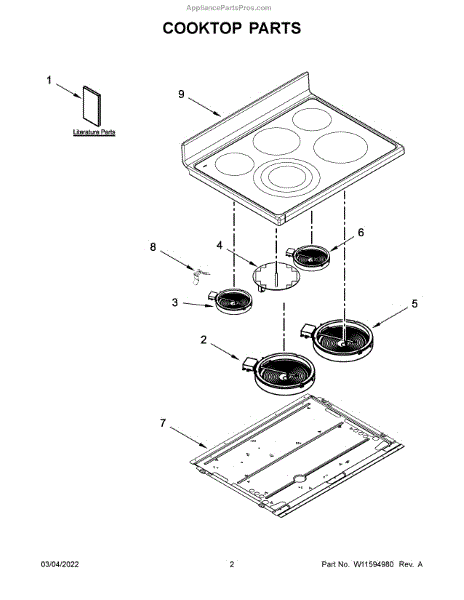

Parts for Kitchenaid KFED500EBS05: Cooktop Parts

The Element-Surf is an OEM part for Whirlpool electric ranges. The element-surface performs a role in safe, even heating.

Causes of a worn or damaged element-surface can include scratches, cracks or chips from cookware use over time. Surface level issues compromise effectiveness.

Symptoms of a damaged element-surface include:

• Uneven or slow heating between elements
• Exposure of electrical components below
• Food debris easily getting lodged in irregularities
• Loss of the glossy smooth appearance

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Surface heating element that supplies a 700-watt top-burner heat source for compatible electric ranges, restoring reliable low-heat cooking and precise simmering performance on the affected burner. What it does:

• Provides 700W of heat for a small/simmer cooktop burner to support low- and medium-heat cooking.
• Replaces a burner element that won't heat, heats intermittently, or shows visible damage or burn marks.
• Restores normal burner operation so cookware heats more evenly on that zone.
• Fits into the existing cooktop receptacle and connects to the range wiring without additional heating components.

• Disconnect power at the circuit breaker or unplug the range before servicing.
• Allow the old element to cool fully before removal; handle terminals carefully to avoid bending.
• Inspect terminal clips and wiring for damage during installation; replace any damaged connectors or receptacles.

• Wattage: 700W
• Sold individually

This surface heating element restores dependable heat to an electric range or cooktop's top burner. Replacing a failed element helps the burner heat evenly and respond correctly to temperature settings for everyday cooking.

• Supplies controlled heat to the selected surface burner during cooking
• Common symptoms: no heat, intermittent heating, only part of the element glows, or visible damage such as hot spots or breaks
• Often tests open for continuity when failed
• Inspect the element receptacle/terminal block and wiring for heat damage during replacement

• Disconnect power at the breaker and allow the cooktop to cool completely before servicing
• Handle the element carefully; avoid bending terminals or touching heating surfaces with bare hands
• Transfer any brackets/insulators from the original element if present, and route wiring exactly as original
• Ensure a secure fit and connections before restoring power and testing

Replace a failed surface heating element to restore reliable, even heat on your electric cooktop or range. This 3200-watt element helps get that cooking zone working properly again.

• Generates heat for the selected surface burner when turned on
• Works with the control to reach and maintain the set cooking temperature
• Useful when the old element shows visible breaks or burn marks

• Disconnect power at the breaker/fuse box and allow the cooktop to cool completely
• Access the element beneath the cooktop top panel per your model's procedure
• Label/photograph wire locations; transfer wires and any mounting hardware from the old element
• Handle the element and glass surface carefully to prevent damage

The Surface Element is an OEM part for Whirlpool stoves and cooktops. It is the heating element located on the cooktop, responsible for providing heat to pots and pans for cooking.

Common causes of a bad surface element include wear and tear from repeated use, overheating, or electrical issues. Ensuring the element is functioning correctly is crucial for efficient and safe cooking.

Symptoms of a bad surface element include:

• Element not heating up
• Inconsistent or uneven heating
• Visible damage or burning on the element
• Sparking or electrical issues when the element is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: 1200 watt - LR / RR element

This small spring applies tension to hold an element in the correct position within the appliance, helping maintain reliable contact and stable operation. Replacing a worn spring can restore proper element support and performance.

• Provides push tension to keep the element seated and secure
• Helps prevent intermittent heating due to poor element contact
• Common signs include rattling, poor element stability, or intermittent heat

• Disconnect power and allow the unit to cool before service
• Access the element mounting area; note original spring placement
• Use needle-nose pliers to remove and install the spring carefully
• Inspect adjacent clips and wiring; replace damaged parts as needed

This genuine replacement part is an electric stove cooktop. The cooktop is the main glass piece that sits on top of the stove. It is the flat surface above the burners where pots and pans are placed for cooking.To replace the cooktop, start by getting under the stovetop through the oven. Locate the mounting brackets and loosen them to a vertical position. After brackets have been loosened, push the cooktop up to lift above the stove. The glass top will be attached to a metal chassis. Unthread the screws that secure the top to the chassis. Take the new cooktop and place it on top of the chassis. Tighten the screws to secure the new top. Drop back into the stove and re-secure the mounting bracket.This OEM replacement cooktop is compatible with Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Sears/Kenmore brand electric stoves.

This wire harness routes power and signals between the appliance's control and components, restoring reliable electrical connections. Replacing a damaged harness helps resolve intermittent operation and restores proper function. What it does:

• Provides organized wiring for power and control signals between modules and components
• Replaces frayed, burned, or disconnected wiring that can cause intermittent power or failures
• Helps stop shorts or poor connections that can cause controls or motors to stop responding
• Restores factory routing and secure plug connections for reliable operation

• Disconnect power before starting work
• Match connector shapes and routing to the original harness; avoid stretching or pinching wires
• Secure any retained clips and strain-relief points to prevent chafing
• Test appliance functions after installation and reassemble panels before returning to use

Comes with three connectors per package.
