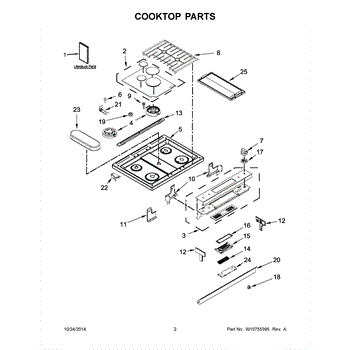

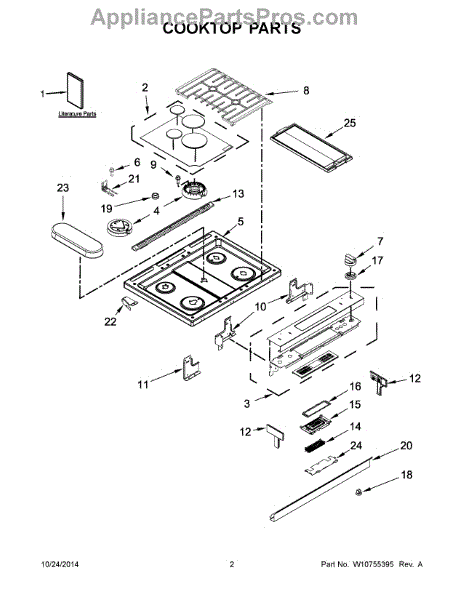

Parts for Maytag JDS1450CDP0: 02 - Cooktop Parts

This burner cap fits over a gas cooktop's surface burner to help direct flame for even heating and protect the burner head. It restores proper burner appearance and helps maintain efficient flame pattern for cooking. What it does:

• Covers and protects the gas burner head from spills and debris
• Shapes and stabilizes the burner flame for consistent heat distribution
• Helps prevent flame disturbance that can cause uneven cooking or clicking
• Restores a finished look to the cooktop surface

• 1 burner cap

• Turn off gas supply and ensure all surfaces are cool before handling
• Remove loose debris and set the cap on the burner head so it seats evenly
• If cap is warped or does not sit flat, inspect burner head for damage or debris
• Use only manufacturer-recommended parts and follow your appliance's service instructions

This control panel is the user interface assembly that houses touchpads, display, and control electronics so you can select cycles and see status. It restores control and display functions when the original panel is damaged or unresponsive. What it does:

• Replaces the range/oven console that contains the touchpad/buttons and display
• Enables normal selection of cook modes, temperature, timers and other front-panel functions
• Restores visible status and error codes on the oven/range display when the original panel fails
• Commonly used when buttons are non-responsive, display is blank, or control inputs don't register

• One control panel assembly as shown

• Disconnect power at the breaker before starting any service to avoid shock
• Requires basic hand tools; gentle removal of trim and wiring harness detachment recommended
• Match connectors and mounting locations exactly; do not force wiring or fasteners

This control panel is the user interface assembly that houses touchpads, display, and control electronics so you can select cycles and see status. It restores control and display functions when the original panel is damaged or unresponsive. What it does:

• Replaces the range/oven console that contains the touchpad/buttons and display
• Enables normal selection of cook modes, temperature, timers and other front-panel functions
• Restores visible status and error codes on the oven/range display when the original panel fails
• Commonly used when buttons are non-responsive, display is blank, or control inputs don't register

• One control panel assembly as shown

• Disconnect power at the breaker before starting any service to avoid shock
• Requires basic hand tools; gentle removal of trim and wiring harness detachment recommended
• Match connectors and mounting locations exactly; do not force wiring or fasteners

This burner head replaces the damaged or corroded surface burner cap to restore consistent gas flow and stable flames on your cooktop. It fits into the range's burner assembly to help deliver even heat for everyday cooking. What it does:

• Directs gas to produce an even, stable flame for stovetop cooking
• Replaces a warped, cracked, or corroded burner head that causes uneven heating
• Can resolve intermittent or irregular flames and reduced burner performance
• Works with the existing burner base and ignition system to re-establish proper operation

• Turn off the appliance and shut off the gas supply before servicing.
• Remove grates and burner caps to access the head; reassemble in reverse order.
• Use basic hand tools; inspect the burner base and igniter for damage while replacing.

Screws for range anti tip bracket: WP3801F656-51. Includes 2 screws.

The Grate-Kit is an OEM component specifically designed for Whirlpool electric ranges. It includes the cooking grates and necessary mounting hardware to outfit one or more oven racks.

Symptoms of worn or damaged grates include:

• Uneven cooking from hot and cold spots on the grates
• Foods sticking or burning more easily due to surface deterioration
• Warping, cracking, or breakage of grate wires from high-heat use
• Loose or missing fasteners cause unsafe support of cookware

Causes can be accumulated years of cooking on the grates. Exposure to high temperatures, grease splatters, and occasional mishandling also contribute to normal wear over time.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This trim vent replaces a damaged or worn vent grille to restore proper airflow appearance and help direct air where the appliance needs it. It's a direct-replacement exterior trim piece that cleans up the unit's vent opening. What it does:

• Covers and protects the appliance vent opening while providing a finished appearance
• Directs airflow and helps prevent debris from entering the vent area
• Replaces cracked, broken, or faded vent trim that affects appearance or fit
• Helps reduce rattling or loose trim that can occur with damaged vent pieces

• One trim vent (single grille piece)

• Disconnect power to the appliance before beginning any work
• Typically installs with snap-in tabs or a few screws; avoid forcing to prevent breakage
• Inspect surrounding clips or screws and replace if worn for a secure fit

This electronic control board is the central module that coordinates your appliance's functions and cycle timing. Replacing a failed board can restore normal operation and responsive controls when the original is unresponsive or behaving erratically. What it does:

• Manages timing and sequencing of cycles based on sensor inputs and user selections
• Distributes power to key components via onboard relays
• Interprets inputs from the control panel and safety interlocks
• Stores/communicates fault codes; common symptoms include won't start, no display or beeps, won't advance through a cycle, or intermittent shutdowns

• One electronic control board assembly

• Disconnect power at the breaker or unplug before servicing
• Use ESD protection; handle the board by the edges and avoid touching circuitry
• Note wire locations; move connectors one at a time to the new board and seat fully
• After reassembly, restore power and run any model-specific service test or calibration per the unit's tech sheet

This electronic control board replaces the appliance's main console control, restoring cycle selection, display feedback and timed functions for proper operation. It's the central circuit that interprets user inputs and manages electronic commands. What it does:

• Receives commands from the selector pad or touch controls and runs the appliance's electronic functions
• Controls timing, displays, and cycle progression for accurate operation
• Resolves symptoms like blank or unresponsive display, failure to start cycles, or incorrect cycle behavior
• Works with other console components; a faulty board can cause intermittent or erratic operation

• Always disconnect power (unplug or switch off circuit breaker) before starting service
• Handle the board by edges and avoid touching components; protect against static discharge
• Some models require transfer of the user interface, display lens, or mounting brackets from the old board

This replacement bezel knob restores the appearance and secure fit of a range or oven control panel. It replaces a cracked, loose, or missing knob bezel to help ensure proper knob seating and a finished look. What it does:

• Centers and secures the control knob on the appliance control panel
• Maintains correct spacing so the knob turns smoothly and seats properly
• Helps prevent debris from entering the knob shaft area
• Commonly replaced for visible cracks, breaks, or when the bezel no longer holds the knob firmly

• One bezel knob

• Disconnect power to the appliance before starting any work
• Typically aligns over the knob shaft and snaps or slides into place; avoid forcing it
• Inspect the knob shaft and surrounding trim for damage and replace if necessary

This insert is a small OEM component designed to fit into a specific location on your appliance to secure, align, or finish an assembly. Replacing a worn, damaged, or missing insert restores proper fit and clean appearance.

• Provides a snug interface or cover within the designated assembly
• Helps prevent looseness, vibration, or gaps in the connected part
• Replaces cracked, worn, or missing insert pieces
• Common symptoms include loose or wobbly parts, misalignment, or a missing cap/cover

• Disconnect power and shut off gas/water before servicing
• Refer to your model's parts diagram to confirm location and orientation
• Use non-marring tools to avoid cosmetic damage
• Seat the insert fully; do not overtighten adjacent fasteners

This Bumper is an OEM part for Whirlpool ranges. Serving as a protective barrier, it cushions and safeguards various parts of the range. Engineered to fit seamlessly, it ensures stability and protection for specific range models.

What causes a bad part:
Continuous use, exposure to heat, or physical impact can lead to wear and tear of the Bumper. Harsh cleaning agents or abrasive materials during maintenance can also contribute to its degradation.

Symptoms for a bad part:

• Loose or detached bumpers
• Visible cracks or damage on the bumper
• Increased vibration or instability in the range

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This anchor tip secures the washer agitator to the transmission shaft so the agitator turns with the washer drive. Replaces a worn or damaged anchor tip to restore proper agitator engagement and reduce slipping. What it does:

• Secures the agitator to the drive shaft so the agitator rotates with the motor
• Helps prevent the agitator from slipping or spinning independently
• Commonly used when the agitator feels loose, makes grinding or clicking noises, or stops agitating
• Simple, low-profile part that works behind the agitator cap

• One anchor tip

• Disconnect power and water before starting any repair
• Remove agitator/agitator cap to access and replace the anchor tip per OEM instructions
• Inspect mating surfaces and replace any additional worn components if engagement remains poor

This mounting bracket secures appliance components to the cabinet or chassis, restoring proper alignment and support. Designed to replace damaged or missing brackets, it helps reduce vibration and prevent parts from shifting during use. What it does

• Provides a stable anchor point for internal components or panels
• Restores proper alignment and fit between the appliance cabinet and mounted parts
• Helps reduce vibration and rattling caused by loose or broken supports
• Commonly replaced when bracket is bent, cracked, or missing

• Inspect adjacent fasteners and mounting holes; replace any stripped screws or damaged hardware
• Use appropriate tools and mounting hardware for secure installation; torque to OEM recommendation if available
• Disconnect power before working on electrical appliances and follow all safety guidelines

This replacement griddle sits over your range or cooktop burners to provide a flat, removable cooking surface. Use it to restore a level cooking area when the original is worn, damaged, or missing.

• Creates a flat cooking surface above the burner(s) for items like pancakes and sandwiches
• Helps distribute heat from the burner across the plate for more even contact
• Replace if cracked, warped, chipped, or heavily worn
• Common signs include rocking or poor fit, visible damage, or a degraded cooking surface

• Turn off all burners and allow the cooktop and griddle to cool completely before handling
• Position on the designated grate or locator tabs per your model's orientation
• Follow care and cleaning guidance in your owner's manual

The Display Wire Harness is an OEM part for Whirlpool ranges. It connects the control panel display to the range’s main control board, allowing for communication between the user interface and the appliance’s electronic system. This harness ensures that the display panel accurately shows information such as temperature settings, timer functions, and error codes.

Causes of a bad display wire harness can include regular wear and tear, electrical issues, or damage from heat exposure or physical impact. When the wire harness fails, it can disrupt the flow of information between the control panel and the main control board, affecting the operation and display functions of the range.

Symptoms of a bad Display Wire Harness include:

• The display panel not lighting up
• Inaccurate or flickering display readings
• Buttons on the control panel not responding
• Error codes appearing on the display

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Keypad Wire Harness is an OEM part for Whirlpool ranges. This component is essential for connecting the keypad to the control board, enabling communication between user inputs and the range's operational functions.

Causes of a bad keypad wire harness can include wear and tear from regular use, exposure to heat and moisture, or physical damage due to mishandling or accidental impact. Electrical issues such as short circuits or frayed wires can also lead to malfunctioning.

Symptoms of a bad keypad wire harness include:

• Unresponsive keypad buttons
• Intermittent or inconsistent range operation
• Error codes related to keypad communication
• The range not powering on or off correctly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
