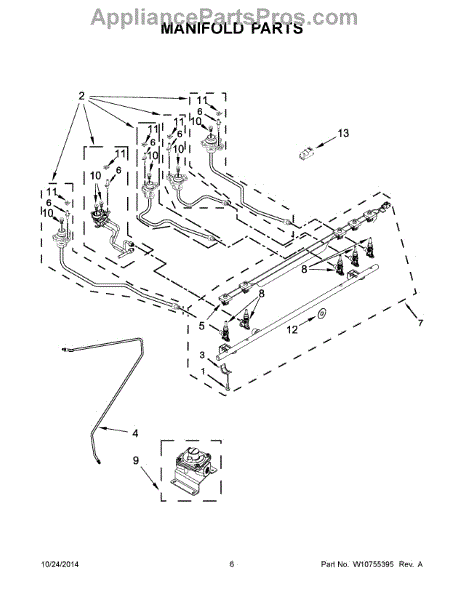

Parts for Maytag JDS1450CDP0: 04 - Manifold Parts

The Screw is an OEM part for Whirlpool cooktop. It is a small yet vital component that joins together other parts of the range to create a cohesive appliance. The screw is responsible for tightly securing internal components like the oven cavity walls, heating elements, and outer door during operation.

Causes of a bad screw can include wear and tear over time due to repetitive heating and cooling cycles, or damage from handling that results in bending or stripping of the threads.

Symptoms of a bad screw include:

• Detached or damaged internal range components
• Issues with the door like misalignment or inability to latch securely
• Improper heat circulation and hot or cold spots in the oven
• Component malfunctions if mounting positions are compromised

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Surface Ignitor is an OEM part for Whirlpool ranges and cooktops. This component is responsible for generating the spark needed to ignite gas burners on the cooktop or oven pilot light.

Causes of a bad Surface Ignitor can include wear and tear over time due to repeated use during ignition. Physical damage is also possible.

Symptoms of a failed surface ignitor include:

• Inability to ignite any gas burners
• Repeated sparking sounds but no ignition
• Yellow burner flames instead of blue

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This surface burner spark electrode creates the spark that lights the gas on your range or cooktop. Replacing a worn or cracked electrode restores reliable ignition so burners light quickly and consistently when you turn the knob.

• Produces a high-voltage spark at the burner to ignite the gas flame
• Helps resolve: burner won't light, no or weak spark at that burner, needs manual lighting, intermittent ignition
• Damage or contamination on the ceramic insulator can prevent proper arcing
• Direct replacement for the failed electrode at the affected burner

• Disconnect power and shut off gas supply before servicing
• Allow unit to cool completely
• Remove burner cap and head to access the electrode; transfer mounting hardware if reused
• Handle the ceramic insulator carefully; reconnect lead securely and align the tip near the burner head as originally positioned

This surface burner igniter creates the spark that lights a gas cooktop or range burner. The attached wire lead simplifies hookup and helps restore quick, dependable ignition when a burner won't light or only lights intermittently.

• Generates a high-voltage spark at the burner to ignite gas
• Restores reliable burner lighting and consistent flame startup
• Common symptoms: burner won't ignite, no visible spark, intermittent lighting, or a chipped/cracked ceramic insulator
• Replaces a worn or damaged electrode to eliminate the need for manual lighting

• Disconnect electrical power and shut off gas before servicing
• Allow the cooktop/range to cool; handle the ceramic tip carefully to avoid damage
• Match the igniter position/orientation to the original for proper spark at the burner
• Route the lead away from sharp edges and heat; make a secure connection to the harness, then test for spark before reassembly

This surface burner igniter is the spark electrode that lights the flame on your gas cooktop or range. Replacing a worn electrode restores reliable ignition at the affected burner for fast, consistent lighting.

• Generates a high-voltage spark at the burner to ignite gas
• Positions and insulates the tip for consistent flame lighting
• Common symptoms: burner won't ignite or no spark at that burner
• Other signs: needs a match to light, intermittent/erratic spark, cracked ceramic

• Disconnect power and shut off gas supply; allow appliance to cool
• Remove burner cap and head to access the electrode; note wire routing and mounting
• Transfer any bracket/clip from the original part if required and set proper gap/position near the burner port
• Restore power and gas, then test ignition at the repaired burner

This saddle-style gas valve controls gas flow to the appliance, letting technicians create a safe, serviceable gas connection. It's used where a saddle/tap-style inlet is required for supplying natural gas to the unit. What it does:

• Provides a saddle-mounted gas shutoff and inlet for an appliance connection
• Restores gas flow when a damaged or leaking saddle valve prevents operation
• Commonly used when a service replacement or rework of the appliance gas inlet is needed
• Helps isolate the appliance gas supply for repair or maintenance

• Turn off the home gas supply and relieve downstream pressure before starting work
• Installation must follow OEM instructions and local codes; use appropriate fittings and sealants for gas service
• Check all connections for leaks with a gas-safe leak detector or soapy-water test after installation

This surface burner valve regulates gas flow to a single cooktop burner through the control knob. Replacing a worn valve restores smooth flame control, reliable ignition, and a positive shutoff for safer, consistent cooking.

• Regulates and meters gas to one surface burner for off, simmer, and full-flame settings
• Works with the control knob and spark-ignition switch to light the burner
• Common symptoms: burner won't light or adjust properly, flame doesn't shut off completely, or the knob is hard to turn or wobbly
• If a gas odor is detected near the control area, stop use and service the appliance

• Disconnect electrical power and shut off gas before servicing; allow the appliance to cool
• Access the valve/manifold; note valve orientation and stem position before removal
• Transfer the spark switch, mounting clip, and fittings from the old valve as needed
• Apply an approved gas-rated thread sealant, tighten connections, and leak-test all joints with a soap solution before use

The Surface Burner Valve is an OEM part for Whirlpool cooktop ranges. As an internal fixture, each valve regulates gas flow to a specific burner allowing customized heating levels.

Symptoms of a bad surface burner valve include:

• Burners that will not ignite or only ignite at max capacity
• Inability to lower a burner's flame below the maximum setting
• Gas leaks characterized by unusual smells

Causes relate to regular use corrosion restricting valve movement or impact damaging stems preventing full aperture control. Neglect threatens safety.

This OEM Whirlpool part is also compatible with some Maytag, Jenn-Air, and KitchenAid ranges.

This gas pressure regulator controls fuel flow to the appliance's burner system to maintain steady, safe burner performance. Replacing a worn regulator restores consistent flame height and reliable ignition. What it does:

• Reduces and stabilizes incoming gas pressure so burners operate at the correct flame level
• Helps prevent weak or uneven flames and frequent flameouts caused by pressure fluctuations
• Ensures stable fuel delivery for reliable ignition and steady cooking heat
• Works as part of the fuel delivery path between the supply line and the valve assembly

• One regulator

• Turn off the gas supply and disconnect power to the appliance before servicing
• Use proper thread sealant for gas fittings and tighten fittings to OEM torque recommendations
• Do not attempt repairs if you are unfamiliar with gas appliance service

This orifice spud directs gas flow into the burner for consistent ignition and flame control. It restores proper burner performance so cooking heats evenly and burners light reliably. What it does:

• Seats the burner orifice to control gas flow to the burner
• Helps maintain a steady, even flame for consistent cooking
• Can resolve weak or uneven flames and burners that struggle to light
• Works as the sealed interface between the gas manifold and burner tube

• One orifice spud

• Turn off the gas supply and disconnect power before servicing
• Inspect surrounding seals and gaskets for damage and replace if necessary
• Use basic hand tools; avoid overtightening to prevent damage

This orifice meters gas flow to a range or oven burner for consistent, controllable flames. Replacing a damaged or clogged orifice restores proper burner performance and helps maintain safe ignition and cooking. What it does

• Controls the gas flow to a specific burner for the correct flame size and heat output.
• Commonly replaces clogged, corroded, or damaged orifices that cause weak or uneven flames.
• Can resolve symptoms such as burners that won't light reliably, low flame, or irregular flame shape.
• Helps restore stable combustion when the flame is sputtering or lifting from the burner head.

• One gas burner orifice (single piece as shown)

• Turn off the appliance and shut off the gas supply before removing or installing the orifice.
• Use the correct-size wrench; avoid overtightening which can damage the fitting.
• Inspect threads and seat for debris; replace sealing gasket or use approved thread sealant per service manual if specified.

This orifice spud is the small gas burner fitting that holds the burner orifice and helps direct fuel to the burner for proper ignition. It restores correct gas flow to the burner assembly for reliable ignition and flame. What it does:

• Secures the burner orifice in the burner tube so the correct-sized jet is positioned for ignition
• Helps maintain steady, consistent gas flow to the burner
• Commonly replaced when burners fail to light or flame is weak/irregular
• Works with the burner tube assembly to ensure proper burner operation

• One orifice spud

• Turn off gas supply and unplug appliance before beginning service
• Use correct tools and replace only the part(s) explicitly specified for your model
• Do not overtighten fittings; follow torque guidance from the appliance manufacturer
• If you smell gas or suspect a leak after installation, stop immediately

Replacement orifice spud that controls gas flow to a burner for proper flame size and reliable cooking. Helps restore consistent ignition and heat so burners operate safely and efficiently. What it does:

• Meters gas from the manifold to the burner to produce the correct flame size for cooking.
• Ensures even, stable combustion for consistent heat across the burner.
• Common symptoms of a worn or clogged orifice spud include weak or uneven flames, burners that are slow to light, or poor cooking performance.
• A properly functioning orifice helps prevent fuel waste and supports safe appliance operation.

• Turn off the gas supply and electrical power to the appliance before starting any service.
• Replace with the correct OEM part and thread carefully; seat securely but avoid overtightening which can damage the part.
• After installation, check all connections for gas leaks and test the burner for proper flame shape and operation.

This clip is a small mounting retainer used to secure panels, harnesses, or trim pieces on compatible Whirlpool appliances. It provides a simple, reliable hold to keep components in place and prevent rattles or shifting during use. What it does:

• Secures plastic panels, trim, or wire harnesses to the appliance frame
• Helps prevent vibration noise by holding parts tight
• Keeps wiring and small components routed and out of the way
• Simple mechanical retention—no tools-specific hardware required for the clip itself

• One clip

• Disconnect power (and water, if applicable) before beginning any repair
• Inspect surrounding parts and alignment before installing the clip to avoid forcing it
• Use appropriate hand tools to remove panels or fasteners as needed; press clip into place until it snaps securely
• If the clip is brittle or broken, replace it rather than reusing damaged pieces

This switch seal is a replacement gasket that helps keep moisture and debris away from the appliance's door/control switch, protecting the switch assembly and helping restore reliable door detection and operation. What it does:

• Seals the area around the door/control switch to block water, lint, and grime.
• Helps prevent intermittent trips or failures caused by moisture or foreign material contacting the switch.
• Promotes consistent switch actuation and can extend the service life of the switch assembly.
• Useful when the existing seal is cracked, torn, flattened, or missing.

• Disconnect power before servicing to avoid electrical shock.
• Access typically requires removing the door trim or control panel—follow your model's service instructions.
• Inspect the switch and surrounding area for damage or corrosion and clean before installing the new seal.

This spark module supplies the high-voltage pulses that ignite the surface burners on a gas cooktop or range. Replacing a failing module helps restore consistent clicking and spark so burners light promptly and reliably.

• Supplies high-voltage to up to five surface igniters (5+0 configuration)
• Sends spark when a burner control is turned to Lite
• Failure symptoms can include no spark on all or multiple burners
• May also cause intermittent/weak spark or continuous clicking

• Disconnect power and shut off gas before servicing
• Note wire locations; move one connector at a time to matching terminals
• Mount securely in the original position and ensure proper grounding
• After replacement, if only one burner won't ignite, inspect that burner's switch and igniter

This Orifice Spud precisely meters gas to a burner so you get a steady, properly sized flame. Replace a damaged, clogged, or incorrect spud to restore reliable ignition, clean flame color, and consistent heating.

• Threads into the burner's orifice holder/valve to control gas flow through a calibrated opening
• Helps maintain correct flame height and color for safe, efficient cooking
• Typical symptoms include irregular or yellow flames, weak or no flame, popping, or delayed ignition
• A clogged or worn spud can make simmer control difficult and lengthen cook times

• Shut off gas supply and power; allow the appliance to cool before service
• Remove grate, cap, and burner head (as applicable) to access the orifice; use the proper wrench or nut driver and avoid overtightening brass parts
• After reassembly, restore gas and check for leaks with soapy water; verify a steady blue flame and adjust air shutters only if directed by the manufacturer
