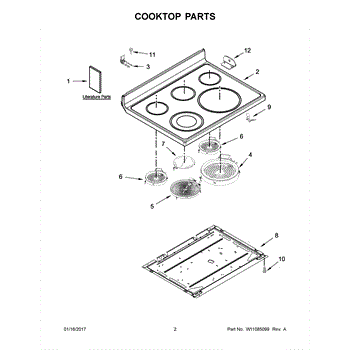

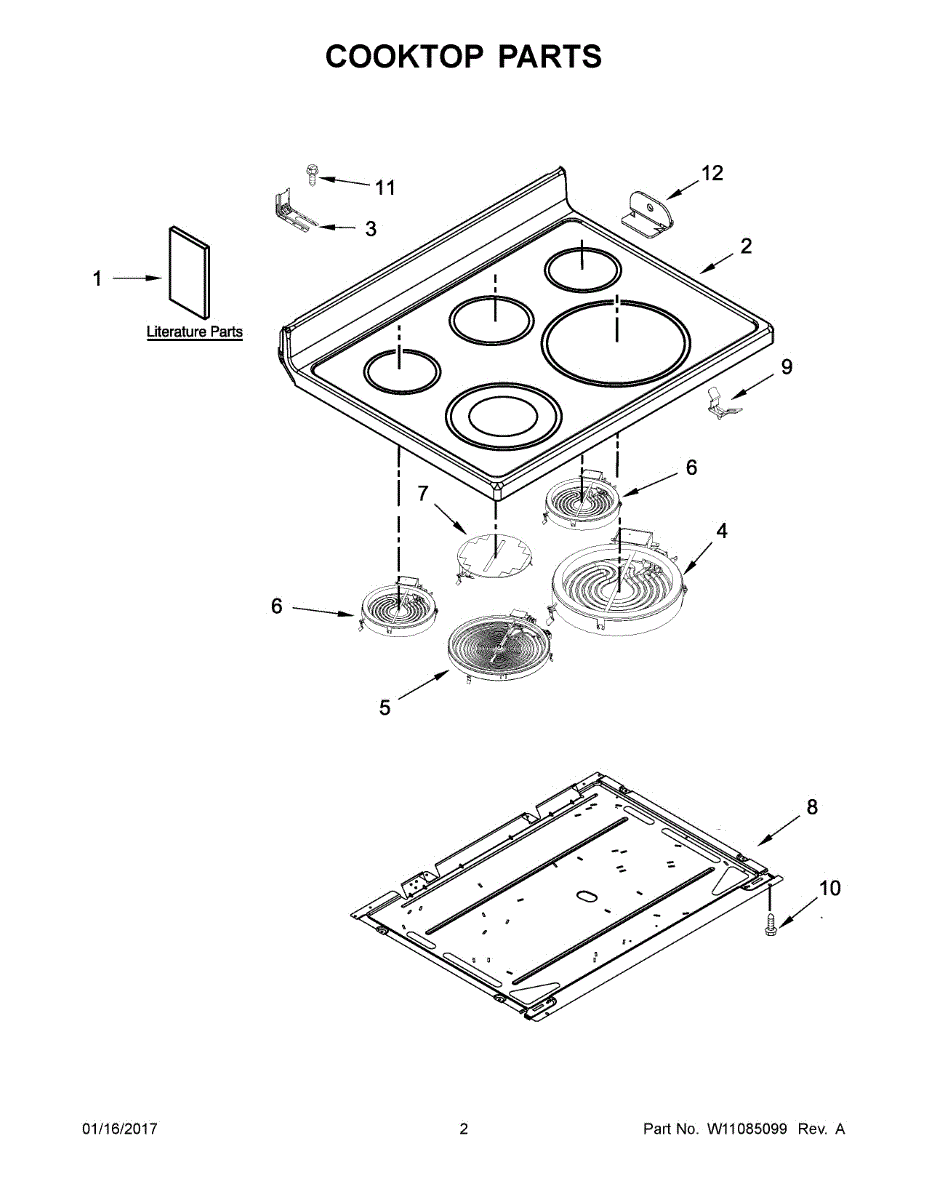

Parts for Maytag MER8800FB0: 02 - Cooktop Parts

The Anti Tip Bracket is an OEM component specifically designed for Whirlpool ranges. This bracket plays a crucial safety role in preventing the range from accidentally tipping over if excessive weight is applied to the open oven door.

The anti-tip bracket secures tightly to the floor or wall behind the range, linking it securely in place. It allows the oven door to function while ensuring the entire appliance remains stable even under heavy use.

Causes of a bad bracket can include damage, deterioration of mounting hardware over time, or failure to install properly according to manufacturer instructions.

Symptoms of a faulty anti-tip bracket include:

• The range appears unsecured and able to wobble or rock backward
• Looseness between the bracket and mounting surface
• Cracks or breaks in the anti-tip bracket material

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


Replace a failed surface heating element to restore reliable, even heat on your electric cooktop or range. This 3200-watt element helps get that cooking zone working properly again.

• Generates heat for the selected surface burner when turned on
• Works with the control to reach and maintain the set cooking temperature
• Useful when the old element shows visible breaks or burn marks

• Disconnect power at the breaker/fuse box and allow the cooktop to cool completely
• Access the element beneath the cooktop top panel per your model's procedure
• Label/photograph wire locations; transfer wires and any mounting hardware from the old element
• Handle the element and glass surface carefully to prevent damage

This surface heating element replaces a broken or worn top burner to restore electric range cooking performance. It provides a direct-replacement heating coil for compatible Whirlpool-style cooktops and matches OEM fit and function. What it does:

• Heats cookware on the cooktop surface so pots and pans reach cooking temperature
• Replaces a burner that won't heat, heats intermittently, or shows visible damage
• Restores even heating when the original element has burned out or failed
• Works with the existing terminal connections and locking mechanism for a direct swap

• One surface heating element

• Disconnect power to the range at the breaker before servicing to avoid shock
• Remove the cooktop or drip pan as needed to access element terminals
• Disconnect the element from its terminal block and replace with the new element, ensuring secure terminal connections

The Surface Element is an OEM part for Whirlpool stoves and cooktops. It is the heating element located on the cooktop, responsible for providing heat to pots and pans for cooking.

Common causes of a bad surface element include wear and tear from repeated use, overheating, or electrical issues. Ensuring the element is functioning correctly is crucial for efficient and safe cooking.

Symptoms of a bad surface element include:

• Element not heating up
• Inconsistent or uneven heating
• Visible damage or burning on the element
• Sparking or electrical issues when the element is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: 1200 watt - LR / RR element

This small spring applies tension to hold an element in the correct position within the appliance, helping maintain reliable contact and stable operation. Replacing a worn spring can restore proper element support and performance.

• Provides push tension to keep the element seated and secure
• Helps prevent intermittent heating due to poor element contact
• Common signs include rattling, poor element stability, or intermittent heat

• Disconnect power and allow the unit to cool before service
• Access the element mounting area; note original spring placement
• Use needle-nose pliers to remove and install the spring carefully
• Inspect adjacent clips and wiring; replace damaged parts as needed

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

Screws for range anti tip bracket: WP3801F656-51. Includes 2 screws.

This wire harness is the appliance's main electrical connector assembly that routes power and signals between components, restoring reliable electrical connections for controls and motors. Use it to replace a damaged, burnt, or broken harness. What it does:

• Carries power and control signals between the appliance's control board, motors, switches, and sensors
• Replaces damaged wiring that can cause intermittent operation, non-responsive controls, or failure to start
• Restores proper connector fit and secure splices to prevent arcing and poor contact
• Helps eliminate issues caused by frayed insulation, broken terminals, or melted wires

• One complete wire harness assembly

• Disconnect the appliance from power (unplug or switch off breaker) before starting any repair
• Compare the new harness to the old one for connector type and routing before disconnecting components
• Route wires along the original paths and secure with existing clips or ties to avoid heat and pinch points

This wire harness routes power and signals between an appliance's controls and components to restore reliable electrical connections. Replacing a damaged harness helps eliminate intermittent or failed electrical paths and unsafe wiring. What it does:

• Carries power and control signals between the control board and components.
• Restores proper electrical connections when wires or terminals are burned, frayed, or broken.
• Commonly used to address intermittent operation, failure to start, or components not responding.
• Helps prevent shorts or arcing caused by damaged insulation or loose terminals.

• Disconnect power before starting any repair.
• Compare connectors and wire routing to the original; replace only if identical.
• Disconnect and reconnect connectors by hand; avoid pulling on wires. Use proper tools when needed.
• Follow OEM wiring diagrams and secure routing/clamps to prevent chafing or heat exposure.

This wire harness is the OEM-style electrical cable assembly that connects controls, sensors and motors so the appliance can communicate and receive power. Replacing a damaged harness restores proper electrical continuity and reduces risk of shorts. What it does:

• Routes power and signal connections between control boards, switches, motors and sensors
• Restores reliable electrical continuity to components that fail when wiring is broken or shorted
• Helps stop symptoms like no power, intermittent operation or control errors
• Prevents arcing or burning caused by frayed or melted wires when replaced promptly

• Always disconnect power (unplug or shut off breaker) before accessing wiring
• Compare connector shapes and pin counts to the original; don't force connectors
• Route and secure the harness following the appliance's wiring channels to avoid pinching or chafing
