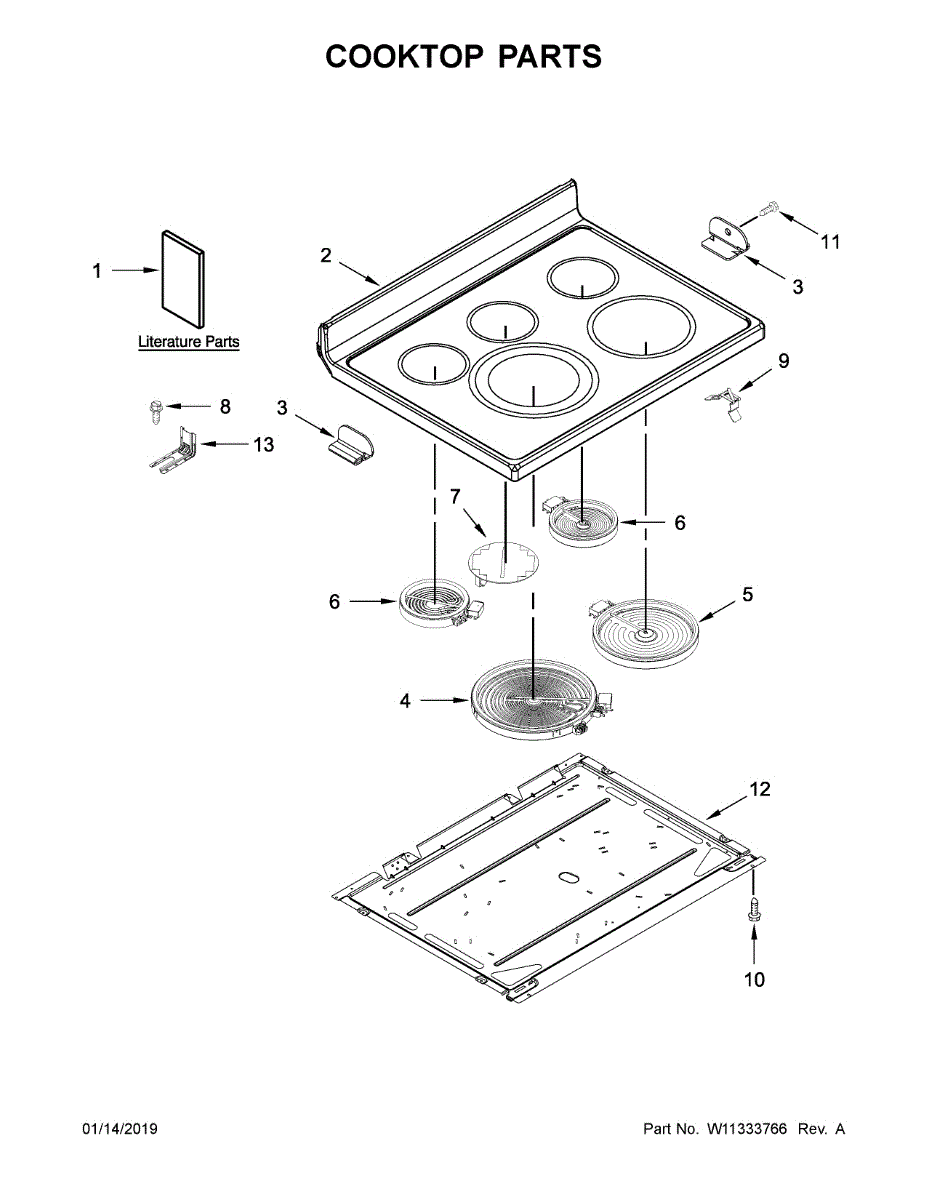

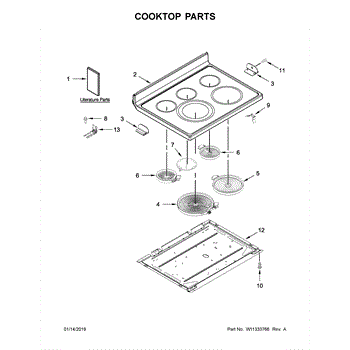

Parts for Maytag MER8800HK0: Cooktop Parts

This surface heating element replaces a broken or worn top burner to restore electric range cooking performance. It provides a direct-replacement heating coil for compatible Whirlpool-style cooktops and matches OEM fit and function. What it does:

• Heats cookware on the cooktop surface so pots and pans reach cooking temperature
• Replaces a burner that won't heat, heats intermittently, or shows visible damage
• Restores even heating when the original element has burned out or failed
• Works with the existing terminal connections and locking mechanism for a direct swap

• One surface heating element

• Disconnect power to the range at the breaker before servicing to avoid shock
• Remove the cooktop or drip pan as needed to access element terminals
• Disconnect the element from its terminal block and replace with the new element, ensuring secure terminal connections

Replace a failed surface heating element to restore reliable, even heat on your electric cooktop or range. This 3200-watt element helps get that cooking zone working properly again.

• Generates heat for the selected surface burner when turned on
• Works with the control to reach and maintain the set cooking temperature
• Useful when the old element shows visible breaks or burn marks

• Disconnect power at the breaker/fuse box and allow the cooktop to cool completely
• Access the element beneath the cooktop top panel per your model's procedure
• Label/photograph wire locations; transfer wires and any mounting hardware from the old element
• Handle the element and glass surface carefully to prevent damage

The Surface Element is an OEM part for Whirlpool stoves and cooktops. It is the heating element located on the cooktop, responsible for providing heat to pots and pans for cooking.

Common causes of a bad surface element include wear and tear from repeated use, overheating, or electrical issues. Ensuring the element is functioning correctly is crucial for efficient and safe cooking.

Symptoms of a bad surface element include:

• Element not heating up
• Inconsistent or uneven heating
• Visible damage or burning on the element
• Sparking or electrical issues when the element is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: 1200 watt - LR / RR element

This surface heating element restores dependable heat to an electric range or cooktop's top burner. Replacing a failed element helps the burner heat evenly and respond correctly to temperature settings for everyday cooking.

• Supplies controlled heat to the selected surface burner during cooking
• Common symptoms: no heat, intermittent heating, only part of the element glows, or visible damage such as hot spots or breaks
• Often tests open for continuity when failed
• Inspect the element receptacle/terminal block and wiring for heat damage during replacement

• Disconnect power at the breaker and allow the cooktop to cool completely before servicing
• Handle the element carefully; avoid bending terminals or touching heating surfaces with bare hands
• Transfer any brackets/insulators from the original element if present, and route wiring exactly as original
• Ensure a secure fit and connections before restoring power and testing

Screws for range anti tip bracket: WP3801F656-51. Includes 2 screws.

This small spring applies tension to hold an element in the correct position within the appliance, helping maintain reliable contact and stable operation. Replacing a worn spring can restore proper element support and performance.

• Provides push tension to keep the element seated and secure
• Helps prevent intermittent heating due to poor element contact
• Common signs include rattling, poor element stability, or intermittent heat

• Disconnect power and allow the unit to cool before service
• Access the element mounting area; note original spring placement
• Use needle-nose pliers to remove and install the spring carefully
• Inspect adjacent clips and wiring; replace damaged parts as needed

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This is a replacement mounting screw used to secure appliance panels and components. It restores proper fastening so panels and parts stay aligned and stable during normal use. What it does:

• Fastens appliance panels, trim or internal components in place
• Replaces missing or stripped screws that cause rattling or loose parts
• Helps stop panel vibration and maintain proper component alignment
• Matches OEM fit where specified for a secure installation

• One replacement mounting screw

• Verify screw size and fit before installation; use the correct screw location from your parts diagram
• Turn off and disconnect power to the appliance before accessing internal components
• Hand-start the screw to avoid cross-threading; tighten until snug—do not over-tighten
• Wear safety glasses and follow manufacturer service instructions when applicable

This wire harness is the appliance's main electrical connector assembly that routes power and signals between components, restoring reliable electrical connections for controls and motors. Use it to replace a damaged, burnt, or broken harness. What it does:

• Carries power and control signals between the appliance's control board, motors, switches, and sensors
• Replaces damaged wiring that can cause intermittent operation, non-responsive controls, or failure to start
• Restores proper connector fit and secure splices to prevent arcing and poor contact
• Helps eliminate issues caused by frayed insulation, broken terminals, or melted wires

• One complete wire harness assembly

• Disconnect the appliance from power (unplug or switch off breaker) before starting any repair
• Compare the new harness to the old one for connector type and routing before disconnecting components
• Route wires along the original paths and secure with existing clips or ties to avoid heat and pinch points

This wire harness routes power and signals between an appliance's controls and components to restore reliable electrical connections. Replacing a damaged harness helps eliminate intermittent or failed electrical paths and unsafe wiring. What it does:

• Carries power and control signals between the control board and components.
• Restores proper electrical connections when wires or terminals are burned, frayed, or broken.
• Commonly used to address intermittent operation, failure to start, or components not responding.
• Helps prevent shorts or arcing caused by damaged insulation or loose terminals.

• Disconnect power before starting any repair.
• Compare connectors and wire routing to the original; replace only if identical.
• Disconnect and reconnect connectors by hand; avoid pulling on wires. Use proper tools when needed.
• Follow OEM wiring diagrams and secure routing/clamps to prevent chafing or heat exposure.

This wire harness is the OEM-style electrical cable assembly that connects controls, sensors and motors so the appliance can communicate and receive power. Replacing a damaged harness restores proper electrical continuity and reduces risk of shorts. What it does:

• Routes power and signal connections between control boards, switches, motors and sensors
• Restores reliable electrical continuity to components that fail when wiring is broken or shorted
• Helps stop symptoms like no power, intermittent operation or control errors
• Prevents arcing or burning caused by frayed or melted wires when replaced promptly

• Always disconnect power (unplug or shut off breaker) before accessing wiring
• Compare connector shapes and pin counts to the original; don't force connectors
• Route and secure the harness following the appliance's wiring channels to avoid pinching or chafing
