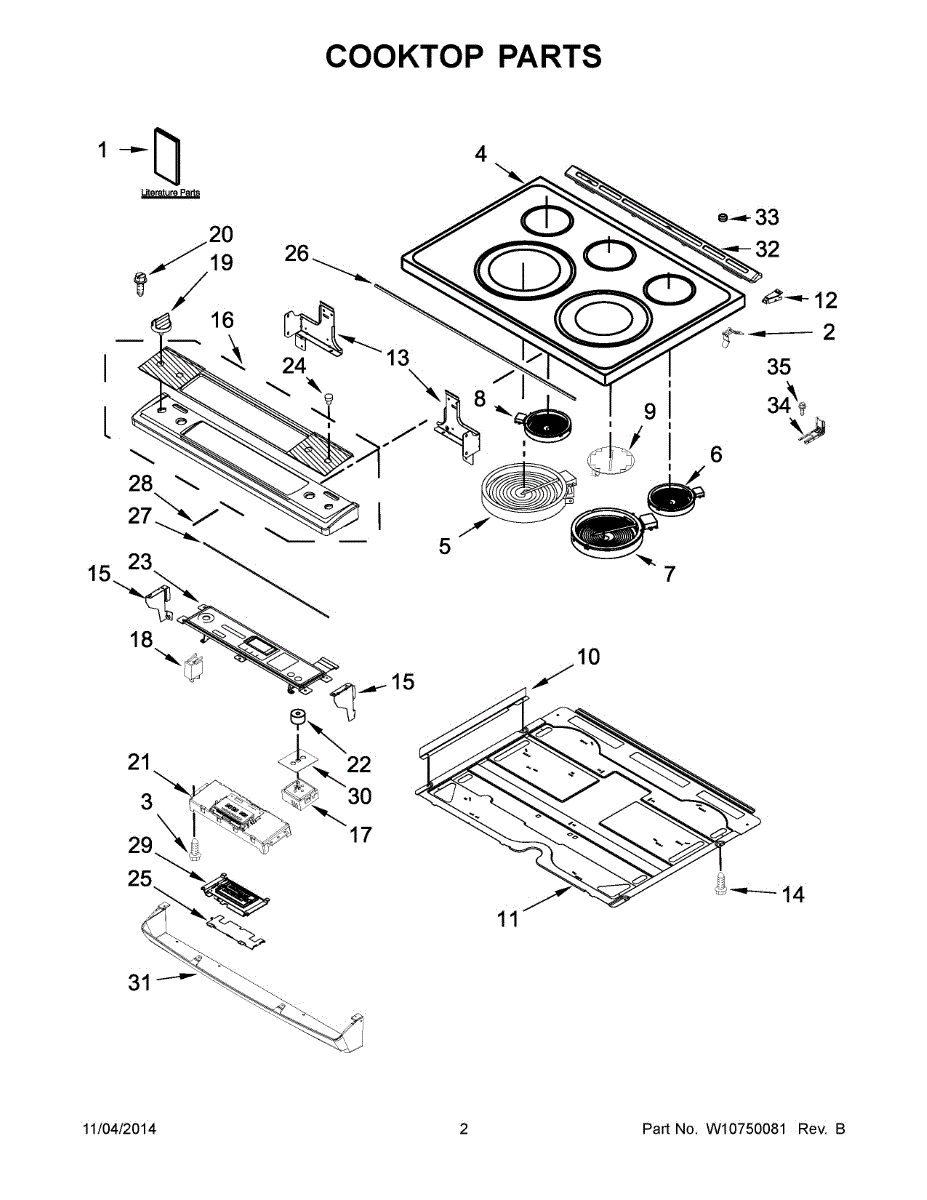

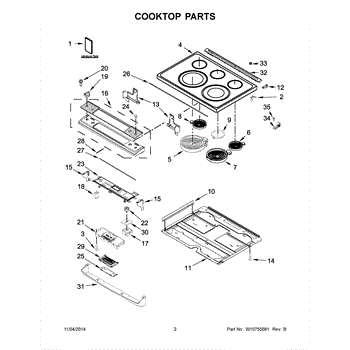

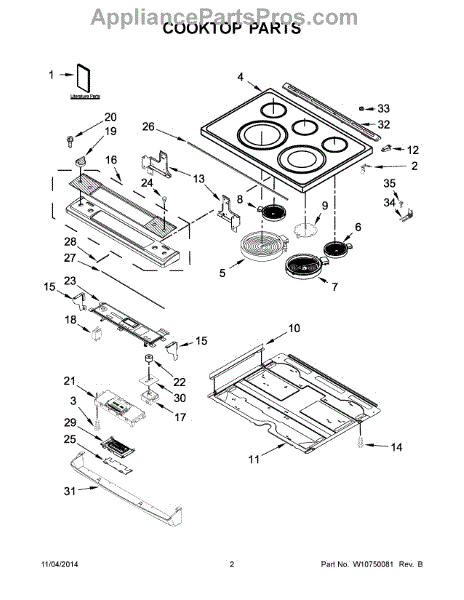

Parts for Maytag MES8880DE0: 02 - Cooktop Parts

This small spring applies tension to hold an element in the correct position within the appliance, helping maintain reliable contact and stable operation. Replacing a worn spring can restore proper element support and performance.

• Provides push tension to keep the element seated and secure
• Helps prevent intermittent heating due to poor element contact
• Common signs include rattling, poor element stability, or intermittent heat

• Disconnect power and allow the unit to cool before service
• Access the element mounting area; note original spring placement
• Use needle-nose pliers to remove and install the spring carefully
• Inspect adjacent clips and wiring; replace damaged parts as needed

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This dual radiant surface element restores even, responsive heat to a smooth-top range or cooktop. It replaces a failed burner so the inner and outer rings heat correctly for dependable everyday cooking.

• Provides heat to a dual-size cooking zone beneath the glass surface
• Works with the surface control to use the inner ring alone or both inner and outer rings
• Common symptoms: burner won't heat, only one ring heats, slow or uneven heating, visible scorching or damage on the element
• Helps restore consistent temperature control and full dual-ring operation

• Disconnect power at the breaker before servicing; elements carry high current
• Lift or remove the cooktop to access the element
• Note wire locations and transfer any mounting brackets/clips from the old element
• Center the element under the burner outline and secure all connections before restoring power

The Surface Element is an OEM part for Whirlpool stoves and cooktops. It is the heating element located on the cooktop, responsible for providing heat to pots and pans for cooking.

Common causes of a bad surface element include wear and tear from repeated use, overheating, or electrical issues. Ensuring the element is functioning correctly is crucial for efficient and safe cooking.

Symptoms of a bad surface element include:

• Element not heating up
• Inconsistent or uneven heating
• Visible damage or burning on the element
• Sparking or electrical issues when the element is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: 1200 watt - LR / RR element

Replace a failed surface heating element to restore reliable, even heat on your electric cooktop or range. This 3200-watt element helps get that cooking zone working properly again.

• Generates heat for the selected surface burner when turned on
• Works with the control to reach and maintain the set cooking temperature
• Useful when the old element shows visible breaks or burn marks

• Disconnect power at the breaker/fuse box and allow the cooktop to cool completely
• Access the element beneath the cooktop top panel per your model's procedure
• Label/photograph wire locations; transfer wires and any mounting hardware from the old element
• Handle the element and glass surface carefully to prevent damage

Surface heating element that supplies a 700-watt top-burner heat source for compatible electric ranges, restoring reliable low-heat cooking and precise simmering performance on the affected burner. What it does:

• Provides 700W of heat for a small/simmer cooktop burner to support low- and medium-heat cooking.
• Replaces a burner element that won't heat, heats intermittently, or shows visible damage or burn marks.
• Restores normal burner operation so cookware heats more evenly on that zone.
• Fits into the existing cooktop receptacle and connects to the range wiring without additional heating components.

• Disconnect power at the circuit breaker or unplug the range before servicing.
• Allow the old element to cool fully before removal; handle terminals carefully to avoid bending.
• Inspect terminal clips and wiring for damage during installation; replace any damaged connectors or receptacles.

• Wattage: 700W
• Sold individually

This replacement surface heating element restores direct heat to a cooktop burner so pots and pans heat properly. It's a straightforward swap for a damaged or non-heating top burner coil. What it does:

• Heats cookware by providing the cooktop's surface heating element for the top burner
• Replaces elements that no longer glow, get intermittently hot, or fail to heat at all
• Restores even cooking when an old or damaged element causes uneven heating
• Works with controls and infinite switches that send power to the burner

• One surface heating (top burner) element

• Disconnect power to the range before attempting service to avoid shock hazard
• Allow the old element to cool completely before removal; handle the element by its base only
• Ensure the replacement is seated and connected to the terminal block securely before testing

This replacement pan is the appliance's drip tray that catches and channels condensate or minor spills to help prevent water from pooling inside the cabinet. It restores proper water collection and reduces the risk of internal leaks. What it does:

• Collects condensate, drips or minor leaks from the evaporator/hoses and channels it to the drain area
• Helps prevent water from pooling beneath components that could cause odor or corrosion
• Restores the appliance's intended water-management function when a cracked or warped pan causes leaks
• Suitable when you see standing water, dripping inside the cabinet, or water under the appliance

• One replacement pan as pictured

• Turn off and unplug the appliance (or shut off power at the breaker) before servicing
• Remove access panels or shelving as needed to reach the pan; keep track of fasteners
• Inspect surrounding hoses and mounts for damage while the pan is out; replace damaged parts as required

This replacement screw secures appliance panels and components to keep parts aligned and stable. Use it to replace missing or damaged fasteners that cause loose trim, rattling, or unsecured panels for safer, quieter operation. What it does:

• Fastens panels, brackets, trim pieces, or small components in place
• Restores proper alignment and stops vibration or rattling caused by loose hardware
• Replaces stripped, corroded, or missing screws to prevent parts from shifting or falling
• Compatible where the OEM lists part W11244557 as the required fastener

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten securely but avoid over-tightening, which can strip threads or crack parts
• Replace like-for-like; length before installing

This end cap panel is a replacement trim piece that restores the finished edge and protects the appliance cabinet where panels meet. It helps maintain a clean look and keeps edges covered after repair or panel replacement. What it does

• Covers and protects the outer edge of a cabinet or control panel section to prevent exposed edges and wear
• Restores a flush, finished appearance after removing or replacing surrounding panels
• Helps keep dirt and moisture from reaching internal edges and seams
• Matches OEM fit and attachment points for reliable alignment

• One end cap panel

• Designed to snap or screw into existing mounting points — handle gently to avoid cracking plastic
• Turn off and unplug the appliance before removing nearby panels
• Inspect adjacent clips or fasteners and replace if damaged to ensure secure fit
• No special tools typically required; a screwdriver and trim tool may be helpful

This control panel is the replacement user interface assembly for your appliance, restoring button access and on-screen controls so you can select cycles, settings, and start or stop the unit with reliable responsiveness. What it does:

• Replaces a cracked, faded, or unresponsive control surface so buttons and touch functions work properly
• Restores access to cycle selection, temperature/timer adjustments, and display feedback
• Helps address intermittent or no-response control symptoms caused by a damaged panel assembly
• Works with the underlying electronics to send user commands to the appliance's control board

• Disconnect power to the appliance before starting any repair
• Handle the panel and any display lens carefully to avoid scratching or cracking
• Some models require removing trim or bezels to access mounting screws—retain all fasteners
• If controls still do not respond after installation, check the main control board and wiring harness for faults

This surface burner infinite switch is the behind-the-knob control for an electric cooktop or range. It regulates power to a single surface element so you can dial in and maintain the heat you need.

• Regulates on/off power cycling to a coil or radiant surface element for variable heat control
• Helps address issues such as a burner not heating, only heating on high, not turning off, or fluctuating temperature
• Installs behind the control panel; connects with spade terminals to line, load, and element leads
• Single-surface-element control for one burner position

• Disconnect power before servicing; this component carries high voltage
• Note wire positions or transfer one wire at a time from the old switch to the new switch
• Secure the switch to the control panel and align the shaft with the control knob
• Reassemble and verify smooth low-to-high burner operation

The Infinite Switch is an OEM part for Whirlpool ranges. This switch is responsible for controlling the operation of the surface element on your range, allowing you to adjust the heat levels for cooking.

A bad surface element switch can occur due to regular wear and tear, electrical issues, or physical damage. If you notice symptoms such as an unresponsive switch, inability to adjust the heat levels, or inconsistent heating, it may be time to replace the surface element switch.

Symptoms of a bad surface element switch include:

• Unresponsive switch
• Inability to adjust heat levels
• Inconsistent or inadequate heating

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Infinite Switch is an OEM replacement part for Whirlpool ranges. It is responsible for regulating the power and heat output of the surface elements on your range, allowing you to adjust the temperature for cooking.

A bad surface element control infinite switch can occur due to wear and tear, electrical issues, or damage to the switch mechanism. If you notice symptoms such as inability to adjust the temperature, uneven heating, or the surface element not turning on or off, it may indicate a faulty infinite switch.

Symptoms of a bad infinite switch include:

• Inability to adjust the temperature
• Uneven heating
• Surface element not turning on or off

Restore your range by replacing the faulty or damaged surface element control infinite switch with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


The Infinite Switch is an OEM part for Whirlpool ranges. It contains internal switches that control cooking functions and safety features.

Causes of a bad switch set can be related to prolonged high-heat exposure, moisture, or accidental impact damage. Over many uses, normal component wear also occurs.

Symptoms of a bad switch include:

• Inoperable or unresponsive dials/buttons
• Failure to ignite burners or maintain set temperatures
• Stovetop elements do not turn off properly
• Oven will not initiate bake or broil cycles

This switch replacement is also compatible with select Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore ranges.

Surface unit indicactor light.

This is a genuine replacement mounting screw used to secure appliance panels and components. It restores proper fastening to reduce vibration and prevent parts from loosening during normal operation. What it does:

• Secures panels, brackets, or trim to the appliance frame
• Prevents rattling or vibration caused by loose fasteners
• Keeps wiring and small components held in place
• Helps maintain proper alignment of removable parts

• Disconnect power to the appliance before servicing
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand, then tighten until snug; do not overtighten
• Keep removed fasteners organized to ensure correct reassembly

This electronic control board manages the appliance's user interface and main functions, restoring normal control and display operation when the original board fails. Replaces a malfunctioning or damaged control module to bring back reliable operation. What it does:

• Interprets user inputs from the console and sends commands to subsystems
• Controls timing, cycles, and display outputs for proper operation
• Common symptom fix: unresponsive buttons or touchpad
• Common symptom fix: blank, flickering, or incorrect display
• Common symptom fix: appliance won't start or cycles erratically

• Disconnect power (unplug or shut off breaker) before servicing to avoid shock
• Handle the board carefully to avoid ESD damage; ground yourself or use an anti-static strap
• Inspect connectors and harnesses for damage and ensure secure connections during reassembly

This gasket seals and cushions a door or control switch, helping keep out moisture and debris so the switch can operate reliably. Use it to restore a proper seal and reduce false trips or intermittent switch contact. What it does:

• Provides a protective seal around a door or control switch to limit dust and moisture intrusion
• Cushions the switch assembly to reduce wear and noise from repeated use
• Helps maintain consistent switch engagement and reliable operation
• Common service part when a switch area shows visible gaps, wear, or causes intermittent function

• Power off and unplug the appliance before starting any repair
• Handle the gasket and adjacent wiring carefully to avoid damage; replace any brittle clips or fasteners

This red indicator light lens covers the control-panel light opening. It restores a clean, finished look and keeps the status light easy to see while helping protect the opening from debris and accidental contact.

• Covers and diffuses the indicator light for clear visibility
• Fills the control panel opening for a finished, factory appearance
• Helps shield the opening from dust, splashes, and contact
• Common fixes: cracked, missing, loose, or discolored indicator lens

• Disconnect power by unplugging the appliance or switching off the breaker before servicing
• Access the control panel/backguard per your model's instructions
• Release the old lens (tabs/retainer) and press the new lens into the opening until fully seated
• Restore power and verify the indicator light is visible through the lens

This mounting bracket secures appliance components to the cabinet or chassis, restoring proper alignment and support. Designed to replace damaged or missing brackets, it helps reduce vibration and prevent parts from shifting during use. What it does

• Provides a stable anchor point for internal components or panels
• Restores proper alignment and fit between the appliance cabinet and mounted parts
• Helps reduce vibration and rattling caused by loose or broken supports
• Commonly replaced when bracket is bent, cracked, or missing

• Inspect adjacent fasteners and mounting holes; replace any stripped screws or damaged hardware
• Use appropriate tools and mounting hardware for secure installation; torque to OEM recommendation if available
• Disconnect power before working on electrical appliances and follow all safety guidelines

Replacement gasket that restores a tight seal to the appliance door and helps prevent water or air leaks. Replaces worn, cracked, or compressed seals so the door closes properly and reduces moisture or heat loss. What it does:

• Seals the door opening to stop leaks of water, steam, or heated air.
• Helps maintain proper temperature and efficiency by preventing air exchange.
• Reduces condensation, odors, and cycling caused by a poor seal.
• Common signs you need this part: visible gaps or damage, leaks around the door, excess moisture, or poor heating/cooling performance.

• Disconnect power and water (if applicable) and allow the appliance to cool before starting.
• Clean and dry the mating surface to ensure a proper fit; remove old adhesive or debris.
• Align the gasket into the door channel or groove and press evenly; avoid stretching the material.
• If the door or mounting hardware is bent or damaged, repair those parts before installing the gasket.

This oven door gasket seals the oven cavity to keep heat and moisture in for even cooking and energy efficiency. A worn or damaged gasket can cause heat loss, longer cook times, or visible smoke/odor. What it does:

• Creates a tight seal between the oven door and cavity to retain heat and moisture
• Helps maintain consistent bake and roast temperatures for even cooking
• Reduces heat escaping that can trigger longer cook cycles or cycling issues
• Limits smoke and food odors from leaking into the kitchen

• Disconnect power and allow the oven to cool completely before servicing
• Remove the door per the manufacturer instructions if needed to access the gasket channel
• Inspect the gasket channel for debris and clean before installing the new gasket for a proper seal
• The gasket is fully seated along the door perimeter and check for pinched or twisted sections

Restore reliable operation with this electronic control board, the appliance's central "brain." It manages inputs and outputs so programmed functions run correctly, helping resolve unresponsive controls and erratic or failed cycles.

• Directs and times operations based on user commands and sensor feedback
• Distributes power to components such as motors, valves, heaters, lights, or fans as required
• Monitors switches/sensors to maintain proper performance
• Symptoms can include no power, won't start, unresponsive buttons, random resets, incomplete cycles, or error codes

• Disconnect power before servicing; verify no voltage is present
• Use ESD precautions and handle the board by its edges
• Photograph wiring/connectors to ensure correct reassembly
• Mount in the original position and refer to the unit's tech sheet for any required setup or diagnostics after installation

This mounting bracket secures a component or panel to the appliance frame, keeping it aligned and stable during operation. Replace a cracked or bent bracket to stop looseness, rattling, or shifting and restore proper support.

• Anchors the specified component or panel to the chassis
• Maintains correct position and spacing for reliable operation
• Helps reduce vibration and noise from a loose mount
• Common symptoms: broken or missing bracket, bent metal, sagging/misaligned component, difficulty fastening parts

• Disconnect power before service; shut off water supply if applicable
• Note orientation and fastener locations; transfer existing screws/clips if needed
• Support the component while removing/installing the bracket to prevent strain
• Tighten fasteners evenly; avoid overtightening to prevent damage

This trim vent restores the finished look and airflow at the front base of your refrigerator. It replaces a damaged or missing grille to help maintain proper ventilation and a clean appliance appearance. What it does:

• Covers the front base opening and directs airflow into the refrigerator's vent area
• Helps keep debris and large particles out of the ventilation channel
• Restores a finished, factory appearance to the appliance front
• Common symptom: cracked, broken, or missing grille that exposes the vent area

• Remove power to the appliance before starting any service if panels near electrical components must be removed
• Typically installs with clips or screws—retain fasteners and follow OEM access steps
• Handle part carefully to avoid scratching paint or bending mounting tabs
• Replace damaged hardware to ensure secure fit

The Vent Trim is an OEM part for Whirlpool ranges. It enhances the appearance of your kitchen while providing a finished look to the range vent area. It covers the gaps and edges around the range vent, creating a clean design.

A bad vent trim can occur due to wear and tear, accidental damage, or improper installation. If you notice symptoms such as loose or missing trim, gaps around the vent area, or an uneven and unfinished look, it may be time to replace the vent trim.

Symptoms of a bad vent trim include:

• Loose or missing trim
• Gaps around the range vent area
• Uneven and unfinished appearance

Repair your range by replacing the worn-out or damaged vent trim with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This Bumper is an OEM part for Whirlpool ranges. Serving as a protective barrier, it cushions and safeguards various parts of the range. Engineered to fit seamlessly, it ensures stability and protection for specific range models.

What causes a bad part:
Continuous use, exposure to heat, or physical impact can lead to wear and tear of the Bumper. Harsh cleaning agents or abrasive materials during maintenance can also contribute to its degradation.

Symptoms for a bad part:

• Loose or detached bumpers
• Visible cracks or damage on the bumper
• Increased vibration or instability in the range

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This anchor tip secures the washer agitator to the transmission shaft so the agitator turns with the washer drive. Replaces a worn or damaged anchor tip to restore proper agitator engagement and reduce slipping. What it does:

• Secures the agitator to the drive shaft so the agitator rotates with the motor
• Helps prevent the agitator from slipping or spinning independently
• Commonly used when the agitator feels loose, makes grinding or clicking noises, or stops agitating
• Simple, low-profile part that works behind the agitator cap

• One anchor tip

• Disconnect power and water before starting any repair
• Remove agitator/agitator cap to access and replace the anchor tip per OEM instructions
• Inspect mating surfaces and replace any additional worn components if engagement remains poor

Screws for range anti tip bracket: WP3801F656-51. Includes 2 screws.

This wire harness connects control components to the main appliance circuitry, restoring reliable power and signal paths for controls. Replacing a damaged harness helps stop intermittent operation and restores consistent control response. What it does

• Carries power and control signals between the control board and components
• Common symptom: controls or display are unresponsive or intermittent
• Common symptom: appliance fails to start or cycles incorrectly
• Prevents electrical shorts from damaged or frayed wiring when replaced promptly

• Always unplug the appliance or disconnect power at the breaker before servicing
• Verify harness routing and connector orientation against the appliance wiring diagram
• Inspect connectors and adjacent components for heat damage; replace any damaged parts
• Requires basic hand tools and moderate disassembly

The Keypad Wire Harness is an OEM part for Whirlpool ranges. This component is essential for connecting the keypad to the control board, enabling communication between user inputs and the range's operational functions.

Causes of a bad keypad wire harness can include wear and tear from regular use, exposure to heat and moisture, or physical damage due to mishandling or accidental impact. Electrical issues such as short circuits or frayed wires can also lead to malfunctioning.

Symptoms of a bad keypad wire harness include:

• Unresponsive keypad buttons
• Intermittent or inconsistent range operation
• Error codes related to keypad communication
• The range not powering on or off correctly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
